BRIGHTSTAR
PROTOTYPE CNC CO., LTD
+86 137 5010 5351
EN
May. 25, 2026
Have you ever encountered this situation? Your CNC machined aluminum parts come out clean and bright, but after a few days or weeks, the surface begins to appear dull, turn black, or even develop white powder. Without any contact with corrosive substances, why do aluminum parts seem to "deteriorate" on their own?
This is not a quality issue but the nature of aluminum. Aluminum is a very active metal that naturally forms an oxide film in air. However, this naturally formed oxide film is very thin and porous, unable to effectively protect the underlying metal. Over time, oxidation continues to penetrate deeper, causing the surface to blacken and lose its luster, which can seriously affect the appearance and functionality of the part.
So why do aluminum parts oxidize and turn black? What environmental factors accelerate oxidation? How can it be prevented? Can already oxidized parts be restored?
This article will start from the chemical properties of aluminum, providing a detailed analysis of the causes of aluminum oxidation, prevention measures, and solutions, helping you protect your CNC aluminum parts and keep them in good condition for a long time.
To understand why aluminum parts turn black, you first need to understand the chemical properties of aluminum.
Aluminum is a very active metal. In the periodic table, aluminum ranks high in activity, meaning it readily reacts with other elements. Aluminum has a strong affinity for oxygen and rapidly reacts with oxygen in the air to form a layer of aluminum oxide film on its surface.
This naturally formed oxide film is only 0.005 to 0.015 microns thick, equivalent to one ten-thousandth the thickness of a human hair. Although it is very thin, it does to some extent prevent further contact between oxygen and the metal. This is the basis for aluminum's "corrosion resistance."
However, the problem is that this natural oxide film has two defects.
First, it is very thin and easily scratched or worn. Once damaged, the underlying aluminum is exposed and continues to oxidize.
Second, it is porous. The oxide film contains countless tiny pores through which oxygen and moisture can continue to penetrate and react with the internal aluminum. Over time, oxidation gradually deepens, and the surface color changes from silver-white to dull and eventually black.
This is why aluminum parts turn black when left in the air for a long time.
Although aluminum will oxidize in any natural environment, the following factors significantly accelerate this process.
Moisture is a catalyst for aluminum oxidation. In high-humidity environments, an extremely thin layer of water forms on the surface of aluminum parts. Oxygen in this water layer more readily undergoes electrochemical reactions with aluminum, accelerating oxidation. During the rainy season or in coastal areas, the oxidation rate of aluminum parts increases significantly.
High temperatures accelerate chemical reactions. In high-temperature environments, the oxidation rate of aluminum parts increases significantly. This is why aluminum parts in automobile engine compartments oxidize and turn black more easily than indoor aluminum parts.
Aluminum is very sensitive to acids and alkalis. Acidic environments directly corrode the oxide film, and alkaline environments also dissolve it. Acidic gases in industrial environments and alkaline components in cleaning agents can accelerate the oxidation of aluminum parts.
When aluminum comes into contact with different metals such as copper or iron, a galvanic effect occurs in humid environments, accelerating the corrosion of aluminum. This phenomenon is particularly common at screw connections and metal contact surfaces.
After CNC machining, the surface of the part may retain cutting fluid, oil, or hand sweat. These residues contain salts and acidic substances that locally accelerate oxidation. This is why some aluminum parts develop fingerprint-shaped oxidation marks within days of machining.
Different series of aluminum alloys have different oxidation resistance. Pure aluminum has the best oxidation resistance, followed by 6xxx series aluminum (such as 6061), then 5xxx series aluminum. The 7xxx series aluminum (such as 7075) has relatively poor oxidation resistance. Die-cast aluminum, due to its high silicon content, tends to turn black easily after oxidation.
This is the earliest manifestation. A surface that was originally bright or glossy gradually becomes dull and loses its metallic feel. This is usually a signal that oxidation has begun.

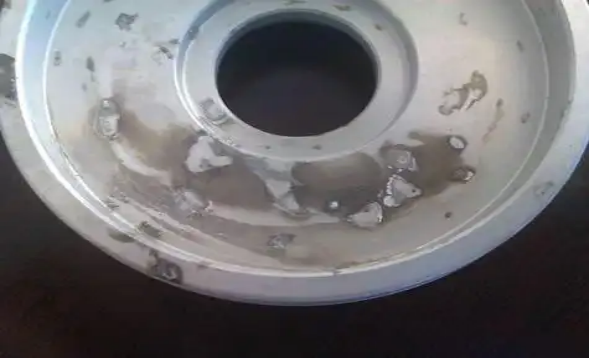

When oxidation intensifies, a white powdery substance appears on the surface. This is aluminum oxide powder that can be wiped off with fingers. The appearance of white powder indicates that oxidation has become relatively severe.

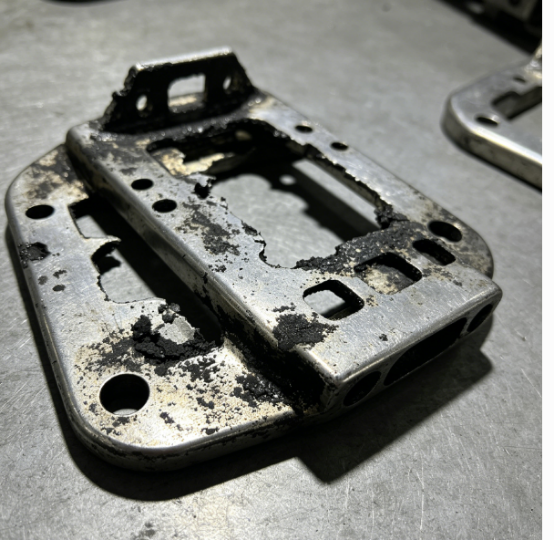

After white powder, black spots or patches gradually appear on the surface. This is a sign of increased oxidation depth. Black areas usually cannot be removed by simple wiping.
In cases of severe oxidation, tiny corrosion pits appear on the surface. This is no longer just an appearance issue; it affects the dimensional accuracy and structural strength of the part.
Prevention is always more effective than restoration. Here are complete preventive measures from machining to storage.
After CNC machining is completed, cutting fluid, oil, and chip residues on the part surface should be removed as soon as possible. Use a dedicated cleaning agent or mild soapy water to clean the part, then rinse thoroughly with clean water, and finally dry with clean compressed air or air dry in a dry environment.
Note: Do not use strong cleaning agents containing acids or alkalis, as they can corrode the aluminum surface.
This is the most effective preventive measure. Surface finishing forms a dense protective layer on the aluminum part surface, completely isolating it from air and moisture.
Anodizing is the most commonly used surface finishing method for aluminum parts. An electrochemical process generates a thick, dense aluminum oxide film on the aluminum part surface. This film has high hardness and good corrosion resistance, providing long-term protection for aluminum parts.
Chemical conversion coating is another option. The resulting film is thinner but has better conductivity, making it suitable for parts that need to conduct electricity.
Painting or powder coating is also a common choice, forming an organic coating on the aluminum part surface.
If surface finishing cannot be done immediately, aluminum parts should be stored in a dry environment. Relative humidity should be controlled below 40%. Desiccants or dehumidifiers can be used to reduce environmental humidity.
Avoid placing aluminum parts directly on concrete floors, as concrete absorbs moisture and releases alkaline substances. Use plastic pallets or wooden racks to raise the parts off the floor.
During design, try to avoid direct contact between aluminum and other metals. If direct contact is unavoidable, use insulating gaskets or apply anti-corrosion coatings at the contact surfaces.
For aluminum parts that need to be transported or stored for long periods, use rust-proof paper or rust-proof bags for packaging. These materials release vapor phase corrosion inhibitors that form a molecular-level protective film on the aluminum part surface.
Hand sweat contains salts and acidic substances that accelerate aluminum oxidation. When handling aluminum parts, wear clean, powder-free gloves.
If your parts need to be exposed to harsh environments for extended periods, consider using aluminum alloys with better oxidation resistance. Pure aluminum and 6xxx series aluminum are good choices. Although 7075 aluminum has high strength, its oxidation resistance is relatively poor and requires reliable surface finishing.
If your aluminum parts have already oxidized and turned black, do not worry. Depending on the degree of oxidation, there are several restoration methods.
Mild Oxidation: Surface Darkening or Slight White Powder
For mild oxidation, try wiping with a mild cleaning agent and a soft cloth. Mix a neutral cleaning agent with water, dip a soft cloth into the solution, gently wipe the surface, then rinse with clean water and dry.
If the cleaning agent is ineffective, use fine sandpaper or a scouring pad to gently sand off the surface oxidation layer. Start with finer sandpaper, gradually increase the fineness, and finally use polishing compound to restore the luster.
This method is suitable for parts with low appearance requirements or as a temporary treatment before formal restoration.
Moderate Oxidation: Visible Black Spots
For moderately oxidized aluminum parts, simple wiping and sanding are no longer sufficient. Mechanical polishing or sandblasting is required.
Mechanical polishing can remove the surface oxidation layer while restoring metallic luster. First use a coarse polishing wheel to remove the oxidation layer, then a fine polishing wheel for final polishing. After polishing, the part should be cleaned immediately and surface finishing applied to prevent re-oxidation.

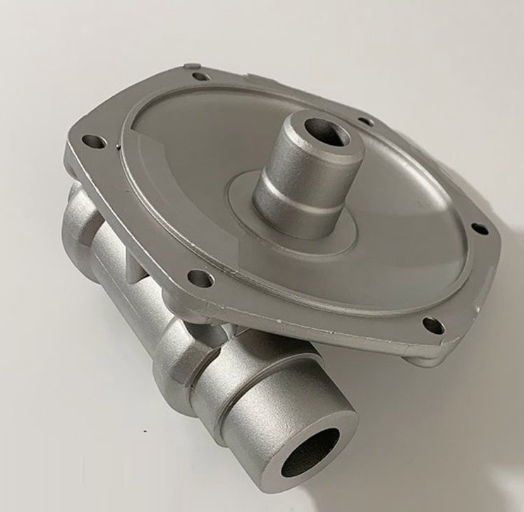

Sandblasting can remove the surface oxidation layer while achieving a uniform matte effect. The sandblasted surface does not require further polishing, but anodizing is recommended to provide long-term protection.
Severe Oxidation: Corrosion Pits
If aluminum parts have developed visible corrosion pits, the oxidation has penetrated deep into the material. In this case, simply removing the surface oxidation layer is insufficient.
Light corrosion pits can be removed by sanding, but this will change the part dimensions. If the corrosion pits are deep, welding filler may be needed before sanding, or the part may need to be scrapped and remade.
For functional parts, replacement is recommended because corrosion has already compromised structural integrity.
Misconception 1: Aluminum does not rust, so no protection is needed
Aluminum does not "rust" like iron and steel, but it does oxidize and turn black. Although oxidation does not affect structural strength in the early stages, it does affect appearance and certain functions. If your part has requirements for color and surface quality, protection is necessary.
Misconception 2: Oxidation hardens the surface, which is a good thing
The naturally formed oxide film is very thin and porous. Although its hardness is higher than that of aluminum, it cannot provide effective protection. Only the artificially formed oxide film through anodizing provides true protection.
Misconception 3: All aluminum alloys have the same oxidation resistance
Different series of aluminum alloys have significantly different oxidation resistance. 6xxx series aluminum (such as 6061) has good oxidation resistance, while 2xxx series aluminum (such as 2024) has poor oxidation resistance. The usage environment should be considered when selecting materials.
Misconception 4: Polished aluminum parts need no further treatment
Polished aluminum parts have a very bright surface, but the natural oxide film is still very thin and cannot provide long-term protection. Without anodizing or painting, the polished surface will quickly oxidize and darken again.
Precision Parts After CNC Machining
Precision parts have high dimensional accuracy requirements. It is recommended to perform anodizing as soon as possible after machining. The thickness of the anodized film is可控, protecting the part without affecting fit accuracy. Choose clear anodizing to retain machining marks, or choose sandblasted anodizing for a uniform appearance.
Appearance Parts
For appearance parts such as consumer electronic product housings and medical device housings, sandblasted anodizing with dyeing is recommended. Sandblasting hides machining imperfections, anodizing provides protection, and dyeing allows color selection according to design needs.
Functional Parts
For parts that need to withstand wear or contact with corrosive media, hard anodizing is recommended. The hard anodized film is thick and hard, providing excellent wear and corrosion protection.
Prototype Parts
For prototype parts, if they are only for short-term display or testing, surface finishing may be omitted initially. However, the parts should be stored in a dry environment and kept away from hand sweat. If the prototype needs to be kept for a long time, simple anodizing or painting is recommended.
Q: Can aluminum parts that have oxidized and turned black still be used?
Mild oxidation does not affect structural strength and the parts can continue to be used. Moderate oxidation requires treatment before use. For severe oxidation with corrosion pits, replacement is recommended.
Q: How can I distinguish between oxidation and contamination?
Try wiping with water. Oxidation layers usually cannot be wiped off with water, while surface contaminants often can. Alcohol can also be used for wiping, but the oxidation layer still will not dissolve.
Q: Can oxidized aluminum parts be re-anodized?
Yes, but the original oxide film and oxidation layer need to be removed first. Typically, the old film is removed by chemical stripping or mechanical sanding, and then anodizing is performed again. This process will slightly reduce the part dimensions.
Q: Does contact between stainless steel and aluminum accelerate aluminum oxidation?
Yes. In humid environments, contact between stainless steel and aluminum creates a galvanic effect that accelerates aluminum corrosion. Insulating gaskets or sealants are recommended at the contact surfaces.
Q: Do you offer aluminum oxidation treatment services?
Yes. Brightstar offers sandblasted anodizing, clear anodizing, and hard anodizing services for aluminum parts. We can also perform restoration treatment for already oxidized aluminum parts.
Aluminum oxidation and blackening are determined by the chemical nature of aluminum and cannot be completely avoided, but they can certainly be prevented and controlled.
The key points are as follows:
Clean immediately after machining to remove cutting fluid and oil residues.
Apply surface finishing promptly; anodizing is the most effective protective measure.
Store in dry conditions, avoiding high humidity environments.
Avoid contact with dissimilar metals and hand sweat.
Choose the right aluminum alloy; 6xxx series aluminum has good oxidation resistance.
If oxidation has already occurred, choose wiping, sanding, polishing, sandblasting, or re-anodizing according to the degree of oxidation.
Understanding the causes and prevention methods of aluminum oxidation can help you better protect your CNC aluminum parts, extend their service life, and maintain good appearance.
Brightstar not only provides precision CNC machining services but also offers one-stop surface finishing services including anodizing, sandblasting, and polishing. Whether your aluminum parts need oxidation prevention or restoration treatment, we can provide professional solutions.
Whether you need to prevent aluminum oxidation or treat already oxidized parts, Brightstar can provide professional solutions.
Email Amy: amy@brightstarprototype.com
Call or WhatsApp: +86 13750105351
Send us your CAD files and drawings for aluminum protection recommendations and a quote.
Brightstar – Precision CNC Machining. Aluminum Protection, Starting from the Source.
