Why Do Tight Tolerances Drive Up CNC Machining Costs? How to Specify Tolerances Wisely for 5-50 Piece Orders?

Introduction

Have you ever received a CNC quote that seemed unreasonably high, only to discover that the culprit was a single tolerance callout on your drawing? A bracket that could be machined for $15 each suddenly costs $60 each because one bore was specified at ±0.005 mm instead of ±0.05 mm.

This is not the machinist inflating the price. It is the direct consequence of how precision is achieved in CNC machining. Tighter tolerances demand slower cutting speeds, more frequent tool changes, additional inspection steps, and sometimes entirely different processes. Understanding the relationship between tolerance and cost is one of the most powerful levers you have for reducing expenses on small batch orders.

This article will break down why tight tolerances are expensive, explain how tolerance decisions ripple through the entire manufacturing process, and provide you with practical strategies to specify tolerances that meet your functional needs without paying for precision you do not actually require.

1. Why Do Tight Tolerances Increase CNC Machining Costs?

To understand why tolerance affects price so dramatically, you first need to understand what happens on the shop floor when a tight tolerance is called out.

Machining Time Increases Exponentially

Achieving a tight tolerance requires slower cutting speeds, smaller depth of cut, and sometimes multiple finishing passes. A feature that could be roughed out in one pass at ±0.1 mm might require three or four passes at ±0.01 mm. Each additional pass adds machining time, and machining time is billed by the hour. The relationship is not linear; going from ±0.05 mm to ±0.005 mm can easily double or triple the time required for that feature.

Tool Wear and Tool Changes Accelerate

Tight tolerances often require sharp, fresh tooling. A worn tool will drift out of tolerance quickly, forcing the machinist to replace it more often. In small batch orders, this tool wear cost cannot be spread across thousands of parts. Each tool change also adds non-cutting time to the job.

Inspection Becomes a Bottleneck

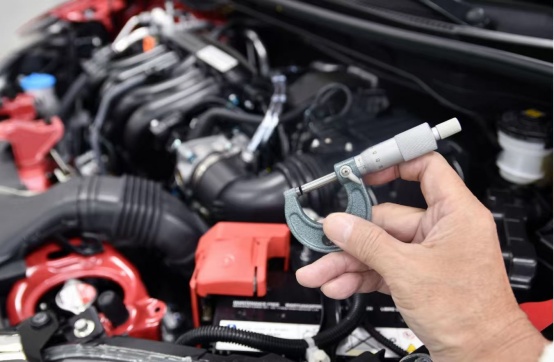

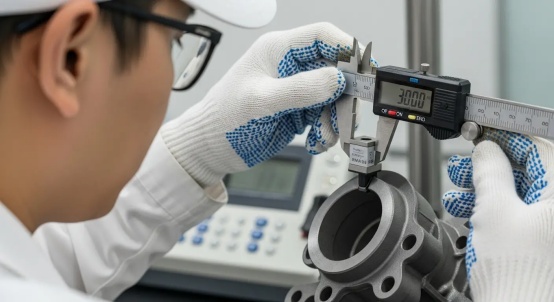

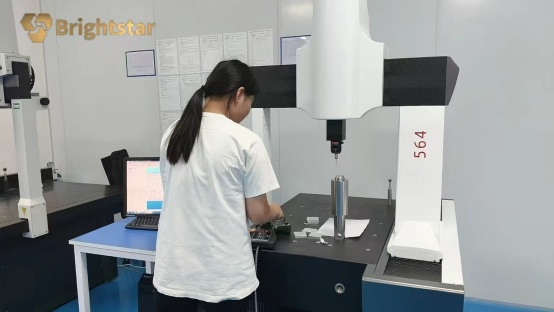

A ±0.1 mm tolerance can be verified with calipers in seconds. A ±0.005 mm tolerance may require a micrometer, a bore gauge, or even a coordinate measuring machine (CMM). CMM inspection is slow, requires a controlled environment, and often needs a dedicated programmer. These inspection costs are billed to your order, and for small batches they represent a significant portion of the total price.

Special Processes May Be Required

Some tolerances simply cannot be achieved with standard CNC machining alone. A bore with a tolerance of ±0.002 mm may require honing, lapping, or cylindrical grinding after machining. A flatness callout of 0.005 mm may require surface grinding. Each additional process adds setup time, labor, and cost.

Scrap Risk Increases

When tolerances are tight, the margin for error shrinks. A single tool deflection, thermal expansion, or fixture slip can push a part out of specification. In small batch orders, scrapping one part out of ten is a 10% cost increase. The machinist must factor this risk into the quote.

A Simple Cost Comparison

Suppose a part has a bore that could be specified at ±0.05 mm or ±0.005 mm. At ±0.05 mm, the bore might be machined in 10 minutes and inspected in 1 minute. At ±0.005 mm, the same bore might require 25 minutes of machining, a tool change, and 8 minutes of CMM inspection. If the shop rate is $80 per hour, the tight tolerance adds roughly $30 to the cost of that single feature. Multiply that across several features, and the unit price can easily double.

2. Strategies to Specify Tolerances Wisely

Now that we understand where the costs come from, we can develop targeted strategies to keep tolerances functional and affordable.

Strategy 1: Apply Tight Tolerances Only Where They Matter

This is the single most effective cost reduction method. Go through your drawing feature by feature and ask one question: does this tolerance affect fit, function, or safety? If the answer is no, loosen it. A mounting hole that only needs to pass a bolt does not need a ±0.01 mm diameter tolerance. A cosmetic edge does not need a ±0.02 mm profile tolerance. Reserve your tightest tolerances for mating surfaces, bearing bores, and critical locating features.

Strategy 2: Use Standard Tolerances as Your Default

Most machine shops have a standard tolerance that they can hold without special effort, typically ±0.125 mm for metal parts and ±0.25 mm for plastic parts. If you specify this as your default tolerance and only tighten it where necessary, you avoid the cost premium entirely. Many drawings fail because the designer applied a single tight tolerance block to the entire part out of habit or caution.

Strategy 3: Understand the Difference Between Linear and Geometric Tolerances

Linear tolerances (like ±0.05 mm) control size. Geometric tolerances (like flatness, parallelism, and position) control form and relationship. In many cases, a geometric tolerance can achieve the same functional result with less machining effort than an equivalent linear tolerance. For example, specifying a position tolerance of 0.1 mm on a hole pattern may be cheaper than specifying ±0.02 mm on each hole's location, because the position tolerance allows the pattern to shift as a group.

Strategy 4: Avoid Over-Tolerancing Holes and Bores

Holes are among the most expensive features to hold to tight tolerances. A reamed hole held to ±0.01 mm is far more expensive than a drilled hole held to ±0.1 mm. If your application requires a precise bore, consider whether a standard reamer size can be used instead of a custom diameter. Standard reamers are readily available and inexpensive; custom reamers take weeks to deliver and cost several times more.

Strategy 5: Consider the Assembly Relationship

Tolerances should be driven by the assembly, not by the drawing. If two parts must fit together, the critical dimension is the clearance or interference between them, not the absolute size of each part. In some cases, you can loosen the tolerance on both parts while still maintaining the required fit, as long as the variation is controlled in the right direction. This is where a conversation with your machinist can pay off.

Strategy 6: Use Surface Finish Callouts Sparingly

Surface finish and tolerance are closely related. A surface that must be ground to Ra 0.4 is much more expensive than a surface that can be left as-machined at Ra 3.2. If a surface is not a sealing surface, a bearing surface, or a sliding surface, it probably does not need a fine finish. Specify surface finish only where friction, wear, or sealing is a concern.

Strategy 7: Ask for a Tolerance Review Before Ordering

Many machine shops, including Brightstar, offer a free design for manufacturability (DFM) review. During this review, the machinist can flag tolerances that are driving up cost and suggest alternatives that still meet your functional requirements. This conversation takes minutes but can save hundreds of dollars on a small batch order.

Strategy 8: Consider the Capability of the Process

Different CNC processes have different natural tolerances. A standard 3-axis mill can hold ±0.05 mm comfortably. A 5-axis mill can hold ±0.02 mm but at a higher hourly rate. A lathe can hold ±0.01 mm on diameters but may struggle with certain features. Matching your tolerance requirements to the natural capability of the process avoids the cost of fighting the machine.

Strategy 9: Document Your Functional Requirements

Instead of specifying a tolerance number, describe what the feature needs to do. For example, instead of writing ±0.01 mm on a shaft diameter, write "must fit bearing XYZ with a light press fit." This gives the machinist the freedom to choose the most economical way to achieve the functional result. In many cases, the machinist can meet the functional requirement with a looser tolerance than you would have specified.

Strategy 10: Review Tolerances After the First Article

Once the first article is inspected, you have real data on what the process can achieve. If a feature consistently comes in at ±0.03 mm and functions perfectly, consider loosening the tolerance to ±0.05 mm for the production run. This is a simple change that can reduce cost without affecting quality.

3. What Factors Drive Up Tolerance-Related Costs?

Non-Standard Dimensions

A bore specified at 12.73 mm instead of 12.70 mm may seem trivial, but it requires a custom reamer or a boring operation. Standard sizes exist for a reason: they are cheaper to produce and easier to inspect.

Tight Tolerances on Large Features

Holding a ±0.05 mm tolerance on a 500 mm long part is far more difficult than on a 50 mm part. Thermal expansion alone can push a large part out of tolerance. If a large feature needs a tight tolerance, expect the machinist to take special precautions that add cost.

Tight Tolerances Across Multiple Features

When several features must be held to tight tolerances relative to each other, the machining sequence becomes more complex. Each setup must be precise, and each transition introduces potential error. This is where geometric tolerances and datum systems become important, but they also add inspection time.

Tolerances That Require Special Tooling

A tolerance that cannot be achieved with standard tooling will require custom tools, special fixtures, or additional processes. These are all cost drivers that are difficult to avoid once the tolerance is specified.

4. Frequently Asked Questions

Q: What is the standard tolerance for CNC machining?

Most shops can hold ±0.125 mm (about ±0.005 inches) as a standard tolerance without special effort. Tolerances tighter than ±0.025 mm typically require additional attention, and tolerances tighter than ±0.005 mm may require specialized processes or equipment.

Q: Can I specify different tolerances for different features on the same part?

Yes, and you should. A well-designed drawing will show tight tolerances only on critical features and standard tolerances elsewhere. This is the most effective way to control cost without sacrificing function.

Q: How much can I save by loosening tolerances?

The savings depend on the feature and the process. In general, moving from a tight tolerance to a standard tolerance on non-critical features can reduce the cost of those features by 30% to 60%. On a typical small batch order, this can translate to a 15% to 30% reduction in total unit price.

Q: Does Brightstar offer tolerance reviews?

Yes. Brightstar provides free DFM reviews for all small batch orders. Our engineers will review your drawing, flag tolerances that are driving up cost, and suggest alternatives that meet your functional requirements. We typically respond within 24 hours.

Q: What if I need a tight tolerance but do not know the exact number?

Describe the functional requirement instead. Tell us what the feature must do, what it must fit with, and what the consequences of variation are. Our engineers can recommend a tolerance that meets your needs at the lowest possible cost.

5. Summary

Tight tolerances drive up CNC machining costs primarily because they demand slower cutting speeds, more frequent tool changes, additional inspection, and sometimes specialized processes. Understanding this allows you to control costs through the following strategies:

Apply tight tolerances only where they affect fit, function, or safety. Use standard tolerances as your default. Understand the difference between linear and geometric tolerances. Avoid over-tolerancing holes and bores. Consider the assembly relationship rather than absolute dimensions. Use surface finish callouts sparingly. Ask for a tolerance review before ordering. Match tolerances to the natural capability of the process. Document functional requirements instead of arbitrary numbers. Review tolerances after the first article.

Brightstar specializes in providing CNC machining services for customers in the automotive, medical, aerospace, and robotics industries. Whether you need 5 pieces or 50 pieces, we can help you optimize your tolerances and control costs without sacrificing quality.
