March. 18, 2026
CNC machining—or Computer Numerical Control machining—is a subtractive manufacturing process where pre-programmed software dictates the movement of factory tools and machinery. This automated control enables the precise, repeatable removal of material from a solid workpiece, transforming raw stock into finished components with tolerances often measured in microns.
In modern manufacturing, CNC machining stands as a cornerstone technology due to its unparalleled combination of precision, repeatability, and versatility. Unlike manual machining, which relies on operator skill and is subject to human error, CNC automation ensures that the first part and the thousandth part are virtually identical. This consistency is critical for industries such as aerospace, medical devices, and automotive, where component reliability is non-negotiable.
For engineers and product designers, understanding CNC machining is essential not only for specifying manufacturing methods but also for designing parts that are optimized for producibility—reducing costs, shortening lead times, and accelerating the journey from concept to market.

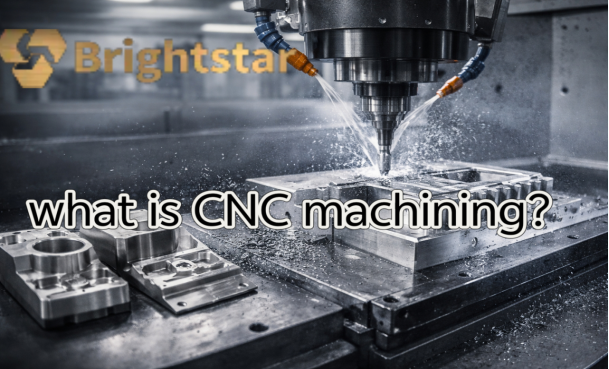

CNC machining stands for Computer Numerical Control machining, a manufacturing process where pre-programmed computer software controls the movement of factory tools and machinery. The term "Numerical Control" refers to the historical use of numerical data to control machine tools, evolving from punched tape systems to modern digital interfaces. Today, CNC technology enables the automated operation of complex equipment including mills, lathes, routers, and grinders with minimal human intervention.
The CNC process begins with a 3D CAD model of the desired part, which is converted into machine-readable code—typically G-code—containing precise coordinates, feed rates, spindle speeds, and tool change instructions. This code directs servo motors to position cutting tools along multiple axes simultaneously, removing material from a solid workpiece with exceptional accuracy. Modern CNC machines can operate on up to five axes, allowing for the creation of complex geometries in a single setup that would be impossible with manual methods.
CNC machining achieves tolerances as tight as ±0.025 mm or better, depending on the machine and material. Unlike manual machining, where part quality depends on operator skill and fatigue, CNC automation ensures that every component produced matches the first exactly. This repeatability makes CNC indispensable for industries requiring consistent, high-quality parts at scale, from aerospace components to medical implants.
The CNC machining process begins with Computer-Aided Design (CAD) software, where engineers and designers create detailed 3D models of the desired part. This digital blueprint defines every geometric feature, dimension, and tolerance requirement. Modern CAD platforms allow for parametric modeling, enabling quick design iterations and ensuring that all critical specifications are captured before manufacturing begins. The quality of this initial design directly influences the machinability and final accuracy of the finished component.
Once the CAD model is complete, it is imported into Computer-Aided Manufacturing (CAM) software. CAM programming is the critical bridge between design and production: the software analyzes the geometry and generates optimal toolpaths—the specific routes cutting tools will follow to remove material. Programmers select appropriate tools, define cutting parameters such as speeds and feeds, and determine machining strategies for roughing, finishing, and contouring operations. Simulation tools within CAM software verify toolpaths virtually, detecting potential collisions or errors before any metal is cut.
The CAM software outputs a program in G-code, the standardized language understood by CNC machines. G-code contains sequential instructions for every machine action: axis positioning, tool changes, spindle speed activation, coolant flow, and feed rate control. Each line of code directs a specific movement or operation, creating a comprehensive instruction set that governs the entire machining sequence.
The G-code program is loaded into the CNC machine's controller, which interprets the instructions and sends electrical signals to servo motors and drives. These motors precisely position the cutting tools and workpiece, executing the programmed toolpaths layer by layer. As material is removed, the machine continuously monitors its position through feedback systems, ensuring accuracy throughout the process. The result is a finished part that faithfully reproduces the original CAD model within specified tolerances.
CNC machining encompasses a variety of processes, each suited to specific part geometries, production volumes, and tolerance requirements. The three most common types are CNC milling, CNC turning, and multi-axis machining.
CNC milling is a versatile machining process where rotating multi-point cutting tools remove material from a stationary workpiece. The machine moves the cutting tool along multiple axes to create complex shapes, including flat surfaces, slots, pockets, and contoured profiles.
· Common configurations: 3-axis, 4-axis, and 5-axis milling centers
· Typical applications: Enclosures, brackets, molds, complex structural components
· Key advantages: High precision, excellent surface finish, ability to machine complex geometries
· Common materials: Metals, plastics, composites
Milling is the most widely used CNC process due to its flexibility and capability to produce intricate features in a single setup.

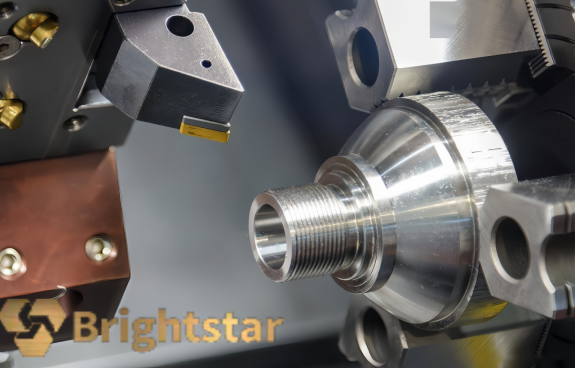

CNC turning, performed on CNC lathes, involves rotating the workpiece against stationary cutting tools to remove material. This process is ideal for producing cylindrical or symmetrical components.
· Common configurations: 2-axis turning, multi-axis turning with live tooling, Swiss-type turning
· Typical applications: Shafts, bushings, fasteners, pulleys, fittings
· Key advantages: Fast cycle times, excellent concentricity, smooth surface finishes
· Common materials: Metals (especially bar stock), plastics
Modern turning centers often incorporate live tooling, allowing milling and drilling operations to be performed without removing the workpiece from the machine.

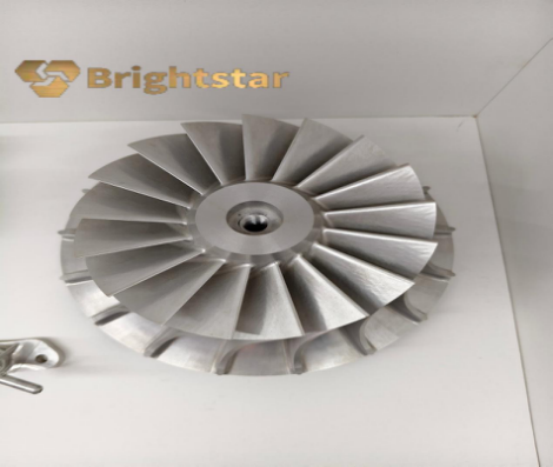

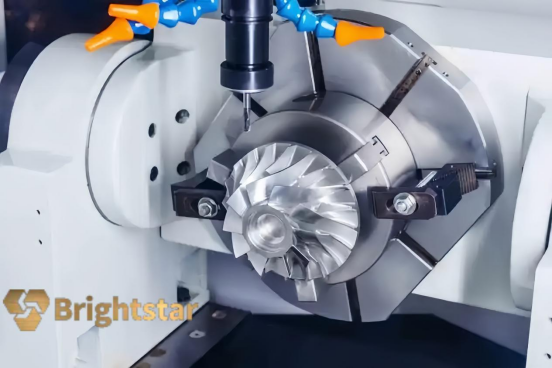

5-axis CNC machining represents the pinnacle of CNC capability, enabling cutting tools to move simultaneously across five different axes. This allows for the production of extremely complex geometries in a single setup.
· How it works: In addition to the standard X, Y, and Z linear axes, the machine rotates on A and B axes (or similar configurations), allowing the tool to approach the workpiece from any direction
· Typical applications: Aerospace components, medical implants, complex molds, turbine blades
· Key advantages: Reduced setup time, superior surface finish on complex surfaces, ability to machine undercuts and deep cavities
· Considerations: Higher machine cost, requires advanced programming and skilled operators

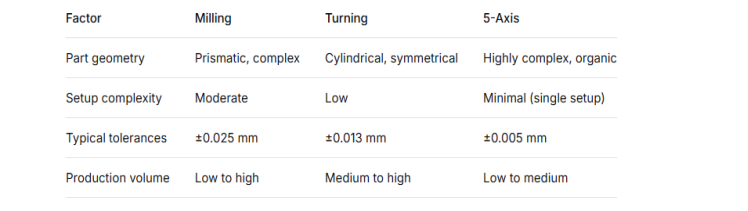

Engineers select the appropriate CNC process based on part geometry, tolerance requirements, material, and production volume. For many components, combining multiple operations on a single machine—such as mill-turn centers—offers the optimal balance of efficiency and precision

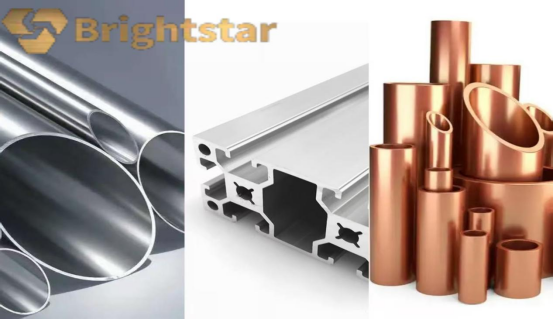

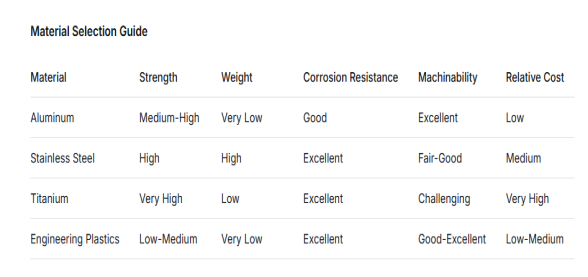

CNC machining is compatible with a wide range of engineering materials, each offering distinct mechanical properties, machinability characteristics, and application suitability. Material selection is a critical design decision that directly impacts part performance, manufacturing cost, and production timelines.
Aluminum is the most commonly machined metal due to its excellent combination of lightweight, strength, and machinability.
· Common alloys: 6061 (general purpose), 7075 (high strength), 2024 (fatigue resistant), 5052 (corrosion resistant)
· Key properties: Low density (2.7 g/cm³), good thermal conductivity, natural corrosion resistance
· Typical applications: Aerospace components, automotive parts, enclosures, heat sinks, prototypes
· Machinability: Excellent—allows high cutting speeds, long tool life, and superior surface finishes
Stainless steel offers superior strength, corrosion resistance, and aesthetic appeal, though it is more difficult to machine than aluminum.
· Common grades: 303 (free-machining), 304 (general purpose), 316 (marine grade), 17-4 PH (precipitation hardening)
· Key properties: High strength, excellent corrosion resistance, good fatigue properties
· Typical applications: Medical instruments, food processing equipment, marine hardware, structural components
· Machinability: Fair to good—requires rigid setups, appropriate tooling, and controlled cutting parameters
Titanium combines exceptional strength-to-weight ratio with outstanding corrosion resistance, making it indispensable for demanding applications.
· Common grades: Grade 2 (commercially pure), Grade 5 (Ti-6Al-4V, most common alloy)
· Key properties: High strength at elevated temperatures, biocompatible, excellent corrosion resistance
· Typical applications: Aerospace structural parts, medical implants, chemical processing equipment, high-performance automotive
· Machinability: Challenging—low thermal conductivity generates heat at the cutting zone, requiring specialized tooling and strategies
Engineering plastics offer lightweight, chemical resistance, and design flexibility for applications where metals may be unsuitable.
· Common materials: ABS, Nylon (PA), Delrin (POM), Polycarbonate (PC), PEEK, PTFE
· Key properties: Low friction, electrical insulation, chemical resistance, transparency options
· Typical applications: Bearings, bushings, insulators, housings, medical devices, food contact components
· Machinability: Generally good to excellent—requires sharp tooling and attention to thermal expansion
CNC machining has become the dominant manufacturing process across countless industries due to its unparalleled combination of precision, repeatability, and versatility. For engineers and product designers, understanding these advantages is essential for making informed manufacturing decisions.
CNC machines consistently achieve tolerances as tight as ±0.025 mm or better, depending on the equipment and material. This precision is maintained throughout the entire production run, ensuring that complex features, tight fits, and critical interfaces perform as designed. Modern CNC equipment with closed-loop feedback systems continuously monitors and corrects tool positioning, eliminating the variability inherent in manual machining.
Once a CNC program is verified, every part produced is identical to the first. This repeatability is critical for industries where component consistency directly impacts safety and performance, such as aerospace, medical devices, and automotive manufacturing. Engineers can specify CNC machining with confidence that production parts will match prototypes exactly, regardless of batch size.
CNC machining enables the production of geometries impossible or prohibitively expensive to create manually. Multi-axis machines allow for:
· Undercuts and deep cavities
· Compound angles and curved surfaces
· Thin walls and fine details
· Features requiring tool access from multiple directions
This geometric freedom allows engineers to optimize designs for performance rather than manufacturing constraints.
Unlike additive processes limited to specific polymers or metals, CNC machining accommodates virtually all engineering materials:
· Metals: Aluminum, steel, stainless steel, titanium, brass, copper
· Plastics: ABS, Delrin, Nylon, Polycarbonate, PEEK, PTFE
· Composites and specialty materials
This flexibility enables consistent manufacturing across prototypes, bridge production, and final parts using identical materials.
· No tooling investment: Parts are produced directly from CAD, eliminating mold costs
· Rapid turnaround: Ideal for iterative design and quick market entry
· Scalability: Equally economical for single prototypes and production runs
· Surface finish options: Wide range of as-machined and post-processed finishes available
For engineers, CNC machining offers the ideal balance of precision, material choice, and production flexibility, making it the preferred solution for everything from functional prototypes to end-use components.
CNC machining serves as the manufacturing backbone for numerous industries where precision, reliability, and material integrity are non-negotiable. From critical flight hardware to implantable medical devices, CNC technology enables the production of components that must perform flawlessly under demanding conditions.
The aerospace industry relies extensively on CNC machining for components that demand exceptional strength-to-weight ratios and zero defect tolerance.
· Typical components: Structural airframe parts, engine mounts, turbine blades, landing gear components, hydraulic manifolds, fuel system fittings
· Common materials: Titanium, 7075 aluminum, Inconel, stainless steel
· Key requirements: Tight tolerances, traceability, surface integrity, weight optimization
· Why CNC: Ability to machine complex 5-axis geometries from difficult materials while maintaining stringent aerospace standards
From prototyping to production, CNC machining plays a vital role throughout the automotive development cycle.
· Typical components: Engine blocks and cylinder heads, transmission housings, suspension components, brake calipers, custom intake manifolds, prototype parts for validation
· Common materials: Aluminum, cast iron, steel alloys, engineering plastics
· Key requirements: Consistency across high volumes, dimensional accuracy for mating parts
· Why CNC: Repeatability ensures every component meets specifications, while rapid prototyping enables faster design iterations
Medical device manufacturing demands biocompatibility, sterility, and microscopic precision—all achievable through CNC machining.
· Typical components: Surgical instruments, orthopedic implants (knee, hip), dental components, MRI-compatible parts, instrument housings, custom prosthetics
· Common materials: Titanium, stainless steel, PEEK, medical-grade plastics
· Key requirements: Biocompatibility, surface finish, cleanability, tight tolerances
· Why CNC: Ability to machine complex organic shapes from certified materials with complete process documentation
The robotics industry requires precisely machined components that ensure smooth motion, accurate positioning, and long-term reliability.
· Typical components: Robot arms and end effectors, gearboxes, motor housings, sensor mounts, custom linkages, machine frames
· Common materials: Aluminum, steel, engineering plastics
· Key requirements: Precision fits, low friction surfaces, stiffness, repeatability
· Why CNC: Produces precisely matched components that assemble into high-performance systems

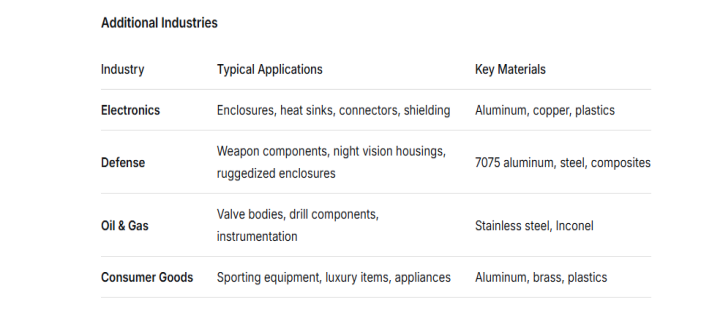

Regardless of industry, engineers select CNC machining when applications demand:
· Precision: Features measured in microns rather than millimeters
· Material integrity: Wrought material properties superior to cast or printed alternatives
· Scalability: From single prototypes to thousands of production parts
· Certification: Complete traceability for regulated industries
· Surface finish: Controlled textures from matte to mirror finishes
CNC machining's versatility across materials, geometries, and industries makes it the manufacturing process of choice for engineers who require parts that are not only dimensionally accurate but also mechanically sound and certified for their intended application.

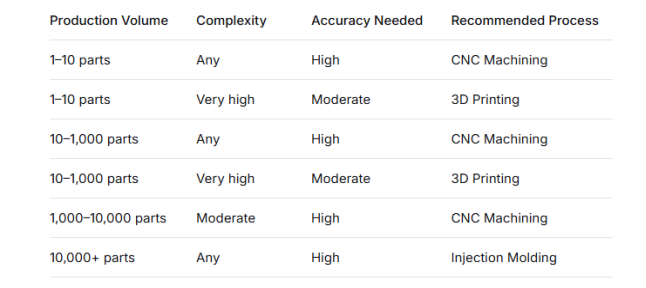

Selecting the appropriate manufacturing process requires balancing multiple factors including cost, accuracy, lead time, and production volume. CNC machining occupies a unique position among manufacturing technologies, offering distinct advantages and trade-offs compared to alternatives like 3D printing and injection molding.

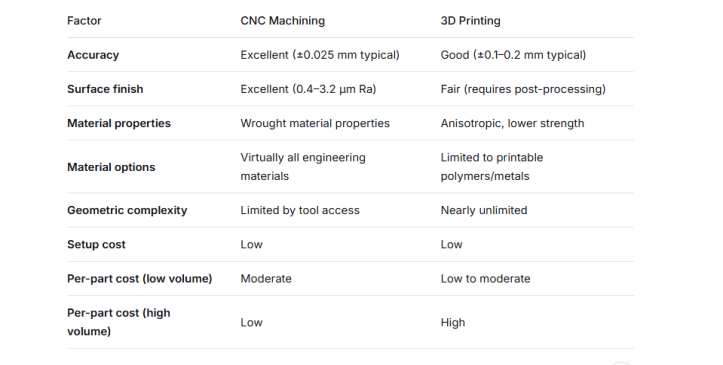

3D printing (additive manufacturing) builds parts layer by layer from digital models, while CNC machining removes material from solid stock.
When to choose CNC machining: Parts requiring tight tolerances, specific material properties, or superior surface finish from production-grade materials. Ideal for functional prototypes and end-use components where mechanical performance is critical.
When to choose 3D printing: Complex geometries impossible to machine, early concept models, or when multiple design iterations are needed quickly without tooling concerns.
CNC machining offers the best balance of accuracy, material properties, and flexibility for low to medium production volumes. It requires no tooling investment, accommodates design changes instantly, and produces parts with the same material properties as production components. While 3D printing excels at complex geometries and injection molding dominates high volumes, CNC machining remains the most versatile and widely applicable manufacturing process for engineers who need precision parts from real engineering materials.
CNC machining stands as a cornerstone of modern manufacturing, offering engineers an unparalleled combination of precision, repeatability, and material versatility. Throughout this guide, we have explored how computer-controlled material removal transforms digital designs into physical components with tolerances measured in microns—capable of producing everything from aerospace structural parts to medical implants and custom prototypes.
The technology's ability to work with virtually all engineering materials, from aluminum and titanium to advanced plastics, ensures that parts exhibit the mechanical properties required for demanding applications. Unlike additive processes limited by material constraints or molding methods requiring substantial tooling investment, CNC machining delivers production-ready components with rapid turnaround and design flexibility.
For engineers and product designers, understanding CNC machining fundamentals enables informed decisions during development—optimizing designs for manufacturability, selecting appropriate materials and processes, and ultimately accelerating the journey from concept to market-ready product. As manufacturing technology continues to evolve, CNC machining remains an essential skill and resource for bringing precision engineering to life.
1. What is the difference between 3-axis, 4-axis, and 5-axis CNC machining?
3-axis machining moves tools along X, Y, and Z linear axes, ideal for flat surfaces and prismatic parts. 4-axis adds rotation (A-axis) around X, enabling continuous cutting on cylindrical features. 5-axis adds two rotational axes, allowing complex geometries and deep cavities in a single setup with superior surface finish.
2. What are typical tolerances achievable with CNC machining?
Standard CNC machining achieves tolerances of ±0.125 mm for general work, while precision machining reaches ±0.025 mm. High-precision applications can achieve ±0.005 mm with specialized equipment and controlled environments. Tolerance requirements directly impact cost and should be specified only where functionally necessary.
3. How do I choose the right aluminum alloy for my CNC machined part?
6061 aluminum suits general-purpose applications with balanced strength and corrosion resistance. 7075 provides maximum strength for aerospace and high-stress components. 2024 offers excellent fatigue resistance for cyclic loading. 5052 delivers superior corrosion resistance and formability for marine environments and sheet metal work.
4. What is the difference between CNC milling and CNC turning?
CNC milling uses rotating multi-point cutting tools against a stationary workpiece to create prismatic shapes, slots, and complex 3D surfaces. CNC turning rotates the workpiece against stationary single-point tools to produce cylindrical features. Modern mill-turn centers combine both capabilities in a single machine for complex parts.
5. When should I choose CNC machining over 3D printing?
Choose CNC machining when parts require tight tolerances (±0.025 mm), specific material properties from wrought stock, superior surface finish, or when using materials unavailable for 3D printing. CNC is also preferred for functional prototypes and end-use components where mechanical performance and certification requirements are critical.
6. How does part design affect CNC machining cost?
Complex geometries requiring multiple setups, deep cavities with long tools, tight tolerances, and thin walls increase machining time and cost. Features should be designed with standard tool sizes, adequate radii in internal corners, and accessible geometries. Simplifying designs reduces cycle times and extends tool life.
7. What surface finishes are available for CNC machined parts?
As-machined finishes range from 0.4 to 3.2 µm Ra depending on tooling and parameters. Bead blasting provides uniform matte textures. Anodizing adds color and corrosion resistance to aluminum. Painting, powder coating, electropolishing, and plating offer additional aesthetic and protective options.
8. Can CNC machining produce threads and how?
Yes, threads are produced through tapping (cutting internal threads with a tap tool), thread milling (interpolating threads with a milling cutter), or single-point threading on lathes. Thread milling is preferred for larger diameters and harder materials, while tapping is faster for standard-sized through holes.
9. What is the minimum wall thickness for CNC machined metal parts?
Minimum wall thickness depends on material and feature height. For aluminum, 0.5–0.8 mm is achievable for small features, while 1.0–1.5 mm is recommended for structural integrity. Steel and titanium require thicker walls (0.8–1.0 mm minimum) due to higher cutting forces and material stiffness.
10. How do I minimize cost in CNC machined prototypes?
Design with standard tool sizes, avoid unnecessary tight tolerances, use common materials like 6061 aluminum, and simplify geometries where possible. Consider machining multiple design variations in a single setup and provide complete technical drawings with clear callouts to reduce setup time and interpretation errors.
