The automotive industry is one of the largest application markets for CNC machining. From core components inside the engine to decorative parts on the exterior, CNC machining plays an indispensable role in vehicle development, testing, and production.
However, many people are not clear about which automotive parts are made by CNC, why these parts choose CNC over other processes, and what CNC machining can actually do in the automotive industry.
If you are an engineer, procurement specialist in the automotive industry, or a car enthusiast, this article will detail the most common CNC machined automotive parts and explain why each type of part is suitable for CNC manufacturing.
Before detailing specific parts, let us first understand why CNC machining is so popular in the automotive industry.
Critical components such as engines, transmissions, and braking systems require extremely high dimensional accuracy. Tolerances are typically between ±0.01 millimeters and ±0.005 millimeters. CNC machining can consistently achieve this level of precision.
Automotive parts use a wide range of materials, including aluminum alloys, steel, stainless steel, titanium alloys, brass, and plastics. CNC machining can handle almost all of these materials.
In scenarios such as new vehicle development, racing modifications, and classic car restoration, the quantity of parts needed is often small (a few to a few hundred pieces). CNC machining has no tooling costs, making it ideal for low-volume production.
Many automotive parts have complex curved surfaces, deep cavities, angled holes, and other features. Multi-axis CNC machining can complete these complex features in a single setup.
In racing and high-performance automotive fields, parts are frequently redesigned and optimized. CNC machining can quickly turn CAD drawings into physical parts, accelerating the development cycle.
The engine is the heart of the automobile and the area where CNC machining is most concentrated.

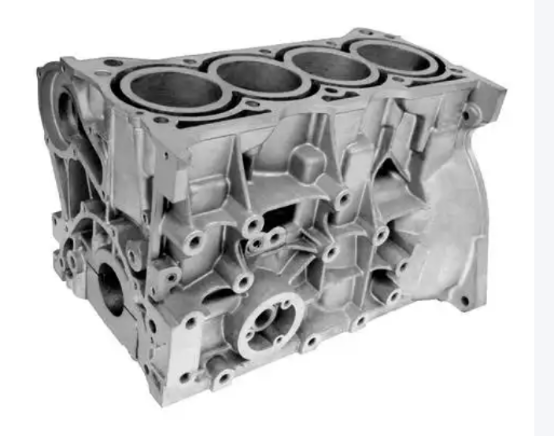

The engine block is a representative part for CNC machining. The cast block blank requires precision machining on CNC machines to meet assembly requirements.
The main features of CNC machining include: precision boring of cylinder bores to achieve strict roundness and surface finish requirements; boring of crankshaft bearing seats to ensure concentricity of all bearing bores; milling of the block deck to ensure a sealing fit with the cylinder head; drilling of various oil and water passages; and machining of threaded holes on mounting surfaces.
Engine block machining typically uses large horizontal machining centers requiring multiple setups, with extremely high precision requirements.
The cylinder head is another critical engine part. Its structure is more complex than the block, containing intake ports, exhaust ports, combustion chambers, valve guide holes, spark plug holes, and many other features.
The main features of CNC machining include: milling of combustion chamber curved surfaces; precision machining of valve guide holes and seat ring holes; contour machining of intake and exhaust ports; boring of camshaft bearing bores; and machining of various mounting holes and threaded holes.
Cylinder heads typically use 4-axis or 5-axis CNC machining to complete features at multiple angles in one setup.
Pistons for high-performance engines typically use forged aluminum alloy blanks, with finishing completed by CNC turning and milling.
The main features of CNC machining include: precision turning of the piston outer diameter to achieve strict cylindricity and tolerance; machining of piston ring grooves to ensure groove width and perpendicularity; precision boring of the piston pin hole; and machining of the combustion chamber shape on the piston crown.
For racing engines, pistons are often completely machined by CNC rather than cast or forged.
The connecting rod connects the piston and crankshaft, bearing enormous tensile and compressive loads. CNC machining is used to finish forged or roughed connecting rods to final dimensions.
The main features of CNC machining include: precision boring of the big end and small end holes; grinding (or precision milling) of the connecting rod end faces; drilling and tapping of connecting rod bolt holes; and finishing of the external contour.
High-end connecting rods typically use CNC machining centers to complete all features in a single setup, ensuring parallelism and center distance of the big and small end holes.
The cam profile of the camshaft directly affects engine intake and exhaust timing. CNC machining is used for finishing the cam profile.
Traditional camshaft machining uses cam grinding machines, but today more camshafts are machined using CNC mill-turn hybrid machines. CNC can machine more complex cam profiles to accommodate advanced technologies such as variable valve timing.
Although many production intake manifolds are injection molded, CNC machined aluminum intake manifolds are very common in racing, modified cars, and prototypes.
CNC machined intake manifolds can optimize the shape of airflow passages, improving intake efficiency. The length and cross-section of each cylinder's intake port can be precisely controlled to ensure uniform intake among all cylinders.
The transmission case needs to support internal parts such as gears, shafts, and bearings, requiring extremely high hole position accuracy and parallelism.
The main features of CNC machining include: precision boring of bearing bores to ensure concentricity and dimensional tolerance; milling of mounting surfaces; drilling of oil passages; machining of various threaded holes; and finishing of external contours.
Transmission cases typically use horizontal machining centers to complete machining of multiple faces in a single setup.

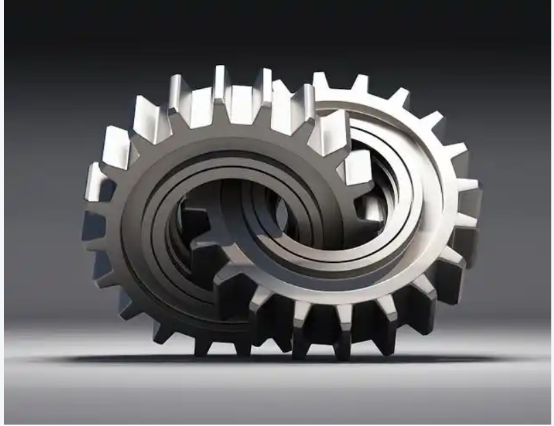

Although high-volume gears are produced by hobbing and shaping, small-batch, high-precision gears (such as racing transmission gears) are often machined by CNC.
CNC gear hobbing machines can machine gears of various modules. For non-standard gears or prototype gears, CNC machining is the only option.
Differential case machining is similar to transmission case machining, requiring precision bearing bores and mounting surfaces. CNC machining ensures the geometric accuracy of the differential case, ensuring proper gear meshing.
Drive shafts require good balance and high concentricity. CNC turning is used to machine the outer diameter, end faces, and splines of drive shafts. For carbon fiber drive shafts, CNC is used to machine the metal connectors.
High-performance brake calipers typically use forged aluminum alloy blanks, with finishing completed by CNC machining.
The main features of CNC machining include: precision boring of piston bores to achieve strict cylindricity and surface finish (Ra 0.4 micrometers or better); milling of brake pad mounting slots; drilling and tapping of fluid passages and bleed ports; and finishing of external contours.
For racing brake calipers, 5-axis CNC is often used to machine directly from solid aluminum blocks to achieve the best rigidity-to-weight ratio.
Although standard brake discs are produced by casting and grinding, racing and high-performance brake discs are often machined by CNC.
CNC machining is used to machine drill holes and slot patterns on the brake disc surface to improve cooling and water dispersion. For carbon-ceramic brake discs, CNC is used to finish mounting surfaces and drill holes.
The brake bracket connects the caliper to the knuckle. It requires precise hole positions and mounting surfaces and is typically machined on CNC machining centers.
Brake pedal assemblies in racing and modified cars are often manufactured by CNC machining. This includes pedal arms, balance bars, mounting brackets, and other parts. CNC machining ensures the precision and light weighting of these parts.
The steering knuckle connects the wheel, suspension, and steering system, bearing complex loads. CNC machining is used to finish forged or cast blanks to final dimensions.
The main features of CNC machining include: precision machining of the wheel hub bearing bore; machining of the steering tie rod connection hole; machining of the upper and lower control arm mounting surfaces; and machining of the shock absorber mounting hole.
High-end vehicles and racing cars use fully CNC machined aluminum steering knuckles to reduce weight and improve precision.
The control arm is a main structural component of the suspension system. Cast control arms require CNC machining of mounting surfaces and bushing holes. Forged or CNC machined control arms (typically 7075 aluminum) are machined directly from solid material, offering better strength and weight than cast parts.
CNC machining features include: precision boring of bushing holes; machining of ball joint mounting holes; drilling of lightening holes; and finishing of external contours.
Many parts of shock absorbers are CNC machined, including the shock absorber body (CNC turned), piston rod (CNC turned and ground), piston valve (CNC turned), adjustment knobs, and mounting bases.
The teeth of the steering rack require high-precision machining. CNC hobbing or milling is used to machine the rack teeth, ensuring steering precision and feel.
Features such as brackets, lock holes, and adjustment mechanisms of the steering column are typically finished by CNC machining.
High-end vehicles use CNC machined aluminum structural components for dashboard frames. These frames require complex rib structures and mounting points, and CNC machining can precisely control all features.
Shift paddles in racing and sports cars are typically manufactured by CNC machining. Made of aluminum or carbon fiber, they have complex shapes and require light weight and good tactile feel.
High-performance pedal assemblies include accelerator, brake, and clutch pedals. CNC machined aluminum pedals offer excellent strength and light weighting advantages.
CNC machined handbrake handles are typically made of aluminum, with ergonomic shapes and anodized surfaces.
Although most wheels are cast or forged, racing and custom wheels often use CNC machining for final finishing. CNC is used to machine bolt holes, center bores, mounting surfaces, and aesthetic features. Some custom wheels are completely machined from solid aluminum blocks.
Car logos, model badges, and custom nameplates are typically CNC engraved or milled, then anodized or plated.
Racing cars have much higher requirements for light weighting and performance than ordinary cars. CNC machining is very widely used in racing.

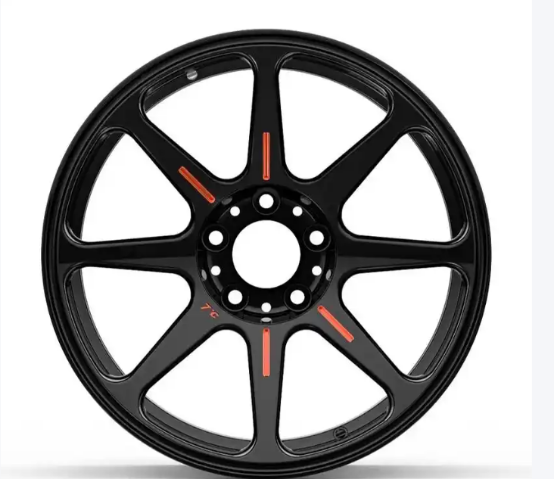

Racing wheels are typically CNC machined from forged aluminum blanks. 5-axis CNC can machine extremely complex spoke shapes, maximizing weight reduction while maintaining strength.
The racing pedal box is an assembly integrating accelerator, brake, clutch pedals, and master cylinders. The entire pedal box is typically CNC machined.
Racing paddle shift mechanisms require extremely high reliability and precision. All parts (paddles, forks, shafts, etc.) are CNC machined.
The core frame of a racing steering wheel is typically made of CNC machined aluminum, then wrapped with carbon fiber or suede.
Racing seats need to be firmly fixed to the chassis. Seat brackets are typically made of CNC machined aluminum plates, precisely matching the mounting points of the seat and chassis.
In addition to production and racing parts, CNC machining plays a very important role in automotive R&D.
In the early stages of new vehicle development, many parts need to be quickly made for assembly validation and testing. CNC machining can turn CAD models into physical parts within days, without waiting for tooling.
Scale models or full-size models for wind tunnel testing have parts typically manufactured by CNC machining. These parts require precise external shapes to simulate the aerodynamic characteristics of real vehicles.
Functional test parts for engines, transmissions, and suspension systems require the same materials and precision as production parts. CNC machining is the most suitable method for making these test parts.
Welding fixtures, assembly jigs, inspection fixtures, and other tools on automotive production lines are extensively manufactured using CNC machining. These fixtures need to precisely match body contours, and CNC machining is often the only feasible method.
Q: Are CNC machined automotive parts better than cast or forged parts?
Not necessarily. Casting and forging are suitable for high-volume production with advantages in cost and efficiency. The advantages of CNC machining are higher precision, no tooling costs, and better material properties (no casting defects). For high-performance or low-volume applications, CNC machining is better.
Q: Can CNC machining produce engine blocks?
Yes, but typically not from solid material. Instead, cast or forged blanks are finished by CNC machining. Fully CNC machined blocks are extremely expensive and only used in top-level racing.
Q: Why do racing cars prefer CNC machined parts?
Because racing cars require extreme light weighting and precision. CNC machining can precisely remove unnecessary material from high-strength aluminum alloy blanks, achieving the lightest weight while maintaining strength.
Q: What is the difference between prototype parts and production parts?
Prototype parts are typically CNC machined because quantities are small and designs are not finalized. For production parts, if quantities are large, manufacturers switch to casting, forging, or injection molding because the per-part cost is lower. However, if quantities are within a few hundred pieces, CNC machining is often more economical.
Q: Can you machine automotive parts?
Yes. Brightstar provides CNC machining services for customers in the automotive industry, including prototype parts, racing parts, and low-volume production parts. We have extensive experience machining aluminum alloys, steel, stainless steel, titanium alloys, engineering plastics, and other materials.
CNC machining has very wide applications in the automotive industry. From engine blocks, cylinder heads, pistons, and connecting rods to chassis knuckles and control arms, to brake calipers and discs, to interior pedals and shift paddles, CNC machining is found everywhere.
The core advantages of CNC machining are high precision, no tooling costs, flexible material selection, and suitability for low-volume production. These characteristics make it irreplaceable in prototype development, racing modifications, high-performance parts manufacturing, and other areas.
If you have automotive parts that need CNC machining, whether prototypes or low-volume production, Brightstar can provide professional services.
