When engineers and procurement specialists search for CNC machining suppliers, one of the most frequently asked questions is: "What accuracy can your CNC machining achieve?" This question seems simple, but the answer is not just a single number. Accuracy is affected by multiple factors including material selection, tool quality, machine condition, fixturing design, and ambient temperature.
At Brightstar, we are asked about accuracy-related questions every day. This article will comprehensively explain what CNC machining accuracy means, the achievable tolerance ranges, the key factors that affect precision, and how to ensure your parts meet design requirements from the perspective of what customers most commonly search for.
Before diving into specific numbers, it is important to understand what "accuracy" means in the context of CNC machining. Accuracy typically includes the following concepts:
Dimensional accuracy refers to the deviation between the actual measured dimension of a part and the dimension specified on the drawing. For example, if a shaft diameter is specified as 10.00 mm on the drawing but measures 10.01 mm, the deviation is +0.01 mm.
Geometric accuracy refers to the deviation between the actual shape of a part and the ideal shape. For example, a cylindrical surface should be perfectly round, but it may actually be slightly oval. Geometric accuracy includes roundness, flatness, straightness, cylindricity, and others.
Positional accuracy refers to the relative position between different features on a part. For example, whether the center distance between two holes is accurate, or whether a hole is perpendicular to a surface. Positional accuracy includes true position, concentricity, perpendicularity, parallelism, and others.
Surface finish refers to the microscopic roughness of a part's surface. The smoother the surface, the lower the Ra value (average roughness). A surface with Ra 0.4 µm is much smoother than a surface with Ra 3.2 µm.
Commonly searched keywords: Surface finish, Ra value, surface roughness
For most CNC machined parts, the following tolerances can be routinely achieved:
Feature Type | Standard Tolerance | Typical Applications |
Linear dimensions (length, width, height) | ±0.025 mm | Most general parts |
Bore diameter | ±0.013 mm | Bearing fits, pin holes |
Shaft diameter | ±0.013 mm | Shaft components |
Hole position (true position) | ±0.025 mm | Bolt holes, mounting holes |
Depth | ±0.05 mm | Blind holes, counterbores |
Angle | ±0.5° | Chamfers, angled surfaces |
For applications requiring higher accuracy, tighter tolerances can be achieved:
Feature Type | Precision Tolerance | Typical Applications |
Linear dimensions | ±0.005 mm | Precision fits, hydraulic valve spools |
Bore diameter | ±0.005 mm | Precision bearing housings |
Shaft diameter | ±0.003 mm | Precision journals |
Hole position (true position) | ±0.010 mm | Precision assemblies, molds |
Concentricity | 0.005 mm | Multi-diameter shafts, stacked bores |

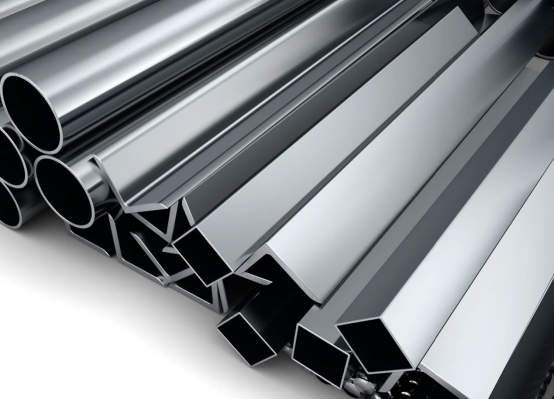

Material selection directly affects achievable tolerances:
· Aluminum alloys (6061, 7075): Easy to machine, consistently achieves ±0.005 mm
· Brass (C360): Excellent machinability, can achieve ±0.003 mm
· Mild steel (1018, 1045): Good machinability, can achieve ±0.005 mm
· Alloy steel (4140, 4340): Machinable in annealed condition; hard turning required after heat treatment
· Stainless steel (303, 304, 316): Prone to work hardening, recommended tolerance ±0.010 mm
· Titanium alloy (Grade 5): Difficult to machine, recommended tolerance ±0.013 mm
· Engineering plastics (PEEK, Acetal): High thermal expansion, recommended tolerance ±0.025 mm
Understanding which factors affect accuracy helps in making correct decisions during the design phase.

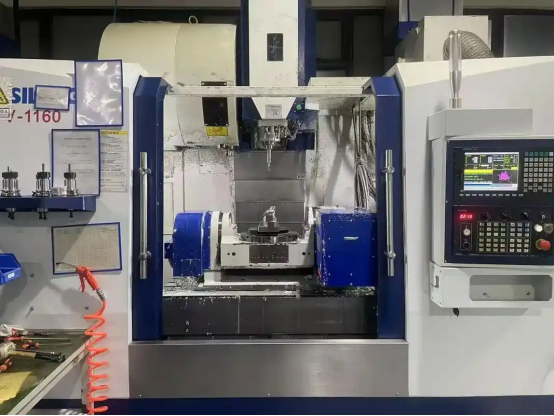

The mechanical condition of the CNC machine directly affects machining accuracy.
· Wear on guideways and ball screws: Long-used machines develop wear on guideways and ball screws, causing positioning errors
· Spindle runout: Wear on spindle bearings causes radial runout of the rotating tool, affecting bore accuracy and surface finish
· Backlash: The gap between the ball screw and nut causes positioning errors when changing direction
Brightstar's practice: We regularly perform geometric accuracy checks and laser interferometer calibration to ensure every machine operates within specifications.
The tool is the component that directly contacts the material, and its quality is critical.
· Tool runout: Improper tool installation in the holder causes runout, leading to overcut or inaccurate dimensions
· Tool wear: Worn tools generate higher cutting forces, causing part deformation and dimensional deviation
· Tool material: Different tool materials (carbide, coated carbide, CBN, PCD) are suitable for different workpiece materials
Brightstar's practice: We use well-known brand cutting tools and strictly enforce tool life management. For critical operations, tools are automatically replaced after machining a specified number of parts.
Different materials react differently to cutting heat.
· Thermal expansion: Heat generated during machining causes material to expand. When the part cools, dimensions shrink. Aluminum alloys have approximately twice the thermal expansion coefficient of steel
· Residual stress: Raw materials contain internal residual stress. When material is removed by cutting, stress redistributes, potentially causing part distortion
Brightstar's practice: For precision parts, we use a roughing + stress-relieving annealing + finishing process route, removing most of the stock first, releasing internal stress, then performing finishing cuts.
Parts must be securely held during machining.
· Clamping distortion: Excessive clamping force deforms thin-walled parts. When the clamp is released after machining, the part springs back to its original shape, causing dimensional non-conformance
· Locating errors: If the fixture's locating surfaces are not precise, part position will vary with each setup
Brightstar's practice: For thin-walled parts, we use soft jaws, vacuum chucks, or low-melting-point alloy fixtures to minimize clamping distortion.
Cutting speed, feed rate, and depth of cut together determine cutting force and cutting temperature.
· High cutting temperature: Causes rapid tool wear and workpiece thermal expansion
· Chip accumulation: When chips are not promptly evacuated, they may be recut by the tool, damaging the surface
Brightstar's practice: We optimize cutting parameters based on material and tool, using high-pressure coolant (up to 1,500 psi) directed precisely at the cutting zone for effective cooling and chip evacuation.
CNC machining is sensitive to ambient temperature.
· Workshop temperature variation: A large CNC machine bed can be several meters long. A 1°C temperature change can cause tens of microns of expansion or contraction
· Localized heat sources: Heat from spindle motors, hydraulic units, and other sources causes uneven temperature distribution across the machine, leading to thermal distortion
Brightstar's practice: Our precision machining workshop maintains constant temperature (20°C ± 1°C), and we allow machines to warm up fully before production runs.
Different CNC machining methods have different accuracy capabilities.
Process | Typical Tolerance
| Surface Finish (Ra) | Best Applications |
| 3-axis CNC milling
| ±0.013 mm | 1.6 µm | Prismatic parts, flat features |

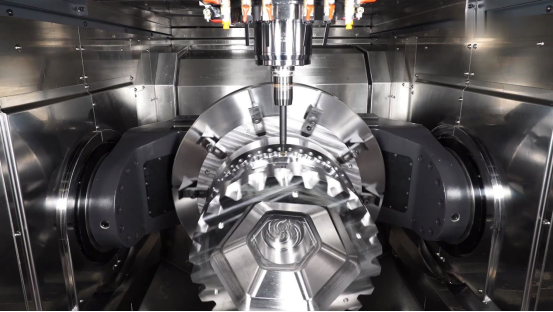

| 5-axis CNC milling
| ±0.010 mm | 0.8 µm | Complex curved surfaces, turbine blades |

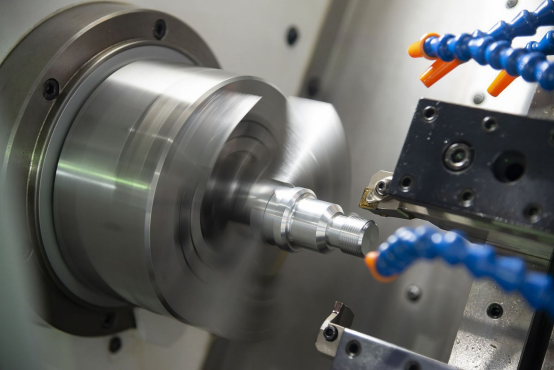

CNC turning | ±0.010 mm | 1.6 µm | Cylindrical parts, shafts |
Swiss-type turning | ±0.008 mm | 0.8 µm | Small diameter, long shaft parts |
CNC grinding | ±0.002 mm | 0.2 µm | High-precision bearings, molds |
EDM | ±0.005 mm | 0.4 µm | Hard materials, deep narrow slots |

A common mistake is over-specifying tolerances. Excessively tight tolerances significantly increase cost without necessarily improving functionality.
Each order of magnitude tightening of tolerance typically increases machining cost by 2 to 5 times.
Tolerance Range | Relative Cost | Explanation |
±0.1 mm | 1x | Conventional machining, fast, low cost |
±0.05 mm | 1.5x | Requires more careful setup |
±0.025 mm | 2x | Requires more precise tools and measurement |
±0.013 mm | 3x | May require multiple passes and in-process inspection |
±0.005 mm | 5x | Requires precision machine, temperature control, dedicated fixtures |
±0.002 mm | 10x+ | Requires grinding or ultra-precision machining |
· Threaded hole position: ±0.1 mm is usually sufficient
· Bolt clearance holes: ±0.13 mm is sufficient
· Standard bearing fits: Use bearing manufacturer recommended tolerance class (e.g., P0, P6)
· Seal gland fits: ±0.05 mm is usually sufficient
· Precision sliding fits: ±0.005 mm to ±0.013 mm
· Hydraulic valve spools: ±0.002 mm to ±0.005 mm
Brightstar's advice: During the design phase, only tighten tolerances on features that truly require them for functionality. Using standard tolerances elsewhere can significantly reduce cost without affecting performance.
At Brightstar, accuracy is not an accidental result but the outcome of systematic quality management.
· All CNC machines are from well-known brands (Haas, DMG MORI, Sodick)
· Regular laser interferometer calibration ensures positioning accuracy
· Equipped with in-process probing systems for real-time measurement and compensation during machining
· Incoming material inspection: All raw materials are verified for dimensions and hardness
· First article inspection: 100% dimensional inspection for the first part of each new program
· In-process sampling: Scheduled sampling during production runs
· Final inspection: Comprehensive inspection using CMM
· CMM: Accuracy ±0.002 mm
· Optical measurement: For small features and threads
· Surface roughness tester: Verifies surface finish
· Hardness tester: Verifies heat treatment effectiveness
· Constant temperature control in precision machining areas
· Regular cleaning and maintenance of equipment
· Rigorously trained operators
Yes, under specific conditions. ±0.001 mm (1 micron) is in the realm of ultra-precision machining, requiring specialized machines (such as ultra-precision lathes or grinders), temperature-controlled environments, and highly experienced operators. For most CNC milling and turning parts, ±0.005 mm is a more realistic high-precision standard.
Yes, but with two considerations. First, this requires precision machining processes, which increase cost accordingly. Second, certain materials (such as plastics or thin-walled parts) may not consistently hold this tolerance. We recommend clearly indicating on the drawing which features require tight tolerances and which can use standard tolerances.
Not entirely. Plastics have thermal expansion coefficients 2 to 5 times higher than metals. Heat generated during machining causes dimensional changes. Dimensionally stable plastics like PEEK and Acetal can achieve tolerances around ±0.013 mm. Hygroscopic plastics like Nylon change dimensions after absorbing moisture.
This depends on the part's operating environment. If the part will be used in a constant temperature environment around 20°C (such as laboratory equipment), it can be inspected at 20°C for acceptance. If the part will be used outdoors or in an engine compartment, thermal expansion differences should be considered in the design. Brightstar can provide material selection advice based on your operating environment.
Yes. For the first part of each new design, we perform complete dimensional inspection and generate an inspection report. The report includes actual measured values for all specified dimensions, inspection equipment identification, and inspection date.
We accept the following notation methods:
· Directly adjacent to the dimension (e.g., 10.00 ±0.01)
· Default tolerance table in the title block
· Separate GD&T callouts (e.g., true position, concentricity)
Please ensure tolerances do not violate the physical limits of the material or process.
CNC machining accuracy is not a single number but a systematic outcome determined by the interaction of machine, tool, material, fixture, parameters, and environment.
For customers, we recommend:
1. Only tighten tolerances that are functionally necessary – This can significantly reduce cost without affecting performance
2. Consult with your machining partner during the design phase – We can identify potential features that may be difficult to achieve
3. Provide both complete 3D models and 2D drawings – 2D drawings for tolerance notation, 3D models for programming
4. Consider the difference between prototypes and production – Prototypes can tolerate looser tolerances; production runs allow process optimization
Brightstar's commitment:
Whether you need general parts with ±0.1 mm tolerances or precision components at ±0.005 mm, Brightstar has the capability to meet your requirements. We don't just machine parts; we are partners in helping you achieve your design goals.
Whether you need a single prototype or thousands of production parts, Brightstar can deliver CNC machining services that meet your accuracy requirements.
