Tool Selection Tips for Micron-Level Tolerance Shaft Turning

Machining shafts with micron-level tolerances is one of the most demanding tasks in CNC manufacturing. While machine accuracy is critical, tool selection often has an even greater impact on the final part quality. Even the most precise machine cannot compensate for poor tool choice, which can lead to dimensional drift, inconsistent surface finish, and poor batch-to-batch repeatability. In high-precision shaft production, the cutting tool is not merely an instrument—it is a key factor in achieving stable and reliable results.

1. The Role of Tools in Micron-Level Turning

In micron-level turning, the tool directly influences three critical outcomes: dimensional stability, surface quality, and process repeatability. The tool’s geometry, edge sharpness, coating, and wear resistance all contribute to deviations that accumulate during continuous production. For example, a slight flank wear on a finishing tool may only change a few microns per cut, but over a long batch, this can result in parts consistently out of tolerance.

Furthermore, the cutting tool affects thermal behavior during machining. Even micro-level temperature variations can induce thermal expansion in the workpiece, impacting precision. Selecting tools with stable cutting characteristics minimizes heat generation and maintains consistent part dimensions.

2. Prioritize High-Rigidity Tool Systems

Shafts are typically slender and prone to vibration, which can significantly affect dimensional accuracy and surface finish. Choosing tools with high rigidity and minimizing tool overhang is crucial. A short, rigid tool reduces deflection and vibration, which are magnified when machining parts to micron-level tolerances.

In practice, even a 1–2 mm reduction in tool overhang can noticeably improve concentricity and surface consistency. For finishing passes, rigidity often takes priority over cutting speed, as a stable tool path ensures the highest achievable precision.

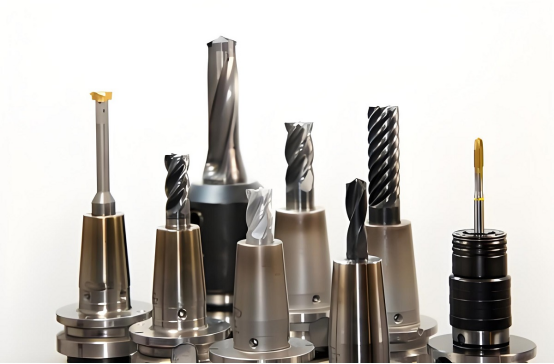

3. Select Appropriate Tool Materials and Coatings

The choice of tool material and coating must match both the shaft material and the machining conditions:

Steel and Stainless Steel Shafts: High-quality carbide tools are ideal due to their wear resistance and edge stability.

High Hardness or Work-Hardened Materials: Coated carbide or PCD tools can reduce cutting forces and slow edge wear, preserving dimensional accuracy.

Avoid Excessive Coatings: Too thick or unsuitable coatings may reduce edge sharpness and increase cutting forces, negatively impacting surface finish.

Proper material and coating selection can reduce thermal and mechanical stress, minimize tool wear, and extend the stable cutting window—a critical factor for micro-tolerance workpieces.

4. Pay Attention to Edge Quality and Tool Maintenance

Edge condition is one of the most overlooked factors in micron-level turning. A tool with inconsistent or worn edges can cause micro-chatter, surface scratches, and dimensional drift.

Practical recommendations include:

Use tools with certified edge quality and consistency from reputable manufacturers.

Establish a preventive replacement or regrinding schedule instead of waiting for parts to go out of tolerance.

Regularly inspect tools for micro-chipping or wear, particularly on finishing passes, where even small imperfections can compromise surface finish.

5. Separate Roughing and Finishing Tools

Achieving micron-level tolerances requires a clear distinction between roughing and finishing tools:

Roughing Tools: Prioritize material removal efficiency and stable cutting behavior. High feed rates are acceptable, and surface finish is less critical.

Finishing Tools: Prioritize precision, dimensional control, and surface integrity. Reduce cutting load, maintain minimal deflection, and ensure the tool edge is pristine.

This separation ensures that the finishing tool operates in the most stable zone, allowing the part to meet micron-level tolerances reliably.

6. Optimize Tool Selection Based on Actual Data

Tool selection is not a “set it and forget it” process. Continuous monitoring of tool life, wear patterns, dimensional trends, and surface finish is essential for optimization.

For long-term production, data-driven adjustments may include:

Fine-tuning feed rates and cutting speeds based on tool performance.

Adjusting tool replacement cycles according to actual wear rather than standard schedules.

Documenting tool performance for different shaft materials to build a knowledge base for future projects.

7. Consider Coolant and Chip Control in Tool Selection

Even the best tool can underperform if heat and chips are not managed properly. Selecting tools compatible with effective coolant delivery or with chip-breaking geometry helps maintain stable cutting temperatures and prevents micro-deformations caused by thermal expansion or chip re-cutting.

Conclusion

In micron-level shaft turning, tool selection is a comprehensive process that balances rigidity, material, coating, edge quality, and operational strategy. Maintaining tools in a stable, controlled condition is key to achieving high-precision, consistent shaft production.
