Thin Wall CNC Machining: How to Control Deformation, Improve Surface Finish, and Ensure Production Stability

Stability

In the world of precision manufacturing, thin wall CNC machining is one of the most challenging yet high-value capabilities a supplier can offer. Whether used in aerospace housings, medical device enclosures, robotics frames, or high-end consumer electronics components, thin wall parts demand more than just machining capacity — they require deep process control, engineering experience, and production consistency.

If you are sourcing thin wall CNC machined parts, chances are you have already faced one or more of these problems:

Parts warp after machining
Dimensions shift during inspection
Surface finish is inconsistent
Prototype works, but mass production fails
Scrap rate increases dramatically

This article will walk you through everything you need to know about thin wall CNC machining — including challenges, engineering solutions, material considerations, inspection methods, and how to select the right manufacturing partner.

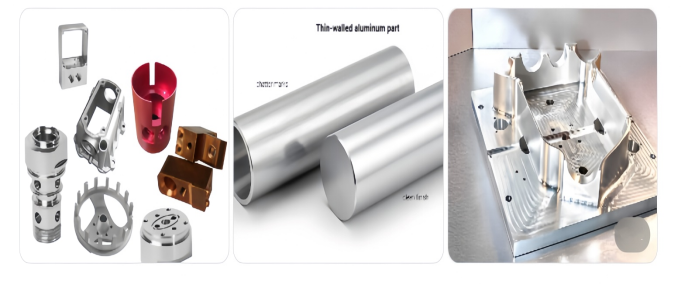

1 What Is Thin Wall CNC Machining?

Thin wall machining refers to CNC machining of components where the wall thickness is significantly smaller compared to the overall part size. In many industries, walls below 1.5 mm are considered thin; in aerospace or medical fields, it may go below 0.8 mm depending on material and structural requirements.

The thinner the wall, the more sensitive the part becomes to:

Cutting force
Heat accumulation
Clamping pressure
Internal material stress
Tool vibration

This is why thin wall parts are not simply standard CNC parts with less material. They require a completely different machining strategy.

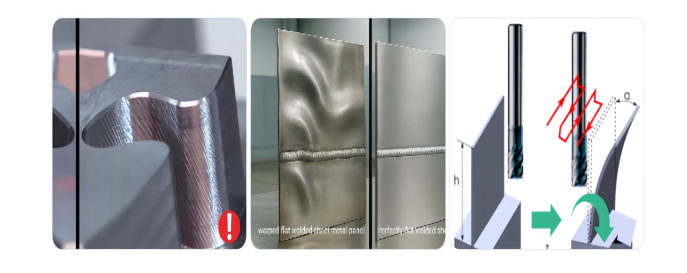

2 Why Thin Wall Parts Are So Difficult to Machine?

The biggest challenge is deformation caused by cutting force and clamping stress. When material is removed, internal stress is released. Without proper strategy, the part will bend, twist, or warp.

Common causes include:

Excessive clamping force
Unbalanced material removal
Aggressive cutting parameters
Poor fixture design

Thin walls lack rigidity. During milling, tool pressure can cause deflection, leading to chatter marks, dimensional inaccuracy, and poor surface finish.

Aluminum thin wall parts, in particular, are sensitive to thermal expansion. Heat generated during machining may temporarily distort the part. Once cooled, dimensions may shift.

Because of deflection and vibration, achieving consistent Ra values can be difficult. Customers often require both cosmetic and functional surfaces to meet strict appearance and performance standards.

3 Engineering Solutions for Thin Wall CNC Machining

Solving these issues requires process-level thinking, not just machine capability.

Optimized Machining Strategy

Roughing and semi-finishing are performed symmetrically to balance stress release
Leave uniform stock allowance for finishing
Use multiple light finishing passes instead of one heavy cut
Control cutting depth and feed rate to minimize force

Advanced Fixturing Design

Custom soft jaws or vacuum fixtures for thin aluminum parts
Supporting ribs or temporary tabs during machining
Minimizing direct clamping pressure on thin sections
Multi-step repositioning to maintain stability

In many thin wall projects, fixture design takes almost as much engineering effort as toolpath programming.

Tool Selection and Cutting Parameters

Sharp, high-helix end mills reduce cutting force
Small step-over finishing passes improve stability
High spindle speed with controlled feed rate
Dynamic toolpaths to maintain consistent load

The goal is to reduce mechanical stress while maintaining efficiency.

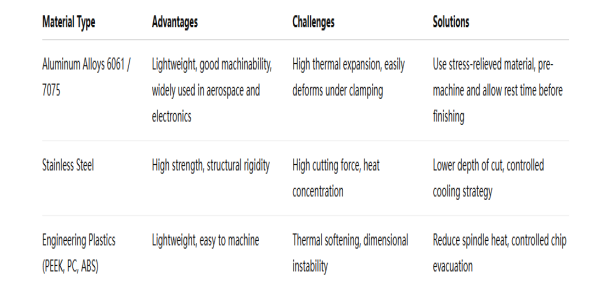

4 Material Considerations in Thin Wall Machining

Material selection should always consider final application environment and tolerance requirements.

5 Frequently Asked Questions

What is considered a thin wall in CNC machining?
In most general industries, walls below 1.5 mm are considered thin. In aerospace or medical applications, walls can go below 0.8 mm depending on structural requirements and material strength.

What is the minimum wall thickness you can machine?
The minimum wall thickness depends on material type, part geometry, and tolerance requirements. Aluminum parts can often achieve thinner walls than stainless steel. A DFM review is recommended to confirm feasibility before production.

How do you prevent thin wall parts from warping?
Warping is controlled through balanced machining strategy, optimized cutting parameters, stress-relieved materials, and specially designed fixtures that minimize clamping pressure on critical areas.

Why does my prototype pass inspection but fail in mass production?
Prototype machining is often slower and more carefully monitored. In mass production, factors such as tool wear, cycle time optimization, and cumulative stress can affect dimensional stability if the process is not validated properly.

Does thin wall machining increase cost?
Yes, thin wall machining typically requires more engineering time, custom fixtures, slower cutting speeds, and additional inspection steps. However, proper process control reduces scrap rate and long-term risk.

Can you provide DFM feedback before quotation?
Yes. We provide detailed DFM analysis before machining to identify potential deformation risks, suggest structural improvements if needed, and optimize the manufacturing strategy.

How do I get started with my thin wall CNC project?
Simply send us your 2D drawings or 3D CAD files along with material and quantity requirements. Our engineering team will review your design, provide technical feedback, and offer a competitive quotation tailored to your production stage.

6 Final Thoughts

Thin wall CNC machining is a test of real manufacturing capability. It requires deep understanding of material behavior, stress management, toolpath optimization, and production control.

If you are currently facing:

Deformation issues
Wall thickness instability
Surface finish inconsistency
Prototype-to-production gap

It may not be a design problem. It may be a process engineering problem.

Working with a CNC machining partner who understands thin wall manufacturing from engineering to inspection can dramatically reduce your risk and accelerate your project timeline.

If you have a thin wall component under development, now is the right time to evaluate your manufacturing strategy before issues appear in production.

We support thin wall aluminum, stainless steel, and engineering plastic components from prototype to stable mass production. Our engineering team provides detailed DFM feedback, fixture strategy planning, and process validation before cutting begins.

If you would like a professional review of your thin wall design, feel free to send us your drawings or 3D files. Brightstar is happy to provide technical feedback, feasibility analysis, and a competitive quotation.

The earlier the process is engineered, the lower the risk becomes.

Contact us today to discuss your thin wall CNC machining project and turn precision into production stability.
