3 axis CNC machining is the most widely used subtractive manufacturing technology. The three axes are linear: X (left-right), Y (front-back), and Z (up-down). The workpiece is fixed to the machine table while a rotating cutting tool moves in these three directions to remove material and create the final part.

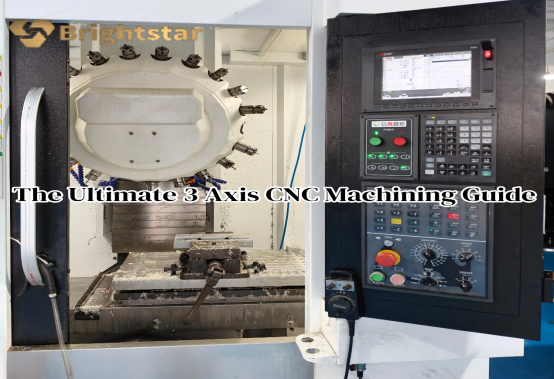

A typical 3 axis machining center consists of a machine bed, spindle, automatic tool changer (ATC), control system, and coolant system. Spindle speeds typically range from 8,000 to 15,000 RPM, with high-end machines reaching 30,000 RPM or more. Tool changers can hold anywhere from 12 to 60 tools, enabling complex parts to be machined without manual intervention. Common control systems include Fanuc, Siemens, Haas, and Mitsubishi, which interpret G-code and precisely control each axis.
3 axis machines are cost-effective, easier to program, and highly stable. They are ideal for parts with flat features or simple curves. The main limitation is that the tool always remains vertical, so undercuts and complex multi-sided geometries require multiple setups. Each re-fixturing adds time and can introduce cumulative error.
4 axis machining adds a rotary axis (usually the A-axis), making it suitable for cylindrical parts or parts that need holes on multiple faces. 5 axis machining adds two rotary axes, allowing a part to be machined in a single setup, which is essential for impellers, turbines, and complex molds. However, 5 axis equipment typically costs 3–5 times more than a 3 axis machine, and programming is significantly more complex. For most enclosures, brackets, connectors, and prototypes, 3 axis CNC remains the most cost-effective choice.
Design decisions directly affect machining cost and quality. Following DFM guidelines early in the design phase prevents expensive modifications later.
End mills are cylindrical; they cannot cut a sharp internal 90-degree corner. Any internal corner will have a radius equal to the tool radius. Therefore, designs should always include an internal fillet. A minimum radius of 0.5 mm (0.020 inch) or 1/4 of the tool diameter is recommended. If a true sharp corner is absolutely necessary, it must be finished by electrical discharge machining (EDM), which adds significant cost.
The ratio of cavity depth to tool diameter is the aspect ratio. As a rule of thumb, machining depth should not exceed 4 times the tool diameter. For example, a 10 mm diameter end mill should not machine deeper than 40 mm in a single pass. Exceeding this ratio leads to chatter, poor surface finish, dimensional inaccuracy, and risk of tool breakage. Deeper cavities can be machined using step-down strategies, larger diameter tools, or anti-vibration tool holders, but these add cost.
Minimum wall thickness for metals is generally 0.5–1 mm (0.020–0.040 inch); for plastics, it is 1–1.5 mm (0.040–0.060 inch). Walls thinner than this may deflect under cutting forces, making it difficult to hold tolerances. Adding ribs or designing symmetrical structures can help reduce distortion. If very thin walls are unavoidable, vacuum fixturing and light cutting passes are recommended.
3 axis machines cannot machine undercuts—features that are not accessible from the top. For example, a groove on the inside wall of a box or a hole on the underside of a part cannot be machined with a standard 3 axis setup. Solutions include redesigning the part as an assembly, or using special T-slot cutters or angled fixtures, both of which increase cost and lead time.
Standard machining tolerances for 3 axis CNC are ±0.125 mm (±0.005 inch), which is sufficient for most applications. Critical features such as bearing bores may require tighter tolerances of ±0.025 mm (±0.001 inch). Avoid specifying overly tight tolerances across the entire drawing; doing so can double or triple the machining cost. Surface roughness (Ra) also follows a similar cost relationship. As-machined surfaces typically achieve Ra 1.6–3.2 μm, which meets functional needs. Mirror finishes require additional polishing or grinding.
Through holes are preferred over blind holes because they improve chip evacuation and simplify tapping. Thread depth should be 1.5 to 2 times the thread diameter; depths greater than 3 times the diameter add significant difficulty without much gain in strength. For hard materials like stainless steel or titanium, thread milling is often a better choice than tapping because it reduces the risk of tool breakage and allows the same tool to cut different thread sizes.
Material properties, machinability, and cost directly impact the final part quality and price.

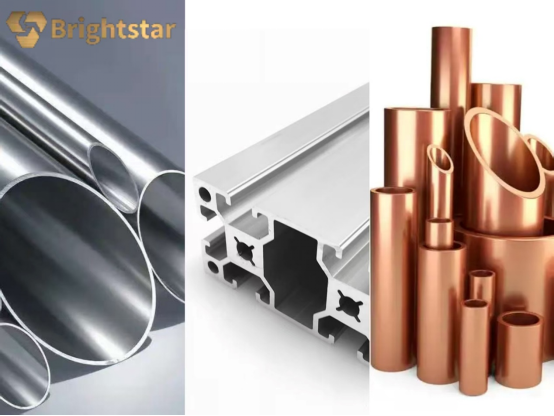

Aluminum 6061 is the most common CNC material. It offers excellent machinability, low cost, and good strength. It can be anodized in various colors and is suitable for structural parts, enclosures, and prototypes. Aluminum 7075 is stronger and often used in aerospace and high-performance applications, but it costs 30–50% more than 6061.
Stainless steel 303 contains sulfur to improve machinability, making it a good choice for automatic lathes and CNC mills. However, it has slightly lower corrosion resistance than 304. Stainless steel 304 and 316 are more common but work harden during cutting, leading to higher tool wear and machining costs—typically 2–3 times that of aluminum. 316 adds molybdenum for superior corrosion resistance, making it suitable for marine and medical environments.
Brass and copper are excellent conductors and are often used for electrical components and decorative parts. They tend to produce burrs during machining, so careful deburring is required.
POM (Delrin or acetal) offers excellent dimensional stability, low friction, and good machinability. It is ideal for gears, bushings, and sliding components. ABS is tough and low-cost, often used for enclosures and brackets, but its heat resistance is limited to about 80°C. Nylon (PA6, PA66) absorbs moisture and may change dimensions after machining, but it has high wear resistance. PEEK is a high-performance plastic with excellent heat resistance (up to 250°C) and chemical resistance, commonly used in medical implants and semiconductor equipment. It is expensive and requires careful heat management during machining.
Machinability ratings indicate how easily a material can be cut. High-machinability materials like aluminum and brass allow faster cutting speeds and longer tool life, reducing cost. Low-machinability materials like titanium and Inconel require slow speeds and light cuts, significantly increasing machining time and tooling costs. Exotic materials may also require special ordering, adding 3–5 days to lead time.
Many customers wonder why a seemingly simple part can be expensive. The following factors explain the cost structure of 3 axis CNC machining.
Setup Time: For low-volume orders (1–50 pieces), setup time often accounts for 30–50% of the total cost. Each time a part must be flipped or re-fixtured, the operator must re-align the coordinate system and run tests. Designing parts to be machined in as few setups as possible—or using “3+2” positioning fixtures—can dramatically reduce cost.
Cycle Time: The actual time the machine spends cutting. Complex surfaces, hard materials, and tight tolerances increase cycle time. Optimized toolpaths and high-speed machining strategies can help reduce it.
Tooling & Fixtures: Standard tools (end mills, drills, taps) are inexpensive and reusable. Custom form tools (e.g., special chamfer cutters, T-slot cutters) are costly and must be amortized across the order. Special fixtures (e.g., vacuum chucks, custom soft jaws) also add one-time costs.
Post-Processing: Deburring, heat treatment, and surface finishing require additional labor and equipment. Bead blasting typically adds 10–20% to the cost; anodizing adds 15–30%.
Minimum Order Quantity (MOQ): Suppliers often have a minimum order quantity to cover programming and setup costs. Orders below the MOQ will have a higher unit price.
A transparent quote should break down material cost, machining cost (based on estimated cycle time), finishing cost, inspection cost (e.g., first article inspection report), shipping, and lead time. If a supplier provides only a total number without details, it may hide opaque markups. Always request a DFM (Design for Manufacturability) review before placing the order to ensure all design details are correctly understood.
1–10 pieces (prototypes): Programming and setup dominate the cost; unit price is high but total investment is low. Ideal for functional testing and assembly verification.
50–200 pieces (low-volume production): Economies of scale begin to appear. Dedicated fixtures (e.g., soft jaws, pneumatic clamps) can reduce setup time per part.
500+ pieces (high-volume production): Consider alternative processes such as injection molding, die casting, or powder metallurgy if the part geometry is suitable. If CNC machining is still the best choice, optimized toolpaths and automated loading/unloading can reduce costs.
Surface finishes not only affect appearance but also corrosion resistance, wear resistance, and assembly fit.
As-Machined: The part retains visible tool marks. It is the lowest-cost option and achieves a surface roughness of Ra 1.6–3.2 μm. Suitable for functional or internal parts.
Bead Blasting: Glass beads or ceramic media are blasted onto the surface to create a uniform matte finish that hides tool marks. Adds approximately 10–20% to the cost.

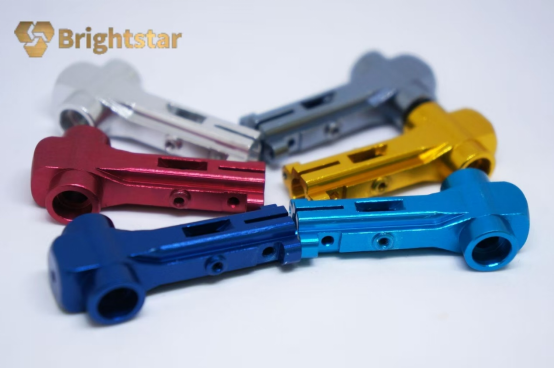

Anodizing (Aluminum only): An electrochemical process that creates a hard, corrosion-resistant oxide layer. Type II (conventional anodizing) produces a film thickness of 5–25 μm; Type III (hard anodizing) reaches 50 μm or more. Anodizing can be dyed in various colors but adds about 0.025 mm (0.001 inch) to the part dimensions. It adds 15–30% to the cost.
Electropolishing (Stainless steel): An electrochemical process that removes a thin surface layer, producing a bright, mirror-like finish and enhancing the passive layer. Commonly used in medical and food equipment.
Powder Coating: Electrostatic application of dry powder followed by heat curing. The coating thickness is high (50–200 μm) and offers excellent durability and color variety, but it is not suitable for precision mating surfaces.
Plastics such as ABS and PC can be painted, screen-printed, or heat-transferred for decorative effects. Self-lubricating plastics like POM and nylon are typically left as-machined or lightly bead-blasted.
Quality in CNC machining results from design, process, and inspection. Buyers should understand the quality control system used by their supplier.
Before production begins, the supplier machines one part and measures all dimensions called out on the drawing. The result is a First Article Inspection Report (FAIR) that lists actual measured values, not simply “pass/fail.” Review the FAIR carefully to confirm that all critical features (datums, hole positions, mating surfaces) are within tolerance. If the first article fails, adjustments can be made before any batch production starts, avoiding scrap.
Basic tools: Calipers (±0.02 mm), micrometers (±0.001 mm), thread plug/ring gauges for quick checks.

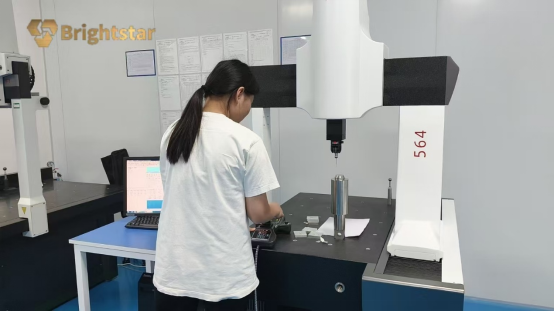

Advanced tools: Coordinate measuring machines (CMM) automatically measure complex 3D geometries with accuracy up to ±0.002 mm. Optical comparators are used for small or complex contours. Roughness testers measure Ra values.
Clearly define how non-conforming parts will be handled in your purchase agreement. Common practices include: supplier reworks or remakes parts at no cost (with adjusted delivery), or a negotiated concession if the non-conformity does not affect function. To avoid disputes, ensure that the drawing clearly identifies datums and critical dimensions.
Choosing the right supplier is critical for project success. Consider the trade-offs between local and offshore sourcing, and ask the right questions before placing an order.
Local suppliers offer same-language, same-time-zone communication and can be visited for audits. Lead times for prototypes are typically 2–3 days, with production runs in 1–2 weeks. Costs are higher per part, but shipping and logistics are simpler.
Offshore suppliers, especially in China and Vietnam, offer lower unit costs, making them attractive for larger production runs. However, lead times are longer (prototypes 5–7 days, production 3–4 weeks including shipping), and there are challenges with time zones, language, and quality communication. Duties, tariffs, and shipping costs must be added to the total cost.
1. Do you provide DFM feedback before production? (Free DFM analysis helps catch design issues early.)
2. What is your standard lead time for prototypes? (Can you expedite if needed?)
3. Do you have in-house heat treatment or surface finishing? (Outsourcing adds lead time and potential quality variability.)
4. Can you provide a full CMM report? (This ensures traceability for critical dimensions.)
5. What is your policy on non-conforming parts? (Will you remake them at no cost?)
6. What materials do you typically stock? (How long does it take to order special materials?)
7. What is your maximum part size? (Does your equipment handle my part dimensions?)
8. Do you have NDA and IP protection measures? (How do you protect my design?)
9. What is your capacity for batch production? (Can you guarantee consistent lead times?)
10. Can you provide references or case studies? (Have you made similar parts before?)
· Refuses to provide FAIR or inspection data.
· Quote is vague (“around this price”) without breakdown.
· Vague about material origin (“domestic grade is fine”).
· No formal contract or purchase order.
· Cannot provide business license or shop floor photos.
Common Challenges & Troubleshooting
Causes: Insufficient tool rigidity (high aspect ratio), improper cutting parameters (low speed or high feed), weak workholding, or worn spindle bearings.
Solutions: Shorten tool extension, use a larger diameter tool, adjust speed/feed to recommended values, add support fixtures, and check spindle runout.
How to Prevent Warping in Thin-Walled Parts?
Causes: Residual stress release, heat buildup during cutting, or clamping forces that elastically deform the part.
Solutions: Perform stress-relief annealing before machining; use symmetrical roughing and finishing passes; replace vise jaws with vacuum chucks or soft jaws to reduce clamping force.
What Is the Best Practice for Burr Removal?
Burrs are residual material left at edges and holes. Manual deburring is low-cost but time-consuming, suitable for small batches. Thermal deburring uses a high-temperature explosion to burn off burrs in complex internal cavities. Electrochemical deburring works well for conductive materials in high volumes. Design changes such as chamfering edges can reduce deburring work.
Can 3 axis CNC machine complex 3D contours?
Yes. Using ball nose end mills and 3D toolpaths (contour, raster, parallel finishing, etc.), 3 axis machines can create organic shapes such as molds and prototypes. However, the vertical tool orientation may leave small step-over marks on steep walls. These can be minimized by reducing step-over or by subsequent hand polishing.
What is the difference between CNC milling and CNC turning?
Milling uses rotating tools to cut a stationary workpiece and is best for prismatic parts (blocks, housings, brackets). Turning rotates the workpiece while a stationary tool cuts it and is best for cylindrical parts (shafts, disks, sleeves). “3 axis CNC” typically refers to milling, whereas turning is performed on CNC lathes or turning centers.
Do I need to provide 2D drawings, or is a 3D model enough?
Both are required. The 3D model (STEP, IGES, etc.) defines the geometry, while the 2D drawing defines tolerances, datums, surface finishes, thread specifications, chamfer requirements, and other non-geometric information. Without a 2D drawing, the supplier will use default machining tolerances, which may not meet assembly requirements. Always submit both a 3D model and a fully dimensioned 2D drawing.
How fast can I get a prototype?
For simple 3 axis parts (e.g., enclosures, brackets), quick-turn services typically deliver within 3–5 business days. Parts that are complex, require multiple setups, or need heat treatment or surface finishing may take 7–10 business days. Expedited services (24–48 hours) are available at a premium, usually 30–50% extra.
3 axis CNC machining remains a cornerstone of modern manufacturing due to its accuracy, material versatility, and mature technology. Whether you need rapid prototypes, functional end-use parts, or low-volume production, following DFM guidelines, selecting the right materials and finishes, and partnering with a reliable supplier will help you achieve high-quality parts at a reasonable cost.
1. Design Review: Verify wall thickness (metal ≥0.5 mm, plastic ≥1 mm), internal radii ≥0.5 mm, no undercuts, and tight tolerances specified only where necessary.
2. Documentation: Prepare a complete 3D model (STEP or IGES) and a 2D PDF drawing with tolerances, datums, and surface finish callouts.
3. Supplier Engagement: Request DFM feedback from at least two suppliers, compare total costs (including shipping and duties), and confirm lead times and quality agreements.
Ready to bring your design to life? Upload your CAD file (STEP or IGES format) to receive a free DFM analysis and instant quote from Brightstar 3 axis CNC machining experts. From design optimization to final delivery, we ensure every part is accurate, reliable, and cost-effective.
