Surface Finish Optimization Techniques in 5-Axis Machining

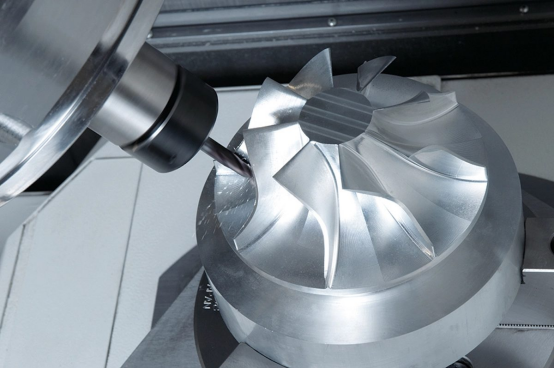

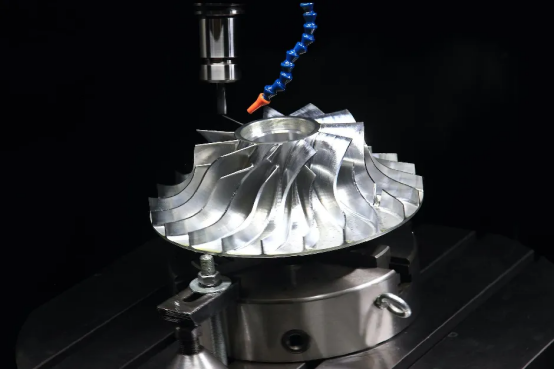

In complex surface machining, 5-axis technology has become a core capability in high-end manufacturing. Whether it is aerospace structural components, impellers, or high-precision mold parts, customers are demanding increasingly higher surface finish quality.

In real production, however, surface quality is never determined by a single factor. It is the result of machine rigidity, tooling selection, toolpath strategy, material condition, and overall process control working together.

Below are several practical optimization techniques to improve surface finish in 5-axis machining.

1. Optimize Tool Selection and Tooling Parameters

5-axis machining of complex surfaces commonly uses ball nose or radius end mills for finishing.

Key optimization points include:

Choose an appropriate tool radius.
A radius that is too small increases scallop marks, while one that is too large may affect fine detail areas.

Control tool overhang length.
Excessive overhang increases vibration and negatively affects surface quality.

Use high-quality coated tools.
Reduced friction and more stable cutting contribute to better and more consistent finishes.

In finishing operations, tool stability is often more important than simply increasing spindle speed.

2. Proper Step Over and Step Down Settings

In 5-axis surface machining, step over has a significant impact on visible surface texture.

If step over is too large, tool marks become obvious.
If step over is too small, machining time increases dramatically.

The optimal approach is dynamic adjustment based on curvature.
In areas with high curvature variation, reducing step over can significantly improve visual smoothness without excessively increasing cycle time.

3. Optimize Tool Axis Orientation and Toolpath Strategy

The advantage of 5-axis machining lies in adjustable tool orientation. However, improper control can reduce surface quality.

Important considerations include:

Avoid drastic tool angle changes to reduce contact point instability.
Maintain consistent cutting engagement.
Use smooth transition toolpaths to avoid sudden stops and sharp directional changes.

Well-designed toolpaths improve surface finish while also reducing machine load impact.

4. Control Vibration and Machine Dynamics

Abnormal surface roughness is often caused by micro vibration.

Common improvements include:

Increase rigidity between spindle and tool holder.
Use balanced tool holder systems.
Adjust cutting parameters to avoid resonance zones.

When machining thin-wall parts or high-hardness materials, vibration control directly determines the final surface result.

5. Material Condition and Pre-Treatment Control

If internal stresses are not properly relieved, slight deformation may occur after finishing, affecting surface consistency.

Common measures include:

Perform stress relief or aging treatment after rough machining.
Leave appropriate finishing allowance.
Stabilize high-strength materials before final machining.

Proper material preparation is the foundation of high-quality surface results.

6. Coordination Between Finishing and Post-Processing

For certain high-end components, achieving mirror-level finishes purely by cutting is not always practical.

Supplementary processes may include:

Light polishing
Vibratory finishing
Electropolishing depending on material type

The goal is not excessive processing, but achieving a balance between functionality, appearance, and cost efficiency.

Conclusion

Optimizing surface finish in 5-axis machining is fundamentally a test of overall system capability, not a single parameter adjustment.

It involves:

Process planning expertise
Machine stability
Tooling experience
Consistent process control

Mature 5-axis machining is not only about producing complex geometry, but also about maintaining stable and repeatable surface quality on those complex structures.

If you are developing high-precision complex surface components, feel free to discuss your application. Brightstar is happy to explore the most suitable process optimization approach together.
