Strategies for Improving Precision Part Machining Efficiency with Mill-Turn Machining

In the precision manufacturing industry, clients increasingly demand higher complexity, machining accuracy, and faster delivery for their parts. Traditional turning or milling alone can no longer meet modern manufacturing requirements, especially in industries such as aerospace, medical devices, automation equipment, and high-end electronics. To maintain precision while improving efficiency, more and more manufacturers are adopting mill-turn machining technology.

Mill-turn machining allows multiple processes such as turning, milling, drilling, and tapping to be completed on the same machine, significantly reducing setup times and process transfer time, thereby greatly improving the efficiency and consistency of precision parts machining. This article will explore how mill-turn machining improves production efficiency of precision parts and share common strategies used by manufacturers in practical applications.

1. What is Mill-Turn Machining

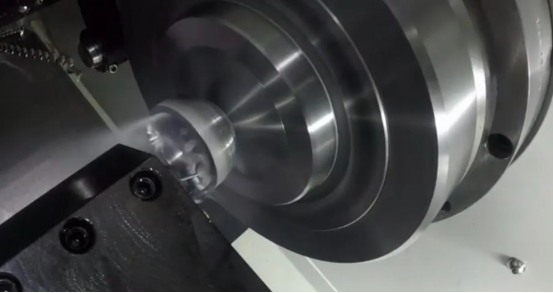

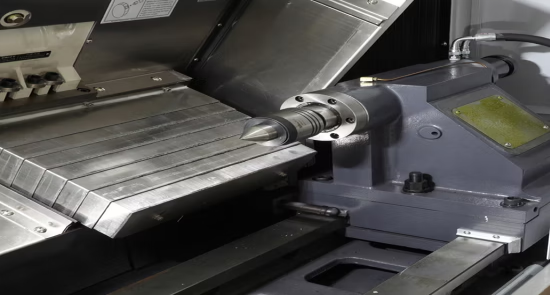

Mill-turn machining is an advanced process that integrates CNC turning and CNC milling capabilities on a single machine. In traditional workflows, a complex part often requires multiple setups on different machines, for example, turning the outer diameter on a lathe and then transferring it to a milling machine for planar or slot machining.

In a mill-turn machine, the main spindle, driven turret, and multi-axis system can complete most or all machining steps in a single setup.

Mill-turn machines typically feature:

· Multi-axis capabilities (usually 4-axis, 5-axis, or more)

· Powered tooling systems

· Simultaneous turning and milling

· Complex surface machining capability

· Automatic tool changing and in-machine measurement

This approach is especially suitable for complex, high-precision, and small-to-medium batch parts.

2. Core Advantages of Mill-Turn Machining

1. Reduced Setup Times

In traditional machining, a complex part may require 3-5 setups or more. Each repositioning introduces:

· Positioning errors

· Time loss

· Increased labor costs

Mill-turn machining can complete most processes in a single setup, reducing positioning errors and improving consistency.

2. Improved Machining Efficiency

Integrating multiple processes makes the workflow more compact. By optimizing toolpaths and tooling strategies, mill-turn machines can significantly shorten total production cycles.

Example:

Traditional workflow
Turning → Transfer → Milling → Transfer → Drilling → Transfer → Secondary machining

Mill-turn workflow
Single setup → Continuous multi-process machining → Finished part

In many projects, machining time can be reduced by 30%-60%.

3. Enhanced Part Accuracy

Reducing repeated setups and repositioning improves concentricity, positional accuracy, and overall dimensional stability—crucial for aerospace and medical parts.

4. Lower Production Costs

Mill-turn machining helps reduce:

· Number of machines

· Labor requirements

· Process time

· Fixtures and tooling

Ultimately, it reduces the unit cost of parts.

3. Key Strategies to Improve Mill-Turn Machining Efficiency

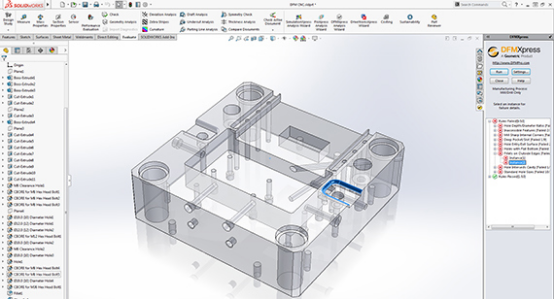

1. Optimize Part Design (DFM)

In many projects, efficiency issues stem not from machine capability, but from lack of Design for Manufacturability (DFM) considerations during the design stage.

Optimizing design can significantly improve machining efficiency, for example:

· Reduce unnecessary complex surfaces

· Optimize tool entry paths

· Add proper chamfers

· Avoid deep narrow slots

· Standardize hole sizes

A DFM-optimized part can sometimes reduce machining time by 20% or more.

2. Select the Right Tooling System

Tool selection directly affects efficiency and surface quality.

Common optimization methods:

· Use high-performance coated tools

· Use combined tools to reduce tool changes

· Use high-speed milling cutters for higher cutting efficiency

· Choose proper tool geometry for different materials

For machining titanium or stainless steel, the right tool material and coating can significantly extend tool life and reduce downtime.

3. Optimize Toolpaths

CAM programming is critical in mill-turn machining.

Proper toolpath planning can:

· Reduce air cutting

· Avoid redundant passes

· Improve cutting stability

· Reduce tool wear

Advanced CAM software can use dynamic toolpaths to achieve even higher cutting efficiency.

4. Automation and In-Machine Inspection

To improve overall production efficiency, more manufacturers are integrating automation and in-machine inspection.

Examples:

· In-machine measuring probes

· Automatic tool compensation

· Online dimensional inspection

· Automated loading/unloading systems

These technologies reduce manual inspection time while ensuring dimensional stability.

5. Choose the Right Material

Different materials vary in machinability, which directly affects efficiency.

Common material difficulty:

Easy to machine
Aluminum alloys
Brass

Medium difficulty
Carbon steel
Alloy steel

Difficult to machine
Stainless steel
Titanium alloys
High-temperature alloys

Discussing material selection with the manufacturer early in the project can significantly improve efficiency while meeting performance requirements.

4. Typical Parts Suitable for Mill-Turn Machining

Mill-turn technology is particularly suitable for:

1. Complex shaft parts

2. Aerospace structural components

3. Medical device components

4. Automation equipment parts

5. High-precision electronic enclosures

These parts typically have:

· Multi-angle holes

· Complex contours

· High concentricity requirements

· Multiple process steps

Mill-turn machining can significantly improve production efficiency and accuracy.

5. Challenges in Mill-Turn Machining

Although mill-turn technology offers significant advantages, some challenges exist in practical applications:

High equipment cost
Increased programming complexity
Higher operator skill requirements
Complex tool management

Therefore, companies should plan mill-turn machine application according to product structure and production scale.

6. Frequently Asked Questions (FAQ)

Is mill-turn machining suitable for small-batch production?

Yes. With reduced setups and process transfers, mill-turn machines are highly advantageous for rapid prototypes and small-to-medium batch production.

What accuracy can mill-turn machining achieve?

With proper process control, mill-turn machining can typically achieve
±0.01 mm or higher.

Are all parts suitable for mill-turn machining?

Not necessarily. Very simple parts may be more economical with traditional turning or milling. Mill-turn machining is better suited for complex, multi-process parts.

Can mill-turn machines fully replace traditional equipment?

In many cases, they can reduce the number of machines, but usually need to complement traditional equipment for optimal efficiency.

7. Conclusion

As the manufacturing industry demands higher efficiency and precision, mill-turn machining is becoming an essential direction in precision manufacturing. By integrating multiple processes, reducing setups, and combining advanced CAM programming with automation and inspection, companies can significantly improve the efficiency and quality stability of complex parts.

For parts requiring high precision, multiple processes, or rapid prototyping, professional mill-turn machining can provide reliable support for your product development. Contact Brightstar's engineering team to receive professional DFM advice and achieve high-quality, high-efficiency precision part manufacturing.
