Should this part be made by die casting or CNC machining?

It may seem like just a process selection, but it directly affects cost structure, production timeline, product performance, and future scalability. Especially for electronic enclosures, automotive components, and industrial equipment housings, this decision often determines the success of the project.

This article will systematically explain the key differences between die casting and CNC machining from the perspectives of process principles, cost structure, accuracy differences, application scenarios, and common misconceptions—helping you make a more rational decision.

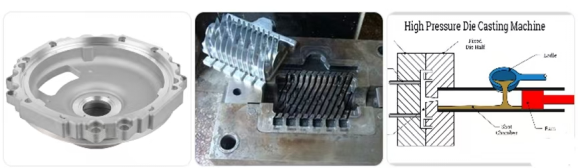

1. What Is Die Casting

Die casting is a manufacturing process in which molten metal is injected into a mold cavity under high pressure and rapidly cooled to form a part. Common materials include aluminum alloys, zinc alloys, and magnesium alloys.

Its core advantages include:

First, suitable for high-volume production
Second, unit cost decreases significantly as volume increases
Third, complex shapes can be formed in one shot

However, die casting requires tooling, and mold costs are typically high, meaning a larger upfront investment.

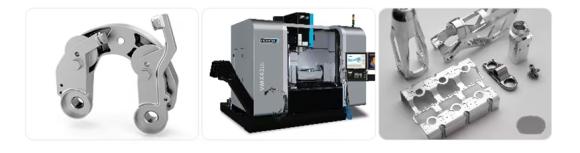

2.What Is CNC Machining

CNC machining removes material from solid stock using computer-controlled equipment. Common processes include milling, turning, drilling, and tapping.

Its core characteristics are:

First, no tooling required
Second, ideal for prototypes and small batches
Third, high machining accuracy
Fourth, wide material selection

CNC is more flexible, but the unit cost does not decrease significantly with higher quantities because each part is machined individually.

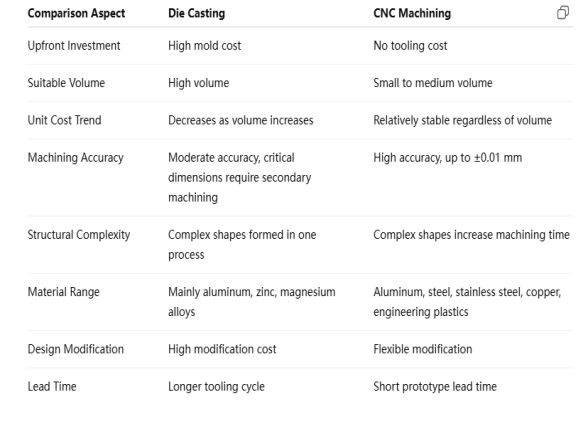

3.Core Differences Comparison Table

To better understand the differences between the two processes, the following key comparison points summarize their distinctions:

From this comparison, it is clear that neither process is simply “better.” They serve different stages and requirements.

4.Cost Structure Comparison

Many customers assume die casting is always cheaper and CNC is always more expensive. The key factor is quantity.

Die casting cost structure includes:

Tooling cost
Material cost per part
Processing cost per part
Post-processing cost

Once the order volume reaches a certain level, the tooling cost is amortized and the unit price drops significantly.

CNC machining costs mainly come from:

Material cost
Machining time
Equipment depreciation
Labor and inspection costs

In the range of 1 piece to a few hundred pieces, CNC is often more economical because there is no tooling investment.

Simply put:

Choose CNC for low volume
Choose die casting for high volume

But real projects are rarely that simple.

5.Accuracy and Surface Quality Differences

CNC machining accuracy can typically reach ±0.01 mm or even tighter, making it suitable for high-precision mating components.

The dimensional accuracy of die cast parts is affected by mold design, shrinkage rate, and venting structure. Tolerances are generally larger, and critical dimensions often require secondary machining.

In addition, die cast parts may contain internal porosity or shrinkage defects, which makes them less suitable for high-strength or high-sealing applications.

If your part requires:

High-precision assembly
High structural strength
High sealing performance

CNC machining or die casting followed by CNC secondary machining is usually necessary.

6.Common Misconceptions in the Design Stage

Misconception 1: Using die casting for prototypes

Prototypes often require structural modifications. Tooling for die casting at this stage carries high risk. Once the design changes, the mold may become unusable.

Misconception 2: Continuing to use CNC for mass production

When quantities reach thousands of pieces or more, continuing with CNC may cause unnecessary cost escalation.

Misconception 3: Ignoring machining stress and tolerance stack-up

Whether die casting or CNC machining, if material characteristics and tolerance strategy are not considered during design, validation problems are almost inevitable.

7.How to Make the Right Choice

You can evaluate from four dimensions:

Project stage
Annual demand
Accuracy requirements
Budget structure

If you are in the product validation stage, CNC is usually the safer choice.
If the design is stable and demand is predictable, die casting becomes a strong option.
If you need complex shapes with tight tolerances, a hybrid solution—die cast blank plus CNC precision machining—may be the best approach.

8.Frequently Asked Questions

Q: Are die cast parts always weaker than CNC machined parts?
A: Not necessarily, but due to process characteristics, die cast parts typically have lower overall density compared to fully machined solid parts.

Q: How long does it take to make a die casting mold?
A: Typically 20 to 35 days, longer for complex structures.

Q: How large of a volume can CNC handle?
A: Technically there is no limit, but the higher the quantity, the less cost advantage CNC provides.

Q: Can we prototype with CNC first and then switch to die casting for mass production?
A: This is the most common and safest development path.

9.Conclusion

Die casting and CNC machining are not opposing processes. They are tools for different stages.

A good supplier will not simply recommend one process, but will evaluate your product lifecycle and provide the most practical solution.

If you are evaluating a new project and unsure which process to choose, or concerned about manufacturing risks during the prototype stage, we can support you with manufacturability analysis, cost estimation, and production pathway planning.

Feel free to send us your 3D drawings or project requirements. Brightstar will provide objective manufacturing advice to help reduce your risk—not just sell machining services.

The earlier manufacturing decisions are discussed, the lower the long-term cost.
