Precision Gear Machining Strategy for Tight Tolerances



In many high-end mechanical systems, gears are not just transmission components—they are the core of precision control. From automation equipment and medical instruments to aerospace and robotics, the machining quality of precision gears directly affects device stability, noise levels, and service life.

However, compared to standard mechanical parts, precision gear machining is much more challenging. Tooth profile accuracy, pitch error, surface roughness, and tight tolerance control all impose extremely high demands on the process. Especially under tight tolerance conditions, machining strategy, equipment capability, and inspection systems must all be perfectly aligned.

This article shares key strategies for precision gear machining with tight tolerances, helping engineers and procurement teams better understand critical technical points.

1. Core Challenges in Precision Gear Machining

The main challenges of precision gear machining include:

1. Tooth profile accuracy

Gears transmit motion and torque, so tooth profile error directly affects meshing quality. Insufficient accuracy can cause:

Reduced transmission efficiency

Increased operational noise

Localized wear on tooth surfaces

Shortened overall service life

In high-end applications, tooth profile error is usually controlled within micron-level tolerances.

2. Pitch error control

Pitch error refers to deviation in spacing between adjacent teeth. Excessive error can cause vibration or even jamming during operation.

For high-precision gears, pitch error is often controlled within a few microns.

3. Impact of tight tolerances on assembly

Gears must work with shafts, bearings, and housings. Poor tolerance control can lead to:

Abnormal meshing clearance

Reduced transmission efficiency

Difficult assembly

Increased system vibration

Therefore, tolerance design and machining control must be coordinated.

2. Material Selection and Its Impact

Different materials have significant differences in machinability, wear resistance, and thermal stability, which directly affect gear machining quality.

Common gear materials include:

Alloy steel

High strength and wear resistance, suitable for high-load transmissions. Heat treatment further improves hardness and durability.

Stainless steel
Suitable for corrosion-resistant applications, such as medical or food machinery.

Aluminum alloys
Lightweight and easy to machine, ideal for high-speed or lightweight designs.

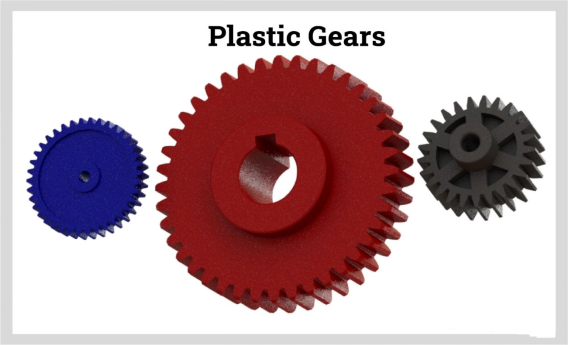

Engineering plastics
Materials like PEEK, POM, and nylon offer low noise and low friction, often used in precision instruments or consumer electronics.

Choosing the right material during the design phase can significantly reduce subsequent machining difficulty.

3. Key Machining Strategies for Tight-Tolerance Gears

1. High-precision CNC equipment

Precision gear machining typically requires:

· 5-axis CNC machining centers

· High-precision gear hobbing machines

· Shaping machines

· Gear grinding equipment

High rigidity reduces vibration and improves tooth profile accuracy.

2. Tool and cutting parameter optimization

Tool selection greatly affects gear quality. Common tools include:

· Carbide tools

· Coated tools

· High-precision form tools

During machining, optimize:

· Spindle speed

· Feed rate

· Cutting depth

Proper parameters improve efficiency and reduce tool wear.

3. Thermal deformation control

Temperature changes can cause minor material deformation.

Common strategies include:

· Temperature-controlled workshop

· Stable cooling systems

· Optimized machining sequences

Reducing thermal deformation improves machining precision.

4. Secondary finishing

For higher precision, gears often undergo secondary processes:

· Grinding

· Lapping

· Polishing

These processes improve surface roughness and meshing performance.

4. High-precision Inspection and Quality Control

Inspection is critical for tight-tolerance gears.

Common inspection methods include:

Coordinate Measuring Machine (CMM)
Measures gear dimensions, tolerances, and positions.

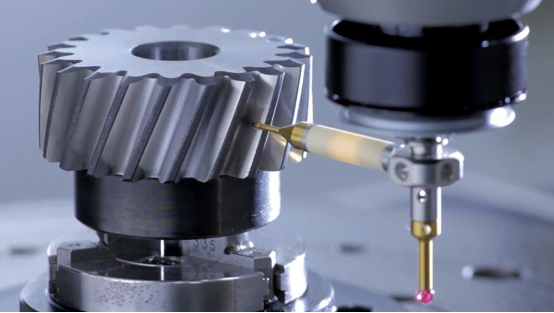

Gear measurement centers
Specialized for tooth profile, pitch, and meshing accuracy.

Surface roughness measurement
Ensures the gear meets design requirements.

A complete quality control system ensures every gear batch meets specifications.

5. DFM Recommendations in Design Phase

Many gear projects encounter problems not because of machining capability, but due to lack of Design for Manufacturability (DFM) consideration.

Common suggestions:

· Avoid extremely small module gears

· Reserve reasonable tolerances for key dimensions

· Consider deformation after heat treatment

· Discuss machining strategies with the manufacturer during design

Optimizing DFM reduces cost and improves production stability.

6. Frequently Asked Questions (FAQ)

1. What tolerances can be achieved for precision gears?
With high-precision CNC and grinding, critical dimensions can be controlled within ±5μm or higher.

2. Do gears require heat treatment after machining?
For high-load applications, heat treatment is usually required to improve hardness and wear resistance.

3. Can small-batch prototype gears be machined?
Yes. CNC machining is ideal for small-batch prototypes and allows design verification before mass production.

4. Can engineering plastic gears achieve metal-level accuracy?
In many low-load applications, plastic gears can achieve high accuracy while reducing noise.

7. Conclusion

Precision gear machining is a combination of equipment capability, process strategy, material selection, and quality control.

Under tight tolerances, every detail impacts the final product performance.

If your project involves:

· High-precision prototype gears

· Tight-tolerance mechanical parts

· Key transmission components for automation equipment

We welcome you to contact us. Brightstar team can provide DFM recommendations during the design stage and high-precision CNC machining solutions, helping your project transition smoothly from prototype to mass production.

Feel free to share your drawings or technical requirements. We’re happy to provide support.
