Practical Strategies for Controlling Deformation of Thin-Walled Parts in Five-Axis Milling

In the field of high-precision machining, thin-walled parts often face deformation issues due to their small wall thickness and low rigidity. Especially in five-axis milling, high-speed cutting, complex tool paths, and multi-surface machining sequences can lead to warping or stress-relief deformation. This article shares practical strategies for controlling deformation in five-axis milling of thin-walled parts, helping engineers, designers, and procurement teams better understand the challenges and optimization techniques.

1 Main Causes of Deformation in Thin-Walled Parts

Deformation of thin-walled parts in five-axis milling usually arises from the following factors:

Uneven Cutting Forces
Thin-walled parts lack rigidity, and the cutting forces from the tool can cause localized stress. High-speed or heavy material removal may result in “tool push effects,” causing slight warping.

Residual Stress Release
Materials often carry residual stress from forging, extrusion, or casting processes. During milling, removal of material can release localized stress, leading to deformation in thin-walled sections.

Insufficient Clamping
Thin-walled parts can have unsupported segments due to limited fixture points, and uneven clamping can cause vibration during machining. Single-point or line clamping may concentrate stress, increasing local warping.

Improper Multi-Surface Machining Sequence
If the machining sequence is not well planned, the surfaces machined first may affect the positioning of subsequent surfaces. Especially for complex curved parts, cumulative errors can result in overall dimensional deviation.

2 Deformation Control Strategies in Design Stage

Adopting proper design strategies can reduce the risk of thin-walled deformation:

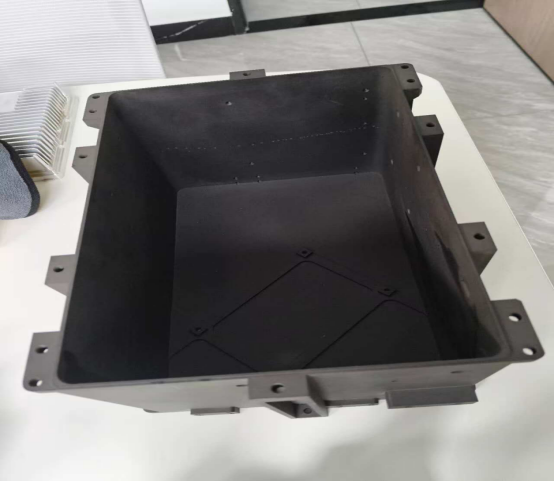

Adding Ribs or Reinforcements
Structural optimization can improve local rigidity. For example, adding ribs to thin-walled housings or shells can significantly reduce warping during machining.

Optimizing Wall Thickness Distribution
Avoid large transitions between thick and thin sections to reduce stress concentration. Uniform wall thickness helps maintain machining stability.

Considering Machining Directions
Designing with fixture surfaces and machining directions in mind facilitates secure clamping during five-axis milling.

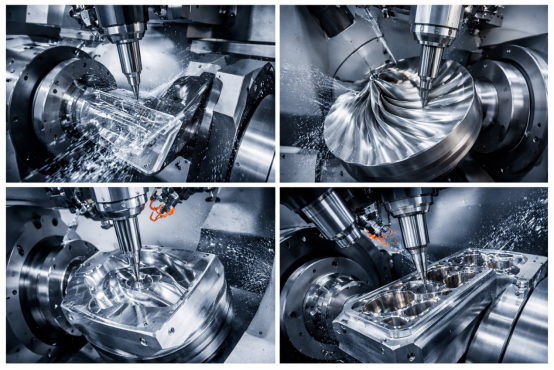

3 Deformation Control in Five-Axis Milling Practice

Tool Selection and Cutting Parameter Optimization
Use long-flute, short-cutting, small radial feed, and shallow depth-of-cut strategies. Use carbide or coated tools to reduce vibration. For thin-walled parts, high spindle speed with low feed and light cutting reduces the risk of overloading the part in a single pass.

Optimizing Machining Sequence
Machine the outer profile first, then internal features or openings. For multi-surface machining, process the more rigid surfaces before thin-walled sections. Partitioned machining can reduce localized stress and control overall stress release.

Fixture and Support Design
Use adjustable support fixtures to increase contact area and balance forces. Flexible or vacuum fixtures are suitable for complex shapes, effectively reducing deformation. Temporary supports can prevent vibration in long thin-walled structures.

Simulation and Measurement
Use CAM software for cutting simulations to predict thin-walled stress and potential deformation. For critical dimensions, perform online measurement using tactile or optical systems, providing timely feedback to adjust machining strategies.

4 Case Study

In a recent aerospace part project, the part had a wall thickness of only 1.2 mm and a long edge over 250 mm. Initial machining caused slight warping. Optimization steps included:

Modifying fixture design by adding multiple temporary supports
Adjusting cutting strategy to use multiple light cuts instead of heavy passes
Optimizing machining sequence to process inner holes before outer profiles
Applying stress-relief annealing after rough machining before finishing

The final part deformation was controlled within ±0.05 mm, fully meeting drawing tolerances.

5 Key Concerns from Clients

Based on experience, clients typically focus on:

Whether the part can maintain design dimensions after machining
Balancing machining efficiency and cost
Ensuring quality of complex curved surfaces

Proper design, optimized machining sequence, suitable cutting strategies, and professional fixture support are key to addressing these concerns.

6 Summary and Action Recommendations

Controlling deformation in five-axis milling of thin-walled parts is not solved by a single step. It requires an integrated approach involving design, process planning, fixtures, tooling, and measurement. Understanding material behavior, designing effective fixtures and machining sequences, and using appropriate cutting strategies are crucial to ensure high-quality parts.
