Key CNC Turning Process Planning Points for Complex Shaft Parts

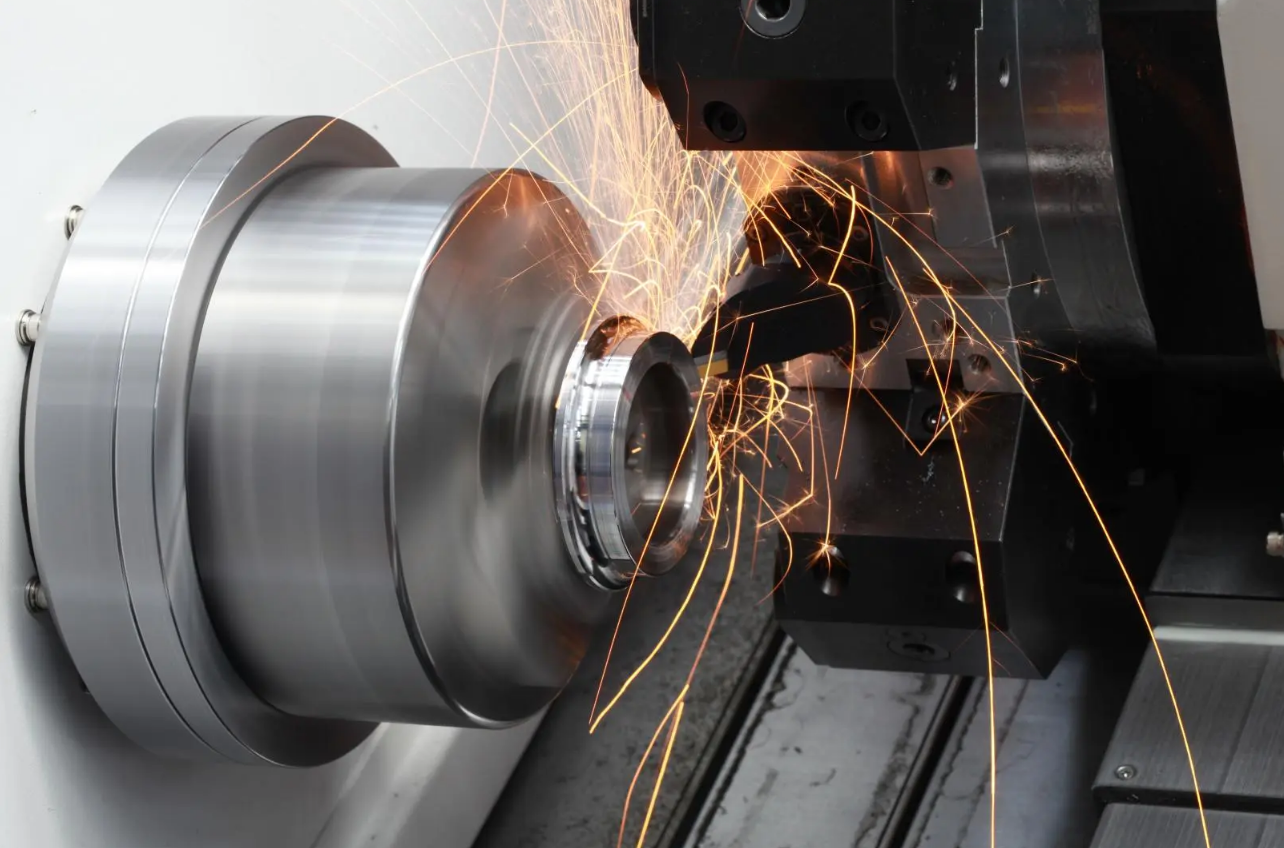

In CNC machining, shaft parts are among the most common components. However, “common” does not mean “simple.”
When a shaft part involves multiple steps, varying diameters, deep holes, internal and external threads, or strict requirements for concentricity and surface finish, it quickly becomes a complex shaft component.

In these cases, proper CNC turning process planning is often more critical than machine accuracy alone.

Below are the key process planning considerations for machining complex shaft parts from a practical manufacturing perspective.

1. Understand Part Function, Not Just Dimensions

Complex shaft parts are typically core components for transmission, positioning, or connection, such as motor shafts, drive shafts, spindles, and precision connector shafts.
Before planning machining steps, the first priority is not process sequencing, but understanding:

Which dimensions are functional and critical
Which shaft sections are used for fitting or alignment
Which features are most sensitive to concentricity, runout, and surface finish

Only by understanding the part’s role in the assembly can we decide which features must be machined in a single setup and which can be processed in separate operations.

2. Select the Right Raw Material Form to Reduce Risk

Common raw material forms for complex shaft parts include round bar stock, forgings, or pre-machined blanks.
Material selection directly affects:

Machining allowance consistency
Risk of deformation during cutting
Stability during finishing operations

For long, slender shafts or parts with tight concentricity requirements, materials with good straightness and stable internal structure are preferred to minimize accuracy issues.

3. Fixturing Strategy Determines Concentricity Limits

Concentricity is one of the most critical—and most challenging—requirements for complex shaft parts.
During CNC turning process planning, special attention should be given to:

Whether key diameters and faces can be completed in a single setup
The use of live centers, steady rests, or follow rests to improve rigidity
Soft jaws machined in-place to ensure accurate and repeatable clamping

Changing datums unnecessarily is a common cause of concentricity failure.

4. Balance Efficiency and Accuracy in Process Sequencing

Complex shaft parts usually require multiple stages, including rough turning, semi-finishing, and finishing.
When planning operations, it is important to balance:

High material removal efficiency during roughing
Stable cutting conditions during finishing to avoid heat distortion and vibration

For shafts with threads, grooves, or internal features, these operations should be carefully scheduled to prevent damage to high-precision surfaces.

5. Tooling and Cutting Parameters Matter More Than Expected

Surface quality on shaft parts is heavily influenced by tooling choices and cutting parameters.
Key considerations include:

Tool nose radius selection for finishing cuts
Cutting speed and feed rate effects on surface roughness
Tool rigidity for deep grooves or internal turning

For shafts with high length-to-diameter ratios, insufficient tool or setup rigidity can easily cause chatter and surface defects.

6. Integrate Auxiliary Processes When Necessary

For high-precision complex shaft parts, turning alone may not be sufficient.
During process planning, it is important to evaluate whether additional processes are required, such as:

Post-turning grinding to improve roundness and surface finish
Heat treatment followed by final machining
Additional inspection steps to control critical dimensions

Early planning of these process links helps reduce rework and quality risks.

7. Include Inspection as Part of the Process Plan

Process planning should not stop at machining—it must also cover inspection.
For example:

In-process checks for critical diameters and shaft sections
Dedicated measurement methods for concentricity and runout
Sampling or full inspection of surface roughness

Embedding inspection steps into the process flow significantly improves consistency and reliability.

Conclusion

CNC turning of complex shaft parts is not simply about “more cutting steps.” It requires a comprehensive understanding of process logic, fixturing strategy, machining sequence, and quality control.
A well-designed process plan ensures dimensional accuracy, consistency, and cost efficiency while minimizing manufacturing risk.

If you are developing or sourcing complex shaft components, feel free to share your drawings and technical requirements with us.
Brightstar is happy to support you with optimized machining solutions to improve part quality and delivery reliability.
