How to Reduce CNC Machining Cost Without Sacrificing Quality

If you have ever requested a quote for CNC machined parts, you have probably had this experience: you receive the quote and find that the price is far higher than expected. Or, you may have chosen a cheaper supplier to reduce costs, only to receive parts that are poor quality, delayed, or completely unusable.

The question is: Is there a way to reduce CNC machining costs without sacrificing quality?

The answer is: Yes. But the answer is not "find the cheapest supplier." Real cost savings come from a combination of design optimization, material selection, process planning, and supply chain strategy.

At Brightstar, we are asked about cost-related questions every day. This article will reveal from a professional CNC machinist's perspective the key factors affecting machining costs and provide proven cost reduction strategies—all without sacrificing quality.

1. Understanding the Components of CNC Machining Costs

To reduce costs, you first need to understand where the costs come from. CNC machining costs consist of several main components:

1.1 Machining Time (40-60% of total cost)

This is the largest cost factor. Machining time includes:

· Chip removal time (time the spindle is actually cutting)

· Non-cutting time (tool changes, rapid movements, inspection, etc.)

Why is machining time so expensive? A CNC machine's hourly rate typically ranges from $50-150 per hour, depending on equipment type, location, and market conditions. The longer the machining time, the higher the cost.

1.2 Programming and Setup Time (15-25% of total cost)

This includes:

· CAM programming (generating toolpaths)

· Machine setup and calibration

· First article verification

These costs are typically calculated by the hour and—critically—they do not increase as you order more parts. This means: the higher the quantity, the lower the programming and setup cost per part.

1.3 Material Cost (10-20% of total cost)

Raw material prices vary depending on material type, shape (plate, bar, custom size), and supplier.

1.4 Post-Processing and Surface Finishing (5-15% of total cost)

This includes:

· Heat treatment

· Anodizing, passivation, plating

· Polishing, sandblasting

· Coating

1.5 Inspection and Quality Management (5-10% of total cost)

· CMM inspection

· First article inspection reporting

· In-process sampling

1.6 Tooling and Consumables (3-8% of total cost)

· Cutting tools (end mills, drills, taps)

· Coolant

· Grinding wheels, abrasives"

2. Ten Practical Strategies to Reduce Costs

The following strategies are arranged in order from the design phase to the production phase. The earlier you apply these strategies, the more significant the cost savings.

Strategy 1: Optimize Design – Design for Manufacturability (DFM)

This is the most effective cost reduction strategy, typically saving 20-40% of costs.

Design features that can be optimized:

Strategy 2: Choose Appropriate Tolerances

This is the most common cause of cost overruns. Many designers habitually specify ±0.01mm on entire drawings, even when most features only need ±0.1mm.

Typical tolerances and relative costs:

Recommendation: Only specify tight tolerances where functionally necessary. Use standard tolerances (such as ISO 2768) for other features.

Strategy 3: Choose Materials Carefully

Although material cost accounts for only 10-20% of total cost, material selection affects machining time (material hardness, machinability) and tool life.

Relative machinability of common materials:

Recommendation: Do not choose titanium or stainless steel unless absolutely necessary. Aluminum and mild steel are sufficient for most applications and cost significantly less.

Strategy 4: Reduce Complex Geometric Features

Complex geometries require more programming time, longer machining time, and sometimes additional setups.

Features to avoid:

· Compound curves requiring 5-axis machining (if 3-axis can achieve the same)

· Fine details requiring tiny tools (<1mm)

· Deep narrow slots (aspect ratio >4:1)

· Features that cannot be machined with standard tooling

Recommendation: Ask yourself during design: "Is this feature really necessary? Is there a simpler alternative?"

Strategy 5: Plan Batch Quantities Reasonably

The economics of CNC machining are closely tied to quantity.

Cost characteristics by quantity:

Recommendation: If you know you will eventually need 500 parts, do not order 50 and repeatedly reorder. Ordering the full quantity at once can save significant costs.

Strategy 6: Combine Multiple Orders

If you have several different parts to machine, consider combining them into a single order.

Benefits of combining orders:

· Amortizes programming and setup costs across multiple parts

· Reduces purchasing processing costs

· Materials can be purchased in bulk (lower prices)

· Lower logistics costs

Recommendation: If you have 5-10 different parts to machine, requesting quotes and ordering them together is typically 20-40% cheaper than placing five separate orders.

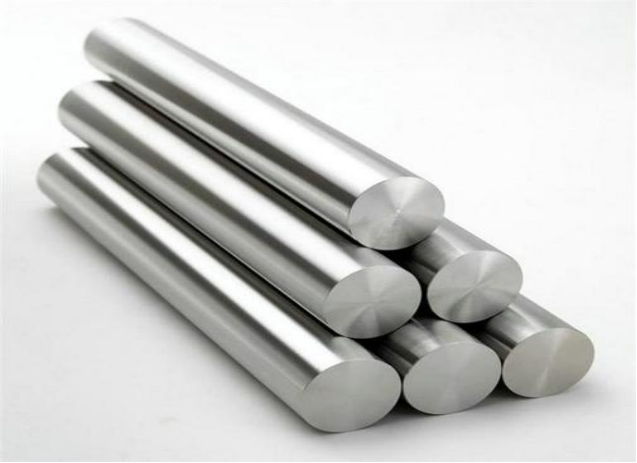

Strategy 7: Use Standard Material Sizes

CNC machining typically starts with standard plates, bars, or tubes. Using non-standard raw materials means additional cutting or custom procurement, which increases costs.

Recommendation:

· Consider standard material sizes when designing part dimensions

· Aluminum plates and bars have standard thicknesses/diameters (e.g., 6mm, 10mm, 12mm, 16mm, 20mm)

· If a non-standard thickness is required, consider whether it can be achieved through machining

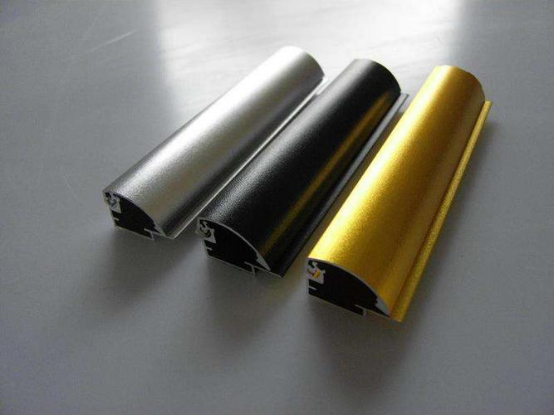

Strategy 8: Optimize Surface Finish Requirements

Surface finishing can significantly increase cost and lead time.

Recommendation: Only specify surface finishing when functionally or cosmetically necessary. For internal parts or hidden surfaces, as-machined finish is usually sufficient.

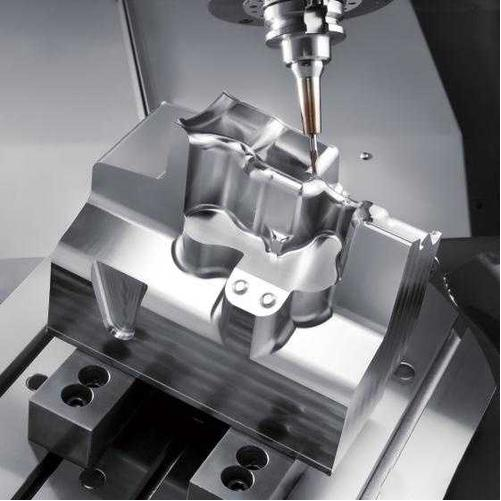

Strategy 9: Reduce Number of Setups

Each setup takes time, and each repositioning introduces potential error.

How to reduce setups:

· Design with consideration for machining all features in one setup

· Use 5-axis CNC machining for complex parts (single setup)

· Design uniform datum surfaces

Recommendation: If your part requires machining from multiple angles, consider a single-setup machining strategy. Even if the hourly rate is higher, the final cost may be lower.

Strategy 10: Choose the Right Supplier, Not the Cheapest

This may seem counterintuitive, but it is the most critical recommendation.

The cheapest suppliers typically:

· Use slower, older equipment

· Use cheaper tools (shorter life)

· Skip necessary inspections

· Employ less experienced operators

The result:

· High scrap rates (you may pay for bad parts or wait for rework)

· Unreliable lead times

· Inconsistent part quality

Real cost savings come from:

· Getting it right the first time (zero rework)

· Reliable delivery (no delays to your project schedule)

· Consistent quality (no need for sorting or rework)

Recommendation: Choose a supplier whose capabilities, quality systems, and industry experience match your needs. Price is not the only factor; total cost of ownership (TCO) is what matters.

3. Case Study: Sensor Housing Redesign

Original design:

· Material: 316 stainless steel

· Wall thickness: 3mm solid wall

· Tolerance: ±0.01mm on all dimensions

· Surface finish: Full polish

· Quantity: 100 pieces

Original quote: $85 per piece

Optimized design:

· Material: 6061 aluminum (better machinability)

· Wall thickness: 2mm with ribs (same strength, lighter)

· Tolerance: ±0.1mm on non-critical surfaces, only ±0.02mm on mating surfaces

· Surface finish: Bead blast + clear anodize

· Quantity: 100 pieces

Optimized quote: $28 per piece

Cost saving: 67% – and the part functions identically, even lighter.

4. How Brightstar Helps You Reduce Costs

At Brightstar, we do not simply accept your drawings and provide quotes. We actively help customers reduce costs without sacrificing quality.

Our cost optimization services include:

1. Free DFM review – Before ordering, we analyze your design and suggest optimization opportunities

2. Material substitution recommendations – We may suggest a more machinable material that still meets functional requirements

3. Tolerance review – We identify tolerances that may be unnecessarily tight and suggest more economical alternatives

4. Quantity recommendations – We recommend the most economical order quantity based on your expected usage

5. Process selection – We recommend the most suitable machine tools and processes based on part features

The result: Our customers save an average of 15-30% on part costs through DFM recommendations.

5. Frequently Asked Questions (FAQ)

Q1: Should I tell the supplier my budget when requesting a quote?

Yes. Telling the supplier your target price range allows them to offer alternatives (different materials, processes, or design modifications) to meet your budget.

Q2: What is the minimum order quantity?

This depends on the part and the supplier. Brightstar has no minimum order quantity. We can produce from a single prototype to thousands of production parts.

Q3: What percentage of total part cost is material cost?

Typically 10-20%. Machining time is the larger cost factor. Choosing a material that is easier to machine (even if slightly more expensive) may lower total cost.

Q4: Why do quotes for the same part vary so much between suppliers?

Reasons include: equipment type (old 3-axis vs. new 5-axis), quality systems (inspection or not), material sourcing channels, geographic location, and whether the supplier has done proper process planning.

Q5: Can I reduce costs by providing pre-cut material?

Sometimes. But ensure the material dimensions and condition meet the supplier's requirements. Ask first whether the supplier has material purchasing discounts—they can often buy materials in bulk at lower prices.

Q6: What is DFM? Do I need to pay for it?

DFM (Design for Manufacturability) is the process where a supplier analyzes your design before production and suggests improvements. Brightstar provides free DFM reviews to customers.

6. Summary

Reducing CNC machining costs without sacrificing quality is entirely possible, but it requires strategy rather than compromise.

Key takeaways:

The most important recommendation: Start thinking about cost during the design phase, not when you receive a quote and are shocked. Work with your machining supplier and involve them in design reviews. They have manufacturing expertise that you may not have.

Brightstar is ready to help you optimize your design, select appropriate materials and processes, and reduce your part costs without sacrificing quality.
