How Does 3D Printing Work? A Complete Guide to Additive Manufacturing Principles and Processes

If you have been following manufacturing news recently, you have likely heard the term "3D printing." It is hailed as one of the core technologies of the third industrial revolution, capable of printing everything from plastic toys to metal aircraft parts and even human organs.

But how does 3D printing actually work? How is it different from traditional CNC machining? How does a 3D printer turn a digital model into a physical object?

Whether you are a product designer, engineer, entrepreneur, or simply curious about this technology, this article will explain in plain language the working principles of 3D printing, the main technology types, the workflow, and the advantages and disadvantages. After reading this article, you will clearly understand whether 3D printing is suitable for your next project.

1. What Is 3D Printing? The Fundamental Difference from Traditional Manufacturing

To understand how 3D printing works, you first need to understand the fundamental difference between it and traditional manufacturing methods.

Traditional Manufacturing is "Subtractive"

Traditional manufacturing methods such as CNC machining, turning, and milling are subtractive manufacturing processes. You start with a solid block of material (such as a metal block or plastic sheet) and remove material through cutting, drilling, grinding, etc., to achieve the desired shape. It is like a sculptor carving a statue from a block of marble.

3D Printing is "Additive"

3D printing is an additive manufacturing process. Instead of removing material, it starts from nothing and adds material layer by layer to gradually build the complete object. It is like a pastry chef building a cake layer by layer with frosting.

This distinction is crucial:

2. Core Working Principle of 3D Printing: Four Steps from Digital to Physical

Regardless of which 3D printing technology is used, the core workflow follows the same four steps.

Step 1: Create a 3D Digital Model

The starting point for any 3D print is a three-dimensional digital model. You can create it in several ways:

· CAD software (SolidWorks, Fusion 360, Creo, CATIA) for professional design

· Scanner to scan an existing object and generate a 3D model

· Online model libraries (Thingiverse, GrabCAD) to download existing models

Step 2: Convert the Model to an STL File

After completing the 3D model, it needs to be exported into a format that the 3D printer can recognize. The most common format is STL (stereolithography abbreviation).

An STL file approximates the geometric shape of the model by breaking its surface down into a large number of tiny triangles. The more triangles, the finer the model detail, but the larger the file size.

Other common formats include OBJ, AMF, and 3MF.

Step 3: Slicing – Dividing the Model into Thin Layers

This is the most critical step in 3D printing. Slicing software (such as Cura, PrusaSlicer, Simplify3D) "slices" the 3D model into hundreds or thousands of extremely thin cross-sectional layers (typically 0.1 mm to 0.3 mm per layer).

The slicing software also generates the instructions needed by the printer, including:

· The movement path of the nozzle or laser

· The speed of printing each layer

· Temperature settings

· Whether support structures are needed

The output file is typically G-code or a printer-specific format.

Step 4: Print Layer by Layer

The 3D printer reads the sliced file and begins building the object layer by layer:

1. The printer deposits or cures the first layer of material onto the build platform

2. The platform lowers (or the print head rises) by a distance equal to one layer height

3. The second layer is printed and fuses to the first layer

4. This process repeats until all layers are printed

5. Support structures are removed (if any) and post-processing is performed

This process can take anywhere from minutes to days, depending on the size, complexity, and printing technology of the object.

3. Mainstream 3D Printing Technologies and How They Work

"3D printing" is a general term that actually encompasses several different technologies. Below are the most common types and how they work.

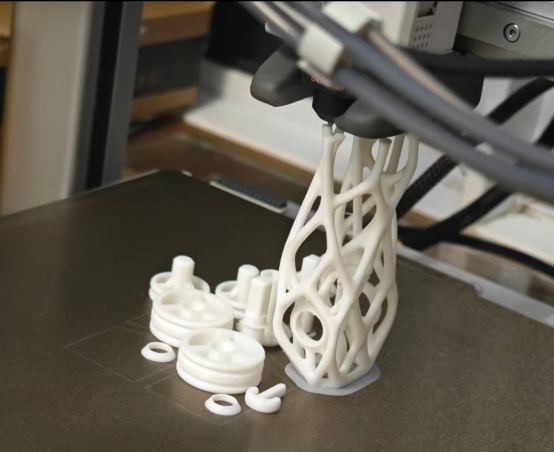

3.1 FDM (Fused Deposition Modeling)

FDM is the most common and least expensive 3D printing technology, used by most desktop 3D printers.

How it works:

· Thermoplastic filament (such as PLA, ABS, PETG, nylon) is fed into a heated nozzle

· The nozzle heats the plastic to a molten state (approximately 200-250°C)

· The nozzle moves along the sliced path, extruding molten plastic onto the build platform

· The plastic cools and solidifies almost immediately, fusing to the layer below

· The platform lowers, and the next layer is printed

Advantages:

· Low equipment cost (desktop units start at a few hundred dollars)

· Wide variety of materials, low cost

· Simple operation, suitable for beginners

Disadvantages:

· Lower accuracy (±0.1-0.3 mm)

· Obvious layer lines on the surface, requiring post-processing

· Overhanging features require support structures

Typical applications: Concept prototypes, educational demonstrations, enclosures, fixtures, low-strength functional parts

3.2 SLA (Stereolithography)

SLA is the earliest invented 3D printing technology, using liquid photopolymer resin and an ultraviolet laser.

How it works:

· The build platform is submerged in a vat of liquid photopolymer resin

· An ultraviolet laser scans the resin surface according to the sliced path

· The resin exposed to the laser instantly solidifies (photopolymerization)

· The platform lowers by one layer thickness, and fresh liquid resin covers the solidified layer

· The laser scans the next layer, curing layer by layer

Advantages:

· High accuracy (±0.05-0.1 mm)

· Excellent surface finish with no visible layer lines

· Can print very fine details

Disadvantages:

· Higher equipment cost

· Resin materials are more expensive

· Printed parts require washing and post-curing

· Resin is typically brittle, not suitable for functional parts

Typical applications: Jewelry models, dental models, miniatures, appearance validation prototypes

3.3 SLS (Selective Laser Sintering)

SLS is the mainstream industrial 3D printing technology, using powder materials and a carbon dioxide laser.

How it works:

· Powder material (typically nylon, TPU, or metal) is spread across the build platform

· A carbon dioxide laser scans the powder surface according to the sliced path

· The laser sinters (fuses) the powder particles together

· The platform lowers by one layer thickness, and fresh powder is spread over the surface

· The laser sinters the next layer, with unsintered powder acting as support

Advantages:

· No need for support structures (unsintered powder naturally supports the part)

· Printed parts have strength and toughness close to injection molding

· Can print complex geometries and living hinges

Disadvantages:

· Expensive equipment (tens to hundreds of thousands of dollars)

· High material cost

· Powder must be cleaned from the part after printing

· Surface finish is rough

Typical applications: Functional prototypes, low-volume production, complex assemblies, drone parts

3.4 DLP (Digital Light Processing)

DLP is similar to SLA but uses a projector instead of a laser.

How it works:

· A digital projector projects an entire layer image onto the resin surface

· The entire layer cures simultaneously, rather than point by point

· As a result, DLP is much faster than SLA

Advantages:

· Fast printing speed (entire layer cures at once)

· High accuracy

· Suitable for high-volume production of small parts

Disadvantages:

· Build size limited by projector resolution

· Resin materials are similar to SLA

Typical applications: Dental models, jewelry casting, high-volume miniatures

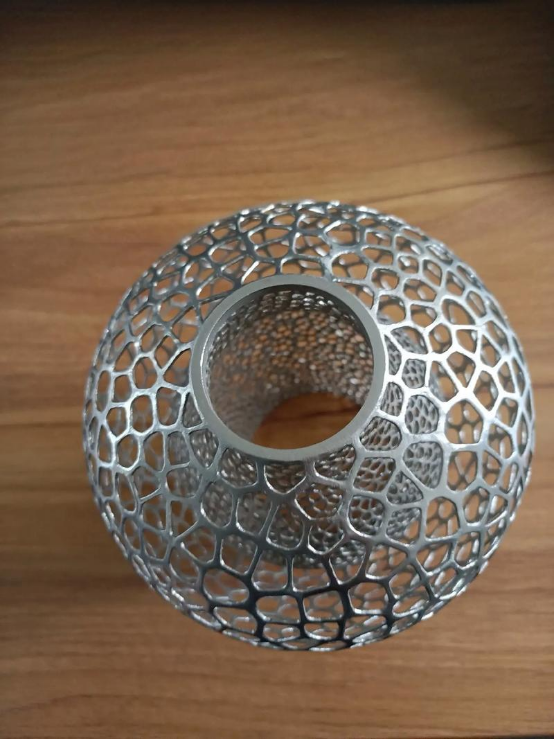

3.5 Metal 3D Printing (DMLS / SLM)

Metal 3D printing is an important technology for the aerospace and medical industries.

How it works:

· Similar to SLS, but uses metal powder

· A high-power laser completely melts the metal powder (rather than sintering it)

· Layer by layer melting and solidification creates dense metal parts

Common materials: Titanium alloys (Ti-6Al-4V), stainless steel (316L, 17-4PH), aluminum alloys (AlSi10Mg), Inconel

Advantages:

· Can print complex metal geometries impossible with traditional methods

· High material utilization

· Part properties approach those of forged components

Disadvantages:

· Extremely expensive equipment (starting at hundreds of thousands of dollars)

· Requires specialized operation and post-processing (heat treatment, support removal)

· Rough surface finish on printed parts

Typical applications: Aircraft engine components, orthopedic implants, heat exchangers, complex brackets

4. 3D Printing vs. CNC Machining: A Comparative Summary

Many customers ask: "Can 3D printing replace CNC machining?" The answer is: No, it cannot completely replace it. The two technologies complement each other rather than compete.

5. How to Choose: 3D Printing or CNC Machining?

This is a question customers ask frequently. The following decision framework can help you make the right choice.

Choose 3D Printing When

· Early-stage prototyping – Need fast, low-cost form and fit verification

· Extremely complex geometries – Internal channels, lattice structures, topology-optimized shapes

· Low volume (1-10 pcs) – No need to amortize programming and fixturing costs

· Material is not critical – Plastic or prototype-grade material is sufficient

· Accuracy requirements are not high – ±0.1 mm is perfectly acceptable

Choose CNC Machining When

· End-use parts – Strength, durability, and reliability are required

· Metal parts – Especially aluminum, steel, titanium

· High accuracy required – ±0.01 mm or tighter tolerances

· Excellent surface finish required – Usable without post-processing

· Medium to high volume (50+ pcs) – Can amortize programming and fixturing costs

Hybrid Strategy: Combine Both Technologies

Many companies use a "hybrid manufacturing" strategy:

1. Prototype phase: Use 3D printing for rapid design iteration

2. Testing phase: Use CNC machining for metal functional prototypes

3. Low-volume production: Choose based on part complexity

4. High-volume production: CNC machining or injection molding

6. Advantages and Limitations of 3D Printing

Advantages

1. Extreme design freedom – Can print geometries impossible with traditional methods (internal cooling channels, lattice structures, integrated assemblies)

2. Rapid iteration – From CAD to physical object in hours, no programming or fixturing required

3. High material utilization – Uses only the material needed, very little waste

4. Customization – Each part can be different at no additional cost

5. Supply chain simplification – Print on demand, reduce inventory

Limitations

1. Limited accuracy – Cannot match CNC machining levels

2. Poor surface finish – Typically requires sanding, polishing, or other post-processing

3. Material properties – FDM plastic parts are weaker than injection molded; resin parts are brittle

4. Size limitations – Most 3D printers have small build volumes

5. Slow speed – Much slower than traditional manufacturing for high-volume production

7. Future Trends in 3D Printing

As technology advances, 3D printing is evolving from a "rapid prototyping tool" to a "production-grade manufacturing technology."

1. High-Speed 3D Printing

New technologies (such as Carbon's Continuous Liquid Interface Production, HP's Multi Jet Fusion) have increased printing speeds several times over, making low-volume production feasible.

2. Multi-Material Printing

Printing multiple materials simultaneously (rigid + flexible, conductive + insulating) is becoming a reality.

3. Hybrid Manufacturing (3D Printing + CNC)

Printing near-net shapes with 3D printing followed by finishing with CNC machining combines the strengths of both: complex geometry + high-precision surfaces.

4. Broader Range of Engineering Materials

From PEEK and PEKK to carbon fiber-reinforced nylon, 3D printing materials are approaching the properties of traditionally manufactured materials.

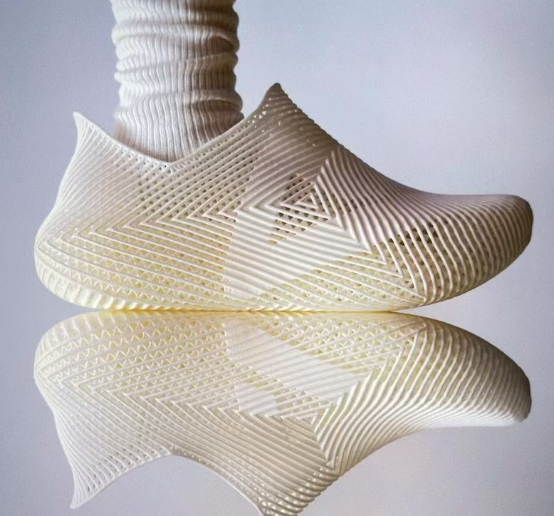

5. Mass Customization

Medical implants, dental aligners, hearing aids, and other personalized products are already being produced through mass customization.

8. Frequently Asked Questions (FAQ)

Q1: How long does 3D printing take?

It depends on several factors: part size, layer height, print speed, and technology type. A small phone case takes approximately 2-4 hours with FDM, and 1-2 hours with SLA/SLS. A large, complex part may take 24 hours or more.

Q2: Are 3D printed parts strong enough?

It depends on the technology and material. FDM printed PLA or ABS parts have approximately 60-80% of the strength of injection molded parts. SLS printed nylon parts approach injection molded strength. Metal 3D printed parts approach forged properties. For non-critical applications, 3D printed parts are usually strong enough.

Q3: Can 3D printers print metal?

Yes. Metal 3D printing (DMLS/SLM) is mature and widely used in the aerospace and medical industries. However, equipment costs are high (hundreds of thousands of dollars), materials are expensive, and operation is complex. For most metal parts, CNC machining remains the more economical choice.

Q4: Which should I choose: FDM, SLA, or SLS?

· FDM: Limited budget, printing concept prototypes, no need for high accuracy

· SLA: Need high accuracy, smooth surfaces, small detailed parts

· SLS: Need high-strength functional parts, complex geometries, no support structures

Q5: Can 3D printing replace CNC machining?

No. The two technologies complement rather than compete. 3D printing is suitable for complex geometries, rapid prototyping, and low volumes. CNC machining is suitable for high accuracy, metal materials, high volumes, and excellent surface finish. Many companies use both technologies.

Q6: How much does 3D printing cost?

Desktop FDM printers: 200−2,000.IndustrialSLA/SLS/metalprinters:200−2,000.IndustrialSLA/SLS/metalprinters:10,000-500,000+. Printing materials: FDM filament 20−50/kg,SLAresin20−50/kg,SLAresin50-150/L, SLS nylon 50−100/kg,metalpowder50−100/kg,metalpowder200-1,000/kg.

9. Brightstar's Position: We Do CNC, But We Understand 3D Printing

As a company specializing in precision CNC machining, Brightstar does not offer 3D printing services. However, we understand the value of 3D printing for rapid prototyping and complex geometries.

Our advice is straightforward:

· If you are in the early design stage and need fast form and fit verification, 3D printing is an excellent choice

· When you need metal parts, high accuracy, excellent surface finish, or production volumes, CNC machining is the more appropriate choice

Many customers first iterate their designs with 3D printing and then come to Brightstar for CNC machining of the final parts. This is the most economical and efficient development path.

Regardless of which technology you choose, Brightstar is ready to use our CNC machining capabilities to turn your designs into reality.

10. Summary

3D printing is an additive manufacturing technology that builds objects by adding material layer by layer. Its workflow includes: creating a 3D model → converting to an STL file → slicing → printing layer by layer.

Mainstream 3D printing technologies include FDM (fused deposition modeling), SLA (stereolithography), SLS (selective laser sintering), DLP (digital light processing), and metal 3D printing (DMLS/SLM). Each technology has different working principles, advantages, and suitable applications.

3D printing will not replace CNC machining, but rather complement it. 3D printing excels at complex geometries, rapid prototyping, and low volumes. CNC machining excels at high accuracy, metal materials, excellent surface finish, and production volumes. Understand the differences and choose the technology that best suits your project needs.
