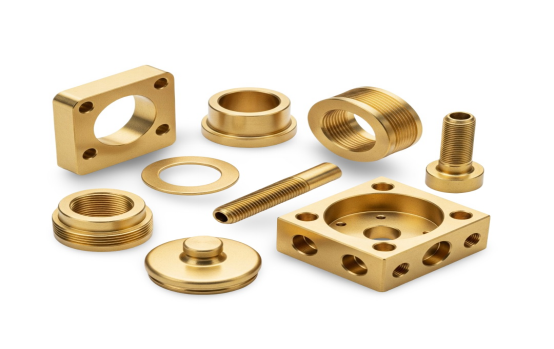

In the CNC precision machining industry, copper and brass are widely used in electronics, electrical systems, communications, automotive, medical devices, and precision instruments due to their excellent electrical conductivity, thermal conductivity, corrosion resistance, and good mechanical properties. Typical applications include electrical connectors, heat sinks, valve bodies, precision bushings, terminals, and various conductive components.
Although copper and brass are generally considered relatively easy-to-machine materials, built-up edge (BUE) and tool sticking are common issues during actual CNC machining. Once tool sticking occurs, it can accelerate tool wear and directly affect surface finish, dimensional accuracy, and even cause batch scrap. Therefore, effectively preventing tool sticking in copper and brass machining is a key technical capability that many manufacturing companies and purchasing engineers focus on when selecting a supplier.
This article will systematically explain anti-sticking tool techniques for copper and brass CNC machining from multiple aspects including material characteristics, causes of tool sticking, tool selection, cutting parameter optimization, cooling and lubrication strategies, and process control. It will help engineers and procurement professionals better understand how to achieve stable and high-quality machining results.
Before discussing anti-sticking strategies, it is important to understand the basic characteristics of copper and its alloys during machining.
Pure Copper
Pure copper has extremely high electrical and thermal conductivity. At the same time, the material has strong ductility and high plasticity. These characteristics often lead to the following issues during machining:
Chips are difficult to break
Material tends to adhere to the cutting edge
Built-up edge forms on the tool surface
Surface scratching and tearing may occur
Therefore, during CNC machining of pure copper, the tool sticking problem is particularly obvious.
Brass
Brass is an alloy of copper and zinc. Depending on the zinc content, the machinability can vary significantly. In general:
Low-zinc brass such as H62 has higher plasticity and still carries a risk of tool sticking.
High-zinc brass such as C36000 free-cutting brass contains lead and offers excellent machinability.
Compared with pure copper, brass generally has:
Better machinability
Easier chip breaking
Lower probability of tool sticking
However, in high-precision CNC machining, improper process parameters can still lead to tool adhesion and surface quality issues.
In practice, tool sticking is rarely caused by a single factor. It is usually the result of multiple machining conditions interacting.
Tool Material Selection
Copper is soft and sticky. If the tool hardness is insufficient or the coating is not suitable, material can easily adhere to the cutting edge.
For example:
Standard high-speed steel tools are more likely to experience adhesion
Rough coatings may also promote built-up edge formation
Cutting Speed Is Too Low
Many engineers assume that softer materials should be machined at lower cutting speeds. However, in copper machining, excessively low cutting speeds actually increase the likelihood of built-up edge formation.
This occurs because:
The cutting temperature is insufficient
Chips cannot detach smoothly from the tool
Improper Cutting Parameters
If feed rate and depth of cut do not match the tool geometry, excessive friction may occur, which increases the risk of tool sticking.
Insufficient Cooling and Lubrication
Copper generates significant friction during cutting. Without proper lubrication, metal adhesion can occur on the tool surface.
Improper Tool Geometry
Small rake angles or dull cutting edges increase friction and contribute to tool sticking.
Tool selection is one of the most critical factors in preventing tool sticking.

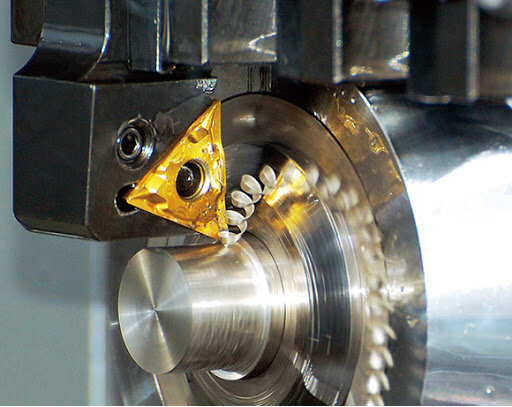

Carbide Tools
In copper and brass CNC machining, carbide tools are the most commonly used option.
Their advantages include:
High hardness
High wear resistance
Good thermal stability
They are particularly suitable for high-speed machining.

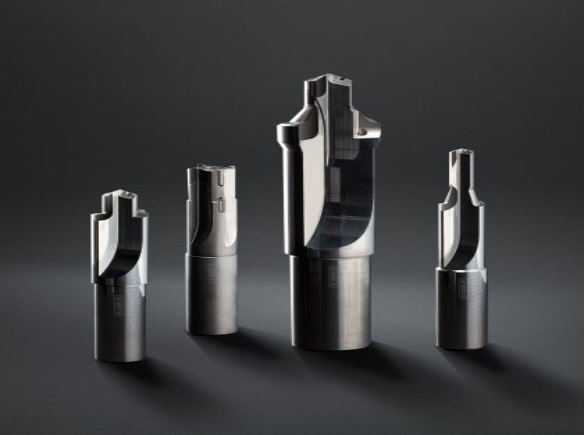

PCD Tools
For high-precision copper components such as communication parts, precision electrodes, and optical components, polycrystalline diamond (PCD) tools provide significant advantages.
These include:
Extremely low friction coefficient
Excellent wear resistance
Outstanding surface finish
The main disadvantage is higher cost, so they are typically used for high-value components.
Recommended Tool Coatings
Common coatings suitable for copper alloys include:
DLC (diamond-like carbon coating)
TiB2 coating
Uncoated polished tools
These coatings help reduce friction and minimize material adhesion.
Tool geometry also plays an important role in controlling tool sticking.
For copper and brass machining, the following designs are recommended:
Large Rake Angle
A larger rake angle reduces cutting resistance and allows chips to flow away from the tool more easily.
Sharp Cutting Edge
Although honed edges improve wear resistance, they can increase friction. Therefore, copper machining tools typically require sharp edges.
Polished Flutes
Polished chip flutes reduce chip adhesion and improve chip evacuation.
Proper cutting parameters significantly reduce tool sticking.
Increase Cutting Speed
Copper and brass are suitable for relatively high cutting speeds.
Typical ranges include:
Copper: 150 to 400 m/min
Brass: 200 to 500 m/min
Higher cutting speeds help reduce built-up edge formation.
Reasonable Feed Rate
If the feed rate is too small, the tool spends more time rubbing against the material, increasing the risk of sticking.
A slightly higher feed rate can improve chip formation.
Control Depth of Cut
For precision components, extremely small depths of cut should be avoided because they can cause rubbing rather than proper cutting.
Cooling and lubrication are essential for controlling tool sticking in copper machining.
Common methods include:
Emulsion Coolant
Suitable for most CNC machining applications.
Oil-Based Cutting Fluid
Provides better lubrication during precision machining.
Minimum Quantity Lubrication (MQL)
Suitable for high-speed machining while reducing environmental impact.
The main functions of coolant include:
Reducing cutting temperature
Reducing friction
Improving chip evacuation
Enhancing surface quality
In addition to tools and parameters, proper machining strategies are also important.
For example:
Use Climb Milling
Climb milling reduces friction and improves surface finish.
Optimize Tool Paths
Avoid frequent stops and sharp turns to reduce material adhesion.
Use Separate Roughing and Finishing Operations
Different tools and parameters should be used for roughing and finishing processes.
For high-precision copper components, inspection is equally important.
Common inspection methods include:

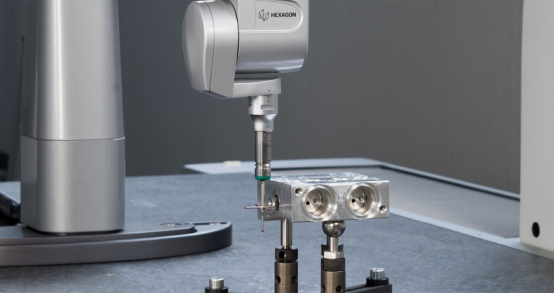

Coordinate Measuring Machine (CMM) inspection
Surface roughness measurement
Dimensional tolerance inspection
Visual appearance inspection
A complete quality control process ensures machining stability and reduces the risk of batch defects.
Which is easier to machine, copper or brass?
Generally, brass is easier to machine than pure copper. Free-cutting brass such as C36000 produces shorter chips and has a lower risk of tool sticking.
Why do copper parts sometimes show scratches or burrs after machining?
This is usually related to insufficient tool sharpness, low cutting speed, or inadequate lubrication. Optimizing tools and cutting parameters usually resolves the issue.
How can the surface finish of copper parts be improved?
Surface finish can be improved by:
Using PCD or DLC-coated tools
Increasing cutting speed
Applying better lubrication and cooling
Optimizing finishing parameters
What machining accuracy can be achieved for copper parts?
With advanced CNC equipment and strict process control, copper parts can typically achieve:
Tolerance of ±0.01 mm or better
Surface roughness of Ra 0.8 or better
How should a CNC machining supplier be selected?
The following aspects should be considered:
Experience in machining copper alloys
Ability to provide DFM suggestions
Complete quality inspection system
Capability to support both prototyping and mass production
Copper and brass components play an essential role in modern industry. However, due to their high ductility and tendency to adhere to cutting tools, tool sticking can easily occur during CNC machining. By selecting appropriate tool materials, optimizing tool geometry, adjusting cutting parameters, using proper cooling and lubrication systems, and improving machining strategies, tool sticking can be effectively reduced and machining quality can be significantly improved.
For companies that require high-precision copper alloy components, choosing a CNC machining supplier with extensive experience and a strong quality management system is particularly important.
