Are you designing a new product but unsure which manufacturing process is best suited for it? Are you looking for CNC machining case studies in a specific industry to confirm whether a supplier has relevant experience? Do you want to understand what CNC machining can and cannot do, and how to determine if it is right for your project?

If you have these questions, this article is for you.

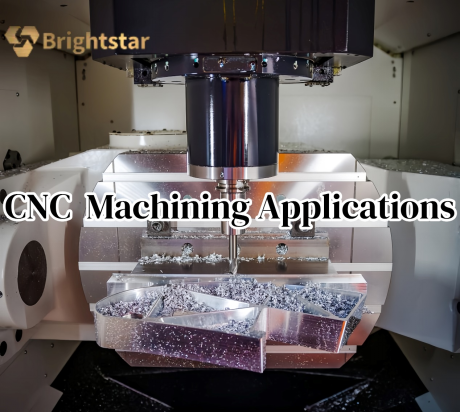

CNC machining (Computer Numerical Control machining), with its precision, material versatility, and flexibility, has become an indispensable technology in modern manufacturing. From aerospace to medical devices, from automotive components to robotics parts, from electronics to energy equipment, CNC machining is everywhere. This article will systematically introduce the typical applications of CNC machining across major industries, covering actual part types, material selections, process characteristics, and key requirements, helping you quickly determine whether CNC machining is suitable for your needs, and providing practical guidance on selecting a supplier.

1. Aerospace Applications: The Challenge of Ultra-High Precision and Extreme Materials

The aerospace industry demands extreme performance from its parts: high strength, light weight, high temperature resistance, and absolute reliability. Any deviation can lead to catastrophic consequences. CNC machining is the preferred process for manufacturing critical components in this industry, especially 5-axis CNC machining, which can achieve complex curved surfaces in a single setup.

1.1 Aircraft Structural Components

1.1.1 Typical Parts

• Wing ribs and spars

• Fuselage frames

• Door hinges

• Engine pylons

• Bulkheads

1.1.2 Common Materials

• Aluminum alloys (7075, 6061, 2024): Lightweight and high strength, the mainstream material for aircraft structural parts

• Titanium alloys (TC4, TA15): High strength, corrosion resistant, used for critical load-bearing areas

• High-strength steels (300M, 4340): Used for landing gear and other high-load components

1.1.3 Process Characteristics

• Large thin-wall part machining: Requires strict control of cutting forces to prevent deformation

• 5-axis simultaneous machining: Achieves complex curved surfaces and spatial angles in one setup

• Stress relief treatment: Post-machining aging treatment to eliminate internal stress

• High-speed cutting: Uses high-speed milling technology to improve efficiency and reduce thermal deformation

1.1.4 Key Requirements

• AS9100 aerospace quality management system certification

• Full material traceability: Each raw material has a unique ID and material certificate

• 100% dimensional inspection: Critical dimensions fully inspected with reports

• Non-destructive testing: Fluorescent penetrant, X-ray inspection as required

1.2 Engine Component Machining

1.2.1 Typical Parts

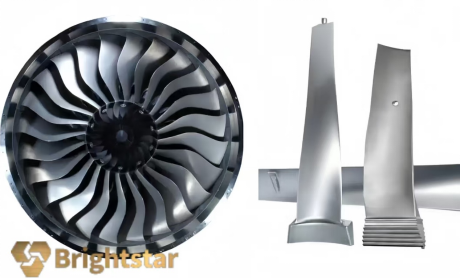

• Turbine disks and blades

• Compressor blades and impellers

• Combustor casings

• Fuel nozzles and fuel manifolds

• Casings and diffusers

1.2.2 Common Materials

• Superalloys (Inconel 718, Waspaloy, Haynes 282): Withstand temperatures up to 700°C

• Titanium alloys (Ti6Al4V, Ti6242): Used for compressor blades

• Cobalt-based alloys (Stellite): Used for wear-resistant components

1.2.3 Process Characteristics

• Difficult-to-machine material processing: Superalloys have low cutting speeds and high tool wear

• High precision requirements: Blade profile tolerances typically within ±0.02mm

• Complex curved surface machining: Requires 5-axis programming and simulation

• Micro-hole machining: Film cooling holes only 0.3-0.5mm in diameter

1.2.4 Key Requirements

• High temperature performance validation: High-temperature tensile and creep testing

• Fatigue life validation: High-cycle and low-cycle fatigue testing

• Process control: SPC statistical process control for critical processes

• Surface integrity: No grinding burns, no residual tensile stress

1.3 Landing Gear and Hydraulic Systems

1.3.1 Typical Parts

• Landing gear struts and outer cylinders

• Hydraulic valve bodies and spools

• Actuators and piston rods

• Fittings and connectors

• Brake system components

1.3.2 Common Materials

• Ultra-high-strength steels (300M, 4340, AerMet 100): Tensile strength exceeding 1800MPa

• Aluminum alloys (7075-T73): Used for non-primary load-bearing components

• Stainless steels (17-4PH, 15-5PH): Used for hydraulic components

1.3.3 Process Characteristics

• Deep hole machining: Landing gear strut deep holes can reach 20 times diameter

• Thread machining: Precision threads with fit clearance controlled within 0.01mm

• Surface strengthening treatment: Shot peening, roller burnishing

• Grinding: Precision cylindrical grinding, internal grinding

1.3.4 Key Requirements

• High reliability: Zero defect requirement

• Fatigue-resistant design: No stress concentration, smooth transitions

• Non-destructive testing: Magnetic particle inspection, ultrasonic inspection

• Surface treatment: Chrome plating, cadmium plating, anodizing

2. Medical Industry Applications: Precision That Saves Lives

The medical industry demands extremely high precision, cleanliness, and biocompatibility from its parts. A tiny dimensional deviation or surface defect can affect surgical outcomes or even endanger patient lives. CNC machining meets these stringent standards and is widely used in the manufacturing of implants, surgical instruments, and medical devices.

2.1 Orthopedic Implant Machining

2.1.1 Typical Parts

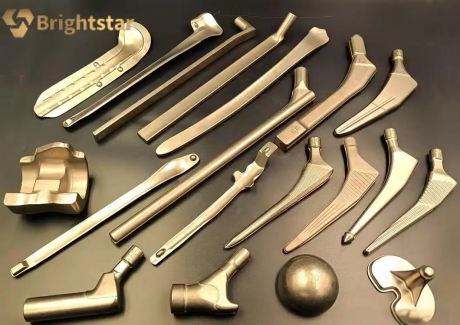

• Hip implants (femoral stem, acetabular cup)

• Knee implants (femoral condyle, tibial plateau)

• Spinal implants (interbody fusion cage, pedicle screw)

• Bone plates and screws

• Cranial reconstruction plates

2.1.2 Common Materials

• Titanium alloys (Ti6Al4V ELI): Excellent biocompatibility, elastic modulus close to bone

• Cobalt-chromium-molybdenum alloys (CoCrMo): Exceptional wear resistance, used for bearing surfaces

• High-performance engineering plastics (PEEK): X-ray transparent, elastic modulus closer to bone

• Pure titanium (TA2, TA3): Used for bone plates

2.1.3 Process Characteristics

• Patient-specific customization: Custom modeling and machining based on CT/MRI data

• Complex curved surface machining: Joint surfaces are freeform surfaces with high precision requirements

• High surface finish: Bearing surfaces can achieve Ra values below 0.05μm

• Micro-machining: Bone screw threads as fine as 0.5mm

2.1.4 Key Requirements

• ISO 13485 medical device quality management system certification

• Biocompatibility certification (ISO 10993)

• Full traceability: From raw material to finished product

• Sterile packaging: Packaging in cleanroom environment

• Ultra-pure water cleaning: Removal of all machining residues

2.2 Surgical Instrument Machining

2.2.1 Typical Parts

• Forceps and scissors

• Needle holders and tweezers

• Drill guides and cutting guides

• Minimally invasive surgical instruments (laparoscopic instruments, thoracoscopic instruments)

• Orthopedic power tools (drills, saw blades, burrs)

2.2.2 Common Materials

• Stainless steels (17-4PH, 316L, 420): Corrosion resistant, sterilizable

• Titanium alloys (Ti6Al4V): Lightweight, non-magnetic

• Martensitic stainless steel (440C): Used for cutting edges

2.2.3 Process Characteristics

• Precision tolerances: Moving part fit clearance 0.01-0.03mm

• Sharp edge machining: High requirements for edge angle and sharpness

• Anti-glare surface treatment: Bead blasting, passivation, black oxide

• Complex curved surfaces: Ergonomic grip design

2.2.4 Key Requirements

• Sterilizability: Withstands high-temperature steam sterilization (134°C)

• Corrosion resistance: No rust, no pitting

• Ergonomic design: Comfortable for extended use

• No burrs: All edges smooth and rounded

2.3 Medical Device Housings and Components

2.3.1 Typical Parts

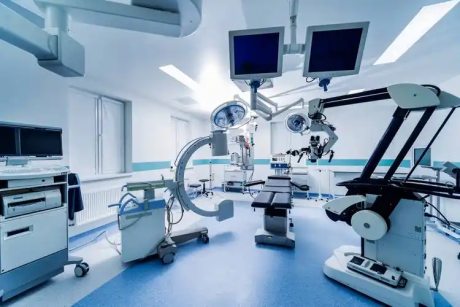

• Diagnostic equipment housings (CT, MRI, X-ray)

• Ventilator components (housings, panels, brackets)

• Patient monitor housings and stands

• Imaging equipment structural components

• Infusion pump housings

2.3.2 Common Materials

• Aluminum alloys (6061, 6063): Lightweight, aesthetically pleasing

• Stainless steels (304, 316L): High strength, easy to clean

• Engineering plastics (ABS, PC, POM): Insulating, lightweight

2.3.3 Process Characteristics

• High aesthetic requirements: No tool marks, no scratches

• Electromagnetic shielding design: Ensures equipment immunity from EMI

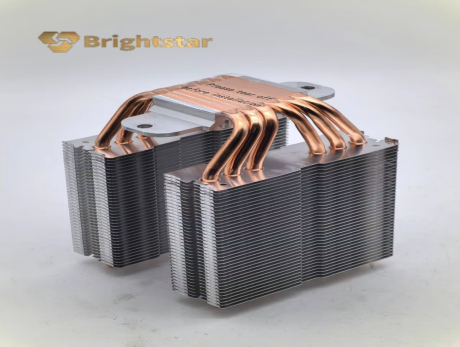

• Thermal management design: Cooling fins, thermally conductive structures

• Assembly precision: Ensures tight fit between components

2.3.4 Key Requirements

• Cleanliness: No oil residue, no chip residues

• No burrs: All edges smooth

• Regulatory compliance: FDA, CE certification requirements

• Surface finishing: Anodizing, painting, silk screening

3. Automotive Industry Applications: From R&D Validation to Production

The automotive industry is a major application area for CNC machining, from prototyping during R&D to high-performance aftermarket parts to production tooling. For automotive engineers and procurement professionals, the value of CNC machining lies in its rapid response and design flexibility.

3.1 Prototype and Concept Vehicle Parts

3.1.1 Typical Parts

• Engine block and cylinder head prototypes

• Intake and exhaust manifold prototypes

• Interior trim (instrument panels, door panels, center consoles)

• Body panels (fenders, bumpers)

• Lighting housings

3.1.2 Common Materials

• Aluminum alloys (6061, 7075): Engine components

• ABS plastic: Interior trim

• Polycarbonate (PC): Lighting housings

• POM: Functional components

3.1.3 Process Characteristics

• Fast delivery: Prototypes completed within days

• Design iteration: Supports multiple rounds of modifications and validation

• Functional validation: Uses materials similar to production

• Aesthetic effect: Achieves painting, plating, and other decorative finishes

3.1.4 Key Requirements

• Consistency with production materials: Ensures reliable validation results

• Assembly validation: Fit with surrounding components

• Aesthetic appearance: For review and presentation

• Fast response: Meets urgent R&D timelines

3.2 High-Performance and Racing Parts

3.2.1 Typical Parts

• Intake manifolds and throttle bodies

• Brake calipers and brackets

• Suspension arms and links

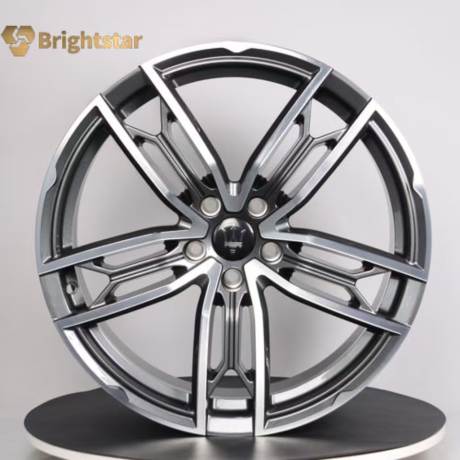

• Wheels and wheel adapters

• Exhaust manifolds and pipes

3.2.2 Common Materials

• 7075-T6 aluminum alloy: Strength close to steel at one-third the weight

• Titanium alloys (TC4): Used for connecting rods, exhaust systems

• Carbon fiber composites: Used in combination with CNC machining

• Stainless steel (304, 316): Used for exhaust systems

3.2.3 Process Characteristics

• Lightweight design: Removal of all non-essential material

• Complex flow channel machining: Internal flow path optimization for intake manifolds

• High strength requirements: Withstands extreme racing conditions

• 5-axis machining: Achieves complex curved surfaces and spatial angles

3.2.4 Key Requirements

• Weight reduction: Every gram affects performance

• Strength validation: Bench testing and durability testing

• Reliability: Racing parts must have zero failures

• Appearance: Polishing, anodizing, and other finishes

3.3 Production Tooling and Fixtures

3.3.1 Typical Parts

• Welding fixtures

• Assembly tooling

• Inspection gauges (CMM fixtures, functional gauges)

• Robotic grippers

• Locating plates and pins

3.3.2 Common Materials

• Aluminum alloys: Lightweight, easy to machine

• 45# steel, tool steel: High rigidity, wear resistant

• Bakelite, POM: Insulating, non-marring

• Stainless steel: Corrosion resistant, cleanroom compatible

3.3.3 Process Characteristics

• High rigidity: Ensures no deformation during long-term use

• Wear resistance: Hardened contact surfaces

• Integration with automated production lines: Precise interface dimensions

• Fast delivery: Shortens production line commissioning time

3.3.4 Key Requirements

• Dimensional stability: Maintains positioning accuracy over time

• Long service life: Wear resistant, fatigue resistant

• Interchangeability: Same specification fixtures are interchangeable

• Error-proofing: Prevents incorrect operation

4. Robotics and Automation Applications: The Perfect Combination of Precision and Rigidity

With the rapid development of industrial automation, the demand for precision components in robotics and automation equipment continues to grow. CNC machining meets the comprehensive requirements of these devices for precision, rigidity, and lightweight construction.

4.1 Robot Arm and Joint Components

4.1.1 Typical Parts

• Robot arm bodies (axes 1-6)

• Reducer housings

• Joint connectors

• End effectors (grippers, tool changers)

• Motor mounts

4.1.2 Common Materials

• Aluminum alloys (6061, 7075): Lightweight

• Cast aluminum (ZL101, ZL104): Post-machining

• Ductile iron (QT500, QT600): High rigidity

• Steel (45#, 40Cr): Critical load-bearing components

4.1.3 Process Characteristics

• Lightweight design: Weight-reducing holes, lattice structures

• High rigidity: Ensures robot repeatability accuracy

• Multi-face machining: 5-axis single setup completion

• Precision bearing fits: Tolerances controlled within 0.01mm

4.1.4 Key Requirements

• Repeatability accuracy: Within ±0.02mm

• Weight reduction effectiveness: Weight reduction without compromising rigidity

• Aesthetic finish: Robotic exterior parts require painting or anodizing

• Assembly precision: High coaxiality requirements between joints

4.2 Automation Equipment Components

4.2.1 Typical Parts

• Linear rail mounts

• Servo motor mounts

• Couplings and drive shafts

• Rotary tables and indexers

• Conveyor system components

4.2.2 Common Materials

• Aluminum alloys: Lightweight, easy to machine

• 45# steel: High strength, heat treatable

• Stainless steel: Corrosion resistant, cleanroom compatible

• Brass: Used for wear-resistant components

4.2.3 Process Characteristics

• High tolerance fits: Precision fit with standard components

• Flatness requirements: Mounting surface flatness within 0.01mm

• Threaded hole machining: Multiple threaded holes with positional accuracy

• Batch consistency: Ensures interchangeability

4.2.4 Key Requirements

• Compatibility with standard components: Accurate interfaces for rails, motors, etc.

• Installation precision: Ensures smooth operation of automation equipment

• Interchangeability: Same batch parts are interchangeable

• Long service life: Meets equipment lifecycle requirements

4.3 Vision System and Sensor Mounts

4.3.1 Typical Parts

• Camera mounts

• Light source holders

• Sensor mounting plates

• Calibration blocks and targets

• Lens retaining rings

4.3.2 Common Materials

• Aluminum alloys: Lightweight, easy to adjust

• Stainless steel: High rigidity, corrosion resistant

• Black anodized finish: Reduces reflective interference

• Ceramic: Used for high-precision calibration

4.3.3 Process Characteristics

• Precision positioning: Mounting hole positional accuracy ±0.02mm

• Angular adjustment: Adjustable structure design

• Vibration-resistant design: Prevents vibration from affecting imaging

• No deformation: Control of machining stress

4.3.4 Key Requirements

• Stability: No loosening during long-term use

• Adjustability: Fine adjustment capability

• Non-reflective: Surface finish reduces glare

• Dimensional stability: Maintains dimensions under temperature and humidity changes

5. Electronics and Communications Applications: Miniaturization and High Heat Dissipation Requirements

As electronic products continue to miniaturize and increase in performance, the demand for precision components continues to grow. CNC machining meets the comprehensive requirements of the electronics and communications industry for precision, heat dissipation, and aesthetics.

5.1 Heat Sinks and Thermal Management Components

5.1.1 Typical Parts

• CPU and GPU heat sinks

• Power module base plates (IGBT, MOSFET)

• Cold plates (liquid cooling heat sinks)

• Thermally conductive brackets

• Heat pipe heat sinks

5.1.2 Common Materials

• Aluminum alloys (6063, 6061): Good thermal conductivity, easy to machine

• Copper (C1100, C1020): Higher thermal conductivity

• Copper-aluminum composites: Balance of cost and performance

• Pure aluminum (1050, 1060): High thermal conductivity

5.1.3 Process Characteristics

• High-density fins: Fin spacing as small as 1mm

• Flatness control: Contact surface flatness within 0.05mm

• Surface finishing: Anodizing, electroless nickel plating

• Liquid cooling channels: Sealing grooves, O-ring groove machining

5.1.4 Key Requirements

• Thermal efficiency: Good contact with chips

• Flatness: Maximizes contact area

• No burrs: Prevents damage to thermal pads

• Corrosion resistance: No oxidation during long-term use

5.2 Housings and Shielding Components

5.2.1 Typical Parts

• Communications equipment housings (base stations, routers)

• Instrument enclosures (test equipment, oscilloscopes)

• Shielding covers (EMI/RFI shielding)

• Panels and buttons

• Battery compartments and covers

5.2.2 Common Materials

• Aluminum alloys (6061, 6063): Premium feel, good heat dissipation

• Copper alloys (C19210, C19400): Electromagnetic shielding

• Stainless steels (304, 316L): High strength, corrosion resistant

• Engineering plastics (ABS, PC): Lightweight, insulating

5.2.3 Process Characteristics

• Thin-wall machining: Wall thickness can be as thin as 0.8mm

• Aesthetic requirements: No tool marks, no scratches

• Electromagnetic shielding design: Conductive contact surfaces, grounding design

• Thermal management design: Cooling fins, thermal pads

5.2.4 Key Requirements

• Aesthetic finish: Anodizing, brushing, bead blasting

• Dimensional accuracy: Ensures tight assembly fit

• Electromagnetic shielding performance: Meets EMC test requirements

• Durability: Wear resistant, corrosion resistant

5.3 Precision Connectors and Contacts

5.3.1 Typical Parts

• RF connectors (SMA, SMB, N-type)

• Circular connectors (aviation connectors)

• Terminal blocks and terminals

• Pins and sockets

• USB, HDMI connector housings

5.3.2 Common Materials

• Brass (H59, H62): Good conductivity, easy to machine

• Beryllium copper (C17200): Excellent spring properties

• Stainless steel (304, 316): High strength

• Copper alloys (C3604): Free-cutting

5.3.3 Process Characteristics

• Micro-machining: Minimum feature size 0.1mm

• High conductivity: Gold plating, silver plating

• Precision fit: Insertion force, contact resistance control

• High surface finish: Reduces signal loss

5.3.4 Key Requirements

• Electrical performance: Contact resistance, insulation resistance meet specifications

• Insertion cycle life: 500 cycles or more

• Corrosion resistance: Passes salt spray testing

• Dimensional accuracy: Fit clearance control

6. Energy and Heavy Industry Applications: Reliability Under Extreme Conditions

Energy and heavy industrial equipment typically operates in harsh environments, demanding high corrosion resistance, pressure resistance, and wear resistance from components. CNC machining ensures these critical parts perform reliably under extreme conditions over long periods.

6.1 Oil and Gas Equipment

6.1.1 Typical Parts

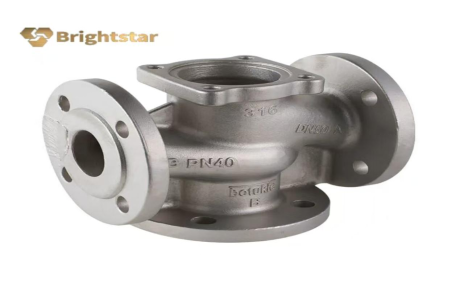

• Valve bodies (ball valves, gate valves, globe valves)

• Flanges and fittings

• Downhole tools (drill bits, centralizers, packers)

• Pump bodies and impellers

• Manifold components

6.1.2 Common Materials

• Stainless steels (316L, 17-4PH, 2205 duplex)

• Superalloys (Inconel 625, 718)

• Monel alloys (Monel 400, K500)

• Hastelloy (Hastelloy C276)

6.1.3 Process Characteristics

• High-pressure sealing surface machining: Sealing surface finish Ra below 0.4μm

• Corrosion-resistant material machining: Difficult-to-machine materials

• Large part machining: Parts up to 1 meter in diameter

• Deep hole machining: Depths up to several meters

6.1.4 Key Requirements

• NACE standards: Resistance to sulfide stress corrosion

• Pressure ratings: API 6A, API 16C certification

• Material certification: Material certificates, heat treatment reports

• Non-destructive testing: Radiographic inspection, ultrasonic inspection

6.2 New Energy Equipment Components

6.2.1 Typical Parts

• Wind turbine gearbox components

• Solar tracking system brackets

• Energy storage system housings

• Hydrogen system valves and piping

• Motor housings

6.2.2 Common Materials

• Ductile iron (QT400, QT500): Wind turbine gearboxes

• Aluminum alloys (6061, 6063): Solar brackets, motor housings

• Stainless steels (304, 316L): Hydrogen systems

• High-strength steels (Q345, Q460): Bracket structures

6.2.3 Process Characteristics

• Large part machining: Wind turbine components are large

• Weather-resistant surface treatment: Long-term outdoor use

• Batch production: Cost control

• Sealing surface machining: High sealing requirements for hydrogen systems

6.2.4 Key Requirements

• Long service life: 20+ years operational life

• Corrosion resistance: Salt spray, humid environments

• Lightweight design: Improves energy efficiency

• Safety: Hydrogen system leak prevention

6.3 Heavy Machinery and Hydraulic Systems

6.3.1 Typical Parts

• Hydraulic valve blocks

• Pump bodies and covers

• Cylinders and piston rods

• Undercarriage components (sprockets, track rollers)

• Breaker components

6.3.2 Common Materials

• Carbon steel (45#, Q235): Low cost

• Alloy steel (40Cr, 42CrMo): High strength

• Cast iron (HT250, QT500): Good vibration damping

• Stainless steel (304, 316L): Corrosive environments

6.3.3 Process Characteristics

• Deep hole drilling: Hydraulic valve block flow channels

• Sealing surface machining: O-ring grooves, flatness

• Post-heat treatment machining: Finish machining after quenching

• Wear-resistant treatment: Surface hardening, hard chrome plating

6.3.4 Key Requirements

• Pressure resistance: Withstands high pressure (up to 350 bar)

• Wear resistance: No wear during long-term use

• Sealing performance: No leakage

• Reliability: Stable operation under harsh conditions

7. Consumer Goods and Custom Products: Personalization and Quality

CNC machining plays an important role not only in industrial applications but also in consumer goods and custom products. For products that emphasize quality and personalization, CNC machining delivers exceptional aesthetic results and design freedom.

7.1 High-End Electronic Products

7.1.1 Typical Parts

• Audio panels and knobs

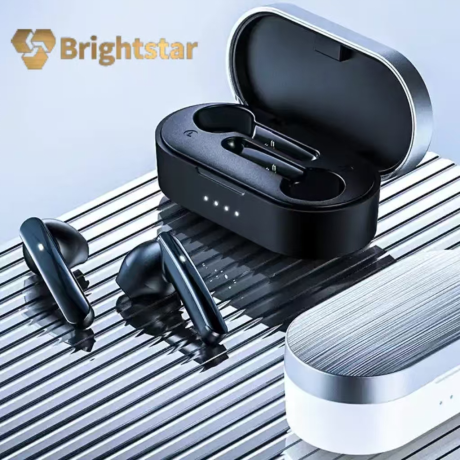

• Headphone housings

• Watch cases and bands

• Phone frames

• Camera accessories

7.1.2 Common Materials

• Aluminum alloys (6061, 6063): Premium feel

• Stainless steels (304, 316L): High gloss

• Copper (brass, red copper): Vintage texture

• Titanium alloys (TC4): Lightweight, premium

7.1.3 Process Characteristics

• High-gloss chamfering: Mirror-like finish

• Fine textures: CD patterns, brushing, bead blasting

• Complex curved surfaces: Ergonomic design

• Precision fit: Ensures tight assembly

7.1.4 Key Requirements

• Flawless appearance: No tool marks, no defects

• Comfortable feel: Rounded edges

• Brand recognition: Unique design

• Durability: Wear resistant, corrosion resistant

7.2 Sporting Goods and Outdoor Equipment

7.2.1 Typical Parts

• Bicycle components (handlebars, cranks, pedals)

• Carabiners and quickdraws

• Camera equipment mounts

• Drone components

• Outdoor knives

7.2.2 Common Materials

• 7075 aluminum alloy: High strength, lightweight

• Titanium alloys (TC4): Corrosion resistant, high strength

• Stainless steel (304, 440C): Wear resistant, corrosion resistant

• Carbon fiber composites: Used in combination with CNC machining

7.2.3 Process Characteristics

• Lightweight design: Removal of excess material

• Strength optimization: Finite element analysis assisted design

• Corrosion-resistant treatment: Anodizing, passivation

• Fine machining: Ensures strength and safety

7.2.4 Key Requirements

• Weight reduction: Every gram affects performance

• Strength: No failure under extreme conditions

• Corrosion resistance: Long-term outdoor use

• Safety: No sharp edges, no defects

7.3 Custom Gifts and Creative Products

7.3.1 Typical Parts

• Custom badges and medals

• Writing instruments (fountain pens, ballpoint pens)

• Bottle openers and barware

• Desk accessories

• Souvenirs

7.3.2 Common Materials

• Brass (H59, H62): Vintage texture

• Aluminum alloys (6061): Lightweight, available in various colors through anodizing

• Stainless steel (304, 316L): High gloss

• Red copper: Premium texture

7.3.3 Process Characteristics

• Fine engraving: Clear fonts and patterns

• Personalization: Each piece can be unique

• Small batches: Production starting from 1 piece

• Surface finishing: Gold plating, silver plating, anodizing

7.3.4 Key Requirements

• Design fidelity: Accurate reproduction of design

• Detail expression: Small text readable

• Fast delivery: Quick turnaround

• Packaging: Elegant packaging

8. How to Determine If CNC Machining Is Right for Your Application

Before deciding whether to use CNC machining, you can evaluate from the following dimensions:

8.1 Evaluate Your Part Characteristics

8.1.1 Part Size

• Is the part size within the machining envelope?

• Different CNC equipment has different work envelopes; large parts require suppliers with large-capacity machining capabilities

8.1.2 Material Type

• Is the material machinable?

• CNC machining can process almost all common metals and engineering plastics, but for certain special materials, the supplier needs relevant processing experience

8.1.3 Precision Requirements

• Are the precision requirements within a reasonable tolerance range?

• CNC machining standard precision is ±0.01mm, high precision can reach ±0.005mm, but not all features require tight tolerances; specifying tolerances reasonably can effectively control costs

8.1.4 Production Volume

• CNC machining is best suited for the range of 1 to 5,000 parts; for higher volumes, other processes or automated production can be considered

8.2 Comparison with Alternative Processes

8.2.1 CNC Machining vs. 3D Printing

• Need production-grade material strength and surface finish? Choose CNC

• Need complex internal lattice structures with lower material property requirements? Choose 3D printing

8.2.2 CNC Machining vs. Injection Molding

• Production volume less than 5,000 parts and want to avoid mold costs? Choose CNC

• Production volume over 10,000 parts with plastic material? Choose injection molding

8.2.3 CNC Machining vs. Casting and Forging

• Need tight tolerances and complex internal structures? Choose CNC

• Very high volumes with simple shapes? Consider casting or forging

8.3 When Should You Consider CNC Machining?

The following situations are particularly suitable for CNC machining:

• Need functional prototypes for validation testing: Rapidly produce prototypes using materials identical to production

• Need low-volume production without mold costs: No mold fees, production starting from 1 piece

• Parts have complex structures and high precision requirements: 5-axis CNC can achieve complex geometries

• Special materials: Difficult-to-machine alloys or engineering plastics

If you are unsure whether CNC machining is suitable for your project, Brightstar offers free DFM evaluation services. Our engineers will provide professional recommendations based on your drawings.

9. Frequently Asked Questions (FAQ)

9.1 What Materials Can Be CNC Machined?

Metals:

• Aluminum alloys: 6061, 7075, 6063, 5083, etc.

• Stainless steels: 303, 304, 316L, 17-4PH, 420, etc.

• Carbon steels: 45#, Q235, Q345, etc.

• Alloy steels: 40Cr, 42CrMo, 4140, etc.

• Titanium alloys: TC4, TA2, TA15, etc.

• Copper and copper alloys: Brass, red copper, beryllium copper, etc.

• Superalloys: Inconel 718, 625, Hastelloy, etc.

Plastics:

• Engineering plastics: PEEK, PTFE, ABS, PC, POM, PPS, Nylon, etc.

• Commodity plastics: PP, PE, PVC, etc.

Others:

• Composites (in combination with CNC), bakelite, acrylic, etc.

9.2 Is CNC Machining Suitable for High-Volume Production?

Yes. Although CNC machining is typically considered suitable for low-to-medium volumes, it remains cost-competitive in the 5,000 to 10,000 part range through the following methods:

• Automated loading/unloading: Reduces labor costs

• Multi-station fixtures: Multiple parts machined in one setup

• Lights-out manufacturing: 24-hour continuous processing

• Process optimization: Reduces per-part machining time

This is especially true for complex metal parts that would still require CNC finishing after casting or forging.

9.3 Do You Have Experience in My Industry?

Brightstar serves multiple industries including aerospace, medical, automotive, robotics, electronics, energy, and consumer goods, with over 10,000 part types delivered.

Selected Industry Experience:

• Aerospace: Titanium structural components, superalloy engine parts

• Medical: Orthopedic implants, surgical instruments, medical device housings

• Automotive: Engine prototypes, racing parts, tooling and fixtures

• Robotics: Robot arm bodies, end effectors, precision joints

• Electronics: Heat sinks, aluminum housings, precision connectors

Please provide your drawings and we can share relevant case studies and provide process recommendations tailored to your specific requirements.

9.4 What Precision Can You Achieve?

Brightstar's machining capabilities:

• Standard machining precision: ±0.01mm

• High-precision machining: ±0.005mm (for precision shafts, locating holes, sealing surfaces, etc.)

• Surface finish: Ra 0.8-3.2μm (standard), Ra below 0.4μm (high precision)

Achievable precision depends on:

• Material properties: Machinability of different materials

• Part geometry: Features such as thin walls and deep cavities

• Equipment selection: 5-axis equipment offers higher precision

• Tolerance requirements: Reasonable tolerances reduce costs

We will confirm critical dimension tolerances with you during the DFM stage and provide process feasibility assessments.

9.5 How Do I Get a Quote for My Industry?

Getting a quote is simple:

Step 1: Prepare Drawings

• 3D models: STEP format preferred, also accept IGES, SolidWorks, X_T, STL

• 2D drawings: If special tolerances are required, please provide PDF or DWG/DXF

Step 2: Provide Information

• Material requirements

• Quantity

• Surface finishing requirements (if any)

• Special tolerance requirements

Step 3: Send to Brightstar

• Email: amy@brightstarprototype.com

• Or upload through our website

Step 4: Receive Response Within 24 Hours

• Formal quote

• DFM process analysis

• Industry case references (if similar experience exists)

• Lead time estimate

Even if you don't have immediate purchasing plans, please feel free to inquire. Brightstar offers free technical support to help assess the manufacturability of your parts.

9.6 What Is the Typical Lead Time for CNC Machining?

Prototypes:

• Standard: 3-7 business days

• Expedited: 2-3 days (subject to confirmation)

Low-Volume Production (tens to hundreds):

• 1-2 weeks, depending on complexity and material

Batch Production (hundreds to thousands):

• 2-4 weeks, depending on quantity and process complexity

Lead times are affected by:

• Part complexity

• Material availability

• Current production schedule

• Whether external finishing is required

For urgent projects, please let us know and we will prioritize resources accordingly.

9.7 Can You Provide Surface Finishing?

Yes. Brightstar offers one-stop surface finishing services, eliminating the need for multiple vendor coordination:

Metal Surface Finishing:

• Anodizing: Clear, black, hard anodizing

• Chemical treatments: Black oxide, phosphating, passivation (stainless steel)

• Plating: Zinc plating, nickel plating, chrome plating, gold plating, silver plating

• Coating: Spray painting, powder coating, Teflon coating

• Polishing: Mechanical polishing, electropolishing

• Brushing, bead blasting

Plastic Surface Finishing:

• Painting

• Silk screening

• Laser marking

Having us coordinate finishing ensures:

• Controllable lead times: Reduced logistics time

• Consistent quality: Unified quality control standards

• Cost optimization: Batch processing reduces costs

• Simplified management: No need to coordinate multiple suppliers

10. Why Choose Brightstar as Your CNC Machining Partner?

Brightstar is a professional CNC machining service provider specializing in high-precision, high-quality precision part machining for global clients. Choosing Brightstar brings you the following value:

10.1 Comprehensive Equipment Capabilities

• 3-axis, 4-axis, and 5-axis CNC machining centers: Meeting the needs of parts with varying complexity

• Mill-turn equipment: Single-setup completion for complex rotational parts

• Large-format machining equipment: Supporting large part machining

• High-precision inspection equipment: CMM, height gauges, roughness testers, etc.

10.2 Industry Experience and Quality Assurance

• ISO 9001:2015 quality management system certification

• Serving high-demand industries such as aerospace, medical, and automotive

• Complete inspection system: 100% first article inspection, in-process sampling, final inspection before shipment

• Traceability: Full records from raw material to finished product

10.3 One-Stop Service

• Material sourcing

• CNC machining

• Surface finishing

• Assembly and inspection

• Packaging and shipping

Eliminates the hassle of coordinating multiple vendors. One point of contact, full service.

10.4 Professional DFM Support

We provide manufacturability analysis before machining to help you:

• Optimize design and reduce costs

• Identify potential risks and avoid them early

• Material selection recommendations

• Process route optimization

Our engineering team identifies potential issues in your drawings during the quoting phase and provides improvement recommendations, ensuring your design translates smoothly into high-quality parts.

10.5 Our Commitments

• Quality Commitment: 100% inspection of all shipped parts. If quality issues arise, we will remake or refund free of charge.

• Lead Time Commitment: Delivery as agreed. If delays are anticipated, we will communicate proactively.

• Confidentiality Commitment: All drawings and project information are strictly confidential. NDAs are available upon request.

Get Your Free DFM Evaluation and Quote Now

All you need to do is one thing: send us your 3D drawings.

Brightstar's engineering team will provide you with the following within 24 hours:

• Industry case references (if similar experience exists)

• Process feasibility analysis

• Material selection recommendations

• Transparent quote and lead time estimate

• Potential risk alerts

Contact Information:

Phone / WeChat: +86-13750105351

Email: amy@brightstarprototype.com

Website: www.brightstarprototype.com

Online Chat: Click the chat window in the bottom right corner to upload your drawings directly.

Or click the button below to upload your drawings and get a free quote.

[Upload Drawings]  [Contact Engineer]  [Get Quote]

About Brightstar

Brightstar is a professional CNC machining service provider specializing in high-precision, high-quality precision part machining for global clients. With years of industry experience, we have delivered over 10,000 part types to customers worldwide. Whatever industry your project belongs to, we are committed to being your reliable manufacturing partner.

On-site visits or virtual factory tours are welcome. Contact Brightstar today and turn your designs into reality---fast.
