Complete CNC Machining Surface Treatment Guide

Introduction

Are you designing parts but confused about the surface treatment requirements on drawings? Are you worried that choosing the wrong surface treatment might cause corrosion, wear, or substandard appearance? Do you want to understand the characteristics, costs, and applicable scenarios of different surface treatment processes?

Surface treatment is a critical part of CNC machining. It not only determines the aesthetic quality of the part but also directly affects corrosion resistance, wear resistance, electrical conductivity, sealing performance, and service life. Choosing the wrong surface treatment can lead to rapid failure of parts in service environments, while over-specifying surface treatment can significantly increase costs.

This article systematically introduces common surface treatment processes after CNC machining, including anodizing, electroplating, electroless plating, passivation, black oxide, sandblasting, polishing, and painting. It details the characteristics, applicable materials, typical applications, costs, and dimensional effects of each process, helping you make informed surface treatment decisions during the design phase.

1. What Is Surface Treatment? Why Is Surface Treatment Needed?

1.1 Definition of Surface Treatment

Surface treatment refers to the process of changing the state, composition, structure, or morphology of a part's surface through physical or chemical methods to achieve specific properties or appearance. Surface treatment after CNC machining typically includes:

· Protective treatment: Improves corrosion resistance and wear resistance

· Decorative treatment: Enhances appearance, color, and texture

· Functional treatment: Improves conductivity, insulation, lubrication, and sealing

1.2 Why Is Surface Treatment Needed?

Parts after CNC machining often have tool marks and burrs on the surface and are prone to oxidation and corrosion when exposed to air. Surface treatment addresses these issues:

· Corrosion protection: Prevents rust and corrosion in humid, salt spray, or chemical environments

· Improved wear resistance: Increases surface hardness and reduces wear

· Enhanced appearance: Achieves desired colors, gloss, and texture

· Improved conductivity/insulation: Meets electrical performance requirements for electronic products

· Increased adhesion: Provides a good base for subsequent coatings

· Burr removal: Cleans up edge burrs generated during machining

· Increased fatigue strength: Surface strengthening treatments can improve fatigue life

1.3 Surface Treatment Process Classification Overview

2. Detailed Overview of Aluminum Alloy Surface Treatment Processes

Aluminum alloy is one of the most commonly used metal materials in CNC machining, with a rich variety of surface treatment processes available.

2.1 Anodizing

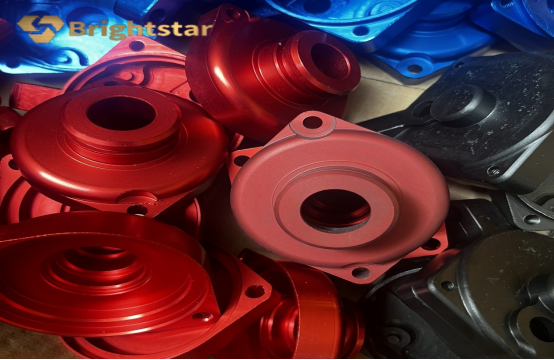

Anodizing involves using the aluminum workpiece as an anode and applying electrical current in an electrolyte solution to form a dense aluminum oxide film on the surface. This oxide film is hard, corrosion-resistant, and can be dyed. It is the most common surface treatment for aluminum alloys.

Process Characteristics:

· Oxide film thickness: 5-25μm (standard), 25-50μm (hard)

· Hardness: HV 300-500 (standard), HV 400-600 (hard)

· Colors: Clear, black, gold, red, blue, and many other colors

· Corrosion resistance: Excellent, salt spray testing up to 500+ hours

Typical Applications:

· Electronic product housings (phones, laptops, audio equipment)

· Automotive components (wheels, trim)

· Aerospace components

· Consumer electronics

· Heat sinks

Dimensional Effects:

· Oxide film grows outward approximately 1/3 and inward approximately 2/3

· Standard anodizing: thickness increases by approximately 0.01-0.02mm

· Hard anodizing: thickness increases by approximately 0.03-0.05mm

· Machining allowance must be reserved, especially for threaded holes

Cost: Moderate

2.2 Chemical Oxidation (Chemical Conversion Coating, Conductive Oxidation)

Chemical oxidation uses a chemical solution to form a thin oxide film on the aluminum surface, also known as "conductive oxidation" or "chromating." Unlike anodizing, chemical oxidation films are thinner but maintain the conductivity of the base material.

Process Characteristics:

· Oxide film thickness: 0.5-4μm

· Colors: Clear, golden, yellow

· Conductivity: Maintains good electrical conductivity

· Corrosion resistance: Moderate, lower than anodizing

Typical Applications:

· Electronic device housings (requiring conductive grounding)

· Avionics equipment

· Precision instruments

· Waveguide components

Dimensional Effects: Almost no effect (micron level)

Cost: Low

2.3 Sandblasting

Sandblasting uses compressed air to propel abrasive media (sand, glass beads, alumina, etc.) at high speed onto the workpiece surface to remove surface imperfections and achieve a uniform matte finish. This is the most commonly used surface pretreatment process.

Process Characteristics:

· Surface effect: Matte, uniform texture

· Roughness: Ra 1.6-6.3μm

· Color: Base material color, can be subsequently anodized and dyed

Typical Applications:

· Electronic product housing pretreatment

· Mechanical part deburring

· Pre-coating pretreatment

· Decorative surfaces

Dimensional Effects: Slight material removal (0.01-0.05mm)

Cost: Low

2.4 Polishing

Polishing is the process of achieving a bright, mirror-like surface finish, including three types: mechanical polishing, chemical polishing, and electropolishing.

Process Types:

· Mechanical Polishing: Uses polishing wheels and compounds, can achieve mirror finish

· Chemical Polishing: Chemical solution immersion, improves brightness

· Electropolishing: Electrochemical process, creates bright and corrosion-resistant surfaces

Typical Applications:

· High-end electronic product housings

· Decorative parts

· Optical reflectors

· Mold cavities

Dimensional Effects: Mechanical polishing removes 0.01-0.05mm; chemical polishing removes 0.01-0.02mm

Cost: Moderate to high

2.5 Brushing

Brushing uses abrasive belts or brushes to create a uniform linear texture on the surface, giving parts a distinctive metallic feel.

Process Characteristics:

· Texture: Straight lines, concentric circles, irregular patterns

· Grit size: 80-600 mesh optional

· Effect: Metallic texture, fingerprint resistance

Typical Applications:

· Electronic product housings

· Kitchen appliances

· Decorative panels

· Heat sinks

Dimensional Effects: Slight material removal (0.01-0.02mm)

Cost: Low

3. Detailed Overview of Stainless Steel Surface Treatment Processes

Stainless steel is known for its excellent corrosion resistance, but appropriate surface treatment can further enhance performance or improve appearance.

3.1 Passivation

Passivation uses a chemical solution (such as nitric or citric acid) to remove free iron and contaminants from the stainless steel surface, forming a dense chromium oxide protective film. This is the most common surface treatment for stainless steel.

Process Characteristics:

· Effect: Improves corrosion resistance, restores the original corrosion resistance of stainless steel

· Appearance: Base material color, no change

· Applicable Materials: 300 series stainless steel (304, 316, etc.)

Typical Applications:

· Medical devices

· Food equipment

· Aerospace components

· Chemical equipment

· Pharmaceutical equipment

Dimensional Effects: Almost no effect (micron level)

Cost: Low

3.2 Electropolishing

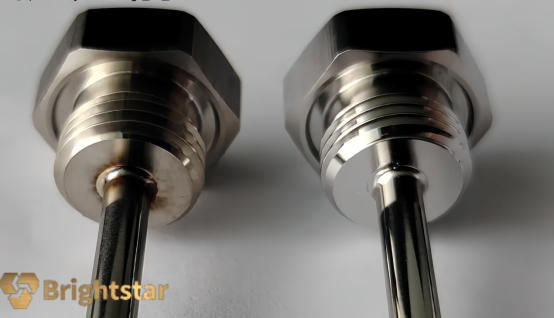

Electropolishing is an electrochemical process that removes surface micro-peaks through reverse electroplating, achieving a bright, smooth surface. It not only improves appearance but also enhances corrosion resistance.

Process Characteristics:

· Surface effect: Bright, mirror-like

· Roughness: Ra 0.2-0.8μm

· Corrosion resistance: Improved (removes surface impurities and stress layers)

Typical Applications:

· Medical devices

· Food equipment

· Semiconductor equipment

· Precision parts

· Pharmaceutical equipment

Dimensional Effects: Removes 0.01-0.05mm

Cost: Moderate

3.3 Electroplating

Electroplating of stainless steel is commonly used for decorative or functional purposes, including chrome plating, nickel plating, gold plating, and silver plating.

Common Plating Types:

· Chrome Plating: Decorative chrome (bright), hard chrome (wear-resistant)

· Nickel Plating: Bright nickel, satin nickel

· Gold Plating: Decorative gold, functional gold (conductive)

· Silver Plating: Conductive, decorative

Typical Applications:

· Bathroom fixtures

· Decorative parts

· Electronic connectors

· Medical devices

Dimensional Effects: Coating thickness increases, allowance must be reserved

Cost: Moderate (nickel) to high (gold, silver)

3.4 Sandblasting

Sandblasting of stainless steel removes machining marks and achieves a uniform matte finish, commonly used for medical devices and decorative parts, and can be combined with other treatments.

Typical Applications:

· Medical device housings

· Decorative panels

· Tools

4. Detailed Overview of Carbon Steel and Alloy Steel Surface Treatment Processes

Carbon steel and alloy steel are prone to rust, so surface treatment mainly focuses on corrosion protection and wear resistance.

4.1 Zinc Plating

Zinc plating involves electroplating a zinc layer on the steel surface, with the zinc layer acting as a sacrificial anode to protect the base material. This is the most common corrosion protection treatment for carbon steel.

Process Characteristics:

· Coating thickness: 5-15μm

· Colors: Blue-white zinc, yellow zinc, black zinc, color zinc

· Corrosion resistance: Salt spray testing up to 72-240 hours

· Cost: Low

Typical Applications:

· Fasteners (screws, nuts)

· Structural components

· Automotive parts

· Hardware

· Electrical components

Dimensional Effects: Coating thickness increases, allowance must be reserved for threaded parts or self-tapping threads used

Cost: Low

4.2 Black Oxide

Black oxide uses chemical oxidation to form a black magnetite protective film on the steel surface. After treatment, oil is typically applied to enhance rust resistance.

Process Characteristics:

· Color: Black

· Corrosion resistance: Moderate (requires oil coating)

· Dimensional effects: Almost none

· Surface effect: Matte black

Typical Applications:

· Tools (wrenches, pliers)

· Mechanical parts

· Firearm components

· Precision instruments

· Fasteners

Cost: Low

4.3 Chrome Plating

Chrome plating is divided into decorative chrome and hard chrome, used for decorative and wear-resistant requirements respectively.

Decorative Chrome:

· Characteristics: Bright and attractive, thin coating (0.5-1μm)

· Applications: Automotive wheels, bathroom fixtures, decorative parts

Hard Chrome:

· Characteristics: Excellent wear resistance, thick coating (10-50μm), hardness up to HV 800-1000

· Applications: Hydraulic piston rods, molds, shafts, cylinder bores

Dimensional Effects: Coating thickness increases, allowance must be reserved

Cost: Moderate to high

4.4 Powder Coating

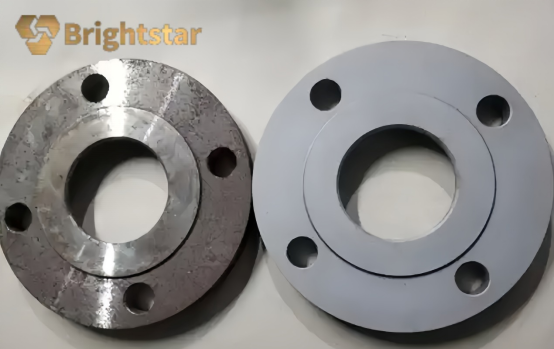

Powder coating involves electrostatically spraying powder coating onto the workpiece surface and curing at high temperature to form a coating. It offers excellent corrosion resistance and decorative properties.

Process Characteristics:

· Coating thickness: 50-200μm

· Colors: Wide variety available, color cards can be provided

· Corrosion resistance: Excellent

· Wear resistance: Good

· Surface effects: Matte, gloss, textured, wrinkled

Typical Applications:

· Outdoor equipment

· Automotive parts

· Furniture

· Machinery housings

· Electrical enclosures

Dimensional Effects: Coating thickness is significant, allowance must be reserved, threaded holes need protection

Cost: Moderate

4.5 Electroless Nickel Plating

Electroless nickel plating deposits a nickel-phosphorus alloy coating on the steel surface through a chemical reduction reaction. It requires no electricity and provides uniform coverage, making it suitable for complex-shaped parts.

Process Characteristics:

· Coating thickness: 5-50μm

· Hardness: HV 500-600 (can reach HV 900-1000 after heat treatment)

· Corrosion resistance: Excellent

· Uniformity: Excellent, suitable for complex shapes and deep holes

Typical Applications:

· Hydraulic valve blocks

· Precision instruments

· Molds

· Petrochemical equipment

· Aerospace components

Dimensional Effects: Coating thickness increases, allowance must be reserved

Cost: Moderate to high

5. Detailed Overview of Titanium Alloy Surface Treatment Processes

Titanium alloys are known for their excellent corrosion resistance and biocompatibility, commonly used in aerospace and medical fields.

5.1 Anodizing

Titanium alloy anodizing can achieve various colors without affecting biocompatibility, making it the most common surface treatment for titanium alloys.

Process Characteristics:

· Colors: Golden, blue, purple, green, pink, etc. (controlled by voltage)

· Corrosion resistance: Further improved

· Biocompatibility: Maintained

Typical Applications:

· Medical implants

· Aerospace decorative parts

· Watch cases

· High-end consumer products

Dimensional Effects: Almost no effect

Cost: Moderate to high

5.2 Passivation

Passivation removes surface free iron and improves corrosion resistance, commonly used for medical implants and aerospace components.

6. Detailed Overview of Copper and Copper Alloy Surface Treatment Processes

Copper and its alloys have excellent electrical and thermal conductivity. Surface treatment is mainly used for corrosion protection, decoration, and improving conductivity.

6.1 Nickel Plating

Nickel plating is the most common surface treatment for copper parts, preventing copper oxidation and providing a good base for subsequent gold or silver plating.

Process Characteristics:

· Colors: Bright nickel, satin nickel

· Function: Corrosion protection, base for gold/silver plating

· Applications: Connectors, decorative parts

6.2 Gold Plating / Silver Plating

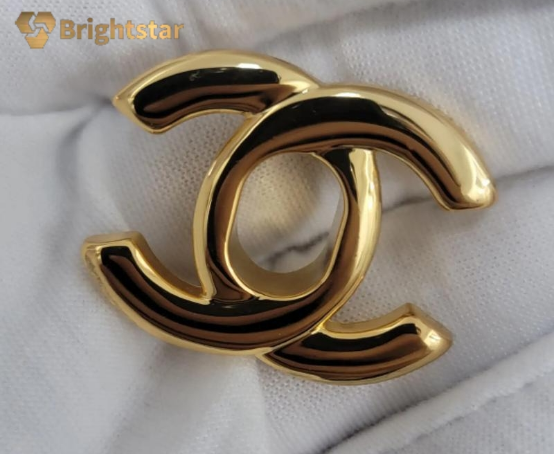

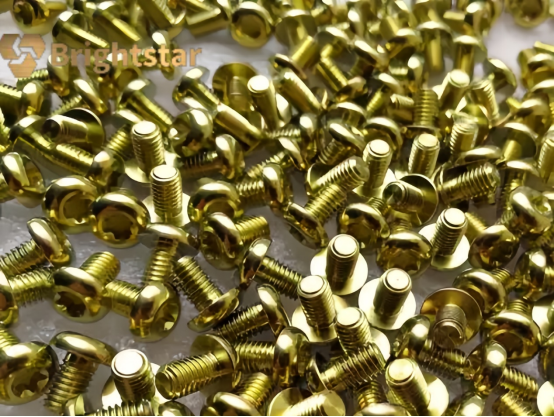

Gold and silver plating are mainly used for electronic connectors requiring high conductivity and high-end decorative parts.

Process Characteristics:

· Excellent conductivity

· Corrosion resistant

· High cost

Typical Applications:

· Electronic connectors

· High-end decorative parts

· Circuit board contact points

6.3 Polishing

Copper alloy polishing can achieve a mirror finish, commonly used for decorative parts and musical instruments.

7. Detailed Overview of Plastic Part Surface Treatment Processes

CNC-machined plastic parts can also undergo surface treatment to achieve better appearance or functionality.

7.1 Painting

Painting is the most common surface treatment for plastic parts, achieving various colors and surface effects.

Process Characteristics:

· Colors: Wide variety available

· Surface effects: Matte, gloss, textured

· Applicable Materials: ABS, PC, POM, etc.

Typical Applications:

· Electronic product housings

· Automotive interior parts

· Medical device housings

7.2 Silk Screening

Silk screening prints text, patterns, and logos on the surface, commonly used for marking plastic parts.

Typical Applications:

· Panels, buttons

· Product logos

· Dials and scales

· Identification plates

7.3 Laser Marking

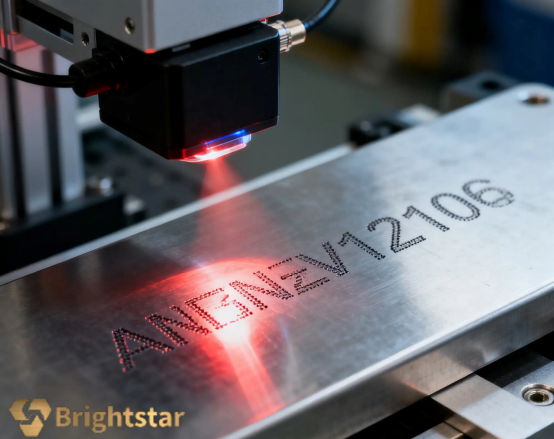

Laser marking is a permanent marking process with high precision and no contact, creating clear identification on plastic surfaces.

Process Characteristics:

· Permanent marking

· High precision

· Non-contact

· Adjustable colors (black, white)

Typical Applications:

· Product serial numbers

· Logos

· QR codes

· Scales

8. Surface Treatment Process Comparison and Selection Guide

8.1 Selection by Material

8.2 Selection by Functional Requirements

8.3 Selection by Cost Level

8.4 Comparison of Dimensional Effects

9. Frequently Asked Questions (FAQ)

9.1 What is the most common surface treatment for aluminum alloy parts?

The most common surface treatment for aluminum alloy parts is anodizing. It provides excellent corrosion resistance, wear resistance, and can be dyed in various colors, widely used in electronic product housings, automotive parts, aerospace components, and more.

9.2 Does stainless steel need surface treatment?

Stainless steel itself has good corrosion resistance, but passivation treatment can remove surface iron particles introduced during machining, further improving corrosion resistance. It is a common treatment for medical devices and food equipment. For decorative purposes, electroplating, sandblasting, or electropolishing can be chosen.

9.3 How to protect carbon steel parts from rust?

Common methods for rust protection of carbon steel parts:

· Zinc Plating: Low cost, good rust protection, most common

· Black Oxide: Black appearance, moderate rust protection, requires oil coating

· Powder Coating: Excellent rust protection, suitable for outdoor use

· Chrome Plating: Good decorative effect, good rust protection

9.4 What is the difference between anodizing and hard anodizing?

9.5 How to specify surface treatment color?

· Anodizing: Can provide Pantone color numbers or physical color samples. Common colors include black, silver, gold, red, blue, etc.

· Powder Coating: Can provide RAL color numbers or Pantone color numbers

· Electroplating: Limited color options (gold, silver, black, chrome)

· It is recommended to specify color standard numbers on drawings

9.6 Does surface treatment affect part dimensions?

Yes. Most surface treatments change part dimensions:

· Coating-type processes increase dimensions (such as zinc plating, anodizing)

· Mechanical processes decrease dimensions (such as polishing, sandblasting)

· Critical mating surfaces (such as threads, bearing seats) require machining allowance

· It is recommended to specify "surface treatment after machining" or "allowance before treatment" on drawings

9.7 What are the salt spray test requirements for surface treatments?

Salt spray test requirements vary by industry and process:

· Standard Anodizing: 200-500 hours

· Hard Anodizing: 500-1000 hours

· Zinc Plating (blue-white): 72-120 hours

· Zinc Plating (yellow): 120-240 hours

· Powder Coating: 500-1000 hours

· Passivated Stainless Steel: 500-1000 hours

9.8 What are typical lead times for surface treatment?

· Simple treatments (sandblasting, clear anodizing, black oxide): 1-3 days

· Standard treatments (dyed anodizing, zinc plating): 3-5 days

· Complex treatments (hard anodizing, chrome plating, electroless nickel): 5-7 days

· Outsourced treatments: 7-10 days

9.9 How to get professional surface treatment recommendations?

Send your drawings and surface treatment requirements to Brightstar. Our engineers will:

· Evaluate material and process compatibility

· Provide process feasibility analysis

· Offer cost optimization suggestions

· Help reserve dimensional allowances

· Provide sample references

9.10 Can multiple surface treatments be applied to one part?

Yes, but note:

· Different areas require protection (such as thread protection, mating surface protection)

· Additional processes increase cost

· Treatment areas must be clearly marked

· Common combinations: Anodizing + local polishing, Zinc plating + passivation

10. How to Choose a Professional Surface Treatment Supplier

10.1 Evaluate Process Capabilities

· Does the supplier have the surface treatment processes you need?

· Do they have large-part processing capabilities?

· Do they have environmental certifications and discharge permits?

10.2 Check Quality Control

· Do they have coating thickness measurement equipment?

· Do they have salt spray testing capabilities?

· Do they provide inspection reports?

· Do they have ISO quality system certification?

10.3 Assess Coordination

· Can they provide one-stop service (CNC machining + surface treatment)?

· Are lead times reliable?

· How are issues handled when they arise?

10.4 Why Choose Brightstar

Brightstar provides one-stop CNC machining + surface treatment services:

· Comprehensive processes: Anodizing, electroplating, passivation, black oxide, sandblasting, polishing, powder coating, and more

· Quality assurance: Complete inspection equipment, providing coating thickness reports and salt spray test reports

· Dimensional control: Experienced engineers ensuring dimensional accuracy after treatment

· Reliable lead times: Combination of in-house processing and outsourced resources ensures on-time delivery

· Cost optimization: Batch processing reduces per-part costs

· DFM support: Surface treatment recommendations during the design phase

Conclusion

Summary

Surface treatment is an essential step for CNC-machined parts to achieve corrosion protection, wear resistance, decoration, and functional requirements. This article systematically introduces common surface treatment processes for aluminum alloy, stainless steel, carbon steel, titanium alloy, copper, and plastic materials, including anodizing, electroplating, passivation, black oxide, sandblasting, polishing, and painting, helping you make correct surface treatment decisions during the design phase.

Choosing the right surface treatment not only protects parts and improves performance but also enhances appearance and adds product value. Reasonable process selection, correct drawing notation, and professional suppliers are the three key factors for achieving ideal surface results.

Get Free Surface Treatment Evaluation Now!

Send your drawings to Brightstar, and our engineers will provide you with:

· Surface treatment process recommendations

· Color and finish options

· Dimensional allowance guidance

· Cost optimization suggestions

· Free DFM evaluation

Contact Information

Phone / WeChat: +86-13750105351

Email: amy@brightstarprototype.com

Website: www.brightstarprototype.com

About Brightstar

Brightstar is a professional CNC machining service provider offering one-stop CNC machining + surface treatment services. We have:

· High-precision CNC machining equipment

· Comprehensive surface treatment process capabilities

· ISO 9001:2015 quality management system certification

· Professional DFM technical support team

· Extensive surface treatment experience

Whether your parts need anodizing, electroplating, sandblasting, polishing, or painting, Brightstar provides reliable solutions.

Contact us today to achieve ideal surface quality for your parts.
