CNC Turning Process Optimization for High-Precision Shaft Components

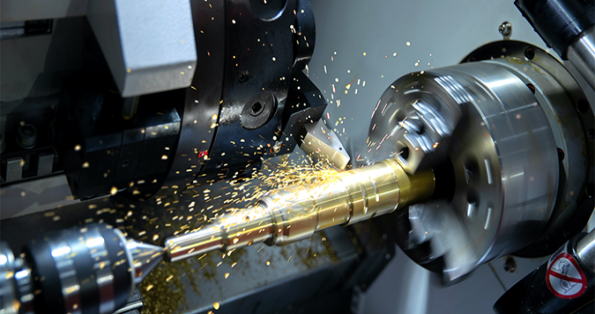

In precision machinery and high-performance equipment, shaft components often serve critical transmission or support functions. The machining accuracy of these components directly affects overall system performance. CNC turning, as the primary method for shaft processing, requires process optimization to ensure dimensional accuracy, surface quality, and production efficiency. In this article, we share practical strategies for optimizing CNC turning of high-precision shafts.

1. Material Selection and Pre-Treatment

Different shaft materials exhibit very different cutting characteristics. High-hardness steels, alloy steels, or titanium alloys can lead to tool wear or vibration during turning. Key optimization measures include:

Annealing or Normalizing: Reduce material hardness, lower cutting forces, and improve surface finish.

Uniform Hardness Control: Ensure consistent hardness across the material to minimize local deformation.

Cutting Fluid Selection: High-pressure cooling or specialized cutting fluids for hard materials can extend tool life and improve surface quality.

2. Tooling and Cutting Parameter Optimization

Tool geometry, material, and coating are crucial for high-precision turning. Optimizing tools and cutting parameters can significantly improve both accuracy and efficiency:

Tool Material Selection: Carbide or coated tools are suitable for hard shafts to reduce wear and vibration.

Cutting Speed and Feed Rate: Adjust based on material and tool characteristics to maintain stable cutting and avoid surface scratches.

Cutting Depth and Multi-Pass Finishing: Use a roughing–semi-finishing–finishing strategy to control dimensions and surface quality.

3. Fixture Design and Clamping Sequence

Fixture stability directly affects runout and machining accuracy in high-precision shaft processing:

Custom Fixtures: Design dedicated chucks or three-jaw setups to maintain concentricity.

Optimized Clamping Sequence: Plan roughing and finishing operations to minimize errors from multiple re-clamping.

Vibration Suppression: For long or slender shafts, use tailstock support to reduce deflection and vibration.

4. Thermal Deformation Control

Long or high-precision shafts are prone to thermal deformation during cutting, affecting dimensional accuracy. Common strategies include:

Intermittent Cutting: Allow pauses for heat dissipation to reduce cumulative thermal expansion.

Low-Temperature or Internal Cooling: Cool the cutting zone directly to suppress thermal expansion.

Optimized Cutting Sequence: Machine thermally sensitive features first, followed by non-critical features.

5. Surface Finish Optimization

Shaft surface roughness affects bearing fit, sealing performance, and service life. Optimization strategies include:

Combination of Finishing and Light Cuts: Perform finishing cuts or polishing after rough turning to enhance surface quality.

Proper Tool Nose Radius: A larger nose radius improves surface continuity and reduces tool marks.

Cutting Fluid and Tool Coating Coordination: Improve chip evacuation and prevent micro-scratches.

6. Case Study

In a recent high-precision drive shaft project, the shaft was 400mm long, with a tolerance of ±0.01mm and surface roughness Ra ≤0.4μm. We achieved high-quality and efficient processing by:

Using coated carbide tools with cutting speed and feed optimized for the material.

Designing dedicated fixtures combined with tailstock support to ensure concentricity and rigidity.

Implementing a staged machining strategy: roughing → semi-finishing → finishing, controlling thermal deformation.

Inspecting all dimensions and surface quality with a CMM and surface roughness tester.

All shafts met specifications in a single machining pass, with zero rework. Production efficiency improved by approximately 20% compared to conventional methods.

7. Conclusion

Optimizing CNC turning for high-precision shafts requires a systematic approach across material selection, tooling, cutting parameters, fixtures, thermal deformation control, and surface finish. A well-planned process ensures part quality, enhances production efficiency, and reduces costs.
