April. 01, 2026

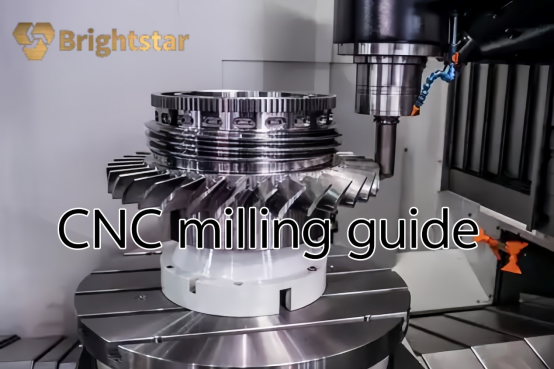

This CNC milling guide provides engineers and procurement professionals with a foundational understanding of this critical manufacturing technology. For both technical and commercial stakeholders, knowing how CNC milling works is essential for successful product development and sourcing.
What is CNC milling? It is a precise subtractive manufacturing process where computer-controlled machines remove material using rotating cutting tools. The CNC milling process transforms digital designs into physical parts with exceptional accuracy and repeatability.
For engineers, understanding the CNC milling process enables better design decisions regarding geometries, tolerances, and material selection. For procurement teams, this knowledge facilitates accurate quoting, supplier evaluation, and timeline expectations. Both perspectives are essential for project success.
This CNC milling guide bridges the gap between technical design and commercial execution. Engineers can specify parts that are actually manufacturable, while purchasers can communicate requirements clearly to suppliers. This alignment reduces costly revisions and production delays.
Whether you are designing new components or sourcing manufacturing partners, the principles in this CNC milling guide will help you achieve better outcomes. Master these fundamentals to ensure your projects move smoothly from concept to finished product.
Understanding the CNC milling process is essential for anyone involved in manufacturing or product development. This section provides a technical deep dive into how the CNC milling process transforms digital designs into precision machined parts, revealing the key technical considerations behind each stage.
How CNC milling works is fundamentally a digitally driven material removal process. Mastering the CNC milling process requires understanding five core stages: design, programming, setup, machining, and monitoring.

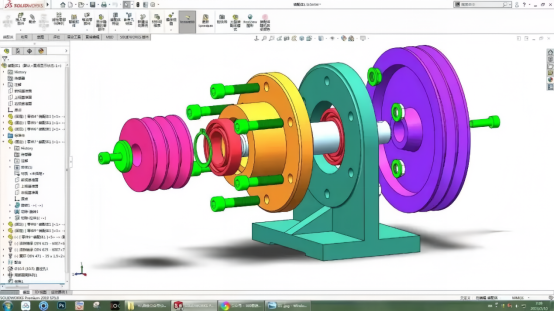

Everything begins with CAD (Computer-Aided Design). Engineers create 3D digital models of parts using professional software, which serves as the foundation of the entire CNC milling workflow. To understand the CNC milling process, one must first recognize that CAD model quality directly impacts all subsequent stages.
High-quality CAD models contain complete geometric information, tolerance requirements, and surface finish specifications. A well-designed model can prevent 80% of potential manufacturing issues, demonstrating the true value of mastering the CNC milling process.
Once the CAD model is complete, the process moves to CAM (Computer-Aided Manufacturing) programming. To understand the CNC milling process step by step, CAM software is the essential tool that converts 3D geometry into machine-readable G-code.
Programming engineers make dozens of technical decisions: tool selection, cutting strategies, path optimization, and parameter settings. These decisions directly impact machining efficiency and quality, making this one of the most technically demanding aspects of the CNC milling process.
A common question is: How important is CAM programming in the CNC milling process?
The answer is critical—excellent CAM programming can reduce machining time by over 30% while significantly improving surface quality.
After program generation, the setup phase begins. Operators securely mount the workpiece, load appropriate cutting tools into the spindle, and establish the machine zero point. This seemingly basic step is actually the first critical control point for precision in the CNC milling process.
Tool setting and coordinate system establishment require accuracy at the 0.01mm level, typically achieved using tool setters or probes. The complete CNC milling workflow teaches us that every minute invested in setup pays dividends in machining quality.
With everything prepared, the machine executes its instructions. Rotating cutting tools move along multiple axes to precisely remove material. To truly understand how CNC milling works, one must distinguish between two machining types:
Roughing passes quickly remove the bulk of excess material, accounting for 60-70% of total machining time. Finishing passes then achieve final dimensional accuracy and surface quality, meeting print tolerances (typically ±0.025mm or tighter). These two phases together form the complete CNC milling workflow.
In modern manufacturing, the CNC milling process involves continuous monitoring and adjustment, not just automated operation. Sensors track spindle load, vibration, and temperature changes. The system can automatically compensate for tool wear, ensuring the first and hundredth parts maintain identical precision.
In-process inspection technology allows critical dimensions to be measured without removing the workpiece. This capability distinguishes the CNC milling process from conventional machining and explains its ability to achieve high-precision batch production.
Returning to the fundamental question: How does the CNC milling process actually work?
From CAD design to CAM programming, from machine setup to actual machining, and through full-process quality monitoring—the CNC milling process is an intricately connected precision system. Engineers who understand each stage can design products that are both innovative and manufacturable. Procurement professionals who grasp the complete CNC milling workflow can accurately evaluate quotations and communicate effectively with manufacturing partners.
Mastering every technical detail of the CNC milling process is the foundation for transforming excellent designs into high-quality finished products.
Selecting the right equipment begins with understanding the different CNC milling machines available today. Each machine type offers distinct capabilities suited to specific part geometries, production volumes, and precision requirements.
3 axis CNC milling is the most common configuration, where the cutting tool moves along X, Y, and Z axes simultaneously. These machines excel at producing flat surfaces, drilled holes, and simple pockets. They are ideal for prismatic parts and are widely used in job shops and prototyping environments due to their simplicity and cost-effectiveness.
For more complex geometries, 4 axis CNC milling adds rotational movement around the X-axis, called the A-axis. This enables machining on multiple faces of a part in a single setup, reducing handling time and improving accuracy. Applications include helical features, cam profiles, and cylindrical parts that require indexed rotations.

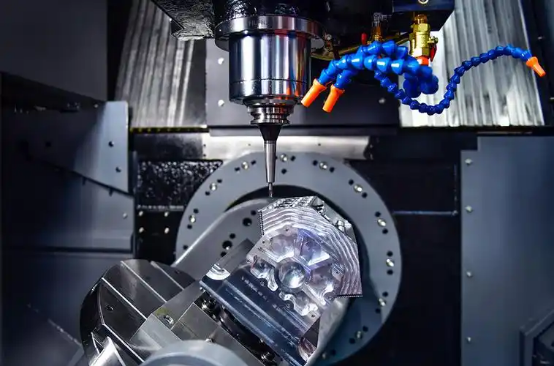

The most advanced option is 5 axis CNC milling, which introduces two rotational axes. This allows the cutting tool to approach the workpiece from any direction, making it possible to machine complex organic shapes, deep cavities, and undercuts in one setup. Industries such as aerospace, medical device manufacturing, and automotive racing rely heavily on this capability for turbine blades, implants, and complex manifolds.
Beyond axis count, machine orientation matters significantly. The choice between vertical vs horizontal milling machine configurations affects chip evacuation, part accessibility, and production efficiency. Vertical machines position the spindle vertically, offering better visibility and versatility for smaller parts. Horizontal machines feature a horizontally oriented spindle, providing superior chip removal and rigidity for heavy-duty cutting and high-volume production.
Understanding these CNC milling machines and their applications helps engineers design appropriately and enables buyers to select manufacturing partners with the right capabilities for each project.
Machine Type | Axis / Configuration | Key Features | Suitable Part Types | Typical Applications |
3 Axis CNC Milling | 3-axis (X, Y, Z) | Cutting tool moves simultaneously along X, Y, and Z axes; most common configuration, simple and cost-effective | Prismatic parts, flat surfaces, drilled holes, simple pockets | Job shops, prototyping, general machining |
4Axis CNC Milling | 4-axis (X, Y, Z + A-axis) | Adds rotational movement around the X-axis (A-axis); enables machining on multiple faces in a single setup | Helical features, cam profiles, cylindrical parts requiring indexed rotations | Hydraulic components, camshaft manufacturing, medium-complexity parts |
5Axis CNC Milling | 5-axis (X, Y, Z + two rotational axes) | Introduces two rotational axes; tool can approach workpiece from any direction; completes complex shapes in one setup | Complex organic shapes, deep cavities, undercuts, turbine blades, implants | Aerospace, medical devices, automotive racing, precision molds |
Vertical Milling Machine | Vertically oriented spindle | Better visibility and versatility; suitable for small to medium parts and precision work | Plate-type parts, mold cavities, complex features requiring fine observation | Mold making, precision parts, general machine shops |
Horizontal Milling Machine | Horizontally oriented spindle | Superior chip evacuation and rigidity; ideal for heavy-duty cutting and high-volume production | Large box-type parts, heavy cutting applications requiring efficient chip removal | Engine blocks, transmission housings, high-volume production lines |
Understanding common CNC milling operations is essential for designing parts that are both functional and cost-effective to manufacture. Each operation serves a specific purpose and produces distinct geometric features.
The face milling process is used to create flat surfaces perpendicular to the cutting tool axis. This operation removes material from the top of a workpiece to achieve a smooth finish and precise thickness. It is typically the first operation performed to establish a reference surface for subsequent machining, ensuring dimensional consistency throughout the part.
The end milling process employs cutting tools with teeth on both the end and periphery. This versatile operation can create pockets, contours, profiles, and shoulders. End mills come in various geometries, each suited to different feature requirements:
· Square end mills: For creating straight wall contours and square corners
· Ball nose end mills: Ideal for complex curved surfaces and 3D contouring
· Corner radius end mills: Provide radius transitions between floor and wall, reducing stress concentration
For creating channels and grooves, the slot milling process is the standard choice. Using cutters specifically designed for slotting, this operation produces accurate widths and depths in a single pass or multiple passes for wider slots. Common applications include:
· Keyways: For connecting shafts and hubs to transmit torque
· T-slots: For fixture mounting on machine tables
· Lubrication channels: For directing oil or coolant flow
Beyond the primary milling types, CNC milling operations include various hole making processes:
· Drilling: Creating circular holes using drill bits
· Tapping: Cutting internal threads in holes
· Boring: Enlarging existing holes while improving accuracy and roundness
· Reaming: Finishing hole walls for tighter dimensional precision and surface finish
Edge treatment is equally important in part manufacturing:
· Chamfering: Creating angled surfaces at edges to facilitate assembly and eliminate sharp corners
· Filleting: Producing curved transitions that improve stress distribution and appearance
Selecting the right operation for each feature ensures manufacturing efficiency and part quality. Mastering these CNC milling operations and their applications enables engineers to design more manufacturable products, while procurement professionals can more accurately evaluate processing costs and lead times.
Selecting the right CNC milling materials is critical to part performance, machinability, and cost. Understanding common material options helps engineers make informed design decisions and enables buyers to communicate effectively with manufacturing partners.
Aluminum CNC milling is extremely popular due to the material's excellent machinability and lightweight properties. Common grades include 6061 for general purposes, 7075 for high-strength applications, and 2024 for aerospace components. Aluminum allows for high cutting speeds and produces excellent surface finishes, making it ideal for prototypes, enclosures, and heat sinks.
Steel CNC milling offers superior strength and durability for structural and load-bearing applications. Grades range from mild steels like 1018 and A36 for general fabrication to alloy steels like 4140 for gears and shafts. When planning steel CNC milling, engineers must account for rigid setups and appropriate tool coatings, with slower cutting speeds compared to aluminum.
Stainless steel grades such as 303, 304, and 316 provide excellent corrosion resistance for medical devices, food processing equipment, and marine hardware. These materials work harden during machining, requiring sharp tools and consistent feed rates.
Brass and copper are valued for their electrical conductivity and aesthetic appearance. These CNC milling materials machine exceptionally well and are commonly used for electrical components, fittings, and decorative parts.

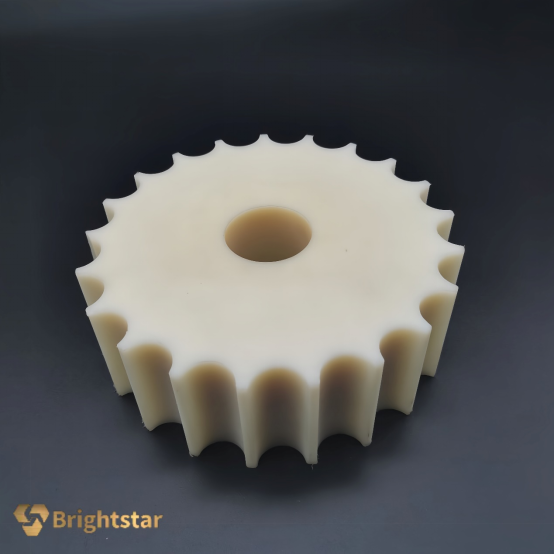

CNC milling plastics has become increasingly common for applications requiring lightweight, chemical resistance, or electrical insulation. Common engineering plastics include:
· ABS: Tough and impact-resistant, ideal for housings and prototypes
· Nylon: Excellent wear resistance for bushings and gears
· Delrin (POM) : High stiffness and low friction for precision parts
· Polycarbonate: Impact-resistant with optical clarity options
· Acrylic: Transparent with excellent surface finish for displays
When performing CNC milling plastics, operators must use sharp tools and proper chip evacuation to prevent melting, as heat buildup is the primary concern.
A common question is: Which CNC milling materials are best for my project? The answer depends on your specific application—aluminum for lightweight strength, steel for heavy-duty durability, or plastics for cost-effective prototyping and insulation.
Understanding these CNC milling materials and their characteristics ensures successful project outcomes, from prototype development to full-scale production.

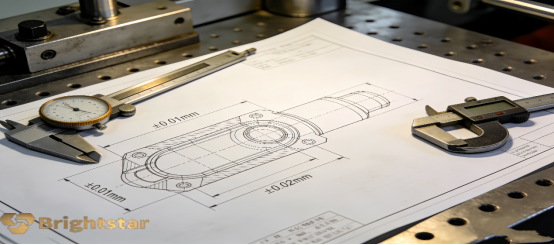

Understanding CNC milling tolerance is essential for engineers designing parts that must assemble and function correctly. Tolerance refers to the permissible variation in a dimension, and specifying appropriate tolerances directly impacts both part performance and manufacturing cost.
Standard CNC milling tolerance typically falls within ±0.005 inches (±0.127mm) for commercial applications. For more demanding requirements, precision CNC milling can achieve tolerances as tight as ±0.0005 inches (±0.0127mm). The level of precision needed should match the functional requirements of the design—over-specifying tolerances adds unnecessary cost without improving performance.
Several factors influence achievable CNC milling tolerance. Machine rigidity and condition play a fundamental role, as does tool selection and wear. Material properties also matter significantly; aluminum machines more predictably than hardened steels or heat-sensitive plastics. Thermal expansion during machining can affect final dimensions, particularly for longer parts or tight tolerances.
A common question is: What tolerance should I specify for my CNC machined parts? The answer depends on functional requirements—critical mating surfaces need tighter tolerances, while non-critical features can use standard commercial tolerances to control costs.
Achieving consistent precision CNC milling results requires attention to setup, tooling, and process monitoring. Experienced machinists understand how to compensate for variables and inspect parts throughout production to verify compliance.
Properly specifying CNC milling tolerance balances design intent with manufacturability, ensuring parts perform as intended while keeping production costs reasonable.
Selecting the appropriate CNC milling surface finish is critical to part performance, appearance, and longevity. Surface finishes range from as-machined textures to specialized coatings, each serving different functional and aesthetic requirements.
The default option for most parts is the as-machined finish, which preserves the tool marks from the CNC milling process. This finish is cost-effective and suitable for internal components where appearance is not critical. Typical surface roughness ranges from 3.2 to 1.6 μm Ra, depending on tooling and parameters.
Bead blasting creates a uniform matte texture by propelling fine media at the part surface. This finish hides minor tool marks and provides a consistent appearance across complex geometries. It is commonly specified for consumer products and visible components before secondary processes like anodizing.

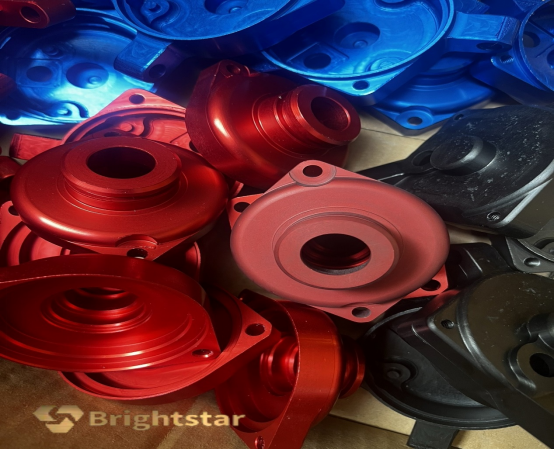

Anodizing CNC parts is an electrochemical process that thickens the natural oxide layer on aluminum surfaces. This finish offers several benefits:
· Enhanced durability: Increased wear and corrosion resistance
· Color options: Available in clear, black, and various colors for branding or identification
· Improved appearance: Provides a uniform, professional finish
Anodizing is spec compatible with precision CNC milling requirements, as the coating thickness (typically 5-25 μm) must be considered for tight tolerances.
Powder coating applies a durable colored layer through electrostatic deposition and curing. This finish provides excellent impact and corrosion resistance, making it ideal for parts exposed to harsh environments. Common applications include enclosures, frames, and outdoor equipment.
Liquid painting offers flexibility for custom colors and touch-ups. It can be applied to most metals and some plastics, though adhesion may require primers. Painting is often chosen for low-volume parts or when matching existing equipment colors.
Electroplating deposits a thin metal layer (such as nickel, chrome, or zinc) onto the part surface. This finish enhances appearance, provides corrosion protection, and can improve electrical conductivity for specific applications.
Polishing creates a smooth, reflective surface through mechanical abrasion. It is often specified for decorative parts, medical instruments, and components requiring reduced friction. Polishing can be combined with other finishes like anodizing for enhanced aesthetics.
A common question is: How do I choose the right CNC machining finishing option? The decision depends on material, application environment, aesthetic requirements, and budget. For aluminum components requiring color and protection, anodizing CNC parts is often the preferred choice. For steel parts needing corrosion resistance, plating or powder coating may be more appropriate.
Understanding the available CNC milling surface finish options ensures that parts meet both functional specifications and visual expectations, while maintaining cost-effectiveness throughout production.
Understanding the CNC milling advantages and limitations helps engineers and procurement professionals determine when this manufacturing process is the right choice for their projects. Like all manufacturing methods, CNC milling offers distinct benefits while presenting certain constraints.
CNC milling advantages begin with exceptional precision and repeatability. Once a program is verified, machines can produce identical parts consistently, making it ideal for both prototypes and production runs. Tolerances as tight as ±0.0005 inches are achievable with proper equipment and setup.
Versatility is another key benefit. CNC milling works with a wide range of materials, from aluminum and steel to plastics and composites. Complex geometries that would be impossible to produce manually become feasible, including intricate 3D contours, deep cavities, and precise features.
Automation reduces labor costs and minimizes human error. Modern CNC machines can run unattended for extended periods, maximizing productivity. Changes can be implemented quickly through software modifications rather than hardware adjustments, enabling rapid design iterations.
Despite these strengths, CNC milling limitations must be considered during project planning. Initial equipment costs are substantial, making in-house machining a significant investment for many companies. Even when outsourcing, setup and programming costs can be high for small batches.
Material waste is inherent to subtractive manufacturing. Unlike additive processes, CNC milling removes material to create parts, which can be inefficient for expensive materials or when starting from large stock.
Certain geometric features present challenges. Deep cavities with small diameters require specialized tooling, and internal corners always have a radius determined by the cutting tool diameter. Undercuts may require multiple setups or specialized machines.
A common question is: When should I choose CNC milling over other manufacturing methods? The answer depends on part complexity, material requirements, production volume, and budget. For high-precision components in engineering-grade materials, CNC milling remains the industry standard.
Understanding both the CNC milling advantages and limitations ensures realistic expectations and informed decision-making throughout product development.
Choosing the right manufacturing method requires understanding how CNC milling vs turning compares, as well as how milling stacks up against additive and molding technologies. Each process offers distinct advantages depending on part geometry, volume, and material requirements.

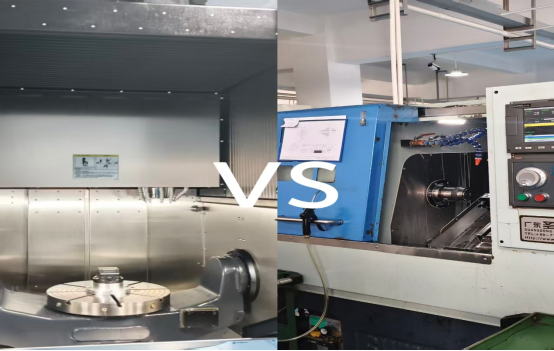

CNC milling vs turning represents two fundamental machining approaches. Milling uses rotating multi-point cutting tools to remove material from a stationary workpiece, ideal for complex geometries, flat surfaces, and pockets. Turning rotates the workpiece against a stationary cutting tool, optimized for cylindrical features like shafts, bushings, and rings.
Cost comparison: Milling generally requires more complex setups and tooling, making it slightly more expensive per part for simple geometries. Turning is typically more economical for round parts.
Precision comparison: Both achieve similar tolerances (±0.0005 inches), though turning excels at concentricity while milling handles complex 3D features better.
Speed comparison: Turning is faster for cylindrical features, while milling processes complex shapes more efficiently without multiple setups.
CNC milling vs 3D printing highlights the contrast between subtractive and additive manufacturing. Milling removes material from solid blocks, while 3D printing builds parts layer by layer.
Cost comparison: 3D printing favors low-volume prototypes without tooling investment, but CNC milling becomes more economical for larger quantities and production runs.
Precision comparison: Milling strongly favors precision, with tolerances an order of magnitude tighter than most 3D printing processes.
Speed comparison: 3D printing can produce complex internal geometries faster, but milling delivers finished parts immediately without post-processing for many materials.
CNC milling vs injection molding compares machining with mass production molding. Injection molding forces molten material into a custom mold cavity.
Cost comparison: Injection molding requires expensive tooling upfront ($5,000-$50,000+), making it economical only for high volumes (typically 1,000+ parts). CNC milling has no tooling investment, ideal for prototypes and low-to-medium volumes.
Precision comparison: Both offer excellent precision, though molding achieves slightly better consistency across millions of parts.
Speed comparison: Molding wins for production runs once tooling is complete, while CNC milling wins for quick-turn prototypes and design iterations.
A common question is: Which process should I choose for my project? Consider your volume, geometry complexity, material requirements, and budget. For complex metal parts with tight tolerances at low-to-medium volumes, CNC milling remains the most versatile and reliable choice when evaluating CNC milling vs turning, CNC milling vs 3D printing, or CNC milling vs injection molding.
Implementing effective design for CNC milling principles early in product development can significantly reduce costs and improve manufacturability. These practical guidelines help engineers create parts that machine efficiently without compromising functionality.
One fundamental CNC milling design tips involves internal vertical corners. Since cutting tools are round, they leave radii in corners. Designing with standard tool diameters in mind—typically 3mm, 6mm, or 12mm—allows larger tools to be used, reducing machining time. Specifying overly tight corner radii forces smaller tools and slower feeds, increasing costs.
Deep cavities with small widths require long tools that deflect during cutting, compromising accuracy and surface finish. A good rule for design for CNC milling is to keep cavity depth no more than four times the tool diameter. Deeper features may require specialized tooling or multiple setups, driving up production time and expense.
Applying design for CNC milling principles means tolerancing only where functionally necessary. Critical mating surfaces may require tight tolerances, but non-critical features should use standard commercial tolerances (±0.005 inches). Every additional 0.001 inch of precision increases machining time and inspection requirements.
Consistent wall thickness promotes stable machining and reduces material stress. Thin walls (under 0.5mm for metals, 1mm for plastics) are difficult to machine without vibration or distortion. When thin features are unavoidable, consider adding temporary support ribs for machining that are removed later.
Ensure cutting tools can reach all features requiring machining. Deep pockets, undercuts, and angled features may require specialty tooling or multiple setups. Following cnc milling design tips like keeping features accessible from standard orientations reduces setup complexity and cost.
Parts requiring machining on multiple sides increase handling time and introduce alignment errors. Whenever possible, design parts that can be completed in one or two setups. This consideration in design for CNC milling directly reduces labor costs and improves accuracy.
Material selection dramatically impacts machinability. Free-machining metals like 6061 aluminum and 12L14 steel cut faster with better finishes. Engineering plastics like Delrin machine well, while some filled materials accelerate tool wear.
A common question is: How can I reduce CNC milling costs through design? The most effective approach is simplifying geometries, standardizing features, and tolerancing realistically. These cnc milling design tips help balance design intent with manufacturing efficiency.
Applying thoughtful design for CNC milling principles ensures your parts are not only functional but also economical to produce, accelerating time to market and improving project profitability.
Understanding cnc milling cost drivers helps engineers and procurement professionals make informed decisions during product development. Multiple factors influence the final price, and knowing these allows for effective cost optimization without sacrificing quality.
How much does CNC milling cost? The answer depends on several interconnected variables that affect machining time, setup complexity, and material expenses.
Every project begins with setup and programming, which forms the foundation of any cnc milling quote. Complex parts requiring extensive CAM programming or custom fixtures increase initial costs. However, these upfront investments often reduce per-part costs for larger production runs by streamlining the machining process.
Material choice significantly impacts cnc milling cost. Common materials like 6061 aluminum are economical and machine quickly, while exotic alloys or engineering-grade plastics cost more and may require specialized tooling. Material availability also matters—standard stock sizes reduce waste and expense compared to custom dimensions.
Geometric complexity directly affects machining time. Simple prismatic parts with basic features cost less than components requiring intricate 3D contours, tight tolerances, or multiple setups. When requesting a cnc milling quote, providing clear technical drawings helps suppliers accurately assess complexity-related costs.
Tighter tolerances demand slower machining speeds, additional inspection, and potentially multiple passes. Similarly, specialized surface treatments like anodizing or powder coating add processing steps. Balancing precision requirements with functional needs is key to controlling cnc milling cost.
Unit price decreases as quantity increases due to amortized setup costs. Prototype quantities (1-10 pieces) carry higher per-part costs, while production runs spread fixed expenses across many parts. Many custom cnc milling services offer tiered pricing based on volume.
Standard lead times allow shops to optimize scheduling and toolpath efficiency. Rush orders disrupt workflows and often incur premium charges. Planning ahead and allowing reasonable delivery windows helps minimize costs.
A common question is: How can I reduce CNC milling costs? Simplifying designs, specifying realistic tolerances, and choosing readily available materials are the most effective strategies. Requesting multiple cnc milling quote comparisons from qualified custom cnc milling services also ensures competitive pricing.
Understanding these cnc milling cost factors empowers better decision-making throughout the product development cycle, from initial design to final production.
CNC milling applications span virtually every manufacturing sector, demonstrating the versatility and precision of this essential technology. From prototypes to production runs, cnc milled parts appear in products we use daily and in advanced engineering systems.
The aerospace sector relies heavily on CNC milling for critical components requiring exceptional precision and material integrity. Turbine blades, structural brackets, engine mounts, and wing ribs are commonly produced through milling. Materials like titanium, aluminum, and high-temperature alloys are machined to tight tolerances, often with complex 3D contours. The reliability of cnc milled parts industries like aerospace demand is made possible through advanced multi-axis machining capabilities.

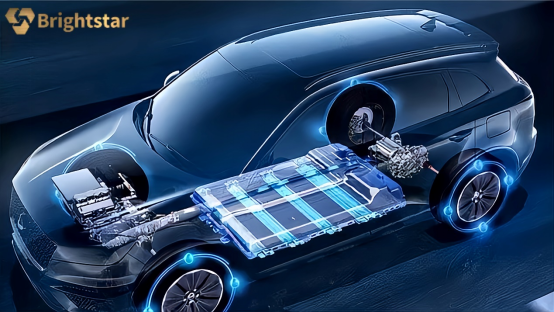

Automotive applications range from prototyping new designs to producing performance and production components. Engine blocks, cylinder heads, transmission housings, suspension components, and custom intake manifolds are typical cnc milling applications. Both OEMs and aftermarket suppliers use milling for everything from functional prototypes to end-use parts, benefiting from the process's repeatability and material versatility.
Medical manufacturing demands precision, cleanliness, and material compatibility. CNC milling applications in this sector include surgical instruments, orthopedic implants, dental components, and medical device housings. Stainless steel, titanium, and medical-grade plastics are commonly machined to meet stringent regulatory requirements and patient safety standards.
The electronics industry uses CNC milling for enclosures, heat sinks, connectors, and precision housings. Consumer products benefit from the aesthetic finishes achievable through milling, with applications in smartphones, cameras, audio equipment, and wearable devices. CNC milled parts industries serving consumers value the process's ability to produce both functional and visually appealing components.
Heavy machinery, robotics, and automation systems depend on milled components for structural integrity and precise motion control. Gearboxes, machine frames, custom brackets, and positioning fixtures are typical cnc milling applications in industrial settings. The process delivers the durability and accuracy required for equipment operating in demanding environments.
Energy sector applications include components for oil and gas exploration, wind turbines, and nuclear facilities. Defense applications range from weapon system components to vehicle parts and communication equipment housings. These cnc milled parts industries prioritize reliability, material traceability, and consistent quality.
A common question is: What industries benefit most from CNC milling? Virtually all manufacturing sectors, but especially aerospace, medical, automotive, and industrial equipment where precision and material properties are critical.
Understanding these diverse cnc milling applications helps engineers recognize the process's potential and enables buyers to identify qualified suppliers with relevant industry experience.
Selecting the right cnc milling supplier is critical to project success, impacting quality, lead times, and overall costs. With numerous options available, knowing how to evaluate potential partners ensures you find a reliable manufacturer for your components.
Begin by evaluating the cnc milling manufacturer equipment and expertise. Do they have machines that handle your part sizes and complexities? For multi-axis requirements, verify their experience with 4 and 5-axis machining. Material capabilities matter too—ensure they regularly work with the alloys or plastics specified in your designs.
Quality consistency separates exceptional cnc milling services from average ones. Ask about inspection equipment (CMM, optical comparators) and certification standards (ISO 9001, AS9100). Request sample parts or case studies demonstrating their ability to hold your required tolerances. A reliable cnc milling supplier provides detailed inspection reports with shipments.
Technical projects require clear communication. Assess how potential cnc milling services respond to design for manufacturability feedback. Do they proactively suggest improvements? Response times to quotes and technical questions indicate their customer service approach. A partner who engages early in design phase adds significant value.
Understand their production capacity relative to your volumes. Can they handle prototypes and scale to production? Ask about typical lead times and rush order policies. A cnc milling manufacturer with balanced capacity provides consistency without frequent delays.
When evaluating cnc milling services, compare detailed quotes that itemize setup, material, machining, and finishing costs. The lowest price rarely delivers the best value when quality and reliability matter.
A common question is: How do I verify a CNC milling supplier's capabilities? Requesting reference parts, touring facilities (virtually or in-person), and checking industry certifications provides confidence in their abilities.
Choosing the right cnc milling supplier ensures your projects move forward with quality parts delivered on time, every time.
This CNC milling guide has covered the essential aspects of this versatile manufacturing technology, from fundamental principles to practical design considerations. Understanding the CNC milling process enables engineers to create parts that are both innovative and manufacturable, while procurement professionals can make informed sourcing decisions.
The value of CNC milling lies in its exceptional precision, material versatility, and repeatability across production volumes. Whether machining prototypes or full-scale production runs, the principles outlined in this CNC milling guide help balance design intent with manufacturing efficiency.
By applying these insights, you can optimize designs for cost-effectiveness, select appropriate materials and finishes, and choose qualified manufacturing partners with confidence. Mastering the CNC milling process ultimately transforms good designs into successful products, accelerating time to market and ensuring competitive advantage.
What is CNC milling? CNC milling is a precision subtractive manufacturing process where computer-controlled machines use rotating cutting tools to remove material from a workpiece. The CNC milling process follows digital design files (CAD models) converted into machine instructions (G-code) to produce complex parts with tight tolerances. It is one of the most versatile manufacturing methods, capable of working with metals, plastics, and composites for both prototyping and production.
CNC milling accuracy depends on machine quality, setup, and part geometry. Standard commercial tolerances typically range from ±0.005 inches (±0.127mm), while precision CNC milling can achieve tolerances as tight as ±0.0005 inches (±0.0127mm) with proper equipment and techniques. Factors influencing accuracy include machine rigidity, tool condition, thermal stability, and operator expertise. For most engineering applications, CNC milling delivers reliable repeatability across production runs.
CNC milling cost varies based on several factors: part complexity, material selection, setup requirements, tolerances, and quantity. Simple parts in common materials like aluminum may cost $50-$200 each for prototypes, while complex components in exotic materials can run significantly higher. Setup and programming represent initial fixed costs that become more economical with larger quantities. Requesting detailed cnc milling quotes from multiple suppliers helps establish realistic budgets for your specific projects.
CNC milling accommodates an extensive range of materials. Common metals include aluminum (6061, 7075), steel (1018, 4140), stainless steel (303, 304), brass, copper, and titanium. Engineering plastics such as ABS, Delrin (POM), Nylon, Polycarbonate, and Acrylic are also widely machined. Exotic materials like Inconel and other high-temperature alloys are possible with specialized equipment. Material selection impacts cnc milling cost, machining time, and achievable surface finishes.
Production time depends on part complexity, material hardness, and quantity. Simple parts may machine in minutes, while complex components can take hours. Setup and programming add initial lead time, typically 1-5 days depending on complexity.
CNC milling uses rotating cutting tools against a stationary workpiece, ideal for complex geometries and flat surfaces. Turning rotates the workpiece against stationary tools, optimized for cylindrical features like shafts and bushings.
