CNC Machining vs Injection Molding

When developing a new product, one of the most critical decisions engineers, product designers, and buyers must make is choosing the right manufacturing process. Among the most commonly used methods are CNC machining and injection molding.

Both processes are widely adopted across industries such as automotive, aerospace, medical devices, and consumer electronics. However, they differ significantly in terms of cost, scalability, material flexibility, and production speed.

In this article, we’ll break down the key differences between CNC machining and injection molding, helping you determine which process best suits your project.

What is CNC Machining?

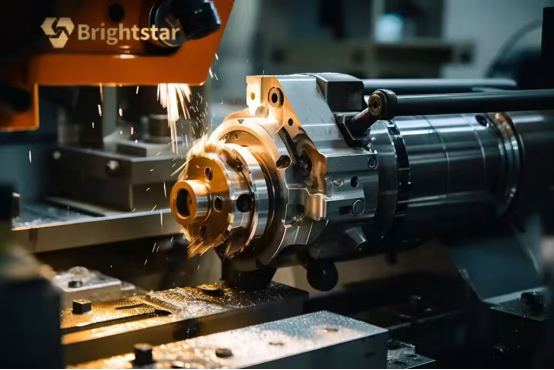

CNC (Computer Numerical Control) machining is a subtractive manufacturing process where material is removed from a solid block (metal or plastic) using precision cutting tools.

Key Characteristics:

· High precision and tight tolerances (±0.01 mm or better)

· Suitable for metals and engineering plastics

· No need for molds or tooling

· Ideal for prototypes and low-volume production

Common Applications:

· Aerospace components

· Medical devices

· Custom mechanical parts

· Functional prototypes

What is Injection Molding?

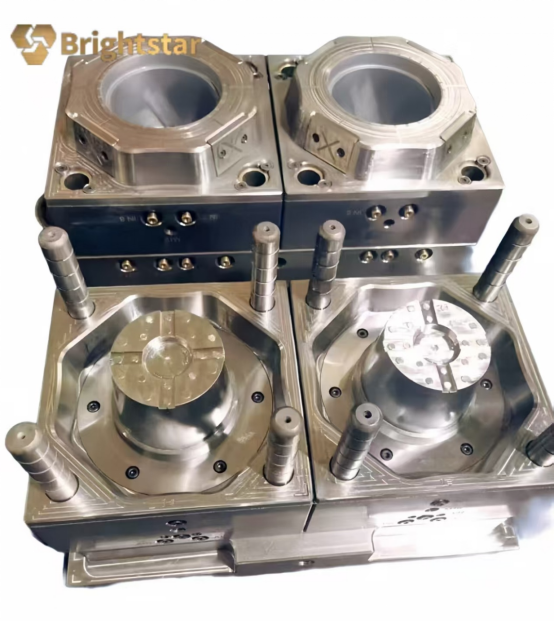

Injection molding is a manufacturing process that injects molten material (usually plastic) into a mold cavity, where it cools and solidifies into the final shape.

Key Characteristics:

· High upfront tooling cost (mold fabrication)

· Extremely efficient for mass production

· Excellent repeatability and surface finish

· Limited primarily to plastics and some elastomers

Common Applications:

· Consumer electronics housings

· Automotive plastic components

· Medical disposables

· Household products

CNC Machining vs Injection Molding: Key Differences

1. Cost Structure

CNC Machining:

· No tooling cost

· Higher per-unit cost

· Cost-effective for low volumes (1–500 units)

Injection Molding:

· High initial mold cost (can range from $3,000 to $50,000+)

· Very low per-unit cost

· Ideal for high-volume production (1000+ units)

Conclusion:
Low volume → CNC
High volume → Injection Molding

2. Production Volume

CNC machining is best suited for prototyping and small batch production, while injection molding excels in mass production.

3. Lead Time

CNC Machining:

· Fast turnaround (as quick as 3–7 days)

· No tooling delay

Injection Molding:

· Mold production: 2–6 weeks

· Fast cycle time after tooling

If you need parts urgently, CNC machining is the better choice.

4. Design Flexibility

CNC machining offers greater flexibility:

· Easy to modify designs

· No additional tooling cost

· Ideal for iterative development

Injection molding requires:

· Design for manufacturability (DFM)

· Mold redesign if changes are needed (costly and time-consuming)

5. Material Selection

CNC Machining Materials:

· Aluminum

· Stainless steel

· Titanium

· Engineering plastics (POM, ABS, Nylon, etc.)

Injection Molding Materials:

· Thermoplastics (ABS, PP, PC, PE, etc.)

· Limited to moldable materials

CNC supports a wider range of materials, especially metals.

6. Surface Finish and Tolerances

· CNC machining provides excellent precision and tight tolerances

· Injection molding offers better surface consistency and aesthetics for plastic parts

When to Choose CNC Machining

Choose CNC machining if you:

· Need prototypes quickly

· Require high precision

· Are producing low-volume parts

· Work with metal components

· Expect frequent design changes

When to Choose Injection Molding

Choose injection molding if you:

· Are producing large quantities

· Want the lowest per-unit cost

· Need consistent plastic parts

· Have a finalized design

· Can invest in tooling upfront

Hybrid Approach: Best of Both Worlds

Many companies use a hybrid manufacturing strategy:

1. Use CNC machining for prototyping and testing

2. Switch to injection molding for mass production

This approach reduces risk and ensures product validation before investing in tooling.

Real-World Example

Imagine you are developing a new electronic enclosure:

· During development:
CNC machining allows rapid iteration and testing of different designs.

· After validation:
Injection molding enables cost-effective mass production with high consistency.

Final Thoughts

There is no one-size-fits-all answer when choosing between CNC machining and injection molding. The right decision depends on your project requirements, budget, timeline, and production volume.

Quick Summary:

· CNC Machining → Flexibility, speed, precision, low volume

· Injection Molding → Scalability, low cost per unit, mass production

Understanding these differences will help engineers, designers, and buyers make informed decisions and optimize both cost and performance.
