CNC Machining Tolerances: What Your Supplier Should Be Able to Achieve

In modern precision manufacturing, CNC machining tolerances play a crucial role in ensuring that components fit, function, and perform as intended. From aerospace parts and automotive components to medical devices and consumer electronics, dimensional accuracy directly affects product reliability and assembly performance.

However, many engineers and purchasing managers struggle with questions such as:

· What tolerance levels can CNC machining realistically achieve?

· How tight should tolerances be for my parts?

· Will tighter tolerances increase production costs?

Understanding CNC machining tolerances helps companies balance precision, manufacturability, and cost efficiency. In this guide, we will explain everything you need to know about CNC machining tolerances, the factors that influence them, what a professional supplier should be capable of achieving, and how to choose the right machining partner.

What Are CNC Machining Tolerances?

CNC machining tolerance refers to the allowable deviation from the specified dimension of a part. Since no machining process can produce perfect dimensions every time, tolerances define the acceptable range of variation.

For example:

If a drawing specifies a dimension as:

50 mm ±0.05 mm

The finished part can measure anywhere between:

49.95 mm and 50.05 mm

and still be considered acceptable.

Tolerances ensure that parts manufactured in different batches will still:

· Fit together during assembly

· Function properly

· Maintain consistent product quality

Without proper tolerance control, manufacturing would result in unpredictable parts that cannot be reliably assembled.

CNC Machining Process Overview

CNC machining uses computer-controlled tools to cut and shape raw materials into precise components. The process typically involves several stages.

1. CAD Design

Engineers first create a detailed 3D CAD model that defines the geometry and dimensions of the part.

2. CAM Programming

The CAD design is converted into machine instructions using CAM software, which generates tool paths for the CNC machine.

3. Material Preparation

Raw materials such as aluminum, steel, brass, titanium, or engineering plastics are mounted securely on the machine.

4. Machining Operations

The CNC machine performs various operations, including:

· Milling

· Turning

· Drilling

· Tapping

· Boring

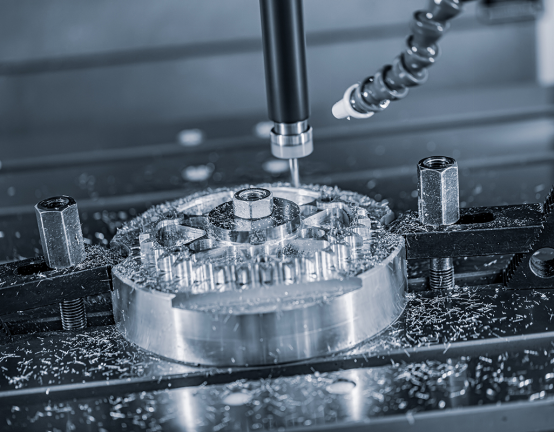

These processes remove material with high precision to create the final shape. CNC milling machines are widely used for cutting metals such as aluminum, steel, brass, and titanium while maintaining high accuracy.

5. Inspection and Quality Control

Finished parts are inspected using precision measurement tools such as:

· Coordinate Measuring Machines (CMM)

· Micrometers

· Vernier calipers

· Laser scanners

This ensures the final parts meet the specified tolerances.

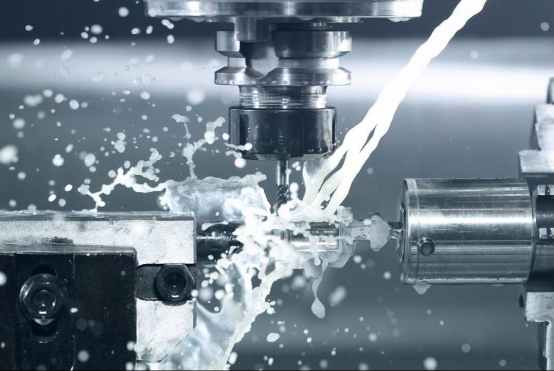

Typical CNC Machining Tolerance Capabilities

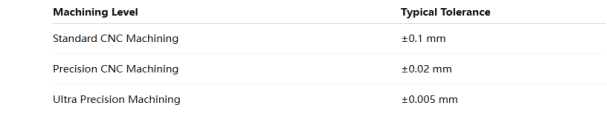

Different CNC machining processes offer different levels of accuracy. A reliable CNC machining supplier should be able to achieve the following tolerance ranges:

However, achieving these tolerances depends on multiple factors such as machine capability, material type, part geometry, and machining environment.

Factors That Affect CNC Machining Tolerances

Several variables influence the achievable tolerance during CNC machining.

Machine Quality and Precision

High-end CNC machines with advanced motion control systems provide greater positional accuracy and stability. These machines are capable of maintaining tighter tolerances over long production runs.

Material Characteristics

Different materials respond differently during machining.

Aluminum

· Easy to machine

· Stable during cutting

· Allows tight tolerances

Stainless Steel

· Harder material

· Causes faster tool wear

· Requires slower machining speeds

Plastic Materials

· Sensitive to heat

· Can expand or deform during cutting

Material properties directly impact achievable dimensional accuracy.

Part Design and Geometry

Certain design features make tight tolerances more difficult to achieve.

Examples include:

· Thin walls

· Deep pockets

· Long narrow shafts

· Internal cavities

These features may cause vibration or deflection during machining.

Tool Wear and Cutting Conditions

Cutting tools gradually wear during machining. Worn tools reduce machining accuracy and surface quality.

Professional CNC machining suppliers monitor tool wear and replace tools regularly to maintain dimensional accuracy.

Environmental Temperature

Temperature changes can cause materials and machine structures to expand slightly. High-end CNC workshops often maintain controlled temperatures to reduce thermal effects on machining accuracy.

Standard Tolerance vs Tight Tolerance

Not all parts require extremely tight tolerances. In fact, specifying unnecessarily tight tolerances can significantly increase production costs.

Standard Tolerances

Standard machining tolerances are typically ±0.1 mm.

Advantages include:

· Lower manufacturing cost

· Faster machining speed

· Reduced inspection requirements

These tolerances are sufficient for most mechanical parts.

Tight Tolerances

Tight tolerances such as ±0.01 mm or smaller are usually required for critical applications.

Industries that commonly require tight tolerances include:

· Aerospace manufacturing

· Medical equipment

· Automotive engine components

· Precision electronics

However, tight tolerances increase production costs because they require:

· Slower machining speeds

· Higher precision equipment

· Additional quality inspections

Why Tolerance Control Matters

Maintaining correct machining tolerances provides several important benefits.

Accurate Assembly

Parts manufactured within tolerance fit together easily without requiring excessive force or adjustments.

Improved Product Performance

Proper clearances prevent friction, vibration, and premature wear.

Consistent Production Quality

Controlled tolerances ensure that every part produced meets the same quality standards.

Reduced Product Failures

High dimensional accuracy improves reliability and product lifespan.

How to Choose the Right CNC Machining Supplier

Selecting the right CNC machining supplier is essential for achieving reliable tolerance control.

Advanced Equipment

Look for suppliers equipped with modern machining technology, such as:

· 3-axis and 5-axis CNC machines

· High-speed machining centers

· Precision CNC lathes

Strict Quality Control

Professional manufacturers implement multiple inspection stages, including:

· First Article Inspection

· In-process quality checks

· Final dimensional inspection

They should also provide measurement reports when required.

Engineering Support

A reliable supplier should provide Design for Manufacturability (DFM) advice to help optimize part design, tolerances, and production efficiency.

Production Capability

A good CNC machining partner should support both:

· Prototype development

· Large-scale production

This ensures long-term manufacturing reliability as your project grows.

Frequently Asked Questions (FAQ)

1. What tolerance can CNC machining normally achieve?

Most CNC machining suppliers offer ±0.1 mm as standard tolerance. With precision equipment, tolerances of ±0.02 mm or tighter are achievable.

2. Does tighter tolerance increase manufacturing cost?

Yes. Tight tolerances require more precise machines, slower cutting speeds, and additional inspections, which increases manufacturing costs.

3. What industries require high-precision CNC machining?

Industries that require tight machining tolerances include:

· Aerospace

· Medical devices

· Automotive engineering

· Semiconductor equipment

4. Can CNC machining produce complex parts with tight tolerances?

Yes. Modern 5-axis CNC machining technology allows manufacturers to produce complex geometries while maintaining high dimensional accuracy.

5. How can I optimize tolerance for lower manufacturing cost?

You can reduce production costs by:

· Avoiding unnecessarily tight tolerances

· Simplifying part geometry

· Selecting machinable materials

· Working with experienced machining engineers during the design stage

Work With a Professional CNC Machining Manufacturer

If you are looking for a trusted CNC machining supplier, our company provides high-quality precision manufacturing services for customers worldwide.

Our capabilities include:

· Precision CNC milling and turning

· Tight tolerance machining

· Rapid prototyping services

· Small batch and large-scale production

· Comprehensive quality inspection with CMM reports

Our experienced engineering team will review your design and recommend the most cost-effective manufacturing solution for your project.

Contact us today to get a fast quote and expert support for your CNC machining needs.

Let Brightstar helps you turn your ideas into high-precision components with reliable quality and competitive pricing.
