CNC Machining for Robotics Joint Components: Strength & Precision

The robotics industry is advancing at an unprecedented pace. From collaborative robots (cobots) working alongside humans to autonomous mobile robots (AMRs) navigating warehouses, and surgical robots performing delicate procedures, the demand for high-performance robotic systems continues to grow. At the heart of every robot lies its joints—the critical interfaces that enable motion, bear loads, and determine overall system accuracy.

CNC machining for robotics joint components has become the preferred manufacturing method for producing these demanding parts. Unlike injection molding or additive manufacturing, CNC machining delivers the strength, precision, and material versatility that robotic joints require.

At Brightstar, we specialize in precision CNC machining for robotics applications, from R&D prototypes to production-scale quantities. This guide explores the unique requirements of robotic joint components, the best materials for strength and precision, machining strategies, and answers to the questions robotics engineers ask most frequently.

Why Robotic Joint Components Are Demanding

A robotic joint is not a simple hinge. Modern robotic joints integrate multiple functions:

· Load bearing – Supporting static and dynamic loads from the arm and end-effector

· Precise motion – Enabling controlled rotation or articulation with minimal backlash

· Actuation interface – Mounting motors, harmonic drives, or servo actuators

· Sensing integration – Housing encoders, torque sensors, or position feedback devices

· Lightweight construction – Reducing inertia for faster, more energy-efficient motion

These requirements create a challenging set of specifications for CNC machined robotic components:

· Tight tolerances – Often ±0.005 mm to ±0.01 mm for bearing fits and mounting interfaces

· High strength – Withstanding repeated cyclic loads without fatigue failure

· Low weight – Every gram matters, especially at the end of a robotic arm

· Excellent surface finish – For bearing surfaces and seal interfaces

· Geometric complexity – Organic shapes, undercuts, and internal features

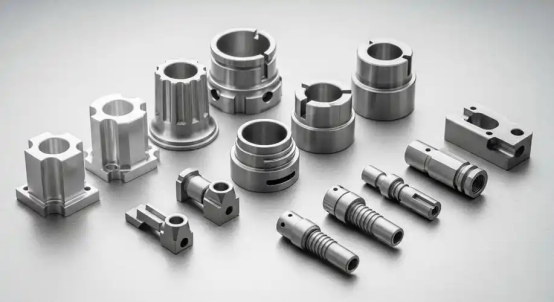

Key Robotic Joint Components Produced by CNC Machining

Different joint designs require different components. Here are the most common robotic joint parts manufactured via CNC machining.

Harmonic Drive Components

Harmonic drives are strain-wave gearing systems used in many precision robots. CNC machined components include:

· Flex splines – Thin-walled, cup-shaped components that flex elastically

· Circular splines – Rigid internal gear rings

· Wave generators – Elliptical bearing housings

CNC challenges: Extreme thin walls (0.3–0.8 mm), tight concentricity requirements (±0.005 mm), and difficult materials (hardened steel).

Servo Motor Mounts and Housings

These components secure motors to joint structures and protect internal electronics.

CNC challenges: Precise bolt hole patterns, thermal management features (cooling fins), and sealing surfaces.

Bearing Housings and Flanges

Bearings are critical for smooth rotation. Their housings require precise bore diameters and face perpendicularity.

CNC challenges: Bearing fit tolerances (interference or transition fits), surface finish Ra ≤ 0.4 µm for press-fit applications.

Linkages and Arm Segments

The structural members between joints. These must be both strong and lightweight.

CNC challenges: Thin-wall construction, internal lightening pockets, complex curved geometries.

Encoder and Sensor Housings

These protect sensitive position feedback devices from dust, moisture, and mechanical damage.

CNC challenges: Small features, tight internal cavities, non-magnetic material requirements (for magnetic encoders).

End-Effector Mounting Plates

The interface between the last joint and the tool (gripper, welder, camera, etc.).

CNC challenges: Precise locating features (dowel pins, pilot bores), multiple mounting patterns.

Material Selection for CNC Machined Robotic Joints

Material choice directly impacts joint performance. The table below summarizes the most common materials for robotic joint CNC machining.

Detailed Material Recommendations

For Lightweight Joint Linkages (Strength Priority)

Best choice: 7075-T6 aluminum
Alternative: 2024-T3 aluminum
Premium choice: Ti-6Al-4V titanium (for surgical or aerospace-derived robots)

For Bearing Housings (Precision Priority)

Best choice: 6061-T6 aluminum with hard anodized bearing surfaces
Alternative: 7075-T6 aluminum for higher loads

For Harmonic Drive Flex Splines (Fatigue Priority)

Best choice: 17-4PH stainless steel (H900 aged condition)
Alternative: 4140 steel (heat treated to 40–45 HRC)

For Sensor Housings (Non-Magnetic Requirement)

Best choice: 304 stainless steel (austenitic, non-magnetic)
Alternative: 6061-T6 aluminum (non-magnetic but lower strength)

For High-Wear Interfaces (Friction Priority)

Best choice: 17-4PH stainless steel (hardened)
Alternative: 4140 steel with hard chrome plating

Critical Precision Requirements for Robotic Joints

Robotic joints are precision mechanisms. The tolerances required for CNC machined robotic components reflect this.

Typical Tolerances for Robotic Joint Components

At Brightstar, we routinely hold these tolerances using calibrated CNC equipment, in-process probing, and post-process CMM inspection.

Geometric Tolerances (GD&T) Commonly Used

Robotic joint prints frequently specify:

· True position – For bolt patterns and locating features (often 0.05 mm or tighter)

· Concentricity – For bearing stacks and harmonic drive assemblies

· Perpendicularity – For mounting faces relative to axes of rotation

· Profile of a surface – For complex, organic-shaped linkages

· Runout (total and circular) – For rotating components

Strength Requirements for Robotic Joint Components

Robotic joints experience complex loading: static loads from holding a position, dynamic loads during acceleration and deceleration, and fatigue from repetitive motion.

Load Types in Robotic Joints

· Static load – Holding a payload at a fixed position (torque at the joint)

· Dynamic load – Accelerating and decelerating the arm (inertia forces)

· Impact load – Unexpected collisions or emergency stops

· Fatigue load – Millions of repetitive motion cycles over the robot's life

Material Strength Considerations

For CNC machined robot joint components, the relevant strength metrics are:

· Yield strength – Stress at which permanent deformation begins. Critical for structural linkages.

· Ultimate tensile strength – Maximum stress before fracture. Important for safety-critical components.

· Fatigue strength (endurance limit) – Stress level the material can withstand for infinite cycles. Essential for harmonic drive flex splines and high-cycle joints.

· Hardness – Resistance to wear and indentation. Important for bearing surfaces and wave generators.

Recommended Strength Targets by Component

Lightweighting Strategies for Robotic Joints

Every gram saved on a robotic joint reduces motor torque requirements, improves energy efficiency, and allows faster acceleration. For end-of-arm components, the leverage effect means weight savings are multiplied.

Design Strategies for Lightweighting

· Material selection – Use 7075-T6 aluminum instead of 6061-T6 (10% stronger, same density). For highest performance, consider titanium.

· Thin-wall construction – Reduce wall thickness where stresses are low (requires careful FEA).

· Internal lightening pockets – Machine pockets into non-critical areas. Not visible from outside.

· Ribbed structures – Add ribs for stiffness instead of increasing overall thickness.

· Topology optimization – Use FEA-generated organic shapes that place material only where needed.

CNC Strategies for Lightweighting

· High-speed machining – Allows thinner walls without vibration

· 5-axis machining – Accesses internal pockets and complex rib structures in a single setup

· Thin-wall fixturing – Vacuum chucks or low-melt alloy to support delicate parts during machining

Case example: A 300 mm robotic linkage redesigned from 12 mm solid plate to 8 mm ribbed structure reduced weight from 1.2 kg to 0.7 kg while maintaining stiffness.

Surface Finish and Friction Control

Robotic joints contain moving interfaces. Surface finish directly affects friction, wear, and positional accuracy.

Recommended Surface Finishes

Achieving Fine Finishes on CNC Machines

· Use of ball nose end mills with small stepovers (0.05–0.1 mm) for contoured surfaces

· Separate roughing and finishing operations – Rough within 0.1–0.2 mm, then finish

· High spindle speeds (12,000–20,000 RPM) with appropriate feeds

· Polishing or tumbling as secondary operations for the finest finishes

Thermal Management in Robotic Joints

Robotic joints generate heat from motors, gears, and bearings. Excessive heat causes thermal expansion, which can change fit tolerances and reduce precision.

CNC Design Features for Thermal Management

· Cooling fins – Machined into housings to increase surface area

· Thermal isolation features – Thin sections or air gaps between heat sources and precision interfaces

· Material selection – Aluminum (high thermal conductivity) for heat dissipation; stainless steel or titanium (low thermal conductivity) for thermal isolation

Thermal Expansion Considerations

Different materials expand at different rates (coefficient of thermal expansion, CTE). When assembling components made from dissimilar materials, account for CTE mismatch.

Example: An aluminum housing with a steel bearing will have a looser fit at high temperatures because aluminum expands more.

Common Questions About CNC Machining for Robotic Joints

Q1: What is the typical tolerance for CNC machined robotic joint components?

For most robotic joint features, Brightstar holds ±0.005 mm to ±0.01 mm. For critical features like bearing fits or harmonic drive mounting interfaces, we can achieve ±0.002 mm with appropriate process controls.

Q2: Can you machine lightweight aluminum joints that are still strong?

Yes. We regularly machine 7075-T6 aluminum for high-strength, lightweight robotic linkages. For extreme lightweighting, we also machine titanium and magnesium alloys.

Q3: What materials are best for high-cycle fatigue applications (millions of cycles)?

For high-cycle fatigue, 17-4PH stainless steel (H900 aged) and 2024-T3 aluminum offer excellent fatigue resistance. For flex splines in harmonic drives, 17-4PH is the industry standard.

Q4: Do you offer both prototyping and production quantities?

Yes. We support robotics companies from R&D prototypes (1–10 pieces) through pilot production (10–100 pieces) to full production (100–10,000+ pieces). No MOQ.

Q5: How do you ensure concentricity for stacked bearing bores?

We use single-setup 5-axis machining or multiple operations with precision workholding. Final inspection on CMM verifies concentricity to within 0.005 mm.

Q6: Can you machine non-magnetic components for magnetic encoder applications?

Yes. We machine 304 stainless steel (austenitic, non-magnetic) and 6061-T6 aluminum (also non-magnetic) for sensor housings and encoder mounts.

Q7: What surface finishes can you achieve on bearing fits?

For bearing fits, we achieve Ra ≤ 0.2 µm using high-speed finishing passes and, when required, secondary polishing operations.

Q8: Do you provide material certifications and inspection reports?

Yes. Every batch includes material test reports (MTRs) with heat numbers. We also provide CMM inspection reports and first article inspection (FAI) packages upon request.

Q9: How fast can you deliver robotic joint prototypes?

For typical robotic joint prototypes, we offer lead times of 5–7 business days. Rush service (3 business days) is available for critical projects.

Q10: Can you machine harmonic drive flex splines?

Yes. We have experience machining flex splines from 17-4PH stainless steel, including the thin-wall geometry and precise tooth profile requirements. We recommend sending your CAD model for a feasibility review.

Machining Strategies for Robotic Joint Components

Different joint components require different CNC approaches.

5-Axis CNC Milling for Complex Linkages

Robotic linkages often have compound curves, undercuts, and internal lightening pockets that are impossible to machine with 3-axis.

Brightstar's approach: Simultaneous 5-axis machining reduces setups (often a single operation), improves accuracy, and eliminates misalignment errors between features.

CNC Turning for Shafts and Housings

Rotational components like joint shafts, bearing housings, and wave generator inserts are ideal for CNC turning.

Brightstar's approach: Multi-axis CNC lathes with live tooling allow turning, drilling, and milling in one setup. For small-diameter, long components, we use Swiss-type turning.

High-Speed Machining for Thin Walls

Robotic joints often have thin walls to save weight. Standard machining can cause chatter or distortion.

Brightstar's approach: High spindle speeds (up to 20,000 RPM), light radial depths of cut, and high feed rates minimize cutting forces and prevent chatter.

Hard Machining for Heat-Treated Components

Some robotic components (harmonic drive parts, shafts) are machined after heat treatment for final dimensions.

Brightstar's approach: Hard machining (turning and milling materials at 40–50 HRC) using CBN or ceramic inserts, rigid workholding, and high-pressure coolant.

Quality Assurance for Robotic Joint Components

Robots cannot tolerate dimensional variation. Quality assurance for CNC machined robotic components must be rigorous.

Brightstar's Quality Process

1. Incoming material verification – Check material certificates and perform hardness testing when required

2. In-process probing – On-machine probes verify critical dimensions during machining, allowing real-time adjustments

3. First article inspection – Complete dimensional inspection per AS9102 format (even for non-aerospace robotics parts)

4. SPC for production runs – Statistical process control for high-volume orders

5. CMM final inspection – Full inspection report generated for each batch

6. Surface finish measurement – Profilometer verification for bearing and seal surfaces

Documentation Provided

· Certificate of Conformance (C of C)

· Material test reports (MTRs) with heat numbers

· CMM inspection report (upon request)

· First article inspection report (upon request)

· Surface finish report (upon request)

Case Study: Collaborative Robot Joint Redesign

Challenge: A cobot manufacturer was using injection-molded plastic for their elbow joint housing. The part lacked stiffness, causing deflection under load and reducing repeatability. They needed a CNC machined replacement with higher stiffness, same weight, and production quantity of 500 units.

Brightstar solution:

· Material: 7075-T6 aluminum (replaced plastic)

· Process: 5-axis CNC milling

· Design changes: Added internal ribbing (machined, not molded)

· Surface finish: As-machined (Ra 1.6 µm) for non-contact areas; Ra 0.4 µm for bearing interfaces

· Lead time: 3 weeks for first articles; 6 weeks for 500 units

Results:

· Stiffness increased by 340%

· Joint deflection reduced from 0.12 mm to 0.027 mm at full load

· Repeatability improved from ±0.05 mm to ±0.015 mm

· Weight remained within 2 grams of original plastic part

· Customer approved full production order

Cost Factors in CNC Machining for Robotic Joints

Understanding what drives cost helps robotics companies optimize their designs for manufacturability.

Primary Cost Drivers

Typical Price Ranges (for reference)

· Simple bracket (6061 aluminum, 3-axis): $15–$40 each for 100+ pieces

· Complex linkage (7075 aluminum, 5-axis): $80–$200 each for 50+ pieces

· Precision housing (6061 aluminum, tight tolerances): $120–$300 each for 20+ pieces

· Flex spline (17-4PH stainless, hard machining): $150–$400 each for 10+ pieces

· Titanium linkage (6Al-4V, 5-axis): $300–$800 each for 10+ pieces

Prices are estimates and vary with specific geometry and requirements.

Future Trends in Robotic Joint Manufacturing

The robotics industry is evolving, and CNC machining for robotic joints is evolving with it.

Increased Use of Topology Optimization

Software-generated organic shapes are becoming more common. These complex geometries are ideal for 5-axis CNC machining but impossible with traditional methods.

Integration of Additive and Subtractive Manufacturing

3D printing near-net shapes followed by CNC finishing allows internal lattice structures that cannot be machined directly.

Lighter Materials

Magnesium alloys and carbon fiber reinforced composites are entering robotic joints for weight-sensitive applications (drones, surgical robots, space robotics).

Higher Precision Requirements

As robots perform more delicate tasks (micro-surgery, electronics assembly), tolerance requirements will tighten below ±0.002 mm, requiring ultra-precision machining capabilities.

Automation of CNC Machining

Robotic loading/unloading of CNC machines (robots making robots) will reduce costs for high-volume robotic joint production.

Why Brightstar for CNC Machining of Robotic Joint Components?

Robotics companies choose Brightstar because we understand that joints are the critical interface between design intent and real-world performance.

Our robotics capabilities include:

· 10+ years of experience machining components for robotic arms, cobots, and AMRs

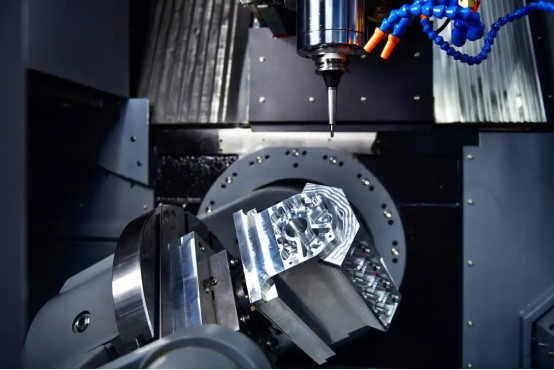

· 5-axis CNC milling for complex linkages and organic geometries

· Multi-axis CNC turning for shafts, housings, and harmonic drive components

· Material expertise in 7075 aluminum, titanium, 17-4PH stainless, and PEEK

· Tolerances down to ±0.002 mm for precision bearing fits

· Surface finishes to Ra 0.2 µm for critical interfaces

· In-house CMM inspection with full documentation

· Rapid prototyping (5–7 day lead times)

· Production scaling from 1 to 10,000+ parts

We work with robotics startups, research institutions, and established robot manufacturers worldwide.

Ready to Machine Your Robotic Joint Components?

Whether you need a single prototype linkage, 50 precision housings, or 1,000 harmonic drive components, Brightstar has the equipment, experience, and quality systems to deliver.

Email Amy: amy@brightstarprototype.com
Call or WhatsApp: +86 13750105351

Send us your CAD files (STEP, IGES, SLDPRT, or X_T) and specifications for a free DFM review and quote within 24 hours. Let us help you build stronger, more precise robotic joints.

Brightstar – CNC Machining for Robotics Joint Components. Strength. Precision. Reliability.
