The medical device industry operates under some of the most stringent regulations in the manufacturing world. When it comes to producing surgical instruments, orthopedic implants, dental components, or diagnostic equipment, there is zero tolerance for error. CNC machining for medical devices has emerged as the gold standard for manufacturing high-precision, complex, and biocompatible parts that meet strict regulatory requirements.
At Brightstar, we specialize in precision CNC machining for the medical sector, offering fully traceable, validated, and repeatable processes. This guide explores the critical material choices, quality management systems, and certification standards that define successful medical CNC machining.
Unlike conventional manufacturing methods, CNC machining for medical applications offers several unique advantages:
· Tight tolerances as low as ±0.002 mm for implants and surgical tools
· Excellent surface finishes (Ra ≤ 0.2 µm) to prevent bacterial adhesion
· No material degradation compared to injection molding or 3D printing
· High repeatability for both low-volume prototyping and medium-volume production
· Full material traceability from raw stock to finished part
From medical grade CNC machining of titanium bone screws to micro-machining of catheter components, CNC technology enables the production of life-saving devices with uncompromising quality.

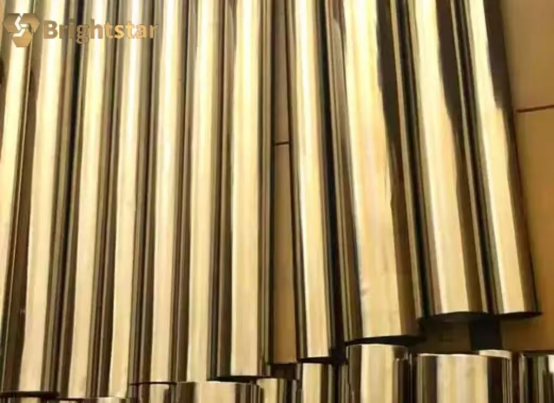

Material selection is the first and most critical step in medical device CNC machining. The chosen material must be biocompatible, corrosion-resistant, and capable of withstanding sterilization processes (autoclaving, gamma radiation, or ethylene oxide).
Below are the most commonly machined materials for medical applications:
Titanium is the preferred material for orthopedic CNC machining due to its high strength-to-weight ratio, excellent corrosion resistance, and complete biocompatibility.
Common applications:
· Hip and knee implants
· Spinal fusion cages
· Bone plates and screws
· Dental implants
CNC considerations: Titanium is a difficult-to-machine material. It requires sharp carbide or diamond-coated tools, high-pressure coolant, and low cutting speeds to prevent work hardening.

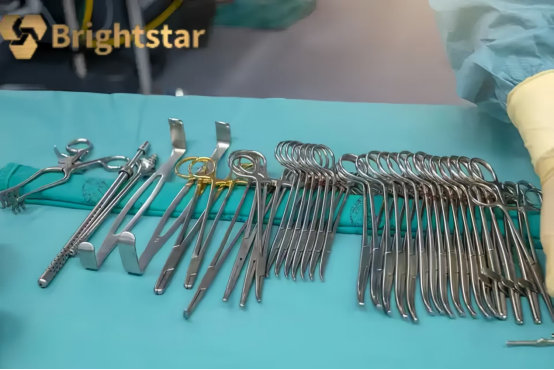

Medical grade stainless steel offers excellent mechanical properties and is more affordable than titanium. 316L is particularly valued for its low carbon content, which prevents intergranular corrosion after welding.
Common applications:
· Surgical scalpels and forceps
· Orthopedic drill bits and reamers
· Needle holders
· Retractors and clamps
CNC considerations: Stainless steel machines relatively well but can cause built-up edge (BUE). Proper chip evacuation and coated tools are essential.
PEEK is a high-performance thermoplastic increasingly used in medical CNC machining as a metal alternative. It is radiolucent (visible on X-rays), lightweight, and has a modulus similar to bone.
Common applications:
· Spinal interbody cages
· Trauma fixation devices
· Dental abutments
· Cardiovascular components
CNC considerations: PEEK requires sharp tools, proper chip removal, and careful temperature control to avoid melting or smearing.
Other engineering plastics are widely used for disposable and implantable devices.
· POM (Delrin): For jigs, fixtures, and surgical guides
· PSU (Polysulfone): For sterilization trays and housings
· PEKK: Higher temperature resistance than PEEK
· UHMWPE: For wear-resistant orthopedic bearing surfaces
CNC considerations: Plastics require uncoated or polished tools, high spindle speeds, and air blast or mist cooling to prevent melting.
5. Cobalt-Chrome Alloys
Used for high-wear applications such as artificial joints and heart valve components. Cobalt-chrome is extremely hard and corrosion-resistant.
CNC considerations: This alloy is very difficult to machine, requiring rigid setups, ceramic or CBN inserts, and advanced toolpaths.
Quality in medical device CNC machining goes beyond dimensional inspection. It encompasses material certification, process validation, cleanliness, and documentation.
Most medical devices require tolerances between ±0.005 mm and ±0.02 mm. For example:
· Bone screw threads: ±0.005 mm on pitch diameter
· Knee implant curvature: ±0.01 mm profile tolerance
· Surgical drill guide holes: ±0.01 mm positional tolerance

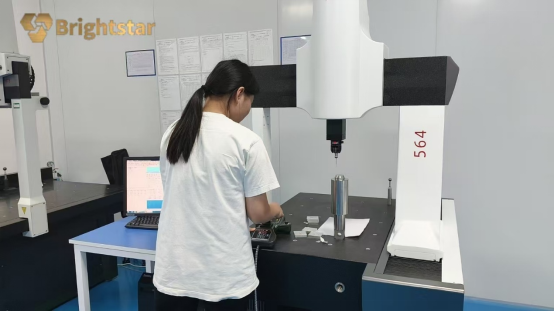

Brightstar uses in-process probing, CNC tool touch-off, and post-process CMM (Coordinate Measuring Machine) inspection to ensure every feature meets print requirements.
Surface finish is critical for medical devices. Rough surfaces can harbor bacteria, cause wear, and promote thrombus formation.
· Implants: Ra ≤ 0.2 µm (often achieved with polishing or tumbling)
· Surgical instruments: Ra ≤ 0.4 µm for ease of cleaning
· Bone-facing surfaces: Controlled roughness (Ra 1–2 µm) for osseointegration
CNC processes such as high-speed milling, ball nose finishing, and subsequent electropolishing are commonly used.
Medical devices must be free from machining residues, coolants, oils, and particulates. Medical CNC machining often requires:
· Use of medical-grade, water-soluble coolants
· Dedicated CNC cells for medical production (avoiding cross-contamination with automotive or aerospace parts)
· Ultrasonic cleaning and passivation after machining
· Final assembly in Class 7 or Class 8 cleanrooms
Every batch of machined medical components must be fully traceable from raw material to finished part. Requirements include:
· Material certificates (EN 10204 Type 3.1 or 3.2)
· In-process inspection reports
· Final CMM reports with SPC data
· Batch records linking raw material lot numbers to finished device serial numbers
To supply CNC machined components to medical device OEMs, a manufacturer must comply with several international standards.
ISO 13485 is the internationally recognized quality management system (QMS) standard for medical device manufacturing. It goes beyond ISO 9001 by adding specific requirements for:
· Risk management (ISO 14971)
· Cleanliness and contamination control
· Validation of special processes (e.g., cleaning, passivation)
· Complaint handling and regulatory reporting
At Brightstar, our CNC machining processes are fully ISO 13485 certified, ensuring compliance for Class I, II, and III medical devices.
For devices sold in the United States, compliance with FDA Quality System Regulation (QSR) is mandatory. Key elements include:
· Design controls
· Purchasing controls
· Process validation (IQ/OQ/PQ)
· Corrective and preventive action (CAPA)
GMP requirements focus on facility cleanliness, personnel training, and equipment maintenance. Many medical CNC machining contracts require GMP-compliant environments.
ISO 10993 (Biocompatibility)
While material suppliers typically provide biocompatibility data, CNC machining processes must not alter surface chemistry in ways that compromise biocompatibility. This is especially important for implants and long-term contact devices.

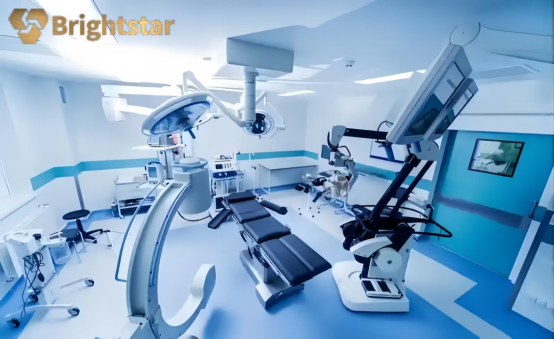

CNC technology is used to produce a wide range of medical components, from single-use disposables to permanent implants.
· Hip stems and acetabular cups (titanium)
· Tibial trays (cobalt-chrome or titanium)
· Interbody spinal cages (PEEK or titanium)
· Laparoscopic graspers and scissors
· Bone saws and reamers
· Biopsy needles
· Trocar tips
· Abutments and healing caps (titanium)
· Implant drivers (stainless steel)
· Surgical drill guides (PEEK or POM)
Cardiovascular Devices
· Heart valve housings (titanium or PEEK)
· Stent crimping tool components
· Catheter connectors and manifolds
· MRI coil housings (non-magnetic materials)
· CT scanner structural brackets
· Laboratory instrument chassis
Not all CNC machining is the same. Medical device production often requires specialized processes.

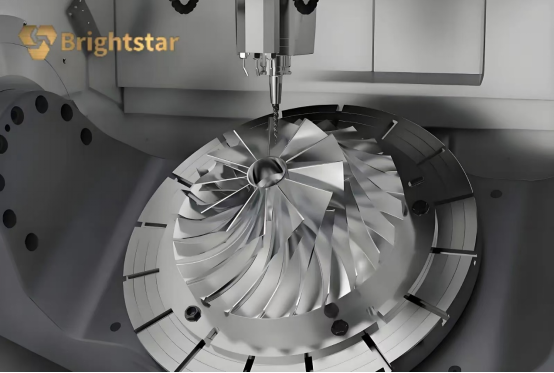

Complex geometries such as spinal cages with lattice structures or orthopedic implants with compound curves are only possible with 5-axis simultaneous machining. This reduces setups, improves accuracy, and eliminates misalignment errors.
Swiss-Type Turning (Sliding Headstock)
For small, long, or slender components like bone screws, dental implants, and guidewires, Swiss-type CNC lathes offer unmatched precision. They support bar diameters from 0.3 mm to 32 mm with live tooling for cross-drilling and milling.
Medical devices increasingly require features below 100 microns. Micro CNC machining uses high-speed spindles (up to 60,000 RPM), micro end mills (down to 0.1 mm diameter), and vibration-damping machine bases to produce miniature components.
For heat-sensitive materials like PEEK or UHMWPE, liquid nitrogen cooling (cryogenic machining) prevents melting, burr formation, and surface degradation while extending tool life.
Many medical components require post-CNC processing:
· Electropolishing: Removes micro-burrs and improves corrosion resistance
· Passivation: Restores the chromium oxide layer on stainless steel
· Anodizing: For color-coding titanium instruments
· Laser marking: For UDI (Unique Device Identification) barcodes and lot numbers
Even with advanced equipment, medical CNC machining presents unique challenges.
Titanium, cobalt-chrome, and PEEK are notoriously difficult to machine. Solutions include:
· High-pressure coolant (up to 1,000 psi)
· Advanced tool coatings (AlTiN, diamond-like carbon)
· Trochoidal milling toolpaths to reduce radial engagement
Small burrs on surgical instruments or implants can lead to tissue damage or infection. Deburring must be 100% effective, often requiring thermal, electrochemical, or manual methods.
Machining-induced residual stresses or micro-cracks can cause implant failure. Brightstar uses low-stress machining strategies and follows up with non-destructive testing (dye penetrant or CMM scanning) when required.
Producing a single batch of 50 implant components may require over 100 pages of inspection reports and certificates. An efficient quality management system is essential.
At Brightstar, we have built our medical manufacturing capabilities around safety, precision, and compliance.
· ISO 13485:2016 certified
· FDA registration (as a contract manufacturer)
· Regular audits by medical device OEMs
· Separate CNC machines used only for medical components
· Coolant filtration to 1 micron
· Positive air pressure to prevent dust ingress
· First article inspection (FAI) per AS9102 format
· In-process SPC sampling
· CMM inspection with automated reporting
· Optical measurement for thread profiles and small features
· Raw material certificates retained for 15+ years
· Each batch assigned a unique lot number
· Electronic device history records (eDHR)
Rapid Prototyping for Medical Devices
We understand that medical device development requires iterative testing. Brightstar offers rapid CNC machining for R&D samples with lead times as short as 5 business days, using the same materials and processes as production.
The medical manufacturing landscape is evolving. Here are key trends shaping the future of CNC machining for medical devices:
Miniaturization
As devices become smaller (neurovascular implants, micro-robotic surgical tools), CNC machining must achieve features below 50 microns with surface finishes under Ra 0.1 µm.
Additive + Subtractive Hybrid
3D printing of near-net implant shapes followed by CNC finishing combines design freedom with precision surfaces.
Automation and Lights-Out Machining
Robotic part loading/unloading, in-machine probing, and adaptive toolpath control enable 24/7 production of medical components with minimal human intervention.
Inline Metrology
Integration of laser or probe-based measurement directly into CNC machines allows real-time process adjustment, reducing scrap and rework.
Sustainable Medical Machining
Recycled titanium alloys, biodegradable coolants, and energy-efficient spindles are gaining traction in medical contract manufacturing.
Yes. CNC machining is widely used to produce implant-grade devices such as orthopedic screws, spinal cages, and dental implants. The key is using certified biocompatible materials (e.g., titanium Ti-6Al-4V or PEEK) and machining under an ISO 13485 certified quality system.
For most medical devices, Brightstar's standard machining tolerance is ±0.005 mm to ±0.01 mm. For ultra-precision features such as implant mating surfaces or thread pitch diameters, we can achieve ±0.002 mm upon request.
We offer a range of surface finishes depending on the application. Implants typically require Ra ≤ 0.2 µm, while surgical instruments require Ra ≤ 0.4 µm for ease of cleaning. Post-processing services such as electropolishing, passivation, or tumbling are also available.
Yes. Brightstar holds ISO 13485:2016 certification and is FDA registered as a contract manufacturer. We undergo regular audits by medical device OEMs and are fully compliant for Class I, II, and III medical device production.
Yes. We extensively machine PEEK, PEKK, POM (Delrin), PSU, and UHMWPE. For heat-sensitive plastics, we use specialized tooling and cooling strategies (including cryogenic cooling) to prevent melting or surface degradation.
Yes. We understand that medical device development requires fast iteration. We offer rapid CNC machining for R&D samples with lead times as short as 5 business days, using the same materials and processes as production.
Each batch is assigned a unique lot number. We retain all material certificates (EN 10204 Type 3.1) for a minimum of 15 years and maintain complete electronic device history records (eDHR), including in-process inspection reports and final CMM reports.
There is no MOQ. We can produce from a single prototype to thousands of production parts. We especially welcome small batch orders for early-stage R&D and low-volume clinical needs.
We accept STEP (.stp), IGES (.igs), SolidWorks (.sldprt), Parasolid (.x_t), as well as 2D PDF or DWG drawings. Please send your files to amy@brightstarprototype.com, and we will provide a quote within 24 hours.
We offer ultrasonic cleaning, passivation, and cleanroom-grade packaging (performed in a Class 7 cleanroom). Sterilization services (EtO, gamma irradiation) are typically handled by our customers or their designated sterilization partners, but we can assist with coordination.
Producing CNC machined medical devices requires more than just a machine shop. It demands a deep understanding of materials, regulatory pathways, quality systems, and risk management.
Brightstar brings together:
· 10+ years of experience in precision CNC machining for medical devices
· ISO 13485 certification and FDA compliance
· Multi-axis CNC milling and Swiss turning for complex, miniature parts
· In-house inspection (CMM, optical, surface roughness)
· Full traceability and documentation packages
· Fast turnaround for prototypes and low-volume production
Whether you need titanium spinal implants, PEEK surgical guides, or stainless steel instrument prototypes, we deliver parts that meet the highest standards of safety and performance.
