CNC Machined Parts Micron-Level Tolerance Measurement Methods

In high-precision manufacturing, micron-level tolerance control has become a key indicator of CNC machining capability. Especially in industries such as aerospace, medical devices, precision instruments, automation equipment, and high-end electronics, part dimensional errors often need to be controlled within ±1μm to ±10μm.

However, relying solely on advanced machining equipment is not enough to ensure part accuracy. High-precision inspection and measurement methods are equally critical. Through scientific and systematic measurement methods, manufacturers can verify machining quality, control production stability, and provide reliable data support to customers.

This article provides a comprehensive introduction to the main measurement methods for micron-level tolerances in CNC machined parts, commonly used inspection equipment, measurement environment control, and inspection procedures, helping customers better understand how precision parts are quality-checked.

1. Why Micron-Level Measurement Is So Important

In precision manufacturing, dimensional errors directly affect assembly performance, sealing, and service life. For example:

· If a precision shaft part has excessive dimensional deviation, it can cause bearing wear or vibration.

· Micro parts in medical devices require extremely consistent dimensions.

· Aerospace components have extremely strict tolerance requirements.

Therefore, for micron-level accuracy, the measuring system's precision must be higher than the machining tolerance. Typically, the precision of inspection equipment should reach 1/10 of the machining tolerance or better.

For example, if a part tolerance is ±5μm, the inspection equipment should ideally have a precision of ±0.5μm or better.

2. Common Micron-Level Measurement Equipment

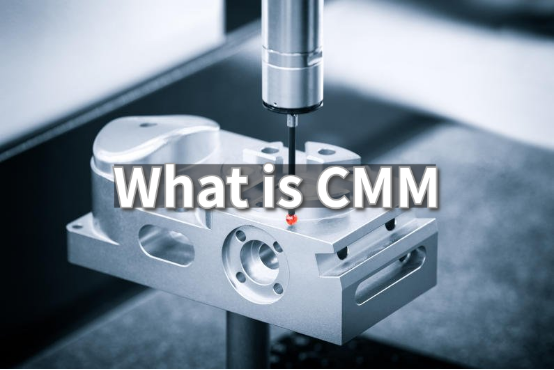

2.1. Coordinate Measuring Machine (CMM)

Coordinate Measuring Machines are one of the most commonly used devices in modern precision inspection. A CMM uses a high-precision probe to acquire coordinates on the part surface and analyzes them with software.

Main features:

· Can measure complex 3D structures

· Accuracy typically up to ±1μm

· Can automatically generate inspection reports

· Suitable for complex parts and batch inspection

CMM is especially suitable for:

· Complex curved parts

· Mold components

· Precision mechanical components

By scanning, engineers can obtain complete 3D data and compare it with CAD models.

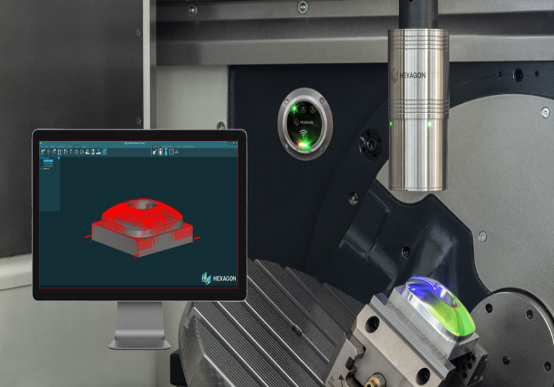

2.2. Laser Scanning Measurement

Laser scanning is a non-contact inspection method that can quickly acquire surface point cloud data.

Advantages:

· Fast measurement speed

· Suitable for complex surfaces

· Can generate complete 3D models

· Friendly to soft materials or thin-walled parts

Common applications:

· Prototype inspection

· Curved surface parts

· Mold inspection

· Appearance inspection

However, for extremely high dimensional accuracy, it is often combined with CMM verification.

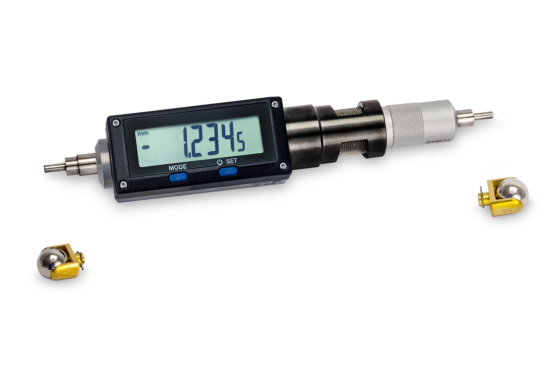

2.3. High-Precision Micrometers and Gauges

In many cases, traditional measuring tools are still very effective, such as:

· Micrometers

· Internal gauges

· Go/no-go gauges

· Ring gauges

Advantages:

· Simple to operate

· Low cost

· Stable measurement

· Suitable for batch production

For shafts or simple dimensions, experienced inspection engineers can quickly complete measurements using these tools.

2.4. Optical Measurement Systems

Optical systems use high-resolution cameras and image processing to measure parts.

Main features:

· Non-contact measurement

· Suitable for micro parts

· High accuracy

· High automation level

Common applications:

· Electronic components

· Micro parts

· Thin-walled structures

· Small hole inspections

3. Measurement Environment Control for Micron-Level Accuracy

Achieving micron-level precision requires more than equipment; the measurement environment is equally critical.

Temperature Control

Most precision inspection labs maintain:

20°C ± 1°C

This is the international standard environment.

Reason: Metal expands with temperature. For example, aluminum may expand 20μm per meter per 1°C.

Humidity Control

Humidity is generally maintained at:

45% – 55%

Excessive humidity can affect electronics and measurement stability.

Vibration Control

CMMs are usually installed on:

· Granite bases

· Anti-vibration platforms

· Independent inspection rooms

This prevents external vibrations from affecting measurement results.

4. Precision Part Measurement Process

High-precision inspection usually follows a standard process:

Step 1
Identify key dimensions and tolerance requirements based on the engineering drawing.

Step 2
Select suitable inspection equipment, such as CMM or optical systems.

Step 3
Inspect sample parts and verify the measurement program.

Step 4
Perform sampling inspection during batch production.

Step 5
Generate complete inspection reports and archive them.

Following this standard process ensures stable and reliable part quality.

5. Measurement Data Analysis and Quality Control

Inspection data is not only used to determine part compliance but also helps optimize production.

For example:

· Evaluate tool wear trends

· Analyze machining stability

· Optimize machining parameters

· Improve production efficiency

Many advanced manufacturers also combine SPC (Statistical Process Control) to continuously monitor production quality.

6. Inspection Challenges in Precision CNC Machining

At micron-level tolerances, inspections may face several challenges:

Material deformation
Thin-walled parts may slightly deform during measurement.

Surface roughness influence
Rough surfaces may affect probe contact measurement.

Complex structures
Complex curves require more measurement points.

Inspection time
High-precision inspections often take longer.

Therefore, experienced inspection engineers are essential in precision manufacturing.

Frequently Asked Questions (FAQ)

What accuracy can CNC machining achieve?

Most high-end CNC machines can reach ±0.01mm accuracy, and under optimized process conditions, some critical dimensions can be controlled to ±0.005mm or higher.

What is the most commonly used equipment for micron-level measurement?

Coordinate Measuring Machines (CMMs) are the most common, as they can measure complex 3D structures and provide high-precision data.

Why is a temperature-controlled environment necessary for inspection?

Because metal expands or contracts with temperature changes. If the environment is not stable, it directly affects measurement results.

Is non-contact measurement more accurate than contact measurement?

Not necessarily. Non-contact methods are faster, but for extremely high-precision dimensions, contact CMMs are usually more reliable.

Conclusion

In modern manufacturing, high-precision inspection technology is the foundation for ensuring CNC machining quality. Through advanced measurement equipment, strict environment control, and standardized inspection processes, manufacturers can ensure parts stay within micron-level tolerances.
