When it comes to medical implants, what often comes to mind first is 3D printing. The media is full of stories about 3D printed titanium hip joints, spinal fusion cages, and cranial plates. But what many people do not know is that CNC machining plays an equally important, and often more central, role in medical implant manufacturing.
So, can CNC machining really make medical implants? The answer is yes. In fact, the vast majority of metal medical implants undergo CNC machining. From knee replacements to spinal fixation devices, from dental implants to trauma plates, CNC machining is an irreplaceable manufacturing process.
This article will provide you with a detailed introduction to the application of CNC machining in the medical implant field, the materials that can be machined, precision requirements, quality control standards, and why CNC machining is one of the preferred processes for implant manufacturing.
Medical implants are not ordinary parts. They are implanted inside the human body and need to be in long-term contact with human tissue, blood, and bone. Therefore, they have extremely special requirements for manufacturing processes.
Implant materials must be compatible with human tissue and must not cause rejection or toxic reactions. Titanium alloys, cobalt-chromium alloys, PEEK, and other materials have been proven to have good biocompatibility. The manufacturing process must not change the surface chemistry of the material or introduce harmful residues.
Implants need to precisely match the patient's bone. If a hip prosthesis has a dimensional deviation of 0.1 millimeters, it may cause patient pain, abnormal gait, or even require revision surgery. Therefore, the machining tolerance for implants is typically between ±0.005 millimeters and ±0.01 millimeters.
The surface quality of an implant directly affects osseointegration (the bonding of bone to the implant) and cell attachment. A surface that is too rough may cause inflammation, while a surface that is too smooth may lead to poor osseointegration. Some implants require specific surface roughness (Ra 0.2 to 0.8 micrometers), while others require porous coatings to promote bone ingrowth.
The implant surface must not have any machining residues, including cutting fluid, oil, or metal chips. The manufacturing process must ensure that parts are clean, typically requiring final cleaning and packaging in a cleanroom environment.
Every implant must have a complete production record, including raw material batch number, machining parameters, inspection data, operator information, etc. This is a mandatory requirement of medical device regulations (such as FDA 21 CFR Part 820, ISO 13485).
CNC machining is used to manufacture various types of medical implants. Here are several typical examples.
Orthopedic implants are one of the areas where CNC machining is most widely used.

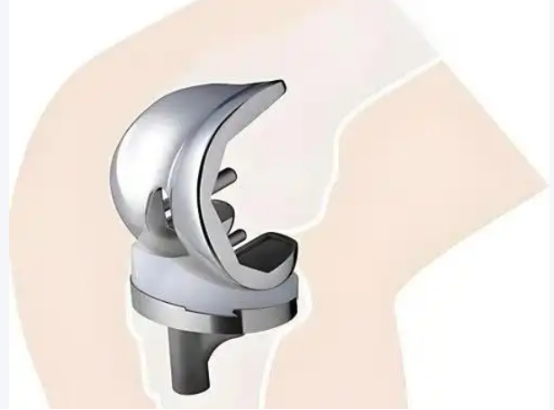

Components of knee replacement systems, such as femoral condyles and tibial plates, are typically cast from cobalt-chromium alloy or titanium alloy, and then CNC machined to finish critical mating surfaces and articular surfaces. CNC machining ensures the smoothness and geometric accuracy of the articular surfaces.

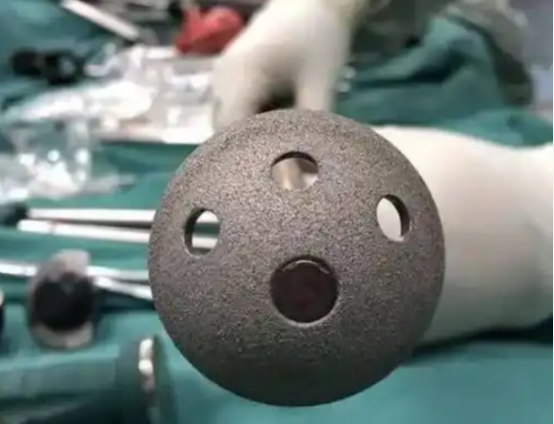

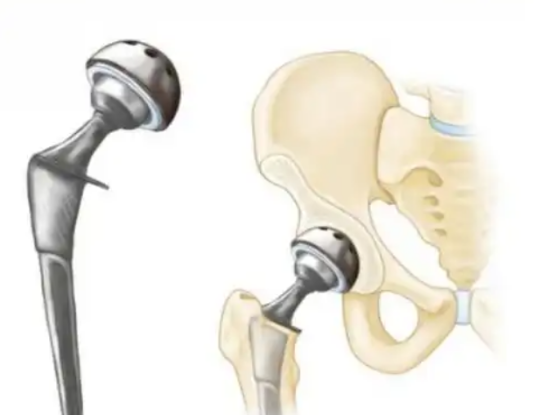

Components of hip replacement systems, such as acetabular cups and femoral stems, are typically made of titanium alloy. CNC machining is used to finish tapered mating surfaces, threads, and locking holes. The proximal part of the femoral stem may require CNC machining to create specific roughness to promote osseointegration.
Spinal fusion cages are a rapidly growing implant. Interbody fusion cages made of PEEK or titanium alloy are CNC machined to create toothed surfaces, implantation holes, and radiolucent windows. Some fusion cages also require machining of complex porous structures.
Trauma plates and screws are used to fix fractures. The screw holes, locking threads, and contour shapes of the plates are all finished by CNC machining. The threads and outer diameters of the screws are finished by CNC turning.
Dental implants are a classic application of CNC machining. A typical dental implant is a titanium alloy screw with a diameter of 3 to 5 millimeters and a length of 8 to 16 millimeters. Its threads, hexagonal internal connection, and tapered surface for connecting to the abutment all need to be machined in a single setup on a Swiss-type CNC lathe. Tolerances are typically within ±0.005 millimeters.
Dental abutments connect the implant to the crown and also require precision CNC machining. Custom abutments need to be individually machined based on the patient's oral scan data, which is a unique advantage of CNC machining.
Implants such as cranial plates and maxillofacial reconstruction plates need to be customized based on the patient's CT data. These implants are typically made from titanium mesh or titanium plates through CNC cutting and forming. CNC milling can machine precise contours and screw hole positions.
Components of certain cardiovascular implants are also manufactured through CNC machining. For example, the housing of artificial heart valves (titanium alloy or PEEK) requires precision CNC machining. The titanium alloy housing of pacemakers requires CNC machining of features such as battery compartments and connector interfaces.
Implants such as interference screws for anterior cruciate ligament reconstruction and suture anchors are typically machined from PEEK or absorbable materials through CNC turning.
Titanium alloy is the most commonly used material for medical implants. It has excellent biocompatibility, a high strength-to-weight ratio, and good corrosion resistance. The elastic modulus of titanium alloy is close to that of bone, which can reduce stress shielding.
The disadvantage of titanium alloy is that it is difficult to machine. Its thermal conductivity is poor, so cutting heat concentrates on the tool, causing rapid tool wear. It is prone to work hardening and requires sharp tools and adequate coolant. Machining titanium alloy requires specialized cutting parameters and tool coatings.
Cobalt-chromium alloy has extremely high wear resistance and is commonly used for bearing surfaces in knee and hip joints. It has higher hardness than titanium alloy and can achieve an extremely low friction surface after polishing.
Cobalt-chromium alloy is even more difficult to machine than titanium alloy. It has high hardness, high cutting forces, and rapid tool wear. Machining cobalt-chromium alloy requires extremely rigid machine tools, ceramic or CBN tools, and high-pressure coolant.
316L stainless steel was an earlier material used for implants and is now mainly used for temporary implants (such as fracture fixation screws and intramedullary nails) and surgical instruments. It has good corrosion resistance and toughness, and relatively low cost.
The machinability of 316L is between titanium alloy and cobalt-chromium alloy; it is easier than titanium alloy but more difficult than aluminum alloy.
PEEK is a high-performance engineering plastic increasingly used for spinal fusion cages, trauma fixation plates, dental abutments, and other implants. PEEK has an elastic modulus very close to that of bone and has good radiolucency, allowing clear observation of bone healing.
CNC machining of PEEK requires sharp tools, high spindle speeds, and appropriate cooling (typically air cooling or mist cooling, avoiding water-based coolant contamination). Care must be taken to control temperature during machining to avoid melting the material.
Certain temporary implants (such as absorbable screws) use absorbable polymer materials. These materials are temperature-sensitive and require special attention to cooling and tool sharpness during machining.
The precision requirements for medical implants are much higher than those for ordinary industrial parts. Here are several typical examples.
The fit between the taper of a hip stem and the femoral head requires extremely high precision and surface finish. If the taper dimension deviates by 0.002 millimeters, the fit will be too loose or too tight, which may cause the head to detach or make installation difficult. The taper is typically required to be within ±0.002 millimeters, with a surface finish of Ra 0.2 micrometers or better.
The threads of a dental implant need to precisely engage with bone tissue and also need to precisely fit with the abutment. The pitch diameter tolerance is typically within ±0.005 millimeters. The thread surface must be free of burrs, otherwise it may affect osseointegration or cause stress concentration.
The locking screw holes of trauma plates need to precisely fit with the screw heads. The taper or thread of the hole must be precise, otherwise the screw cannot lock. Positional tolerance is typically within ±0.05 millimeters.
The articular surfaces of a femoral condyle in a knee replacement require extremely high surface finish and geometric accuracy. Surface roughness is typically required to be below Ra 0.05 micrometers, which requires polishing after CNC machining to achieve. Profile tolerance is typically within ±0.01 millimeters.
The quality requirements for medical implants are extremely strict. The following quality control measures must be implemented during the CNC machining process.
All implant manufacturers must pass ISO 13485 certification. This standard is specifically for medical devices and is more stringent than general ISO 9001. It covers risk management, design controls, process validation, traceability, complaint handling, and other aspects.
The first article of each batch of implants must undergo 100% dimensional inspection. The inspection data is recorded in the FAI report, including nominal value, actual measurement, deviation, and pass/fail judgment. The FAI report is a prerequisite for batch production.
During batch production, critical dimensions need to be sampled and inspected regularly to monitor process stability. Any variation exceeding control limits needs to be investigated and corrected.
Implants after CNC machining must be thoroughly cleaned to remove all cutting fluid, oil, and chip residues. After cleaning, ultrasonic cleaning and deionized water rinsing are typically also required. Some implants require final packaging in a cleanroom (Class 7 or Class 8).
Each batch of implants must have material certificates for the raw materials, recording the heat number, batch number, chemical composition, and mechanical properties. All parameters, operators, and inspection data during the machining process must be recorded. These records are kept for at least 10 years, often longer.
Many implants require surface treatment after CNC machining, such as anodizing (titanium alloy), passivation (stainless steel), sandblasting, acid etching, etc. After surface treatment, critical dimensions and surface characteristics need to be re-inspected.
This is a question many people care about. In fact, the two are not alternatives but complementary.
The surface finish of CNC machining is far superior to that of 3D printing. For articular surfaces that require low friction and tapered mating surfaces that require sealing, CNC machining is the only choice. The dimensional accuracy of CNC machining is higher, typically achieving ±0.005 millimeters, while 3D printing is typically ±0.1 to 0.2 millimeters. CNC machining has a wider range of material options; almost all materials that can be used for implants can be CNC machined. The cost of CNC machining is lower for medium to high volumes.
3D printing can produce complex internal structures that CNC cannot achieve, such as porous metals and lattice structures, which can promote bone ingrowth. 3D printing has almost no material waste; for expensive titanium alloy powder, material utilization can exceed 90%. 3D printing is very suitable for customized implants, where each part can be different without adding extra cost.
In implant manufacturing, the ideal approach is often a combination of both. First, use 3D printing to manufacture a near-net shape implant blank (containing porous structures), and then use CNC machining to finish critical mating surfaces, threads, tapers, etc. This achieves both the porous structure that promotes bone ingrowth and the mating precision.
Materials such as titanium alloy and cobalt-chromium alloy cause very rapid tool wear. Tool wear leads to dimensional drift and degraded surface quality. Solutions include: using coated tools (AlTiN, TiSiN), using high-pressure coolant, optimizing cutting parameters, and implementing tool life management.
Microscopic burrs are unacceptable on implants. Burrs may detach and enter human tissue, causing inflammation or foreign body reactions. Solutions include: using sharp tools, optimizing toolpaths (using ramp exit instead of direct exit at edges), and adding deburring processes (manual, electrochemical, thermal).
CNC machining introduces residual stress into the part surface. If the stress is too high, the part may deform after machining or fail after implantation. Solutions include: using low-stress cutting parameters, stress relief annealing after roughing, and cryogenic treatment.
Residual cutting fluid or metal chips can cause serious medical incidents. Solutions include: using medical-grade water-soluble coolant, cleaning immediately after machining, ultrasonic cleaning, deionized water rinsing, and cleanroom packaging.
Q: Are CNC machined implants better than 3D printed ones?
Not necessarily. Each has its own advantages. CNC machining is better for precision and surface finish, while 3D printing is better for complex internal structures. Many implants are manufactured using a combination of both.
Q: Can all implants be made by CNC machining?
The vast majority of metal and plastic implants can be made by CNC machining. However, some implants (such as absorbable screws) may be sensitive to machining heat and require special processes.
Q: What certifications are needed for CNC machined implants?
The implants themselves require FDA or CE certification. The CNC machining service provider needs ISO 13485 certification. Additionally, the machinist needs to pass supplier audits from implant manufacturers.
Q: Does Brightstar have ISO 13485 certification?
Yes. Brightstar has passed ISO 13485 quality management system certification for medical devices. We can provide customers with complete traceability documents, material certificates, and inspection reports.
Q: Can you machine customized implants?
Yes. We accept customers' 3D models (from CT scans or CAD designs) and can machine single-piece customized implants or prototypes.
Q: How are implants cleaned and packaged after machining?
We offer ultrasonic cleaning, deionized water rinsing, and cleanroom packaging services. Packaging materials meet medical device packaging requirements.
CNC machining can not only make medical implants but is also an indispensable core process in implant manufacturing. From knees to spines, from dental to cardiovascular, CNC machining produces medical implants every day that save lives and improve quality of life.
Materials such as titanium alloy, cobalt-chromium alloy, and PEEK are precision cut on CNC machines into complex shapes with tolerances as tight as ±0.005 millimeters. Strict ISO 13485 quality systems and full traceability ensure that every implant is safe and reliable.
If you are developing medical implants or need small-batch customized implants, CNC machining will be your reliable manufacturing partner.
Brightstar has ISO 13485 certification, multiple high-precision CNC machines, and extensive experience in medical implant machining. We provide CNC machining services from prototyping to low-volume production for medical device customers worldwide.
