In advanced manufacturing, complex surface parts have become a key benchmark of technical capability. As product designs move toward lighter weight structures, integrated assemblies, and tighter tolerances, traditional 3-axis machining is often no longer sufficient.
5-axis CNC machining has become the core solution for manufacturing complex surface components, enabling higher precision, improved surface quality, and greater production efficiency.

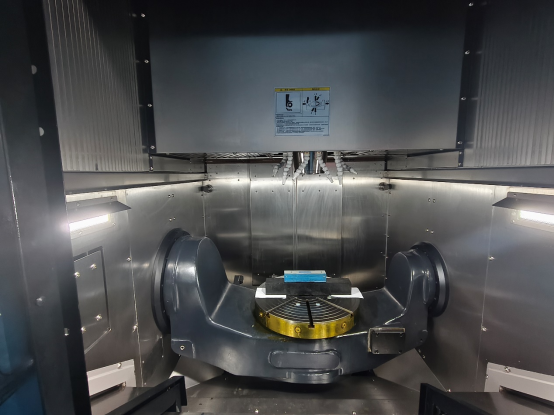

5-axis CNC machining builds upon the traditional three linear axes (X, Y, Z) by adding two rotational axes. This allows the cutting tool or workpiece to move simultaneously in five directions.
Compared to 3-axis machining, 5-axis CNC machining offers:
Multi-angle cutting capability
Reduced setup and repositioning
Higher dimensional accuracy
Optimized tool paths
Stronger ability to machine complex curved surfaces
Because of these advantages, 5-axis CNC machining is widely used in precision complex surface manufacturing and high-end component production.
Aerospace Structural Components
Aerospace parts often feature freeform geometries, thin-wall structures, high-strength materials, and strict geometric tolerances. With 5-axis CNC machining, multiple surfaces can be completed in a single setup, reducing cumulative errors and significantly improving structural accuracy.
Mold and Die Complex Cavities
In mold manufacturing, cavity surfaces require exceptional surface finish and consistency. 5-axis machining continuously adjusts tool orientation to maintain stable cutting forces, reduce tool marks, and improve surface roughness, minimizing the need for secondary polishing.
Medical and High-End Equipment Components
Medical devices and precision equipment components often involve intricate curved geometries and compact designs. 5-axis CNC machining enables integrated manufacturing, enhances structural strength, reduces assembly deviation, and improves overall product reliability.
Improved Machining Accuracy
Completing multi-face machining in one setup eliminates repeated positioning errors and enhances dimensional consistency.
Superior Surface Quality
Optimized tool orientation reduces vibration and maintains ideal cutting conditions, resulting in smoother finishes and better surface integrity.
Shorter Production Cycles
Reduced setups and minimized auxiliary time increase overall efficiency, especially in small to medium batch production of complex parts.
Extended Tool Life and Cost Control
Better control of tool engagement and cutting angles reduces tool wear and ensures more stable batch production.
Although 5-axis CNC machining offers significant advantages, it requires more than advanced equipment. Successful execution depends on:
High-precision 5-axis machines
Advanced CAM programming expertise
Optimized tool path strategies
Strong process control and quality management
In continuous complex surface machining, smooth tool axis transitions and interference avoidance are critical to maintaining stability and precision.
As industries demand increasingly complex geometries and tighter tolerances, complex surface machining will continue to grow in importance.
Companies with strong 5-axis CNC machining capability are better positioned to take on high-value, technically demanding projects.
For complex surface parts, precision, repeatability, and engineering experience are essential.
At Brightstar, we specialize in 5-axis CNC precision machining and complex surface component manufacturing. From prototype validation to stable mass production, we provide high-precision custom machining solutions tailored to your project requirements.
If you are looking for a reliable 5-axis CNC machining partner for complex surface parts, contact Brightstar today. Brightstar engineering team is ready to support your next high-precision project with professional expertise and stable production capability.
