8 Common Quality Problems in CNC Machining and How to Solve Them

Have you ever experienced this? The drawing was perfect, the CNC part was machined, but when you went to assemble it, the holes didn't line up, the surface had scratches, the threads wouldn't engage, or the part actually deformed after sitting for a few days.

These problems are very common in CNC machining, especially in low-volume production and prototyping. For engineers and procurement specialists who are not deeply familiar with machining processes, these quality issues can be difficult to understand: the drawing clearly specified tolerances, so why did problems still occur?

This article will explain from a professional CNC machinist's perspective the 8 most common quality problems in CNC machining, their causes, and solutions. Understanding these issues will not only help you communicate better with suppliers but also help you avoid risks during the design phase.

1. Dimensional Non-Conformance – The Most Common and Most Troublesome Problem

Problem Description

A critical dimension on the machined part falls outside the tolerance range specified on the drawing. For example, a shaft journal requires 10.00±0.01mm, but the actual measurement is 10.03mm, exceeding the tolerance by 0.02mm.

Common Causes

1. Tool wear – Tools wear down after use, causing dimensional drift. This is especially noticeable when machining difficult materials like stainless steel and titanium.

2. Thermal expansion – Heat generated during machining causes the workpiece to expand. When the part cools, dimensions shrink. Aluminum alloys have approximately twice the thermal expansion coefficient of steel, making this issue more pronounced.

3. Machine accuracy issues – Worn machine guideways, excessive leadscrew backlash, and spindle runout all cause inaccurate dimensions.

4. Tool compensation errors – Operators may input incorrect values when setting tool length compensation or radius compensation.

Solutions

For the machinist:

· Regularly inspect tools and use tool life management for critical operations

· Allow parts to cool to room temperature before finishing cuts

· Use in-process probing to measure and automatically compensate during machining

· Perform regular machine calibration and laser interferometer checks

For the customer:

· Clearly specify critical dimensions and inspection methods on the drawing

· Allow suppliers to perform secondary finishing operations (such as grinding) when needed

· Consider leaving grinding stock for extremely tight tolerance requirements

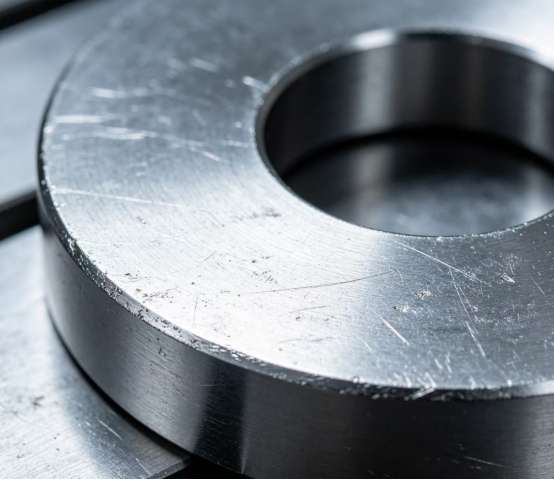

2. Poor Surface Finish

Problem Description

The part surface is rough, with visible tool marks, chatter marks, or scratches. For example, the drawing calls for Ra 0.8µm, but the actual surface looks like sandpaper.

Common Causes

1. Excessive feed rate – Feed per tooth is too high, resulting in large scallop height

2. Tool wear – Worn tools produce rough surfaces

3. Chatter – Long tools, thin-walled parts, or insufficiently rigid workholding cause vibration during cutting

4. Chip recutting – Chips that are not promptly evacuated are recut by the tool, scratching the surface

Solutions

For the machinist:

· Separate roughing and finishing operations; use smaller feed rates and sharper tools for finishing

· Use ball nose end mills or corner radius tools for finishing curved surfaces

· Reduce tool overhang to improve rigidity

· Use high-pressure coolant to flush chips away

For the customer:

· Clearly specify surface finish requirements (Ra value) on the drawing

· Distinguish between functional surfaces and non-functional surfaces – not every surface needs a high finish

· Consider whether secondary polishing or tumbling is needed

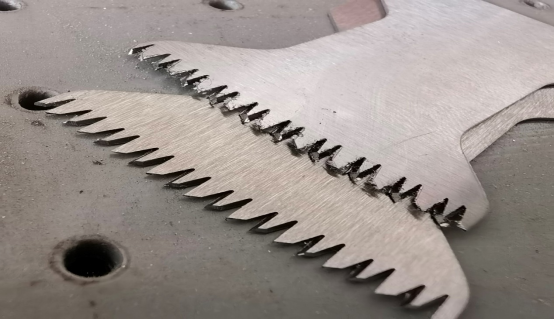

3. Burr Problems

Problem Description

Sharp protrusions or residual material are present on part edges. These burrs not only affect appearance but also cause assembly difficulties, cut operators, or cause binding in moving components.

Common Causes

1. Dull tools – Sharp tools produce small burrs; dull tools produce large burrs

2. Incorrect cutting parameters – Improper feed rate or depth of cut

3. Material properties – Certain materials (such as aluminum, copper, plastics) naturally tend to form burrs

4. Toolpath issues – The way a tool exits an edge affects burr size

Solutions

For the machinist:

· Use sharp tools and replace them before the end of tool life

· Optimize toolpaths – for example, use "ramp exit" instead of direct exit at edges

· Use chamfer tools for deburring passes

· Secondary deburring: manual, thermal, electrochemical, or tumbling

For the customer:

· Add chamfer or fillet features to the design (edges with chamfers produce fewer burrs)

· Specify "deburr all edges" on the drawing

· Clearly indicate if "burr-free" is required (this adds cost)

4. Thread Problems

Problem Description

The thread go gauge does not fit, the no-go gauge fits, the thread surface is rough, or the thread cannot be engaged at all.

Common Causes

1. Incorrect pilot hole diameter – Hole too small causes tap breakage; too large causes insufficient thread depth

2. Tap wear – Worn taps produce rough, undersized threads

3. Incorrect cutting parameters – Tapping speed too fast or insufficient coolant

4. Thread mill compensation errors – Incorrect tool radius compensation when using thread mills

Solutions

For the machinist:

· Calculate pilot hole diameter strictly according to standards (ISO, UNF, NPT, etc.)

· Use high-quality taps and replace them before end of tool life

· For large diameter or deep threads, use thread mills instead of taps

· Perform 100% inspection using thread go/no-go gauges

For the customer:

· Clearly specify thread specifications (e.g., M6×1.0-6H)

· Specify thread depth (through hole or blind hole)

· If threads are critical, consider using thread inserts

5. Deformation Problems – The Nightmare of Thin-Walled Parts

Problem Description

Parts deform after machining, especially thin-walled parts, long slender parts, or parts with asymmetric structures. Some deformations occur hours or even days after machining is complete.

Common Causes

1. Residual stress release – Raw materials contain internal residual stress. When material is removed by cutting, the stress redistributes, causing part deformation

2. Clamping deformation – Excessive clamping force deforms the part during machining; when released, the part springs back

3. Cutting heat deformation – Heat generated during machining causes localized thermal expansion; uneven contraction occurs after cooling

4. Material properties – Certain materials (such as plastics, thin aluminum sheets) have low rigidity and deform easily

Solutions

For the machinist:

· Rough machine first to release stress, then allow part to rest before finishing

· Use soft jaws, vacuum chucks, or low-melting-point alloy fixtures to reduce clamping deformation

· Use high-speed machining to reduce cutting forces

· For extremely thin-walled parts, consider filling with support material (wax, low-melting-point alloy) before machining

For the customer:

· Consider symmetrical structures in design to reduce stress concentration

· Add ribs to increase rigidity

· If deformation is unavoidable, leave finishing stock

6. Incorrect Hole Position

Problem Description

The center distance between multiple holes is inaccurate, or the position of holes relative to datum surfaces has excessive deviation. This is typically discovered during assembly – bolts won't go through.

Common Causes

1. Datum issues – Different operations use different datums, causing accumulated error

2. Machine accuracy issues – Insufficient positioning accuracy or repeatability of the machine

3. Tool runout – Drill or end mill runout causes hole position

4. Workpiece movement – Insufficient clamping force allows workpiece to shift during machining

Solutions

For the machinist:

· Machine all holes in a single setup whenever possible

· Use 5-axis CNC to reduce positioning errors from multiple setups

· Use center drills to spot drill before drilling

· For high-precision holes, use boring tools or reamers

For the customer:

· Use true position tolerances (GD&T) on the drawing instead of simple dimensional tolerances

· Clearly specify datum surfaces

· Consider whether fixture locating holes (such as two dowel pin holes) are needed

7. Threaded Hole or Dowel Pin Hole Position Offset

Problem Description

The actual position of threaded holes or dowel pin holes does not match the drawing, causing misalignment during assembly.

Common Causes

1. Drill wandering – The drill deflects as it enters the workpiece, resulting in accurate entry position but offset bottom position

2. Uneven surface – The starting surface for drilling is not flat, causing the drill to skid

3. Milling positioning error – When using thread mills, the tool positioning coordinate is incorrect

4. Loose workholding – The workpiece shifts slightly during machining

Solutions

For the machinist:

· Use center drills or spot drills to establish the hole center before drilling

· Ensure the drilling start surface is flat

· Use more rigid tool holders (such as hydraulic chucks)

· Re-confirm the coordinate system before machining critical holes

For the customer:

· Consider adding locating holes as datums in the design

· For extremely tight true position requirements, consider wire EDM or jig grinding

8. Surface Oxidation or Corrosion

Problem Description

Parts show oxidation, rust, or discoloration after some time. Steel parts especially develop rust spots when stored in humid environments.

Common Causes

1. No rust prevention treatment – Carbon steel and stainless steel were not properly treated after machining

2. Coolant residue – Chemicals in coolant remain on the part surface and cause corrosion over time

3. Humid environment – Parts are stored in high-humidity conditions

4. Material properties – Certain materials (such as free-machining steels, magnesium alloys) rust easily

Solutions

For the machinist:

· Thoroughly clean parts after machining

· Apply rust preventive oil or passivation treatment to steel parts

· Consider anodizing for aluminum parts

· Use dry, clean packaging materials

For the customer:

· Clearly specify corrosion protection requirements on the drawing (e.g., "passivate surface" or "apply rust preventive oil")

· If parts need long-term storage, specify whether vapor corrosion inhibitor packaging is required

· Consider using stainless steel instead of carbon steel

Quality Problem Quick Diagnosis Table

How Brightstar Ensures CNC Machining Quality

At Brightstar, quality is not inspected into the part – it is built into the process. We take the following measures to avoid the quality problems described above:

Frequently Asked Questions (FAQ)

Q1: Why are my part dimensions out of tolerance?

The most common causes are tool wear and thermal expansion. Recommendation: Ask your supplier to allow parts to cool before finishing cuts and use in-process probing for dimensional compensation.

Q2: How can I prevent chatter marks on part surfaces?

Chatter marks are typically caused by long tools, thin-walled parts, or insufficiently rigid workholding. Solutions include: reducing tool overhang, reducing depth of cut, and using sharper tools.

Q3: Why won't my thread gauge fit?

Possible causes: pilot hole too small, worn tap, or tapping speed too high. Recommend that your supplier use thread mills instead of taps and perform 100% inspection on critical threads.

Q4: Why do my parts deform after machining?

The cause is the release of residual internal stress in the material. Solution: Rough machine first, allow time for stress release, then finish machine. For thin-walled parts, use dedicated fixtures to reduce clamping distortion.

Q5: How can I ensure positional accuracy of multiple holes?

The most reliable method is to machine all holes in a single setup. If multiple setups are unavoidable, use dowel pin holes as datums. Suppliers using 5-axis CNC can also solve this problem well.

Q6: Why do my steel parts rust?

Carbon steel and stainless steel will rust if not rust-proofed after machining, as they contact moisture in the air. Solution: Require your supplier to clean and apply rust preventive oil after machining, or perform passivation treatment.

Summary

Although there are many types of quality problems in CNC machining, the vast majority can be prevented. The key lies in:

1. Design phase – Consider manufacturability and avoid overly aggressive designs

2. Communication phase – Clearly specify tolerances, surface requirements, and inspection methods on the drawing

3. Machining phase – Choose a supplier with a quality control system

4. Acceptance phase – Clearly define acceptance criteria and inspection methods

For customers, understanding these common quality problems and their causes helps you communicate better with suppliers and avoid risks during the design phase. For machinists, establishing a systematic quality control process and preventing problems at the source is far more efficient than fixing them after the fact.

Brightstar always puts quality first. We don't just machine parts – we help customers avoid the quality problems described above and ensure every part meets drawing requirements.
