Introduction

If you’ve landed on this 5 axis CNC machining guide, you’re likely evaluating whether this advanced manufacturing process is right for your next project. And you’re not alone. Every day, product designers, machine shop owners, and procurement specialists search for the same practical questions:

· Is 5 axis machining worth the extra cost?

· What parts absolutely need 5 axis?

· How does it differ from 3+2 machining?

This guide answers the top 8 customer-searched questions about 5 axis CNC machining. We’ll cover capabilities, limitations, programming complexity, and real-world ROI—so you can make an informed decision.

1. What Exactly Is 5 Axis CNC Machining?

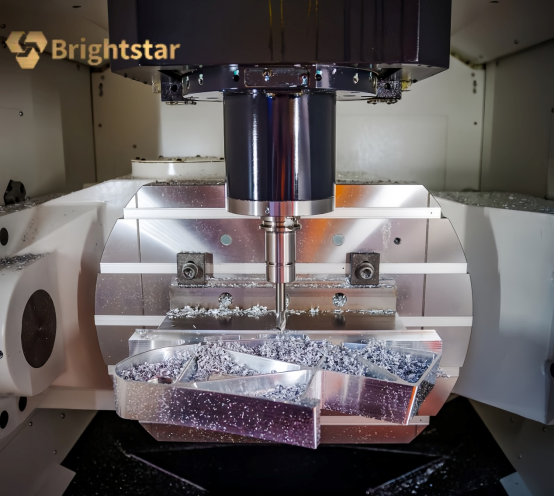

In traditional 3 axis machining, the cutting tool moves along X, Y, and Z linear axes while the workpiece stays fixed. A 5 axis CNC machine adds two rotational axes (typically A and B, or A and C). This allows the cutting tool or the workpiece table to tilt and swivel simultaneously.

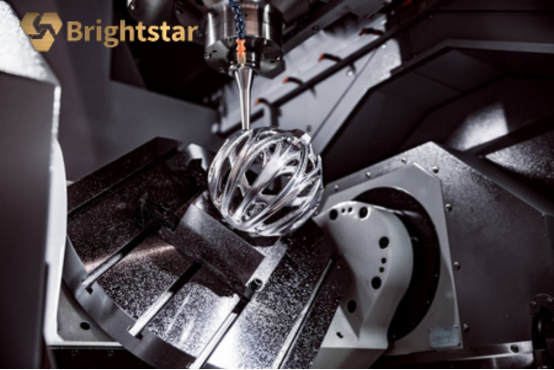

Key distinction: True 5 axis machining means simultaneous motion across all five axes during cutting. This is different from 3+2 (positional 5 axis), where the machine locks two axes while machining.

2. What Are the Real Advantages of 5 Axis Machining?

This is one of the most frequently asked questions in any 5 axis CNC machining guide. Here are the proven benefits:

A. Machine Complex Geometries in One Setup

A single 5 axis operation can access undercuts, deep cavities, and freeform surfaces that would require 3–4 separate setups on a 3 axis machine.

B. Shorter Cycle Times

Reduced setups mean less idle time. Many users report 40–60% faster total throughput for complex parts.

C. Better Surface Finish

Shorter, more rigid cutting tools can be used because the machine tilts to maintain optimal tool contact. This eliminates step lines from repositioning.

D. Tighter Tolerances

Every time you reposition a part manually, you introduce alignment error. 5 axis eliminates that risk.

3. How Much Does 5 Axis CNC Machining Cost?

Cost is the most searched term related to 5 axis machining. Here’s the breakdown:

Machine Cost

· Entry-level 5 axis machine: $150,000 – $250,000

· Production-grade (DMG MORI, Haas, Mazak): $300,000 – $600,000+

· Used machines: $80,000 – $150,000

Part Cost Factors

· Hourly rate: $100 – $250/hour (vs. $60 – $120 for 3 axis)

· Setup time: Lower (often 1–2 hours vs. 4–8 hours)

· Tooling: Similar to 3 axis, but specialized holders may cost more

· CAM programming: 2–3x longer than 3 axis

Example: A titanium aerospace bracket that costs $800 on a 3 axis (including multiple setups) might cost $600 on 5 axis—despite a higher hourly rate—because of reduced labor and fixturing.

4. 5 Axis vs 3+2 Machining – What’s the Difference?

This question confuses many buyers. Let’s clarify:

When to choose 3+2: Most prismatic parts with angled holes or pockets.
When to choose simultaneous 5 axis: Impellers, medical implants, complex molds, aerospace structural parts.

5. Which Industries and Parts Need 5 Axis Machining?

Not every part requires 5 axis. Here’s where it delivers ROI:

Aerospace

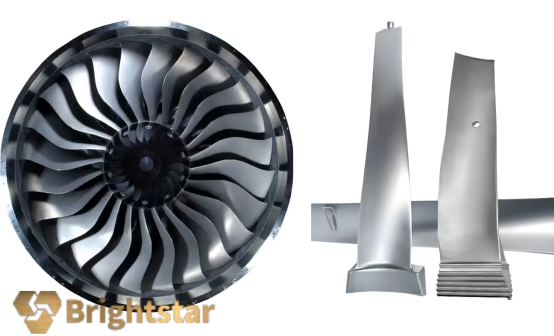

· Turbine blades and blisks

· Structural brackets with compound angles

· Fuel system components

Medical

· Orthopedic implants (knees, hips, spine)

· Surgical guides and instruments

· Dental frameworks

Automotive (high-performance)

· Cylinder heads with complex ports

· Turbocharger wheels

· Prototype molds

General Mold & Die

· Injection molds with deep cores

· Undercuts that would require EDM otherwise

If your part: Has features on multiple sides, requires tight angular tolerances, or has freeform surfaces—5 axis is likely the answer.

6. How Hard Is 5 Axis Programming? Do I Need Special CAM?

Yes, 5 axis CNC machining requires advanced CAM software. Here are your options:

Popular CAM for 5 Axis

· Mastercam (most common, steep learning curve)

· Hypermill (excellent for 5 axis simultaneous)

· NX (high-end, aerospace-grade)

· Fusion 360 (entry-level 5 axis, affordable)

Programming Complexity Factors

· Tool axis control: Avoiding collisions while maintaining optimal engagement

· Post-processor: A custom post is essential; generic posts crash machines

· Simulation: Mandatory. You cannot “prove out” 5 axis programs at the machine safely.

Time estimate: A skilled programmer might take 4 hours to program a part that takes 30 minutes to run. The same part on 3 axis: 2 hours programming, 2 hours running (with 3 setups).

Key takeaway: If you outsource, look for suppliers with in-house CAM expertise—not just machine operators.

7. What Are the Limitations or Downsides?

Honesty matters in a good 5 axis CNC machining guide. Here’s what suppliers won’t always tell you:

1. Collision Risk is Higher

More axes mean more ways to crash. A programming error can destroy a $50,000 spindle.

2. Rigidity Can Be Lower

Trunnion tables and rotary axes introduce slight compliance compared to a solid 3 axis bed.

3. Workholding is More Complex

You need vises, fixtures, or tombstones that clear the machine’s swing diameter. Standard vises often don’t work.

4. Operator Training is Intense

A 3 axis machinist needs 6–12 months to become competent on 5 axis. Expect scrap parts during learning.

5. Not for Simple Parts

A basic block with six holes is faster and cheaper on a 3 axis machine. Don’t use 5 axis as a hammer.

8. How Do I Choose a 5 Axis CNC Machining Service Provider?

If you’re searching for “5 axis CNC machining near me” or “5 axis job shops online,” evaluate suppliers on these criteria:

Checklist for Selecting a Supplier

· Machine brand & condition: Haas, DMG MORI, Matsuura, Okuma, Mazak are reliable.

· Simultaneous vs. 3+2 capability: Ask explicitly. Some shops claim “5 axis” but only do positioning.

· CAM software & post-processor: They should own a verified post for their specific machine.

· Inspection equipment: Do they have CMM or laser scanning for 5 axis parts?

· Material experience: Aerospace alloys? Medical-grade titanium? Plastics?

· Lead time transparency: Will they quote a per-part price including all setups?

· Sample part policy: A confident shop will machine a test feature for free.

Red flags: No simulation software, cannot name their post-processor, or only show 3 axis parts in their portfolio.

Conclusion: Is 5 Axis CNC Machining Right for You?

Use this 5 axis CNC machining guide as a decision framework:

Final advice: Start by sending your CAD model to two suppliers—one with 3+2 and one with simultaneous 5 axis. Compare their quoted cycle times, setups, and per-part prices. The data will tell you the truth faster than any guide.

Frequently Asked Questions (FAQ)

Q: Can a 5 axis machine do 3 axis work?
Yes. You can run it in 3 axis mode, but you’re paying a premium for unused capability.

Q: How long does 5 axis tooling last?
Similar to 3 axis—but because tools stay engaged optimally, they often last 20–30% longer.

Q: What’s the largest part size for 5 axis machining?
Depends on machine travel. Typical trunnion machines handle parts up to 800mm diameter. Large gantry 5 axis machines can do 5-meter aerospace components.

Q: Is 5 axis CNC machining more expensive than 3D printing?
For metal parts: 5 axis is often cheaper per part at volumes above 10–20 units. For plastic prototypes: 3D printing is usually faster and cheaper.
