The aerospace industry demands components that are lighter, stronger, and more complex than almost any other sector. Turbine blades with compound curves, structural brackets with deep undercuts, and manifold blocks with intersecting internal passages—these geometries push the limits of conventional three-axis machining. This is where 5-axis CNC machining for complex aerospace components becomes not just advantageous but essential.
Unlike traditional 3-axis machining, which approaches a workpiece from three orthogonal directions, 5-axis CNC machining adds two additional rotary axes. This capability allows cutting tools to reach otherwise inaccessible features in a single setup, dramatically improving accuracy, reducing lead times, and enabling geometries that would be impossible to produce otherwise.
At Brightstar, we specialize in 5-axis aerospace CNC machining for engine components, structural parts, landing gear assemblies, and critical flight hardware. This comprehensive guide explains what 5-axis machining is, why it matters for aerospace, which components benefit most, and answers the questions aerospace engineers ask most frequently.
Before diving into aerospace applications, it is important to understand what 5-axis machining means.
· X-axis: Left to right
· Y-axis: Front to back
· Z-axis: Up and down
A standard 3-axis CNC mill can access a part from the top only. To machine the bottom or sides, the operator must manually reposition the workpiece, introducing potential misalignment errors.
5-axis machining adds two rotational axes to the three linear axes:
· A-axis: Rotation around the X-axis
· B-axis: Rotation around the Y-axis
· C-axis: Rotation around the Z-axis (varies by machine configuration)
There are two main types of 5-axis machines:
Simultaneous 5-axis machining – All five axes move at the same time, following complex toolpaths. This is used for impellers, blisks, turbine blades, and freeform surfaces.
3+2 axis machining (positional 5-axis) – The machine positions the part at a compound angle using the rotary axes, then locks them while machining with three axes. This is used for features that are simply hard to reach, such as angled holes or undercuts.
Both configurations are valuable for complex aerospace component manufacturing.
Aerospace components are not designed for easy machining. They are designed for aerodynamic efficiency, structural integrity, and weight reduction. These design priorities create machining challenges that 5-axis technology uniquely solves.
Turbine blades, compressor vanes, and diffuser passages have aerodynamic profiles that vary continuously across the surface. A 3-axis machine cannot maintain proper tool orientation relative to these curved surfaces, resulting in poor surface finish or gouging.
5-axis solution: The machine continuously tilts the tool or part to maintain optimal contact, producing smooth surfaces with minimal hand finishing.
Structural aerospace components often have deep pockets with vertical or angled walls. With 3-axis machining, the tool holder or spindle can collide with the part when reaching deep features.
5-axis solution: By tilting the part or tool, the cutter can reach deep into pockets while keeping the tool holder clear of the workpiece.
Aerospace components frequently require holes drilled at compound angles for hydraulic passages, fastener locations, or weight-saving features. Drilling these on a 3-axis machine requires multiple setups and angle fixtures.
5-axis solution: The part is simply rotated to the correct orientation, and the hole is drilled in one operation.
Many aerospace parts have thin walls (1 mm or less) to save weight. Machining these on a 3-axis machine often causes chatter or deflection.
5-axis solution: By tilting the tool to direct cutting forces into the thicker supporting structure, chatter is reduced, and wall integrity is maintained.
A typical aerospace component might require 5 to 10 separate setups on a 3-axis machine, each introducing potential alignment errors. 5-axis CNC machining can often complete the same part in 1 or 2 setups.
Result: Tighter tolerances, better surface finishes, and faster delivery.
Many critical flight components rely on 5-axis CNC machining for complex aerospace components.

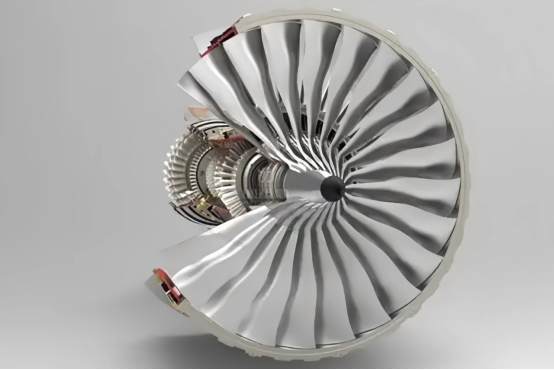

Turbine blades have complex airfoil shapes with twist, taper, and cooling holes. The surface must be smooth for aerodynamic efficiency, and the leading and trailing edges have tight radius requirements.
5-axis advantage: Simultaneous 5-axis toolpaths maintain optimal tool orientation across the entire blade surface, producing accurate airfoils with excellent surface finish.

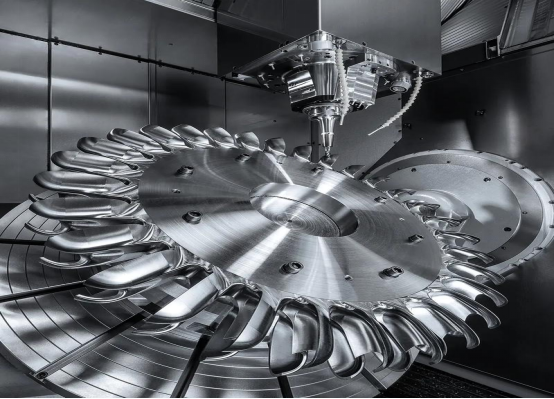

A blisk combines a rotor disc and blades into a single piece. Machining the narrow, curved passages between blades is impossible with 3-axis tools.
5-axis advantage: Long, tapered tools with 5-axis motion reach deep between blades to machine the airfoil surfaces and fillets.

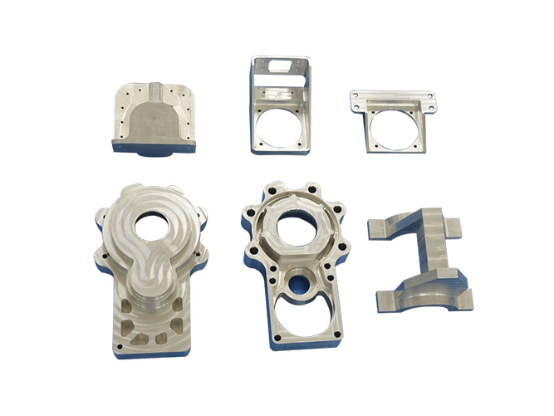

Aerospace brackets often have complex rib patterns, lightening pockets, and angled mounting faces. These features require access from multiple directions.
5-axis advantage: 3+2 axis machining positions the part to present each feature to the tool at the optimal angle, completing the part in one or two setups.
Used in air cycle machines and fuel pumps, impellers have curved vanes wrapped around a central hub. Machining the undercut vane surfaces requires full 5-axis motion.
5-axis advantage: Simultaneous 5-axis machining produces accurate vane profiles without visible step marks between passes.
Hydraulic and fuel manifolds have intersecting internal passages that meet at precise locations. Ports on multiple faces require drilling at compound angles.
5-axis advantage: All ports can be machined in one setup, ensuring that internal passages intersect exactly as designed.
Landing gear parts are machined from high-strength steel or titanium. They feature complex contours, deep bores, and precise thread forms.
5-axis advantage: Reduced setups mean fewer opportunities for misalignment between critical features like bore concentricity and bolt hole patterns.

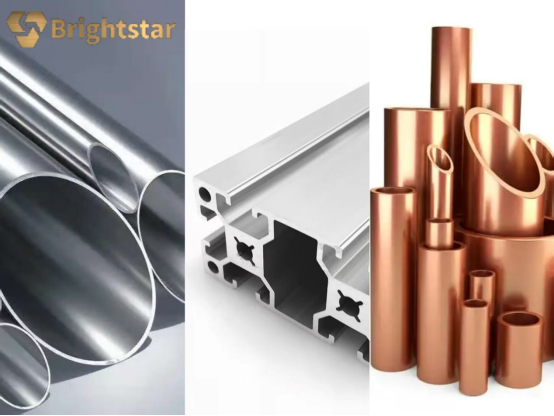

5-axis aerospace CNC machining must handle the same difficult materials as conventional machining, but the continuous motion adds additional considerations.
Aluminum is widely used for airframe components. It machines easily, but thin-wall sections can vibrate.
5-axis considerations: High spindle speeds (12,000–20,000 RPM) with light radial engagement. Use of trochoidal toolpaths to manage chip loads.
Titanium is used for high-stress components where strength-to-weight ratio matters. It work-hardens rapidly and generates significant heat.
5-axis considerations: Low cutting speeds (40–80 m/min), high-pressure coolant (1,000+ psi), and rigid workholding. 5-axis positioning allows the tool to cut with a constant engagement angle, reducing heat concentration.
These materials maintain strength at extreme temperatures but are extremely difficult to machine. Tool life can be measured in minutes.
5-axis considerations: Ceramic or CBN inserts for roughing; high-pressure coolant directed at the cutting zone; climb milling only; avoid recutting chips. The continuous motion of simultaneous 5-axis machining helps distribute tool wear evenly.
Stainless steels work harden and can cause built-up edge. Precipitation-hardening grades (17-4PH) are machined in the annealed condition and then heat treated.
5-axis considerations: Sharp positive rake tools; consistent feed rates (no dwelling); adequate coolant. 5-axis positioning allows the tool to approach from the most favorable direction, reducing cutting forces.
Precision and Tolerances in 5-Axis Aerospace Machining
Aerospace components demand precision that exceeds most other industries. 5-axis CNC machining for aerospace routinely achieves tolerances that would be challenging on 3-axis equipment.
Feature Type | Typical Tolerance | Notes |
Airfoil profile | ±0.03 mm | Requires simultaneous 5-axis |
Bearing bore diameter | ±0.005 mm | Single setup ensures concentricity |
Hole position (true position) | ±0.01 mm | 3+2 axis drilling |
| Surface finish (aerodynamic surfaces)
| Ra ≤ 0.4 µm | Achieved with finishing passes |
Wall thickness (thin-wall sections) | ±0.05 mm | 5-axis reduces deflection |
Thread location | ±0.1 mm | Acceptable for most applications |
Concentricity (stacked bores) | 0.005 mm | Single setup eliminates misalignment |
Reduced setups: Every time a part is moved to a new setup, alignment errors are introduced. 5-axis machining often completes a part in one or two setups instead of five or six.
Shorter tools: Because 5-axis machines can tilt the part or tool, shorter, more rigid tools can reach deep features. Shorter tools deflect less.
Better chip evacuation: The ability to orient the tool for optimal chip flow reduces recutting and surface damage.
Thermal stability: Completing the part in fewer setups means less time between operations, reducing thermal expansion effects.
The software driving a 5-axis machine is as important as the machine itself. 5-axis CNC machining for complex aerospace components requires advanced CAM (Computer-Aided Manufacturing) programming.
Simultaneous 5-axis toolpaths: For turbine blades, blisks, and impellers. The CAM system must generate smooth, collision-free tool motion while maintaining constant tool engagement.
Tool axis control: The programmer defines how the tool tilts relative to the surface. Options include lead/lag angle, tilt away from walls, and fixed angle.
Collision avoidance: The CAM software must check for collisions between the tool holder, spindle, and workpiece throughout the entire toolpath.
Machine simulation: Before cutting metal, the program is tested in a virtual machine environment to verify motion and detect errors.
Toolpath optimization: For difficult materials like Inconel, toolpaths are optimized to maintain constant chip load, reduce sudden direction changes, and avoid sharp corners that cause tool stress.
Swarf machining: The side of a cylindrical tool is used to cut vertical or near-vertical walls. This is efficient for compressor blade surfaces.
Flowline machining: The tool follows the natural curvature of the surface. Ideal for turbine blades and aerodynamic contours.
Morphing between curves: The toolpath transitions smoothly between two guide curves. Used for variable-pitch impeller vanes.
Parallel to multiple curves: The toolpath follows a pattern that blends between multiple reference curves.
The complexity of 5-axis machined aerospace components requires equally sophisticated inspection methods.

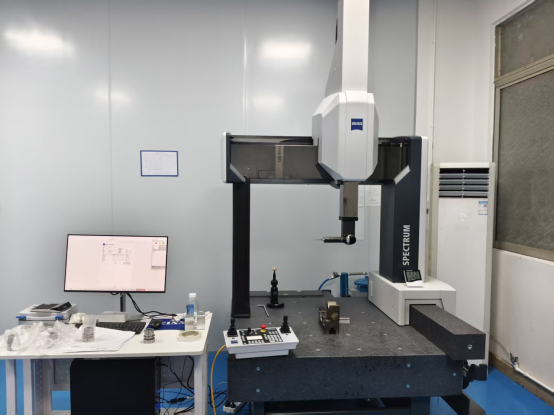

CMM (Coordinate Measuring Machine): A touch-probe or laser-scanning CMM measures critical dimensions, surface profiles, and positional tolerances. For airfoils, a scanning CMM generates point clouds for comparison to CAD models.
Optical measurement: For small features, threads, or delicate edges that cannot be touched with a probe.
Surface profilometer: Measures surface finish (Ra, Rz) on aerodynamic surfaces and bearing fits.
Non-destructive testing (NDT): Dye penetrant inspection for surface cracks; radiographic inspection for internal defects; ultrasonic for subsurface flaws.
Each batch of 5-axis machined aerospace components requires comprehensive documentation:
· Certificate of Conformance (C of C)
· Material test reports (MTRs) with heat numbers
· First article inspection (FAI) per AS9102
· CMM inspection report (with CAD comparison)
· Special process certifications (heat treat, coating, NDT)
· Traceability from raw material to finished part
At Brightstar, we maintain full digital records for every aerospace component we machine.
Understanding when 5-axis is necessary versus when 3-axis is sufficient helps with cost-effective decision making.
Criteria | 3-Axis Machining | 5-Axis Machining |
Best for | Prismatic parts, flat features, simple contours | Turbine blades, blisks, complex freeform surfaces |
Number of setups | 3–10 typical | 1–2 typical |
Accuracy potential | Good (±0.01 mm) | Excellent (±0.005 mm or better) |
Surface finish on contours | May show step marks | Smooth, continuous |
Undercut capability | None (requires repositioning)
| Yes, with tilted tool |
Angled holes | Requires angle fixtures or multiple setups | One setup, any orientation |
Tool length required | Long tools for deep features | Short tools (part tilts) |
Programming complexity | Moderate | High |
Machine cost | Lower | Higher |
Per-part cost (simple parts) | Lower | Higher (overkill) |
Per-part cost (complex parts) | Higher (many setups) | Lower (one setup) |
· The part has compound-curve surfaces (turbine blades, impellers)
· Features are located on multiple faces at compound angles
· Deep undercuts or pockets exist with vertical walls
· Tight tolerances between features on different faces
· Surface finish requirements are critical (Ra ≤ 0.4 µm)
· The part is made from difficult materials (titanium, Inconel)
· Simple brackets with flat faces
· Parts where all features are accessible from the top
· Low-precision requirements (±0.05 mm or looser)
· Prototype parts where setups are acceptable
Many aerospace buyers assume that 5-axis CNC machining is always more expensive. This is not necessarily true for complex components.
· Machine hourly rate: 5-axis machines cost more per hour than 3-axis machines
· CAM programming: 5-axis programs take longer to create and verify
· Tooling: Specialized toolholders and shorter tools may be required
· Fixturing: Simple fixtures (often just a vise) are sufficient because the part is repositioned by machine
· Fewer setups: Less labor time repositioning parts
· Less fixturing: No need for expensive angle plates or custom fixtures
· Faster delivery: Reduced lead time from fewer setups
· Better accuracy: Less scrap from misalignment errors
· Shorter tools: Lower tooling cost and longer tool life
A complex turbine blade requires 5 setups on a 3-axis machine versus 1 setup on a 5-axis machine
Cost Element | 3-Axis (5 setups) | 5-Axis (1 setup) |
Machine time | 4 hours | 2.5 hours |
Setup labor | 2.5 hours | 0.5 hours |
Fixturing cost | $800 (custom fixtures) | $50 (simple vise) |
Scrap rate (misalignment) | 8% | 2% |
Total part cost (50 pcs) | Higher | Lower |
For complex aerospace components, 5-axis machining is often more cost-effective despite higher machine rates.
Q1: What is the difference between simultaneous 5-axis and 3+2 axis machining?
Simultaneous 5-axis moves all five axes at the same time, following a continuous toolpath. This is required for turbine blades, impellers, and freeform surfaces. 3+2 axis (positional 5-axis) uses the rotary axes to position the part at a compound angle, then locks them while machining with three axes. This is sufficient for angled holes, undercuts, and multi-face features.
Q2: Can 5-axis machining achieve tighter tolerances than 3-axis?
Yes. Because the part can be completed in one or two setups, there are fewer opportunities for alignment errors between features. Brightstar routinely holds ±0.005 mm on critical features with 5-axis machining.
Q3: What is the maximum part size for 5-axis aerospace machining?
This depends on the specific machine. Brightstar's 5-axis CNC mills accommodate parts up to 800 mm in diameter and 500 mm in height. For larger structural components, we use alternative strategies or larger-capacity machines. Contact us with your specific envelope requirements.
Q4: Is 5-axis machining necessary for all aerospace components?
No. Simple brackets, spacers, and flat parts are often more economical on 3-axis machines. 5-axis is essential for components with compound curves, deep undercuts, or features on multiple faces at compound angles.
Q5: Can you machine Inconel 718 on a 5-axis machine?
Yes. Brightstar regularly machines Inconel 718, Inconel 625, Waspaloy, and other superalloys on our 5-axis CNC mills. We use high-pressure coolant (1,500 psi), ceramic inserts for roughing, and optimized toolpaths to manage heat and tool wear.
Q6: How do you ensure collision-free toolpaths on complex aerospace parts?
We use advanced CAM software with full machine simulation. Every toolpath is tested in a virtual environment that includes the machine model, tool holder, and workpiece fixture before any metal is cut.
Q7: What surface finish can you achieve on turbine blades?
On aerodynamic surfaces, we achieve Ra ≤ 0.4 µm with 5-axis finishing passes. For critical applications requiring even finer finishes, we can perform secondary polishing or flow finishing.
Q8: Do you provide first article inspection (FAI) for aerospace components?
Yes. Every new aerospace part receives an AS9102-compliant first article inspection, including ballooned drawings, characteristic reports, and material verification.
Q9: What is your typical lead time for 5-axis aerospace components?
For complex 5-axis components, typical lead time is 3–4 weeks for first articles, including programming, fixturing, machining, and inspection. Production lead times depend on quantity. Rush service is available for critical projects.
Q10: Do you have NADCAP certification for 5-axis machining?
Brightstar maintains AS9100D certification and NADCAP accreditation for conventional machining. We are regularly audited by aerospace primes and tier-1 suppliers.
Challenge: An aerospace tier-1 supplier needed a titanium (Ti-6Al-4V) turbine housing with complex internal passages, angled mounting faces, and tight bore tolerances. The part required 7 separate setups on a 3-axis machine, with alignment issues causing a 12% scrap rate.
· Process: Simultaneous 5-axis machining
· Setup: Single operation (part loaded once)
· Tooling: Short carbide tools with AlTiN coating
· Coolant: High-pressure (1,500 psi) through-spindle
· Programming: 5-axis flowline toolpaths for internal passages
· Setups reduced from 7 to 1
· Scrap rate reduced from 12% to 2%
· Lead time reduced from 6 weeks to 3 weeks
· Concentricity improved from 0.015 mm to 0.005 mm
· Surface finish on internal passages improved from Ra 1.2 µm to Ra 0.5 µm
· Customer approved full production order of 200 units
The technology continues to evolve. Here are trends affecting 5-axis CNC machining for complex aerospace components.
Robotic part loading and pallet changers allow 5-axis machines to run unattended overnight and on weekends. For long-cycle aerospace components, this reduces cost per part.
3D printing near-net shapes of expensive superalloys, followed by 5-axis finishing, reduces material waste. This is especially valuable for titanium and Inconel components.
Probes mounted directly in the 5-axis machine measure critical features during the machining cycle. The machine can automatically compensate for any detected variation.
New CAM algorithms optimize toolpaths for specific materials and machine dynamics, reducing cycle times by 20–30% for difficult-to-machine alloys.
Minimum quantity lubrication (MQL) and cryogenic machining (liquid nitrogen) are being adopted for titanium and Inconel to reduce coolant use and improve tool life.
Aerospace companies choose Brightstar because we combine advanced 5-axis technology with aerospace-grade quality systems.
Our 5-axis aerospace capabilities include:
· AS9100D certified quality management system
· NADCAP accredited for conventional machining
· Simultaneous 5-axis CNC mills with high-pressure coolant
· 3+2 axis machining for positional applications
· CAM programming optimized for titanium and superalloys
· In-process probing for adaptive machining
· CMM inspection with CAD comparison
· Full traceability and AS9102 FAI documentation
· 10+ years of aerospace component experience
We work with aerospace primes, tier-1 suppliers, and defense contractors worldwide.
Ready to Explore 5-Axis Machining for Your Aerospace Components?
Whether you need turbine blades, structural housings, or complex manifolds, Brightstar has the 5-axis expertise and certifications to deliver.
Email Amy: amy@brightstarprototype.com
Call or WhatsApp: +86 13750105351
Send us your CAD files (STEP, IGES, or native SolidWorks) and specifications for a free 5-axis feasibility review and quote within 24 hours. Let us show you how 5-axis technology can improve your aerospace components.
Brightstar – 5-Axis CNC Machining for Complex Aerospace Components. Precision. Complexity. Certified.
