3D printing vs. CNC machining: Which is better for prototyping and end-use parts?

In today's manufacturing industry, 3D printing and CNC machining are two important production methods, each showing unique advantages and application scenarios. Especially in prototyping and end-use part manufacturing, they have become the focus of many companies and engineers.

3DP vs. CNC machining technology

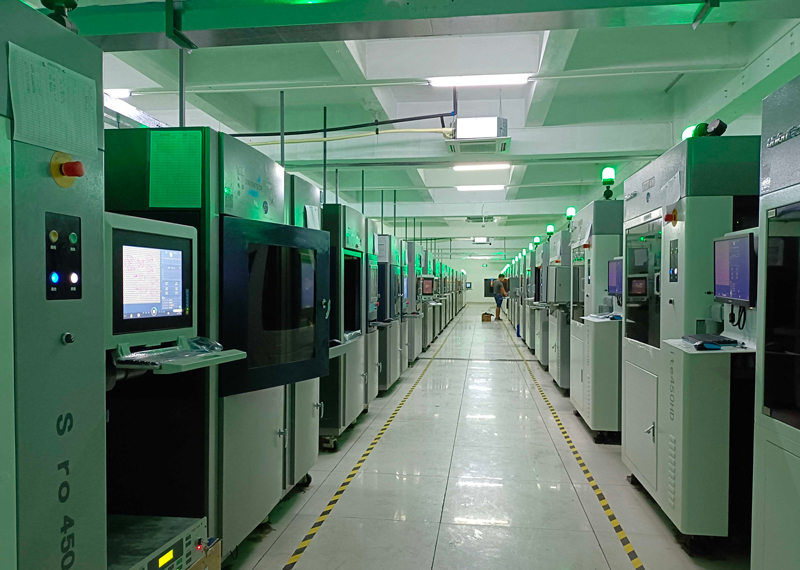

3D printing, which belongs to the category of additive manufacturing (AM), has the advantage of being able to achieve highly complex geometric shapes. However, the dimensional accuracy of 3D printing is slightly lower than that of CNC machining, and the mechanical properties of the printed parts are also slightly inferior. The initial setup cost is lower than that of CNC machining.

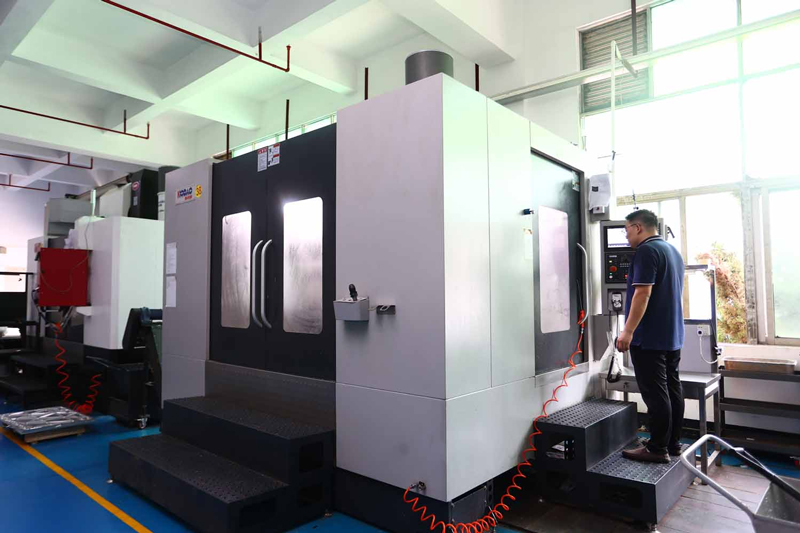

CNC machining is a common subtractive manufacturing technology. CNC machining has excellent repeatability, high precision and good surface effects, and can meet strict tolerance requirements. Its machining size range is wide, and both large mechanical parts and tiny and fine parts can be accurately machined. Moreover, CNC machining has a wide range of materials to choose from, including metals, thermoplastics, etc., which can meet the diverse needs of different industries for material properties. Of course, CNC machining has relatively limited manufacturing capabilities for complex internal structures, and the cost is relatively high when producing in small batches.

In the early stages of prototyping, design plans often need to be frequently modified and improved. The rapid prototyping characteristics of 3D printing make it an ideal choice for this stage. For the prototyping of complex structures, 3D printing has obvious advantages. It can directly print integrated complex parts without tedious assembly, greatly saving time and cost. However, if the dimensional accuracy and surface quality requirements of the prototype are extremely high, 3D printing may be difficult to fully meet, and subsequent post-processing processes such as grinding and polishing are usually required to improve.

How to choose the right technology

● Part complexity: If the part has a highly complex geometry, 3D printing is a better choice; for parts with relatively simple shapes and high precision requirements, CNC machining is more suitable.

● Production quantity: When producing in small batches (usually less than 10-100), 3D printing may be more cost-effective; for medium to large batches (more than 100), CNC machining has more advantages in terms of cost and efficiency. If the production quantity reaches more than thousands, traditional processes such as injection molding may be more economical than 3D printing and CNC machining.

● Material requirements: CNC machining is widely used and mature in metal material processing, and can give full play to the performance advantages of metal materials; although 3D printing has continuously enriched material selection, it still lags behind CNC machining in terms of stability and cost of processing some high-performance metal materials.

● Precision and surface quality requirements: For parts with extremely high dimensional accuracy and surface quality requirements, CNC machining can provide more reliable guarantees; if the requirements for precision and surface quality are relatively low, and more attention is paid to the innovation and rapid realization of the design, 3D printing can meet the needs, and the surface quality can be improved through post-processing if necessary.

● Time requirements: If the project time is tight and prototypes or parts need to be obtained quickly, the rapid prototyping characteristics of 3D printing can deliver products in a short time, while the production cycle of CNC machining is relatively long, especially when complex programming and multi-process processing are involved.

In summary, 3D printing and CNC machining have their own advantages and disadvantages in prototyping and end-use parts manufacturing. Enterprises and engineers should weigh and choose the most suitable manufacturing technology based on specific part requirements, budgets, time constraints, production scale, etc. In some cases, the two technologies can even be used in combination to give full play to their respective strengths to achieve the best production solution and promote innovation and development in the manufacturing industry.
