When you need to machine a complex CNC part, you may face a critical choice: should you use a 3-axis machine or a 5-axis machine?
There is no standard answer to this question. 3-axis machining is less expensive but has limited complexity capability. 5-axis machining can handle almost any geometry, but equipment costs are higher and programming is more complex. Choose incorrectly, and your part may be impossible to machine, costs may spiral out of control, or you may pay too much for unnecessary precision.
So what exactly are the differences between 3-axis and 5-axis CNC machining? When should you choose 3-axis, and when must you use 5-axis? How large is the gap in cost and accuracy?
This article will provide a comprehensive comparison of these two mainstream machining methods from multiple dimensions, helping you make the best choice for your project needs.
Before diving into the comparison, it is important to understand the fundamental technical differences between the two.

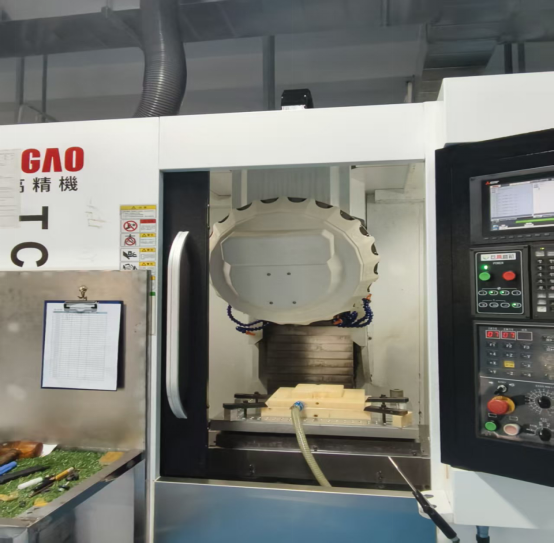

3-axis CNC machining is the most common machining method. The machine moves along three linear directions: X-axis (left to right), Y-axis (front to back), and Z-axis (up and down). The tool remains vertical at all times, and the workpiece is positioned by moving the worktable.
Simply put, 3-axis machining cuts from above the workpiece. To machine the sides or bottom, the operator must manually reposition the workpiece. It is like a standard milling machine that can only cut from the top down.
3-axis machining is suitable for parts with relatively simple shapes where all features can be accessed from the top, such as brackets, enclosures, and flat parts.

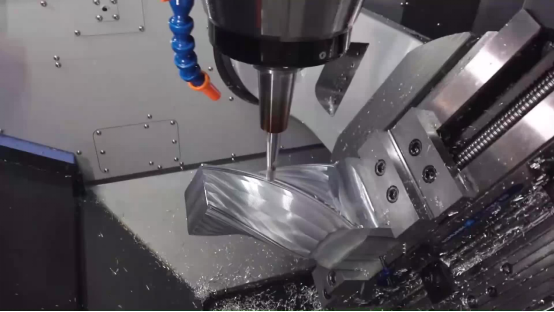

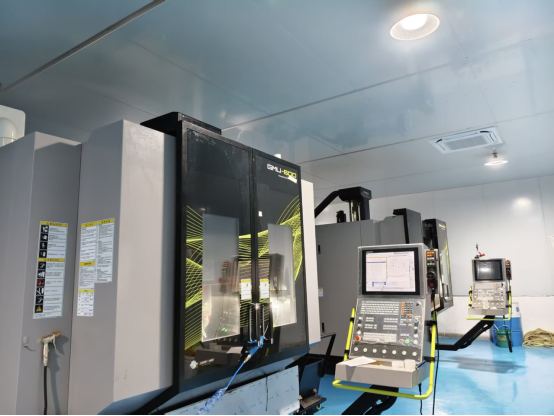

5-axis CNC machining adds two rotational axes to the three linear axes. Depending on the machine configuration, these two rotational axes can be the A-axis (rotation around X), B-axis (rotation around Y), or C-axis (rotation around Z).
This means the tool can approach the workpiece from almost any angle. The workpiece can be tilted and rotated, making previously hard-to-reach features easy to machine.
5-axis machining is further divided into two modes: simultaneous 5-axis and 3+2 positioning machining. Simultaneous 5-axis moves all five axes at the same time and is suitable for complex curved surfaces like turbine blades. 3+2 positioning machining first uses the rotational axes to position the workpiece at a compound angle, then locks them while machining with the three linear axes. This method is suitable for angled holes, undercuts, and other features. Although not as complex as simultaneous 5-axis, it can already handle many tasks that 3-axis cannot.
Once you understand the basic definitions, let us look at the specific differences in several key dimensions.
3-axis machining can only access the workpiece from the top, so all features must lie within the tool's vertical projection. Undercuts, side features, angled holes, etc., require multiple setups or may be impossible to machine.
5-axis machining can access features from any angle by tilting the workpiece or tool. This means undercuts, angled holes, complex curved surfaces, deep cavities, and other complex geometries can all be completed in a single setup. Some parts that require five to six setups on a 3-axis machine need only one setup on a 5-axis machine.
Each setup requires repositioning the workpiece. Each repositioning introduces potential positioning errors. Errors accumulate across multiple setups, causing inaccurate relative positions between features.
5-axis machining can complete most or all features in a single setup. This means the coordinate system needs to be established only once, and all features are machined under the same datum, significantly reducing error accumulation. For parts requiring precise positional relationships between multiple faces, the advantage of 5-axis machining is very clear.
In 3-axis machining, machining deep cavities or deep holes requires long tools. The longer the tool, the lower the rigidity and the more prone it is to chatter. To control chatter, cutting speed and feed rate must be reduced, which directly increases machining time and negatively affects surface finish.
5-axis machining allows short tools to access deep cavities from the side by tilting the workpiece or tool. Short tools have better rigidity, can use higher cutting parameters, machine faster, and produce better surface quality. Additionally, shorter tools are less expensive and have longer life.
For flat features, the surface quality difference between 3-axis and 5-axis is not significant. But for curved surfaces, the difference is obvious.
When machining curved surfaces with 3-axis, ball nose end mills are typically used, approximating the surface through layer-by-layer toolpaths. Tiny scallop marks remain between each toolpath. To reduce these marks, stepover distance must be decreased, which significantly increases machining time.
5-axis machining keeps the tool perpendicular to the surface, maintaining the optimal cutting angle. This produces smoother surfaces that typically do not require secondary polishing. For parts with aerodynamic requirements, such as turbine blades, 5-axis machining is almost the only choice.
3-axis machining programming is relatively simple. Most CAM software has mature 3-axis modules that engineers or programmers can learn relatively quickly.
5-axis machining programming is much more complex. It requires consideration of tool orientation, collision detection, rotational axis travel ranges, tool attitude control, and more. 5-axis programming requires specially trained programmers. Programming time for a complex part can be several to more than ten times that of 3-axis. This is one of the reasons 5-axis machining costs more.
3-axis machines have relatively low prices. A brand new industrial-grade 3-axis CNC milling machine costs between 50,000and50,000and150,000, with used equipment being cheaper. Machine hourly rates are typically between 50and50and80.
5-axis machines are much more expensive. A brand new 5-axis CNC milling machine typically costs between 200,000and200,000and500,000, with high-end models exceeding 1,000,000.Machinehourlyratesaretypicallybetween1,000,000.Machinehourlyratesaretypicallybetween100 and $200.
This is why the quote for the same part machined on a 5-axis machine will be higher. However, it is worth noting that if 5-axis machining significantly reduces machining time, the per-part cost may actually be lower.
Although not the most advanced technology, 3-axis machining is still the best choice in many scenarios.
If your parts are flat, bracket-style, or enclosure-style, and all features can be accessed from the top, 3-axis machining is completely sufficient. For example, a mounting plate with through holes and counterbores can be easily machined with 3-axis; there is no need for 5-axis.
If part tolerances are ±0.05mm or looser, 3-axis machining can fully meet the requirements. Properly calibrated 3-axis machines can achieve ±0.01mm or even higher precision, but the advantage of 5-axis is primarily in reducing accumulated errors from multiple setups, not in absolute precision of single positioning.
For high-volume simple parts, 3-axis machining is very economical. Dedicated fixtures can be designed for fast loading and unloading, even enabling unattended automated production. 3-axis machines have lower hourly rates, and for parts that do not require 5-axis complex functionality, 3-axis is the better choice.
If your project budget is limited, 3-axis machining can significantly reduce initial investment. Whether you are purchasing equipment yourself or outsourcing to a machinist, 3-axis machining costs are significantly lower than 5-axis.
In the early prototype phase of product development, using 3-axis machining to quickly and inexpensively validate design concepts is common practice. Only when the design is finalized and requires complex features that only 5-axis can machine should you consider upgrading to 5-axis.
Some parts cannot be machined with 3-axis at all. For other parts, 3-axis machining can do them but at extremely high cost. The following situations strongly favor using 5-axis machining.
Parts such as turbine blades, impellers, propellers, and complex mold cavities have complex freeform surfaces. These surfaces require the tool to maintain an optimal attitude at all times; otherwise, overcutting or substandard surface quality will occur. These parts can only be machined with simultaneous 5-axis.
If a part requires machining features on multiple faces, and those features have strict relative positional requirements, the advantage of 5-axis machining is very clear. In 3-axis machining, each repositioning introduces positioning errors, making it difficult to ensure precise alignment of features on multiple faces. 5-axis machining can complete all features in a single setup, eliminating setup errors.
If a part has very deep cavities or holes, 3-axis machining requires long tools, which are prone to chatter, resulting in poor surface quality and inaccurate dimensions. 5-axis machining can tilt the workpiece, allowing short tools to access deep cavities from the side, greatly improving machining quality and efficiency.
Undercuts are areas that are blocked by other features and cannot be accessed directly from the top. In 3-axis machining, undercuts typically require non-standard tools or additional setups. 5-axis machining can rotate the workpiece to expose undercut areas to the tool.
For difficult-to-machine materials such as titanium and Inconel, tool life is already short. If long tools are used to machine deep cavities, tool wear will be even faster. 5-axis machining allows the use of short tools, which have lower cutting forces and longer tool life. Although the hourly rate for 5-axis machines is higher, the savings in tooling costs and time may result in lower total cost.
There is no absolute answer to this question; it depends on the specific part. But we can provide a general decision framework.
When 3-Axis Machining Cost Is Lower
For simple parts that do not require multiple setups, 3-axis machining is clearly cheaper. For example, a simple aluminum bracket might take only 15 minutes on a 3-axis machine, but due to setup and programming complexity, it might take 30 minutes on a 5-axis machine. In this case, the per-part cost of 3-axis may be half or even less than that of 5-axis.
When 5-Axis Machining Cost Is Lower
For complex parts, the situation may be the opposite. Suppose a part requires five setups on a 3-axis machine, with total machining time of 4 hours. Due to multiple setups, the scrap rate is 8%. On a 5-axis machine, only one setup is needed, total machining time is 2.5 hours, and the scrap rate is only 2%.
Although the hourly rate for the 5-axis machine is higher, total machining time is shorter and scrap rate is lower. Calculating it out, the per-part cost of 5-axis is actually 20% to 30% lower than 3-axis. This is why many complex parts are more economical to machine on 5-axis machines.
Core Formula for Cost Decision-Making
When selecting a process, do not look only at hourly rate; look at total per-part cost. Total per-part cost includes: programming and setup cost, material cost, machining time cost, tooling cost, inspection cost, and scrap loss. Only by considering all these factors together can you make a correct economic judgment.
This question also requires specific analysis.
Single Feature Accuracy
For absolute accuracy of a single feature (such as the diameter of a hole or the flatness of a surface), the difference between 3-axis and 5-axis is not significant. A properly calibrated 3-axis machine can also achieve ±0.005mm accuracy. The advantage of 5-axis is not in this area.
Positional Accuracy Between Multiple Features
The true accuracy advantage of 5-axis is in the relative positional relationship between features on different faces. For example, the true position between a hole on the top face and a hole on the side face, or the concentricity of features on multiple faces.
In 3-axis machining, these features are completed in different setups, and errors from each setup accumulate. In 5-axis machining, all features are completed in a single setup using the same coordinate system, resulting in higher positional accuracy.
Curved Surface Accuracy
For complex curved surfaces, the accuracy of 5-axis machining is significantly better than 3-axis. When machining curved surfaces with 3-axis, scallop marks remain between ball nose end mill passes. Although these marks can be reduced by decreasing stepover, this increases machining time. 5-axis machining keeps the tool oriented optimally at all times, resulting in smoother surfaces.
Here is a real part case showing the actual differences between 3-axis and 5-axis.
Part Description: An aluminum structural part measuring approximately 200x150x80mm. It requires holes and slots on the top face, two side faces, and the bottom face. Two holes on the top face and two holes on the side face must maintain a true position of ±0.02mm relative to each other. There is an internal cavity 60mm deep.
· Four setups required
· Programming time: 4 hours
· Setup time: 2 hours
· Machining time: 55 minutes per part
· Tooling: Long tools required for deep cavity (prone to chatter, average surface quality)
· First article inspection: Found side hole to top hole true position deviation of 0.035mm (out of tolerance)
· Scrap rate: approximately 8%
· One setup
· Programming time: 8 hours (more complex)
· Setup time: 1 hour
· Machining time: 35 minutes per part (short tools, higher efficiency)
· Tooling: Short tools, less expensive, longer life
· First article inspection: all dimensions passed
· Scrap rate: approximately 2%
Final Per-Part Cost Comparison (quantity 50 parts):
· 3-axis: approximately $78
· 5-axis: approximately $72
Although 5-axis had higher programming cost and higher machine hourly rate, due to shorter machining time and lower scrap rate, the per-part cost was actually lower. When quantity increased to 100 parts, the cost advantage of 5-axis became even more significant.
Here is a simple decision process to help you determine whether to use 3-axis or 5-axis machining.
Step 1: Determine whether the part can be done with 3-axis
If all features of your part can be accessed from the top, with no undercuts, no angled holes, and no deep cavities, 3-axis can handle it perfectly. Choose 3-axis for the lowest cost.
Step 2: Determine whether 3-axis can do it but with difficulty
If the part requires multiple setups, each requiring fixture design and fabrication, and features on different faces have strict positional requirements, then 5-axis may be the better choice. Although 5-axis programming cost is higher, it eliminates fixture design and the time and errors of multiple setups.
Step 3: Determine whether 3-axis cannot do it at all
If the part has complex curved surfaces, deep cavities, undercuts, or very thin-walled structures, 3-axis may be completely incapable, or even if勉强 done, quality will not meet standards. Such parts must use 5-axis machining.
Step 4: Consider quantity and budget
If you are making only one or two prototypes and your machinist has 5-axis equipment, you may consider using 5-axis directly to avoid the hassle of multiple setups. For high-volume production where 3-axis can handle the job, 3-axis may be the more economical choice. But as shown earlier, for certain complex parts, high-volume production on 5-axis may actually be cheaper.
Q: Which has higher accuracy, 3-axis or 5-axis?
For absolute accuracy of a single feature, the difference is not significant. For positional accuracy between multiple features, 5-axis is clearly better because all features can be completed in a single setup.
Q: Is 5-axis machining always more expensive than 3-axis?
Not necessarily. For complex parts, 5-axis can reduce the number of setups, shorten machining time, and lower scrap rate, potentially resulting in lower per-part cost. It is best to analyze based on the specific part.
Q: What if my machinist does not have 5-axis equipment?
If your part truly requires 5-axis machining, you need to find a machinist with 5-axis capability. Brightstar has 5-axis CNC equipment; please contact us for an evaluation.
Q: What is the difference between 3+2 and simultaneous 5-axis?
3+2 positioning first positions then machines, suitable for angled holes, undercuts, and similar features. Simultaneous 5-axis moves all five axes at the same time, suitable for complex curved surfaces like turbine blades. The cost and complexity also differ between the two.
Q: How do I know which process my part needs?
When unsure, the best approach is to consult a professional machinist. Brightstar offers free process evaluations. Based on your part drawing and requirements, we can recommend the most suitable machining solution.
3-axis and 5-axis CNC machining each have their advantages. Neither is absolutely better than the other.
3-axis machining has lower cost and simpler programming, making it the ideal choice for simple parts. 5-axis machining can handle complex geometries, reduce the number of setups, and improve positional accuracy, potentially being more economical for complex parts.
The key is to understand your part requirements and perform a comprehensive cost-benefit analysis. Do not blindly pursue 5-axis technology, but also do not choose 3-axis simply because of its lower price while ignoring the efficiency and quality improvements that 5-axis can bring.
Brightstar has both 3-axis and 5-axis CNC equipment and can recommend the most suitable machining solution based on your specific needs. Whichever process you choose, we will ensure high-quality delivery.
