In the field of CNC machining, the choice of materials directly determines the quality, performance and cost of the product. Whether it is the parts of precision instruments or the product shell in daily life, the right CNC machining materials are the key to realizing the function and value of the product. These materials have their own characteristics and uses. The choice of material depends on the design requirements and use environment of the product. During the design stage, you can choose different materials for machining according to the demands.


Brightstar Precision Prototype machining provides industrial manufacturing with accurate verification and display prototype models for global customers in new product design and development stage. Compared with other companies in the same industry, Brightstar ensures that the most advanced equipment is always used for processing. In terms of cost control, Brightstar can reduce processing costs by 10% - 20% for customers through process optimization and precise procurement, and our prices for the same specification are more attractive.

During CNC machining, aluminum exhibits excellent machinability. The lower hardness makes the cutting process smoother. Good thermal and electrical conductivity opens up a broad space for it in the electrical and electronic fields. In addition, aluminum has a very high recycling value, which is in line with the current concept of environmental protection and sustainable development.

Available CNC Machining Material

AluminumStainless SteelMold & Tool SteelMild & Alloy Steel
AL2024-T3301 SSMold steel D2Mild steel 1018
AL6082-T6316L SSMold steel P20Mild steel 1045
AL5052-H32302 SSMold steel S7Mild steel A36
AL7050-T6416 SSMold steel H13Alloy steel 4140
AL5083-T6303 SSMold steel SKD11Alloy steel 4340
AL7075-T617-4 SSTool steel O1
AL6061-T6304 SSTool steel A2
AL7075-T351316 SSTool steel A3
AL6061-T651440CSS

AL7075-T651

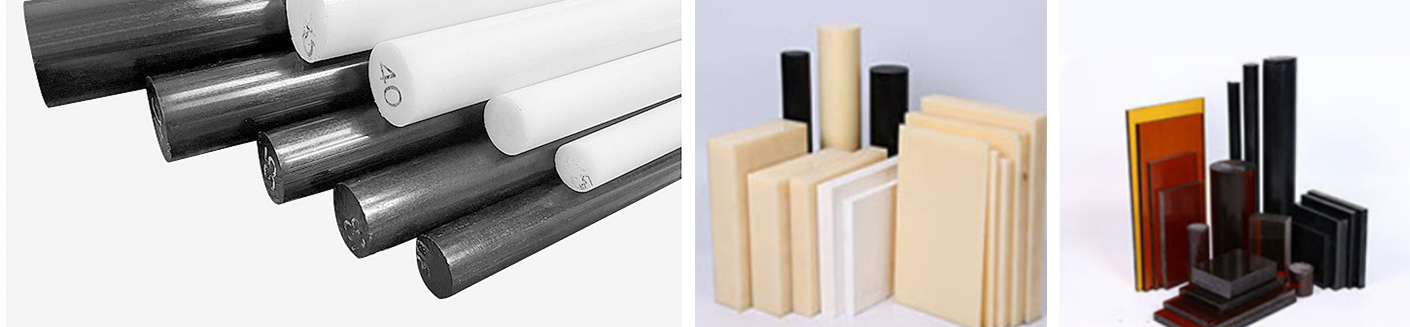

Plastic Material

Considering factors such as physical properties, mechanical properties, temperature resistance and processing performance, we have selected a variety of plastic materials suitable for CNC processing for your reference.


Material

Materials Tensile (MPA)Temperature Resistance(°C)

ABS(Acrylonitrile-butadiene-styrene)

30–50 -50°C   ~ 70°C
ABS-FR (Flame   RetardantABS)35–50-50°C~ 70°C
PC 55–75 -135°C ~135°C
PC-ABS(P+A)40–60-50°C ~ 70°C
PVC40–60-10°C ~60°C
PBT50–60(Glass fiber reinforced up to 200   MPa)-40°C ~ 150°C
PA6, PA66   (Nylon)70–90 (Glass fiber reinforced higher)-40°C ~ 120°C
POM60–70-40°C ~ 100°C
PPS60–80(After glass fiber reinforcement>150 MPa)-50°C~ 220°C
 PMMA50–77-40°C ~ 90°C
PEEK90–100 (Unenhanced)-60°C ~ 260°C
PTFE20–35-200°C ~ 260°C
HDPE20–30-50°C ~ 80°C
UHMWPE30–40 -150°C~ 80°C
Bakelite50–70-30°C ~ 150°C



Other CNC machining materials & 3D Printing Materials

MaterialsTensile Strength(MPa)Yield Strength(MPa)FeaturesTypical Application
Brass C360580290High strength and ductilityElectrical engineering,Machinery Manufacturing,Hardware
Brass H59≥294/Low cost, good cold processing performanceBuilding decoration,Electronic,etc
Brass H62372 - 540250 - 360Moderate strength, good plasticity, good corrosion resistanceInstrument,Building decoration,Electronic,etc
Copper C101200 - 250/Metal material with best electrical & thermal conductivityAerospace, Energy, Electronics & Electrical
Copper C110 220 - 250/Electrical and thermal conductivity is second only to C101, easy to oxidizeIndustrial equipment, electrical & electronics, transportation
Bronze C954650 - 750/Excellent mechanical properties and corrosion resistanceMarine engineering, energy and chemical industry, heavy industry
Magnesium AZ31B230 - 290150 - 200Excellent specific strength and damping performanceAerospace, 3C electronics, medical, etc.
Inconel 7181035725Excellent high temperature strength and creep resistanceAerospace, energy, chemical industry

3D Printing Materials

Materials9400 resinResin

High
toughness

resin

High

temperature

resin

High

temperature

resin

Nylon

PA12

Nylon

Red

Wax

Flexible

Resin

AluminumStainless steel
ColorFaint yellowTransparentTransparencyYellowGreyBlackWhite
Thermal deformation temperature(℃)40-5040-5040-507080-100120-150120-150
Min Wall-thickness0.6 mm0.6mm0.6mm0.6mm0.6mm0.5 mm0.5 mm0.5 mm0.8 mm0.5 mm0.5 mm
Min Hole Diameter1 mm1 mm1 mm1 mm1 mm1.2 mm1.2 mm1.2 mm2 mm1.5 mm1.5 mm
Print height0.1 mm/0.05 mm0.1 mm0.1 mm0.1 mm0.1 mm0.08 mm0.12 mm0.016 mm0.1 mm
Printing error3‰3‰3‰3‰3‰2.5‰2.5‰5‰5‰5‰5‰

Vacuum Casting (Urethane Casting) Materials

Material SimulationSupplierMaterialFlexural Modulus (MPA)Strength ShoreTensile Strenght (MPA)Product ColorShrinkage
ABSHei-CastingPU8150179080-85 shD74Amber, White and Black1
ABSHei-CastingPU8260226080-85 shD69White And Non-Transparence1
ABSAxsonUP4280220081 shD85Dark Amber1
ABSAxsonPX330340087 shD_White1
PS chocsAxsonPX100150074 shD70White and Black1
PPAxsonUP5690600-130075-83 shD75-85White and Black1
PMMAAxsonPX522HT210087 shD75Clear1
PMMAAxsonPX521HT220087 shD75Clear1
PCAxsonPX527220082 shD90Clear1
PS/ABSHei-CastingPX223HT230080 shD120Black1
RubberHei-CastingPU8400/20-90 shD/Milky white/Black1
